XCMG loader 5 ton ZL50GN / LW500FN / LW500KN Wheel Loader price
FOB for Loader Reference Price:Get Latest Price
$25000.00-$50000.00 1 / EA (Min. Order)
Model: LW500FN/ZL50GN/LW500KN
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG loader 5 ton ZL50GN / LW500FN / LW500KN Wheel Loader price
XCMG loader 5 ton ZL50GN / LW500FN / LW500KN Wheel Loader price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details

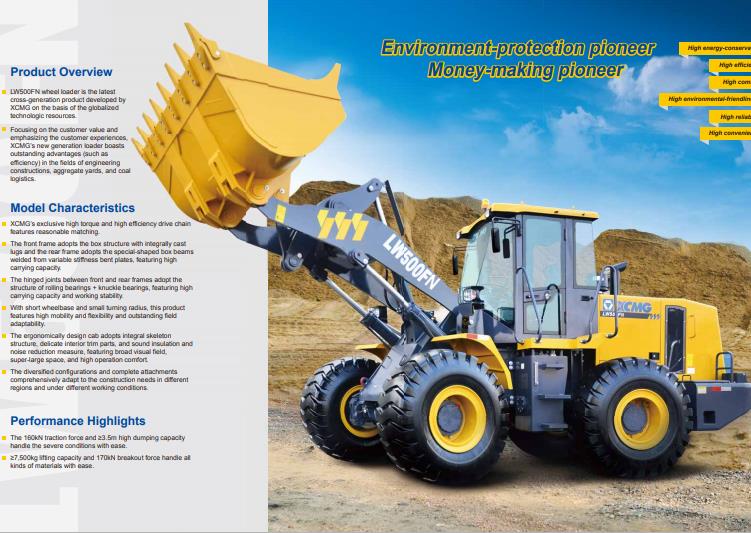

  • Product Brochure
Summary
  • Rated Load:5 ton
  • Type:wheel loader
  • Place of Origin:Xuzhou, China
  • Model Number:LW500FN/LW500KN
  • Brand Name:XCMG
Details
  • weight:1.000kg
  • Engine Brand:WEICHAI
  • Rated Load:3-5 ton
  • Bucket Capacity:2.5 - 3.5m³
  • Bucket capacity:2.5~4.5m3
  • Dump clearance at maximum lift:3150~3560

XCMG loader 5 ton ZL50GN / LW500FN / LW500KN Wheel Loader price

XCMG loader 5 ton ZL50GN LW500FN LW500KN Wheel Loader.



In recent years, XCMG made numerous breakthroughs in loader technology development and continously make history in loader industry. Implementation of"service throughout full life cycle" brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.

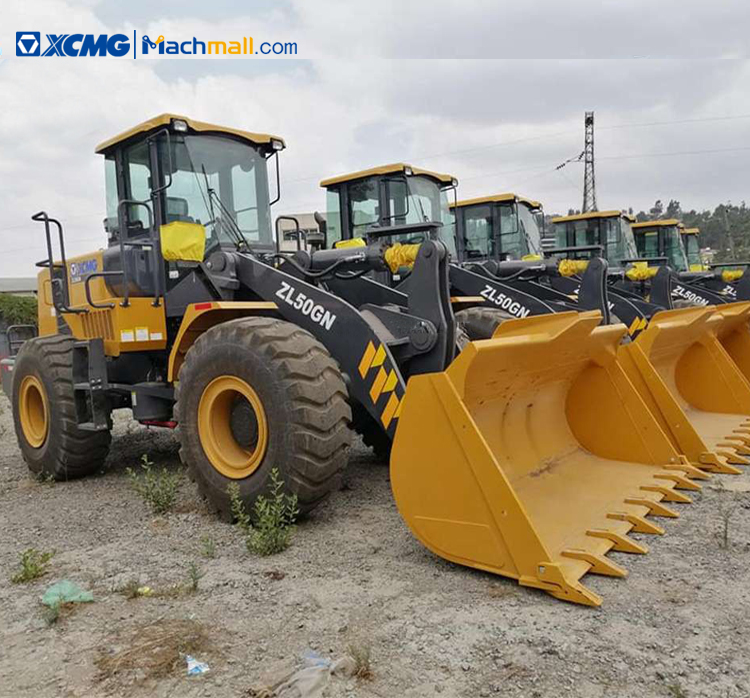

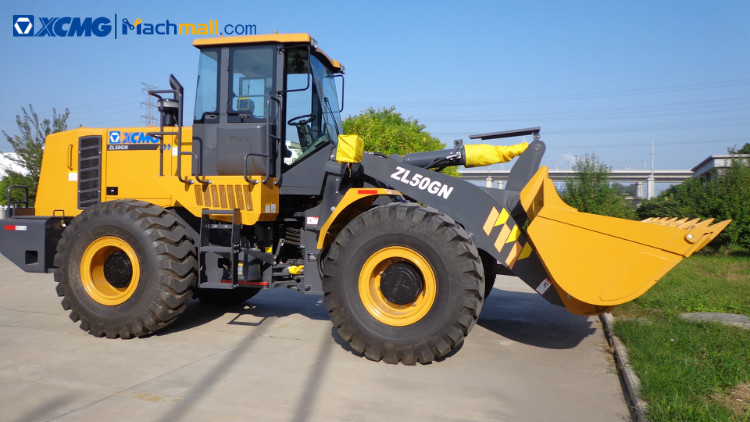

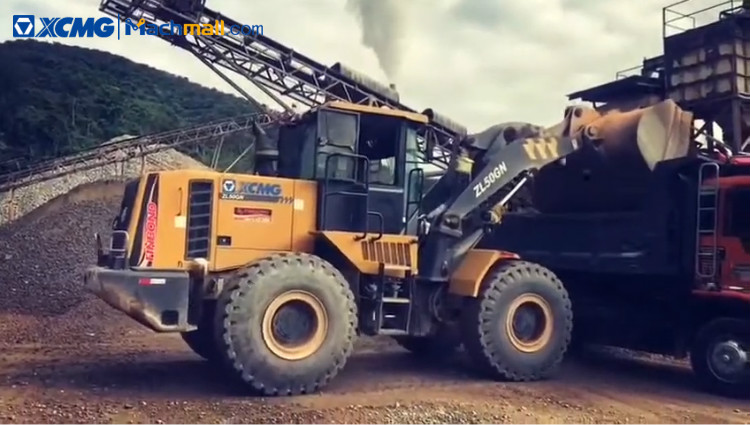

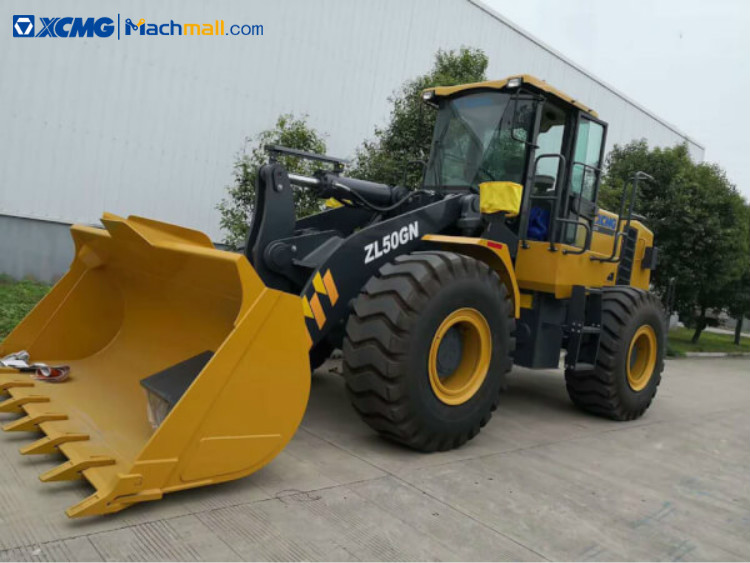

ZL50GN performance highlights:

ZL50GN is the best seller of XCMG 5 tonnage wheel loader, easy maintenance, modestly priced, wide application.



1. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.

2. The 160kN traction force and ≥3.78m high dumping capacity handle the severe conditions with ease.

3. ≥7,500kg lifting capacity and 175kN breakout force handle all kinds of materials with ease.

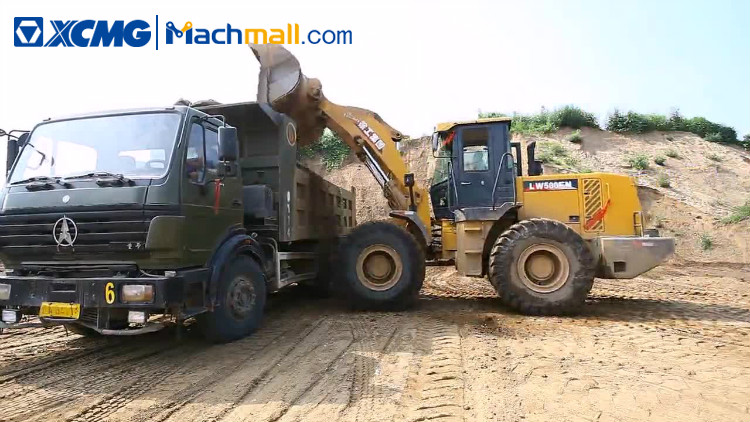

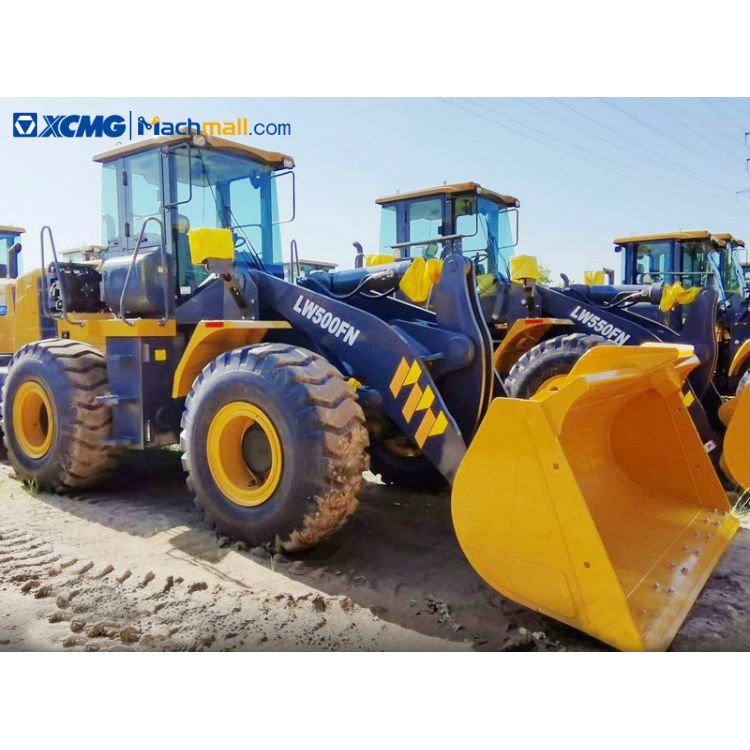

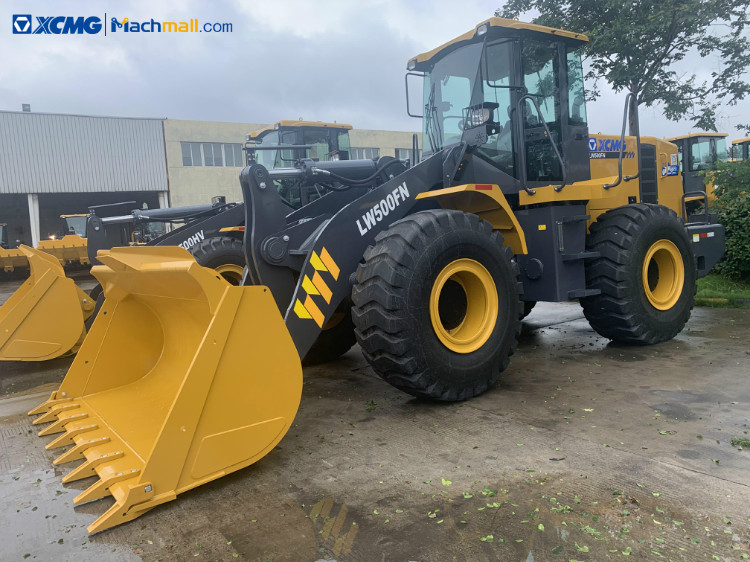

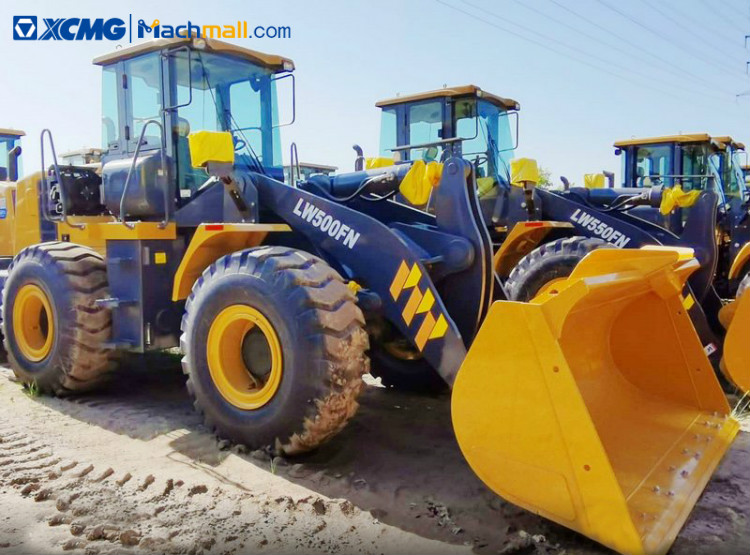

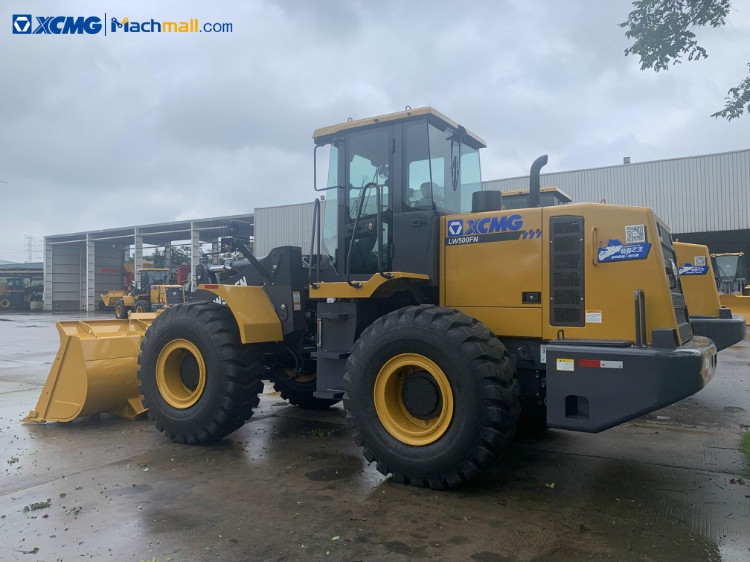

LW500FN performance highlights:

XCMG 5 ton wheel loader LW500FN,low price,suitable for light material.



1. The diversified configurations and complete attachments.

2. The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.

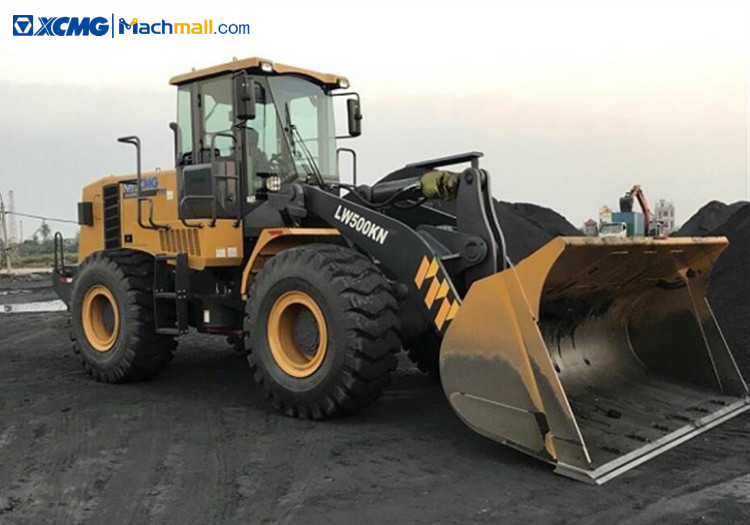

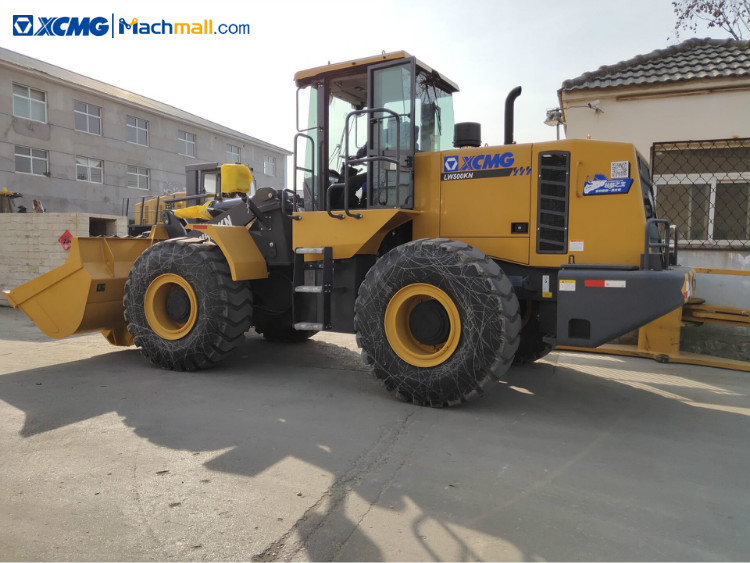

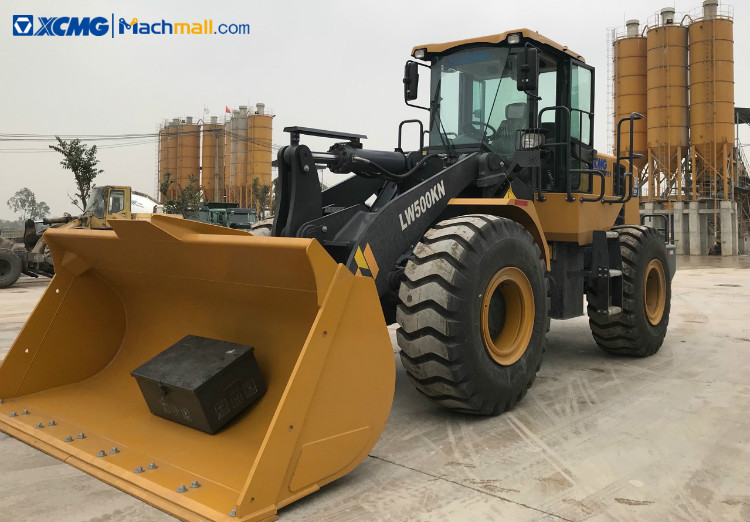

LW500KN performance highlights:

LW500KN wheel loader is suitable for heavy loads under rock conditions and so on ; higher price than ZL series and FN series, high rate of return on investment.



1.The working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

2.The large rock bucket with capacity of 3M3 is improved in terms of the work efficiency and adaptation. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.



XCMG loader 5 ton ZL50GN / LW500FN / LW500KN Wheel Loader price



Description

Unit

lw500fn

zl50gn

lw500kn

Rated operating load

kg

5000

5000

5000

Bucket capacity

2.5~4.5

2.5~4.5

2.7~4.5

Machine weight

kg

16900

17500

17200

Dump clearance at maximum lift

mm

3150~3560

3100~3780

3150~3560

Reach at maximum lift

mm

1100~1190

1100~1220

1100~1190

Wheel base

mm

2960

3300

3300

Tread

mm

2250

2250

2250

Height of hinge at maximum lift height

mm

4112

4112

4112

Working height(fully lifted)

mm

5510

5510

5407

Max.breakout force

kN

170

175

170

Hydraulic cycle time-raise

s

≤6

≤6S

≤6.5 s

Total hydraulic cycle time

s

≤10.5

≤11S

≤11 s

Min. turning radius over tyres

mm

5950

5925

5925 mm

Articulation angle

°

35

38

30 º

Gradeability

°

28

30

45 º

Tyre size



23.5-25-16PR

23.5-25-16PR

23.5-25-16PR

Overall machine dimension L×W×H

mm

7910×3016×3515

8225×3016×3515

8870*3000*3350

Model



WD10G220E21

SC110B220G2B1

WD10G220E21

Rated Power

kW

162

162

162
