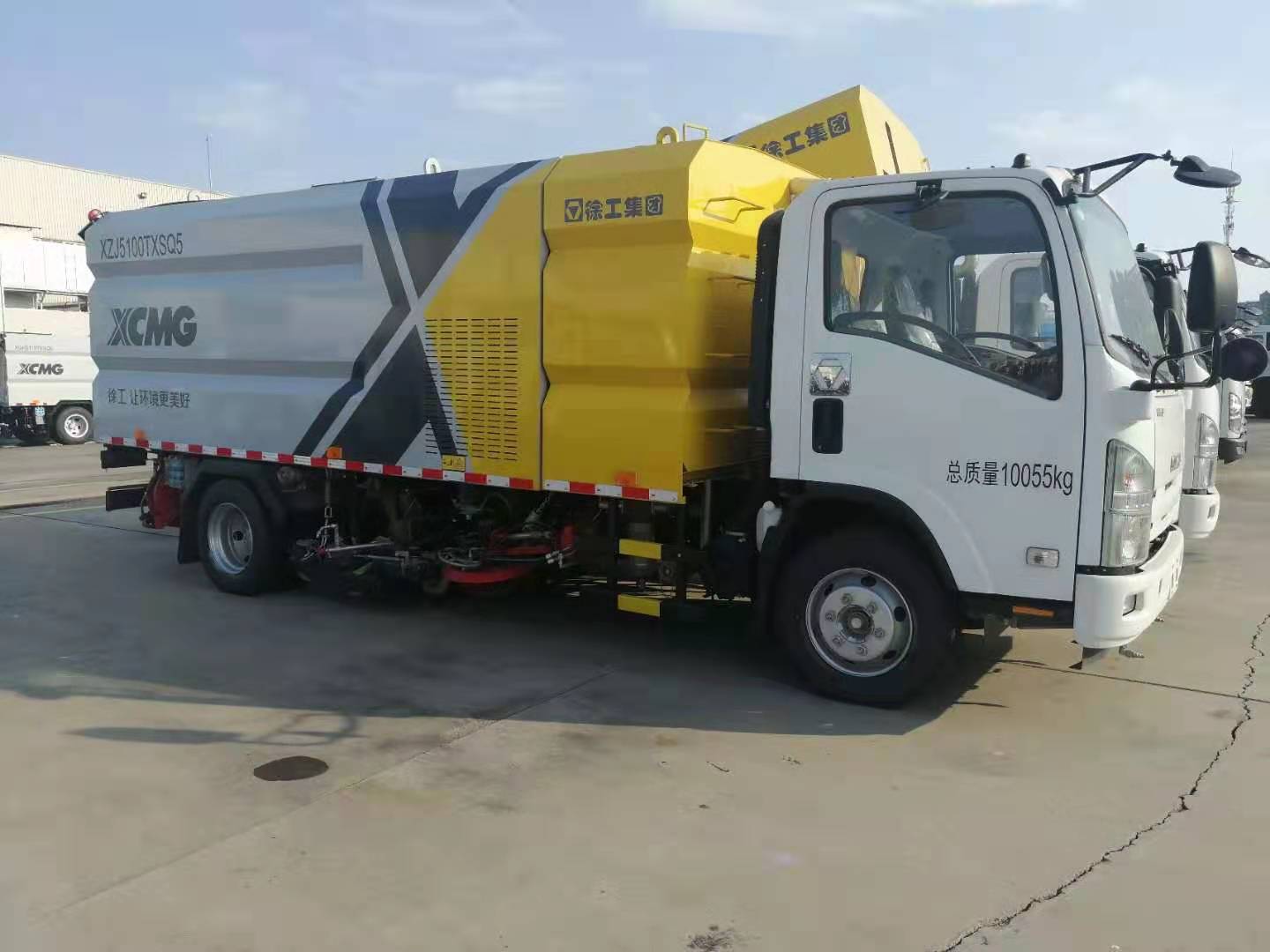

XZJ5070TXSQ5 Sprinkler-Sweeping Truck

1. 9-26No.6.3C high-pressure centrifugal fan isused, with high efficiency and high blast capacity (maximum blast capacity:12,000m³/h).

2. The mode of vertical brushing (with the unifiedtype as the cleaning sweeper truck in the Plant) is adopted for the sweepingplate. Compared with the sweeping plate branded Zoomlion and FLM, this platehas more functions. It is capable of both road sweeping and curb cleaning. Atthe same time, it also continues the structure of the sweeping plate in the Plantand makes great improvement to the universality.

3. This truck is provided with diversifiedfunctions including pavement cleaning, pavement sweeping, curb cleaning, curbvertical face brushing, spraying and aspirating. Multiple operating modes canbe realized, such as “full washing & sweeping”, ”left washing &sweeping”, “right washing & sweeping”, “full sweeping”, “left sweeping”,“right sweeping” and “pure absorption”. When it is necessary for spraying andaspirating, the spraying device can be started for spraying and aspirating.

4. An auxiliary engine is used to exclusivelydrive the fan and the hydraulic system, making sure continuous work in thedriving process and the continuity in the sweeping process.

5. The structure of “two sweepers in the middle +long suction nozzle in the middle + V-shaped spray lance” is adopted, whichimproves the sweeping efficiency and makes it convenient for adjustment andmaintenance of the cleaning device and the suction nozzle. It is of goodtrafficability while being transferred to another site.

6. The sweeping plate is provided with thefunction of automatic avoidance for protection and automatic resetting in caseof an obstacle. While encountering an obstacle, it will retract and resetautomatically after crossing the obstacle.

7. A single-layer stainless steel structure isadopted for the dustbin. It is turned over for unloading. Besides, it is alsoequipped with a high liquid level alarm device and a self-cleaning device.

8. The auxiliary engine is transformed. Besides,another PTO port is increased to directly drive the hydraulic pump. The beltdrive is cancelled. After these measures, the transmission efficiency isimproved, the user costs are reduced, and the number of fault points islowered.

9. Effect of multiple operating modes

Besides a conventionaloperating mode, this product is also provided with such functions aslow-pressure washing, operation with portable spray gun, spraying &aspirating and curb cleaning. Multi-purposes are realized.

Items			Unit	XZJ5070TXSQ5
Chassis Model			—	Qingling QL1070A5KAY
Engine Model			—	Isuzu 4KH1-TCG51
Rated power of engine			Kw	88kw/2900r/min
Working performance	Cleaning operation	Pavement sweep width	m	3
		Washing speed	km/h	3~20
		Washing water rated pressure	MPa	10
		Washing water rated flow	L/min	80
	Cleaning operation	Sweep width	m	3
		Cleaning speed	km/h	3~20
		Max. cleaning capacity	m2/h	60000
		Discharge angle	°	≥45
Clear water tank total volume			m³	4.6
Trash can effective volume			m³	3
Driving performance	Maximum speed (full load)		km/h	105
	Maximum climbing angle		%	30
	Braking distance (full load)		m	≤10
	Minimum turning diameter		m	16
Quality parameter	Vehicle curb quality		kg	5660
	Maximum total mass		kg	7300
Structure size	Dimensions (L × W × H)		mm	6700×2090×2430
	Wheelbase		mm	3815
	Wheel truck	Front wheel	mm	1504
		rear wheel	mm	1425
	Approach angle		(°)	24
	Departure angle		(°)	16
	Departure angle		mm	150
