XCMG Official Motor Grader GR1605 for sale

  • XCMG Official Motor Grader GR1605 for sale

Share:
XCMG Official Motor Grader GR1605 for sale
FOB for Road Mach Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Shipping
Payment Terms:
XCMG Official Motor Grader GR1605 for sale
  • Summary
  • Details
Summary

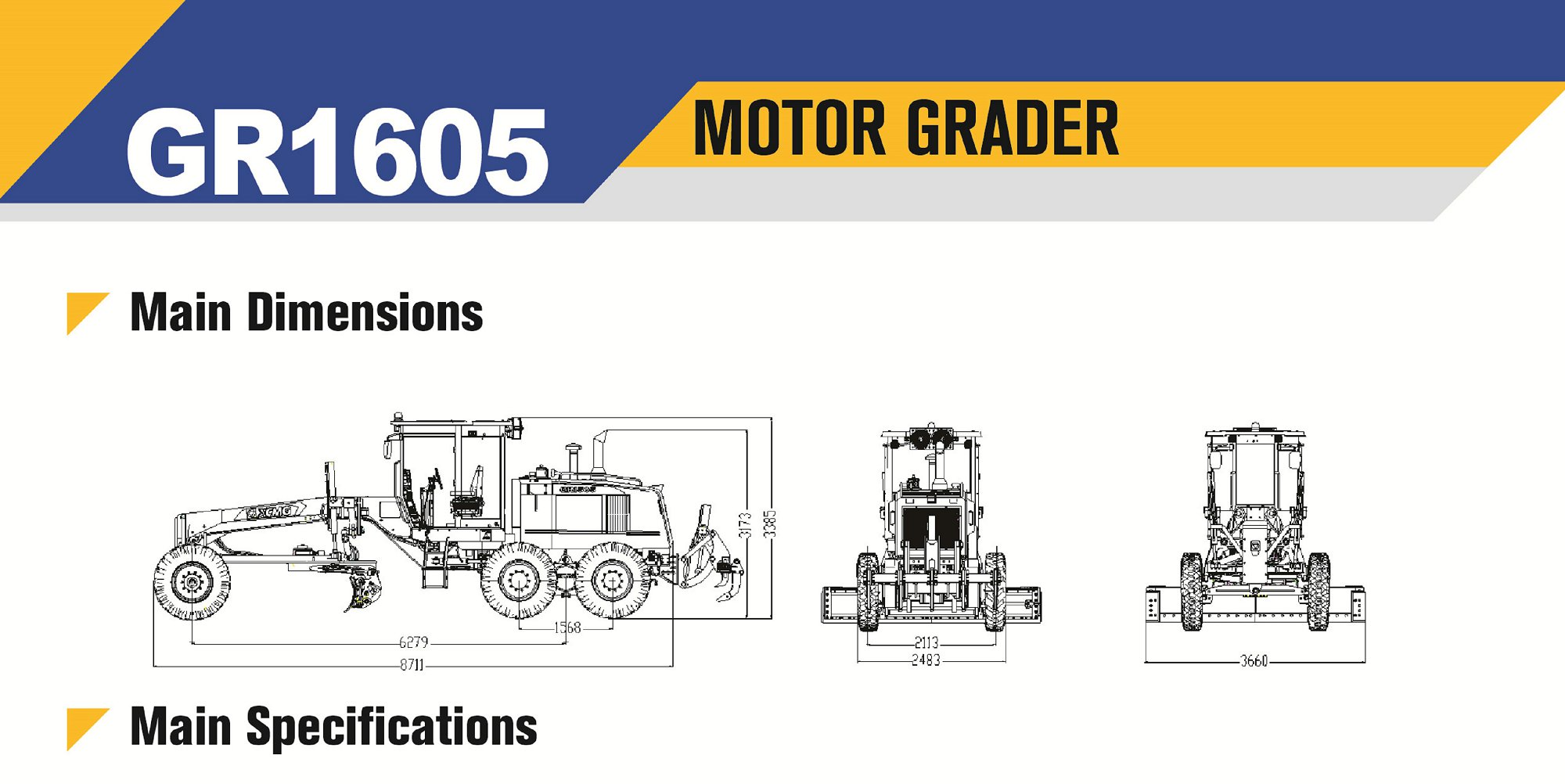

  • Dimension(L*W*H):8711 x 2483 x 3385mm
  • Weight:13500kg
  • Model Number:GR1605
  • Brand Name:XCMG
  • Place of Origin:China
  • Reverse Speed(km/h):5、13、30km/h
  • Forward Speed(km/h):5、8、13、18、30、47km/h
  • Certification:ISO9001
Details
  • Product Name:GR1605
  • Display online time:2020-05-06
  • weight:13500.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:wheel
  • Engine type:QSB5.9
  • Rated power/speed:125kW/2200rpm
  • Tire specification:14.00-24
  • Space of front and rear axles :6279mm
  • Tractive effort f=0.75 :≥70 kN
  • Work system pressure:22MPa
  • Maximum steering angle of front wheel:±48°
  • Minimum turning radius:7.2m
  • Maximum lift height:410mm
  • Maximum shoveling depth:715mm


XCMG Official Motor Grader GR1605 for sale


XCMG Official Motor Grader GR1605 for saleXCMG Official Motor Grader GR1605 for sale

Item

Unit

GR1605

Basic parameters

Engine model

QSB5.9

Rated power/speed

kW/rpm

125/2200

Overall dimension(standard)

mm

8711 x 2483 x 3385

Total weight(standard)

kg

13500

Tire specification

14.00-24

Ground clearance

mm

586

Tread

mm

2113

Space of front and rear axles

mm

6279

Space of middle and rear wheels

mm

1568

Performance parameters

Forward velocity

km/h

5813183047

Reverse speed

km/h

51330

Tractive effort f=0.75

kN

70

Maximum gradeadbility

%

25

Inflation pressure of tires

kPa

260

Working system pressure

MPa

22

Transmission pressure

MPa

2

Working parameters

Maximum steering angle of front wheels

°

±48

Maximum inclination angle of front wheels

°

±18

Maximum swing angle of front axle

°

±16

Maximum swing angle of balance box

°

±15

Maximum steering angle of frame

°

±20

Maximum turning radius

m

7.2

Blade

Maximum lifting height

mm

410

Maximum shoveling depth

mm

715

Maximum lateral inclination angle

°

90

Cutting angle

°

front 40, rear 5

Oil filling amount

Slewing angle

°

360

Length x chord height

mm

3660 x 610

Coolant

L

50

Fuel tank

L

380

Engine

L

24

Transmission

L

38

Balance box

L

60

Drive axle

L

36

Hydraulic oil

L

170


XCMG Official Motor Grader GR1605 for saleXCMG Official Motor Grader GR1605 for saleXCMG Official Motor Grader GR1605 for sale
