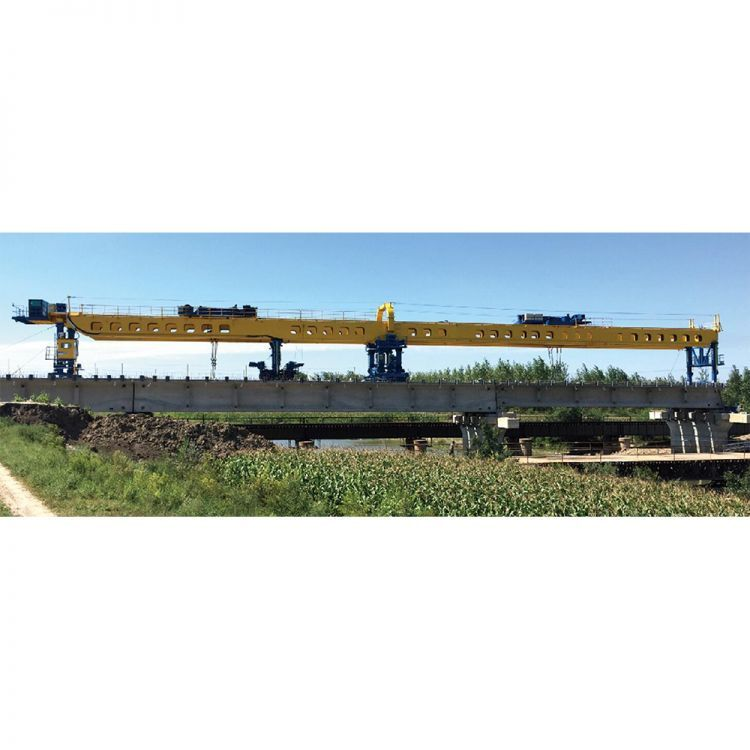

XCMG Official Manufacturer TJ180S Bridge-erecting machine for sale
Summary
- Overall Dimension(L*W*H): 71000×4800×7700 mm
- Weight:190000 kg
- Model Number: TJ180S
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
Specifications
- weight:190000.000kg
- Condition:New
- Moving Type:Other
- Rate lifting capacity:180 t
- Total weight of main machine:190 t
- Suitable span:≤32 m
- Erection beam piece:≤30‰
- Erection bridge type:Straight axle,curved axle R≥400m
- Bridging speed:1.5 pcs/h
- Via hole speed for complete vehicle:3 m/min
- Lengthways move for crown block:6 m/min
- Hanging beam lifting speed:0.6 m/min
- Lateral moving speed of hanging beam complete machine:2.5 m/min
- Outline dimension of complete vehicle:71000*4800*7700 mm
- Power equipment:100 kW
- Min.radius of girder:600 m
- Allowable max.gradient:30‰
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
TJ180L Bridge-Erecting Machine
Main Applications
It’s
used to erect the T-girders (girders 2201, 2101, and 2103 for common bridges)
and girder 9753 for special bridges for ≤200km/h mixed passenger and freight
new and renovated railways.
This
bridge-erecting machine adopts wheeled through-hole mode and can mechanically
traverse the girder segments in full amplitude to realize one-time proper
placement of girder segments.
Technical Features
The
double-girder structure ensures high carrying capacity of main girders and good
lateral stability and high safety of machine.
The
large-boom type through-hole mode realizes one-time orientation of front
outriggers and high through-hole efficiency.
The
through-hole is driven by rear outrigger tires and middle outrigger carrier
wheel to realize high reliability.
The
front outriggers are telescoping in two stages during the operations of first
and last spans, requiring no disassembling operation.
|
Rate lifting capacity |
180 t |
|
Total weight of main machine |
190 t |
|
Suitable span |
≤32 m |
|
Erection beam piece |
≤30‰ |
|
Erection bridge type |
Straight axle, curved axle R≥400m |
|
Bridging speed |
1.5 pcs/h |
|
Via hole speed for complete vehicle |
3 m/min |
|
Lengthways move for crown block |
6 m/min |
|
Hanging beam lifting speed |
0.6 m/min |
|
Lateral moving speed of hanging beam complete machine |
2.5 m/min |
|
Outline dimension of complete vehicle |
71000*4800*7700 mm |
|
Power equipment |
100 kW |
|
Min. radius of girder |
600 m |
|
Allowable max. gradient |
30‰ |
