- Overall Dimension(L*W*H): 17400×2600×1690 mm
- Weight:38000 kg
- Model Number: TY180G
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
- Product Name:357636-TY180G
- Display online time:2019-10-28
- weight:38000.000kg
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Condition:NEW
- Moving Type:other
- Rated loads:180 t
- Self-weight:38 t
- Minimum radius of curvature:180 m
- Maximum gradeability by oneself:20‰
- Self-speed:11 km/h(No load),6 km/h(Heavy-load)
- Outline dimension of complete vehicle:17400*2600*1690 mm
- Complete vehicle power:120 kW
- Drive bogie numbers:3

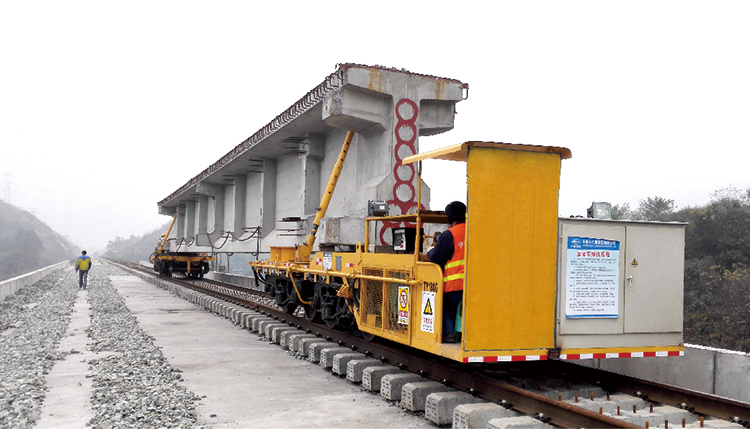

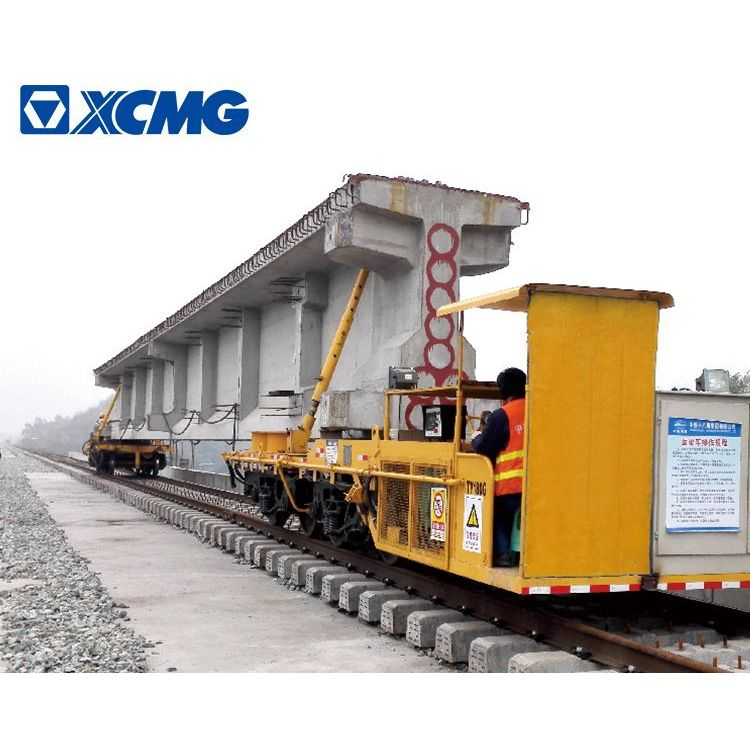

TY180G
Wheel-track girder transporter
Main Applications
It's
used for the transportation of diversified T-girder segments and rail sections
in standard gauge railway projects (1,435mm).
It

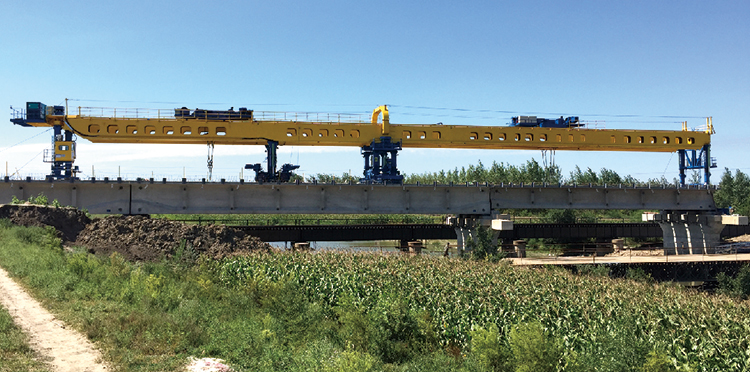

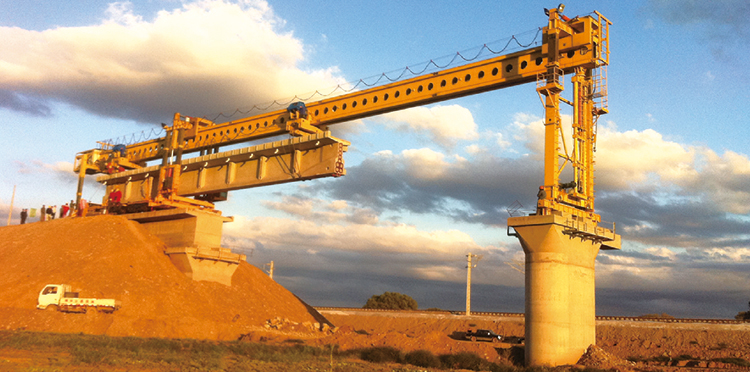

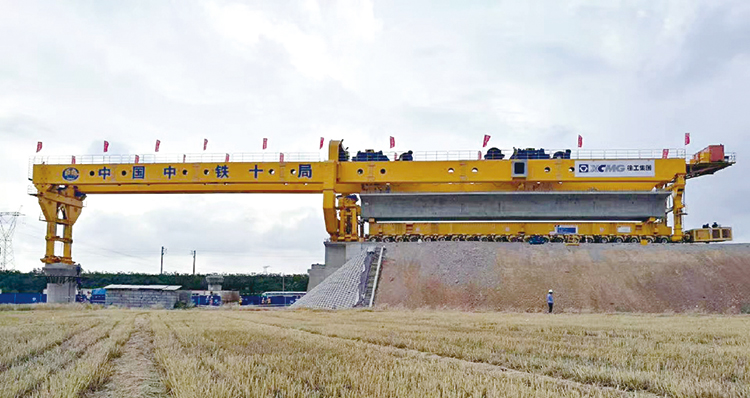

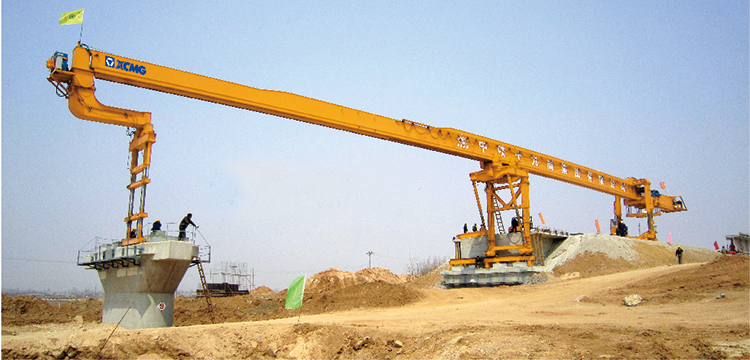

works with 180t road/railway two-purpose bridge-erecting machine to realize the
feeding function of girders and rails
Technical Features
The
AC variable frequency control is applied to realize steady start, stop, and
running. The variable frequency traction motor is maintenance-free.
The
multi-condition mode is set to ensure the synchronized motor drive and avoid
the slip of wheel sets under severe working conditions.
The
synchronized braking is timely and reliably, especially under the upslope and
downslope girder feeding conditions.
It
can work with diversified types of bridge-erecting machines for placement of
girders.
|
Item |
Unit |
Parameter |
|
|
Rated loads |
t |
180 |
|
|
Self-weight |
t |
38 |
|
|
Minimum radius of curvature |
m |
180 |
|
|
Maximum gradeability by oneself |
/ |
20‰ |
|
|
Self-speed |
No load |
km/h |
11 |
|
Heavy-load |
6 |
||
|
Outline dimension of complete vehicle |
mm |
17400*2600*1690 |
|
|
Complete vehicle power |
kW |
120 |
|
|
Drive bogie numbers |
/ |
3 |
|
