- Rated Load:1250
- Type:Skid steer loader
- Place of Origin:China
- Model Number:XC770K
- Brand Name:XCMG
- Product Name:G5B6BDFE487C43
- Display online time:2019-11-07
- After-sales Service Provided:Engineers available to service machinery overseas
- Warranty:12 Months
- Moving Type:wheel
- Rated load:1250kg
- Tipping load:2500kg
- Operating weight:3700kg
- Maximum breakout force:22kN
- Engine Model:Weichai WP4.1
- Rated power:100.4/74.9
- Rated speed:2400rpm
- Tire standard:12-16.5
- Maximum speed:11/22km/h
- Maximum operating height:4180mm
- Maximum horizontal height of bucket bottom:2997mm
- Wheel base:1320mm

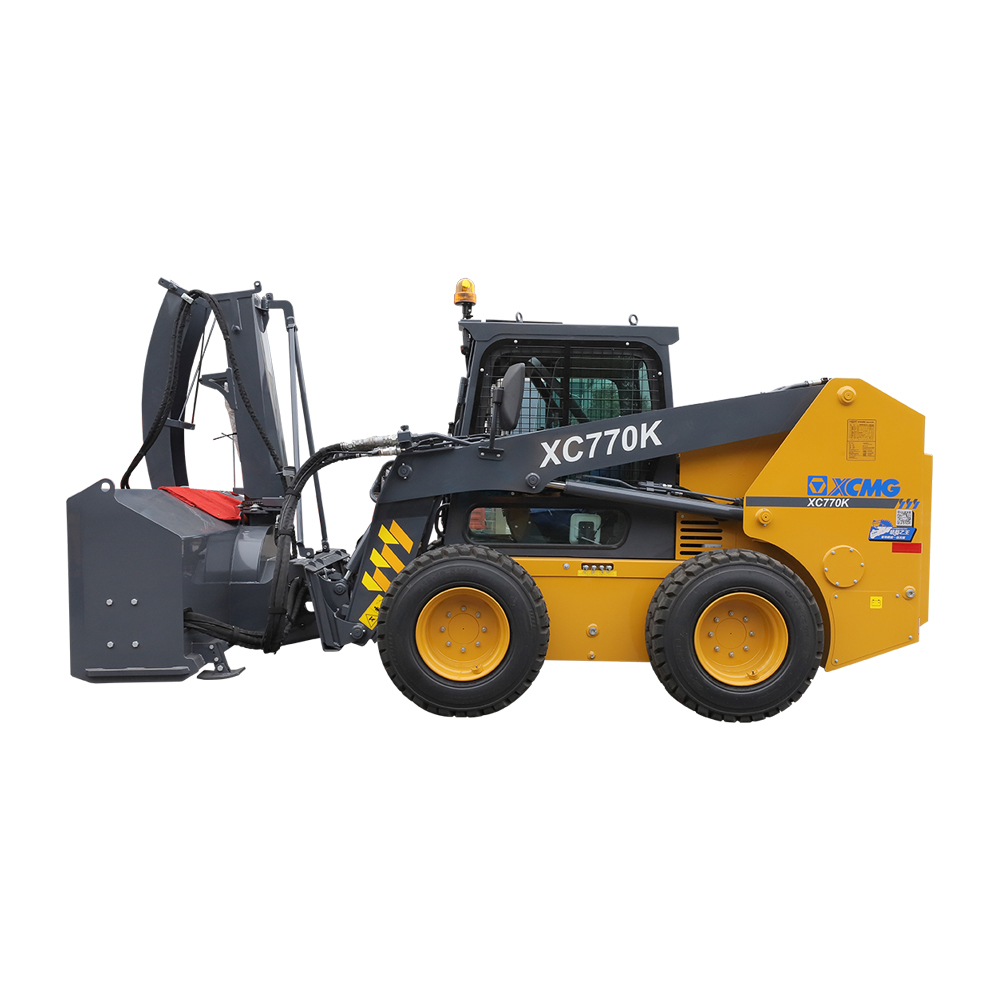

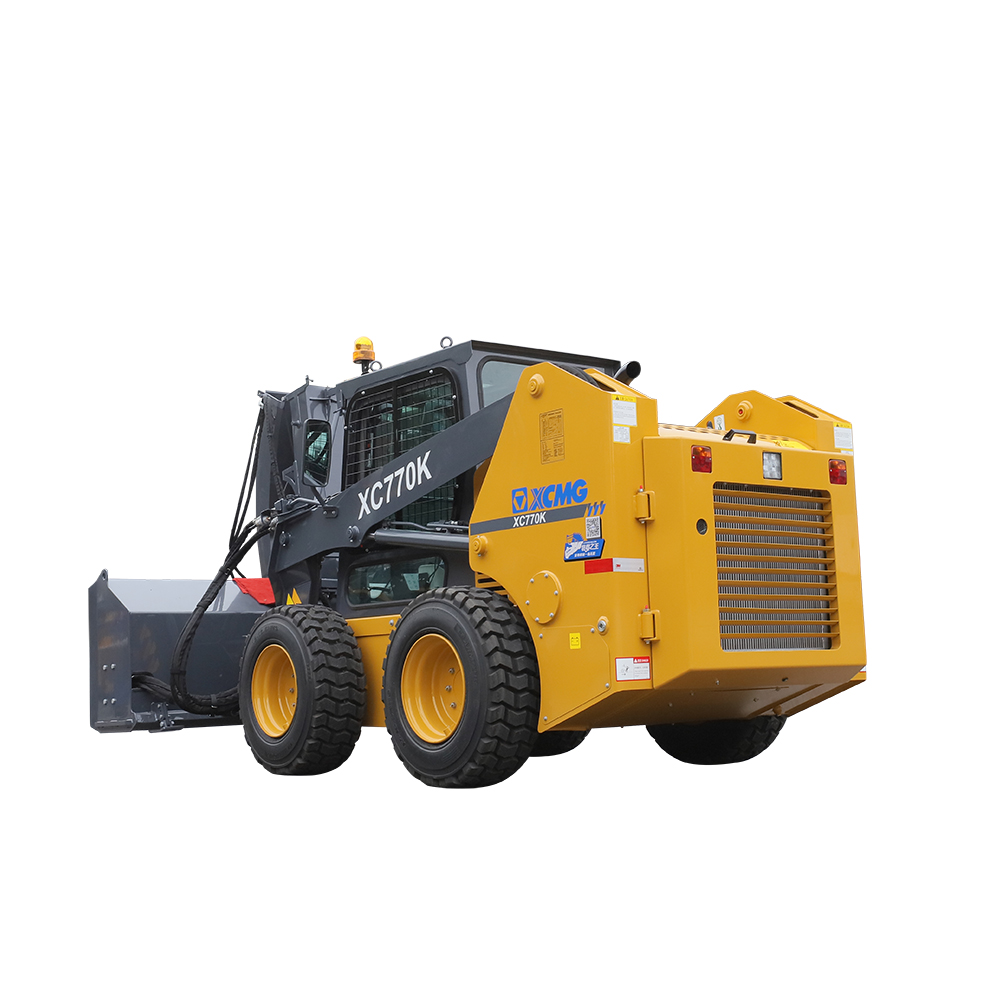

XC770K is an all-new heavy-load skid-steer loader launched by XCMG. This machine is equipped with high power engine to enhance the overall flow and meet the operation needs of numerous attachments. The extended wheelbase of this machine guarantees the stability and safety under high load. It’s mainly applied for high-load working conditions including domestic snow-removing market and municipal maintenance field.
Advantages and Features：
1,STRONG POWER AND HIGH ENERGY-CONSERVATION AND EFFICIENCY
The double-speed motor with maximum speed up to 22km/h is installed to achieve high working efficiency.
2,PLATFORM DESIGN FOR HIGH RELIABILITY AND FIRMNESS
The serialization design is applied for the frame based on the skid-steer tonnage to realize high structural reliability. All critical structural parts are optimized by finite element analysis to realize reasonable stress distribution.
3,COMFORTABLE OPERATING ENVIRONMENT
The cab features a broad space and the seat is adjustable. The width of the cab is increased to 930mm and the height is increased to 1,232mm. The air-cushioned seat is applied to remarkably improve the comfort.
This machine can work under the environment with >-25?C temperature, featuring high cold resistance. The heating efficiency is enhanced for the interior of cab to improve the user’s operation comfort under cold environment. The integral heating and air conditioning system is applied and the air passage structure is optimized to achieve high airflow rate and more appropriate operation environment.
4,MORE SAFETY DESIGNS
The proximity switches are added in the cab and for the cab internal safety grid to ensure that the machine can work or drive normally only after the safety grid is lowered and the cab doors are closed, in order to prevent the accidents and potential dangers arising from any violation of standard operation procedure.
Rated loading capacity
Overall machine dimensions (L×W×H)
