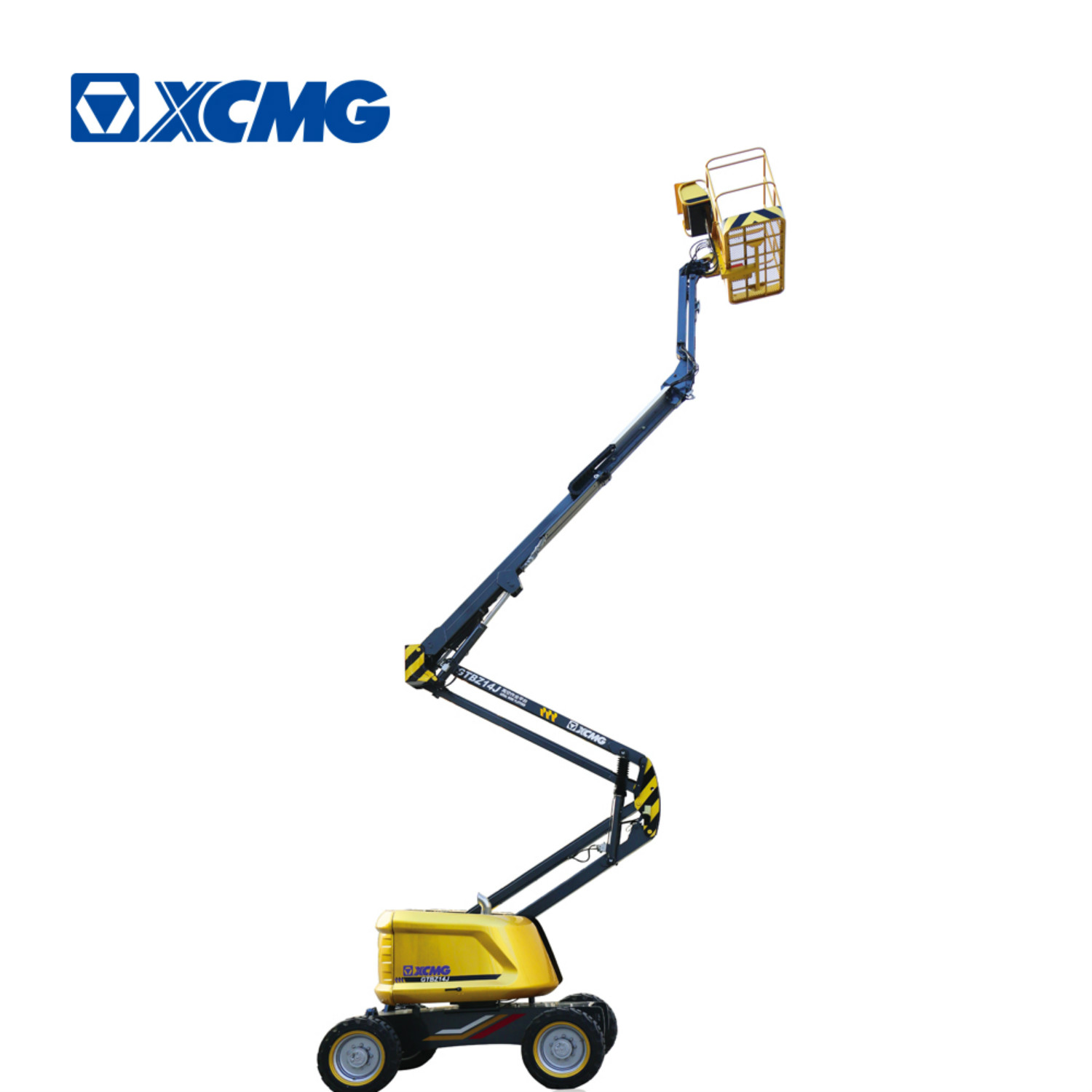

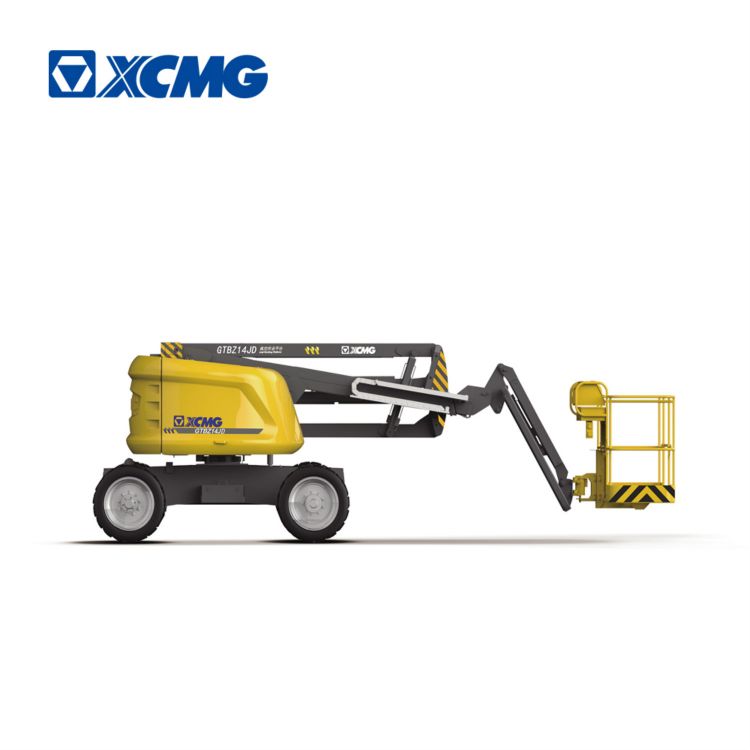

XCMG Official Manufacturer Electrical Articulated Aerial Work Platform GTBZ14JD
.jpg)
Summary
- Brand Name:XCMG
- Place of Origin:China
Specifications
- weight:6500.000kg
- Condition:New
- Moving Type:Other
- Overall Length(mm):6420
- Overall Width(mm):1750
- Overall Height(mm):2000
- Wheel Base(mm):2010
- Maximum Working Height(m):15.5
- Maximum Platform Height(m):13.8
- Maximum Working Range(m):8
- Maximum Load Capacity（kg）:230
- 1st Boom luffing Range(°):0～+60
- 2nd Boom luffing Range(°): -8～+75
- Crank Arm Luffing Range(°):-60～+80
- Rotation Angle of Rotating Platform(°):355
- Platform Size(mm):700*1400*1150
- Platform turning angle(°):180
- Total Weight(kg):6500
- Maximum Travel Speed(km/h):5.2
- Minimum Turning Radius(m):3.15
- Minimum Ground Clearance(mm):200
- Maximum Grade Ability(%):30
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
（1）Leading Technologies
The first electric-driven articulated boom product is leading the domestic industry in terms of main working parameters. In addition, the AC electric-driven traveling technology and the differential traveling control technology are applied to realize more accurate power matching and more flexible steering control.
（2）Higher Safety and Stability
The complete safety protection, the independently designed control system, and high-efficiency worm and gear mechanism provide an all-new operation experience.
（3）Flexible Operations
The“Crank-slider”mechanism is applied to realize small turning radius and flexible steering. In addition, the 30% gradeability makes the driving operations easier.
| 项目 | 参数 |
| Itmm | Parameter |
| Overall Length(mm) | 6420 |
| Overall Width(mm) | 1750 |
| Overall Height(mm) | 2000 |
| Wheel Base(mm) | 2010 |
| Maximum Working Height(m) | 15.5 |
| Maximum Platform Height(m) | 13.8 |
| Maximum Working Range(m) | 8 |
| Maximum Load Capacity（kg） | 230 |
| 1st Boom luffing Range(°) | 0～+60 |
| 2nd Boom luffing Range(°) | -8～+75 |
| Crank Arm Luffing Range(°) | -60～+80 |
| Rotation Angle of Rotating Platform(°) | 355 |
| Maximum Tail Wagging(mm) | 0 |
| Platform Size(mm) | 700*1400*1150 |
| Platform turning angle(°) | 180 |
