XCMG Official Manufacturer Water Well Drilling Rig XSC30/1200 for sale

.jpg)

Summary
- Certification:CE/ISO9001
- Weight:55 t
- Model Number: XSC30/1200
- Brand Name:XCMG
- Place of Origin:China
- Working Dimension(L*W*H):14680×4970×21400 mm
- Transportation Dimension(L*W*H):14220×2550×4000 mm
Specifications
- Weight:55000.000kg
- Condition:New
- Moving Type:Wheel
- Drilling depth:3000(Φ127) m
- Max. diameter of working floor:Φ820 mm
- Max. lifting capacity:1200 kN
- Max. feeding capacity:260 kN
- Max. lifting speed:30 m/min
- Max. feeding speed:60 m/min
- Stroke:15240 mm
- Max. torque of Top drive:27500/18300 N·m
- Max. speed of Top drive:120/180 r/min
- I.D of Top drive:Φ105 mm
- Floating distance of Top drive:100 mm
- Max. tilting angle of Top drive:85 °
- Deck engine Type:CAT C18
- Deck engine Rated power:571 kW
- Hoisting capacity of Tool winch:50 kN
- Max. breakout torque:85000 N·m
- Vise clamping range:89~245 mm
- I.D of Mud pipe:Φ76 mm
- Max. pressure of Mud pipe:35 Mpa
- Chassis Drive mode:10×8 Automobile chassis
- Chassis Rated power:353 kW
- Chassis Highest speed:75 km/h
- Chassis Max. climbing gradient:42%
- Weight:55 t
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

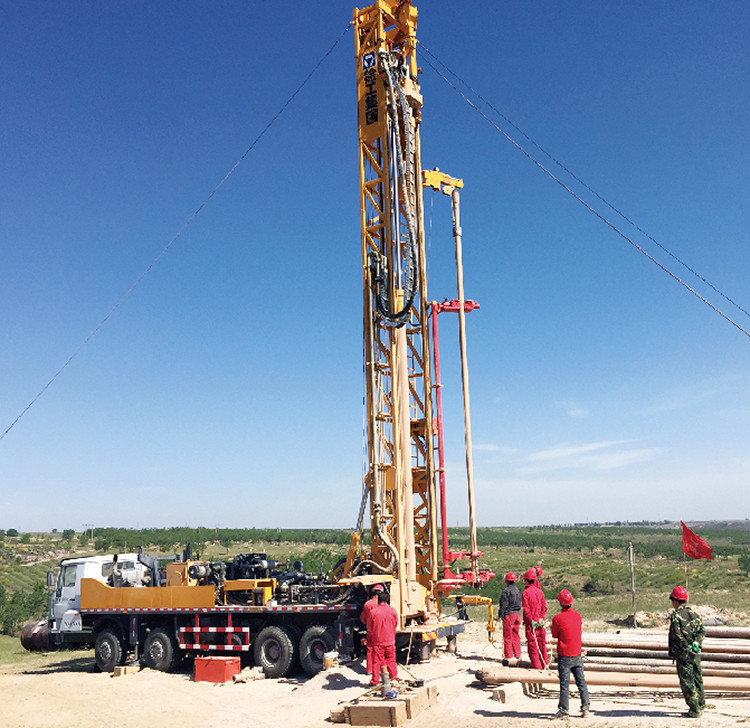

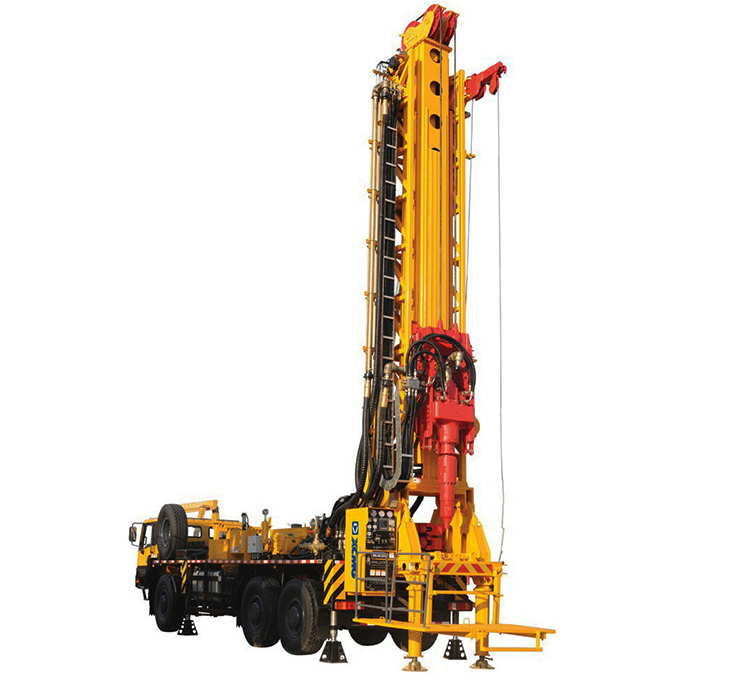

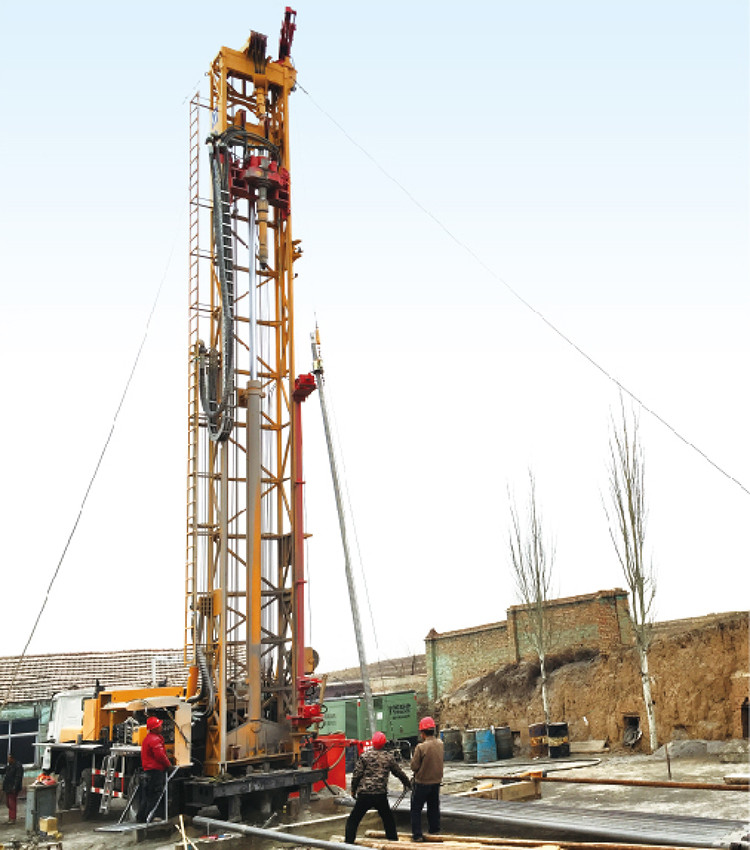

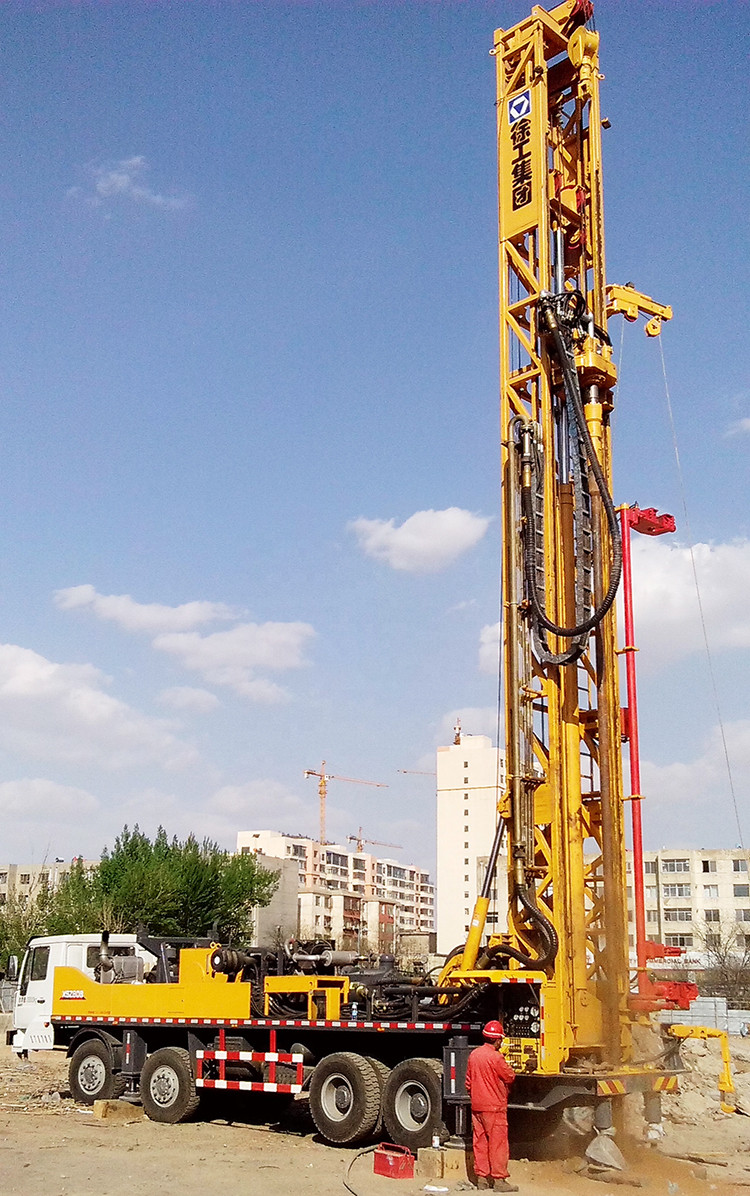

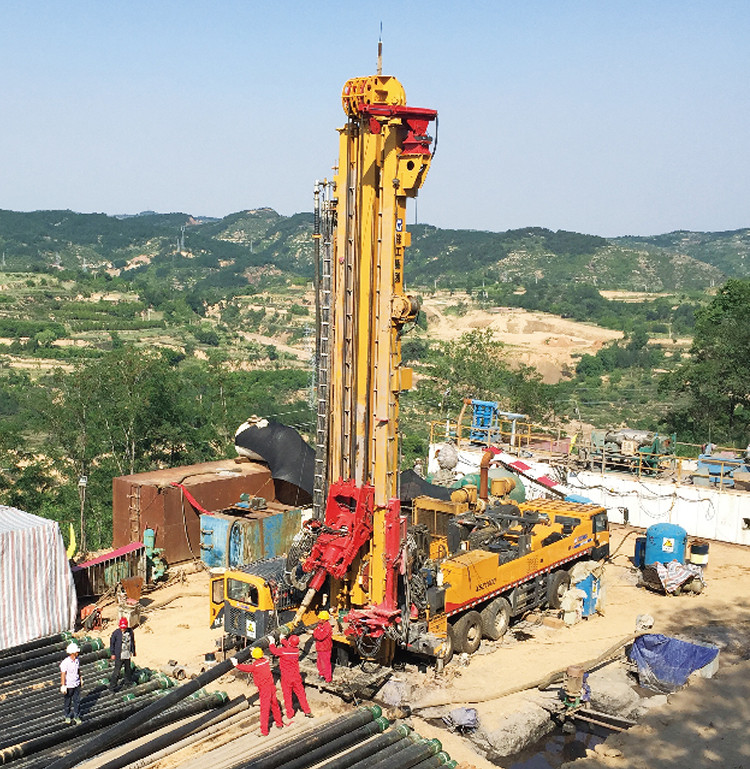

XCMG Official XSC30/1200 Water Well Drilling Rig.

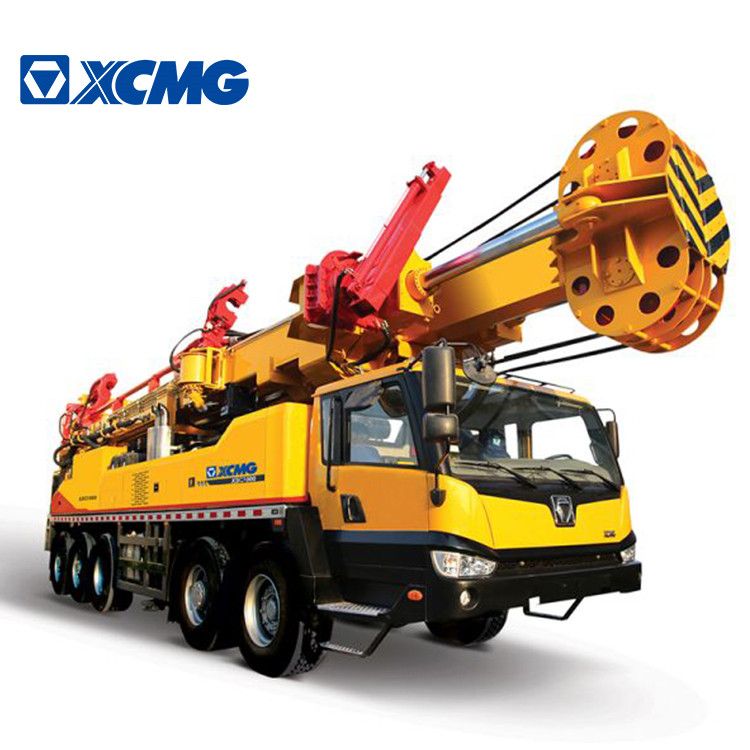

XCMG XSC/XSL series deep(water) well drilling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor -mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
Performance Characteristics:
* Road Condition Adaptive Intellective All-terrain Off-road Chassis
Multi-axle steering intelligent control and multi- steering mode provide flexible steering and small steering diameter.
Hydro-pneumatic suspension with good travelling performance, which adapts to severe road conditions such as muddy road, sand, snowfield, upland etc.
* Full Hydraulic Top-drive
Output port adopts floating device, which effectively reduces the wearing of the dril stem thread, and increases service life of the drill stem.
Spindle has a strong slag discharge capacity through its large drift diameter, which makes it especially adapt to the reverse circulation construction.
* The feeding system
It has a large stroke by extending completely when working, which adapts to long drill stem and long casing constructions. It retracts when travel to reduce transportation dimensions.
It adopts cylinder-wire rope speed multiple feeding system with slow feeding mode, which provides slow drilling and fast lifting.
With that it ensures good drilling performance and improves working efficiency.
XCMG provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand. |
|||
Parameter |
Unit |
XSC30/1200 |
|
Drilling capability |
Drilling depth |
m |
3000(φ114) |
Max. diameter of working floor |
mm |
φ820 |
|
Feeding system |
Max. lifting capacity |
kN |
1200 |
Max. feeding capacity |
kN |
260 |
|
Max. lifting speed |
m/min |
30 |
|
Max. feeding speed |
m/min |
60 |
|
Stroke |
mm |
15240 |
|
Top drive |
Max. torque |
N.m |
27500/18300 |
Max. speed |
r/min |
120/180 |
|
I.D |
mm |
φ105 |
|
Floating distance |
mm |
100 |
|
Max. tilting angle |
° |
85 |
|
Deck engine |
Type |
CAT C18 |
|
Rated power |
kW |
571 |
|
Tool winch |
Hoisting capacity |
kN |
50 |
Breakout device |
Max. breakout torque |
N.m |
95000 |
Mud pipe |
I.D |
mm |
φ76 |
Max. pressure |
MPa |
35 |
|
Chassis |
Rated power |
kW |
327 |
Highest speed |
km/h |
80 |
|
Max. climbing gradient |
% |
45 |
|
Working dimension |
mm |
14680*5184*(13800~21400) |
|
Transportation dimension |
mm |
14200*2550*4000 |
|
Weight |
t |
55 |
