- Summary
- Details
- Weight:30300kg
- Dimension(L*W*H):4940*2500*3200mm
- Power(W):132kW
- Model Number:XP305S
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Grade Ability:30%
- Travel Speed:0-16km/h
- Type:pneumatic tire roller
- Certification:CE/ISO9001
- weight:30300.000kg
- Condition:New
- Moving Type:Wheel
- Minimum turning outside diameter:7260mm
- Rated speed:2000r/min
- Minimum ground clearance:280mm
- Compaction width:2360mm
- Tire overlap width:65mm

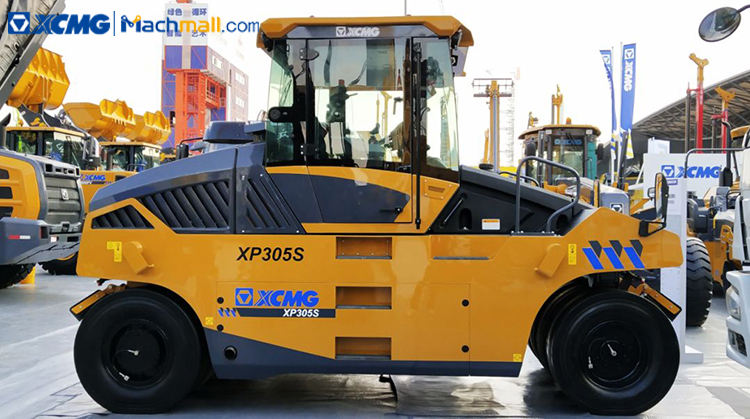

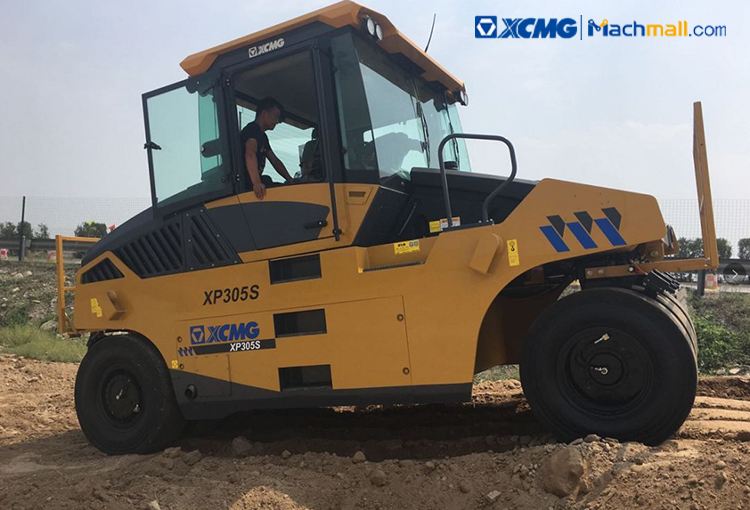

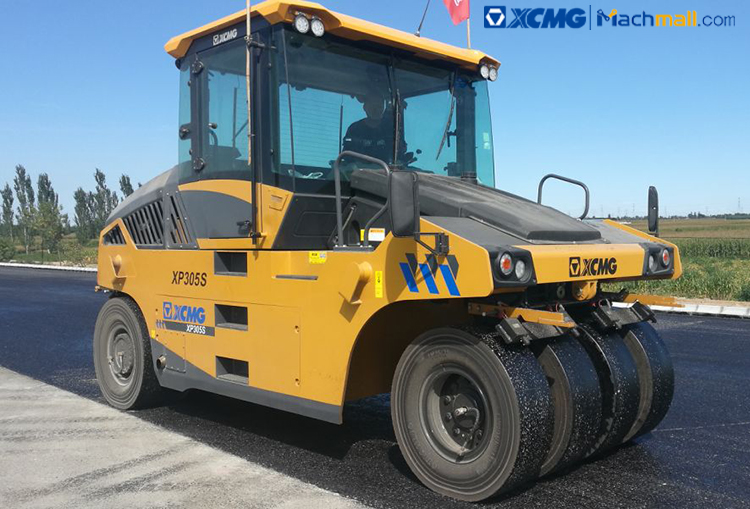

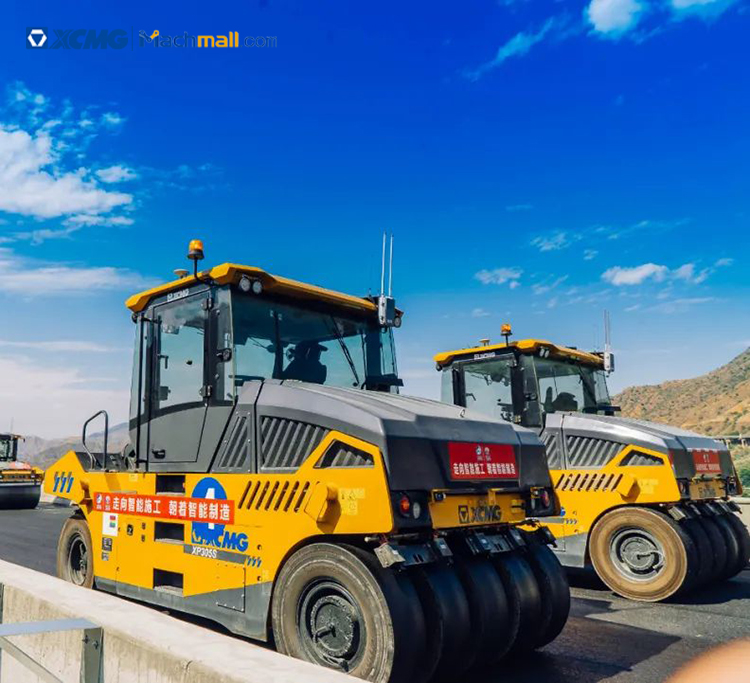

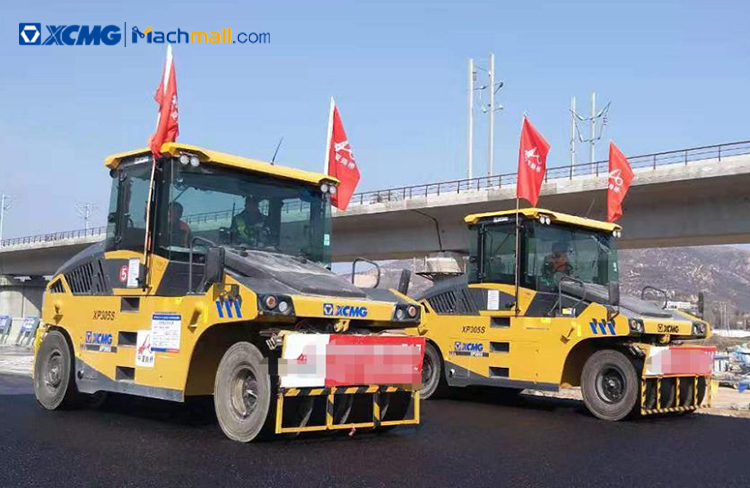

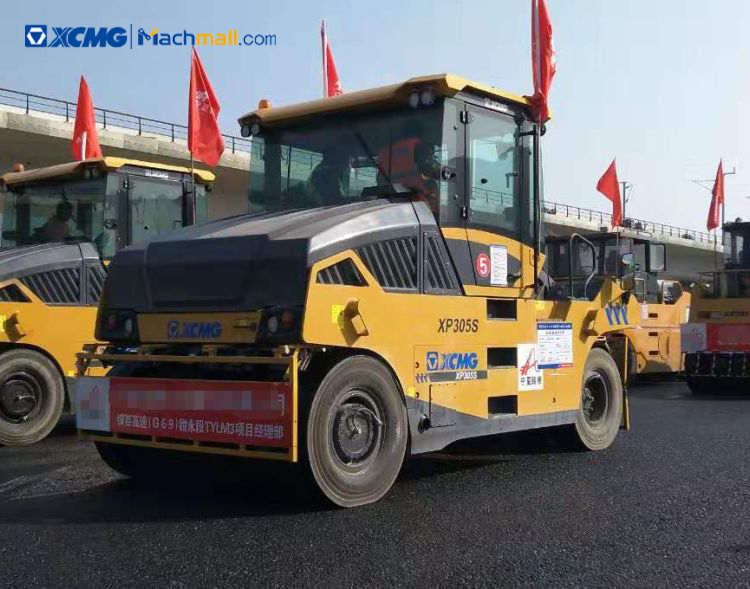

XCMG factory 30 ton pneumatic tyre road roller XP305S.
XCMG pneumatic tyre roller XP305S is efficient, reliable, safe and comfortable. XCMG pneumatic tyre roller XP305S uses hydraulic transmission based on electro-hydraulic proportional control technology, and international advanced dual reducer drive, which results in stronger climbing ability and higher operating efficiency.
Performance Characteristics:
1. XCMG pioneered smart-drive intelligent driving system allows the automatic match of the most energy-saving driving mode, with 25% reduction in comprehensive fuel consumption.
2. Automatic tire inflation, deflation and air pressure monitoring system is adopted to adjust the air pressure of tires at any time according to the construction requirements.
3. One-button operation is convenient and reliable. Automatic control of fan speed reduces the noise emission from the source;
4. The maintenance-free bearings in the front and rear drum are reliable and durable;
5. Electronic controlled large engine hood realizes one-stop maintenance.
|
Item |
Unit |
XP305S |
|
Mass load parameter |
||
|
Maximum weight |
kg |
30300 |
|
Operating weight |
ton |
>=20 |
|
Compaction mechanism parameters |
||
|
Tire average ground pressure |
kPa |
200-545 |
|
Compaction width |
mm |
2360 |
|
Tire overlap width |
mm |
65 |
|
Maneuverability parameters |
||
|
High speed |
km/h |
16 |
|
Low speed |
km/h |
8 |
|
Theoretical climbing ability |
% |
30 |
|
Minimum turning outside diameter |
mm |
7620 |
|
Engine |
||
|
Model |
|
Shangchai SC7H180.1G3 |
|
Rated power |
kW/rpm |
132/2000 |
|
Overall size |
||
|
Overall dimension |
mm |
4940*2500*3200 |
|
Minimum ground clearance |
mm |
280 |
