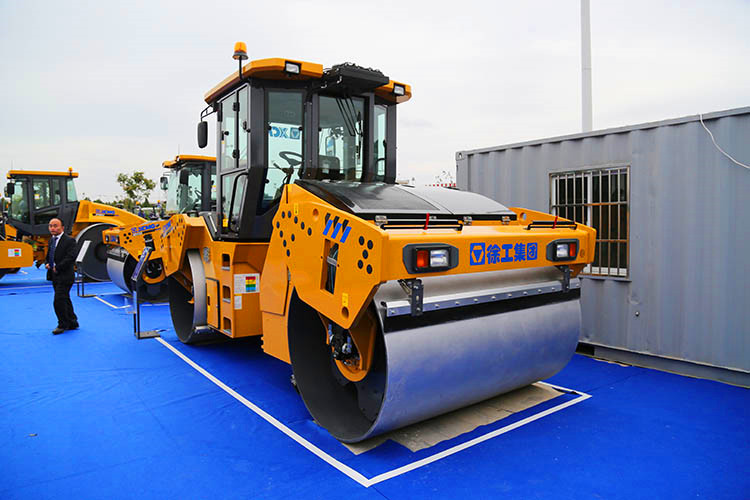

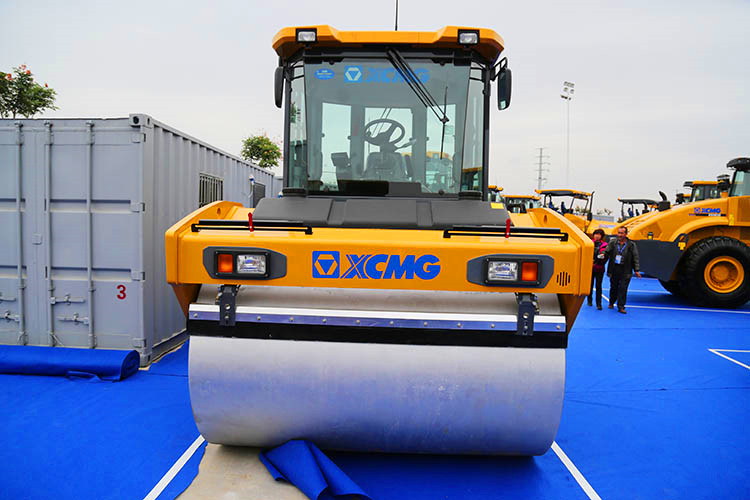

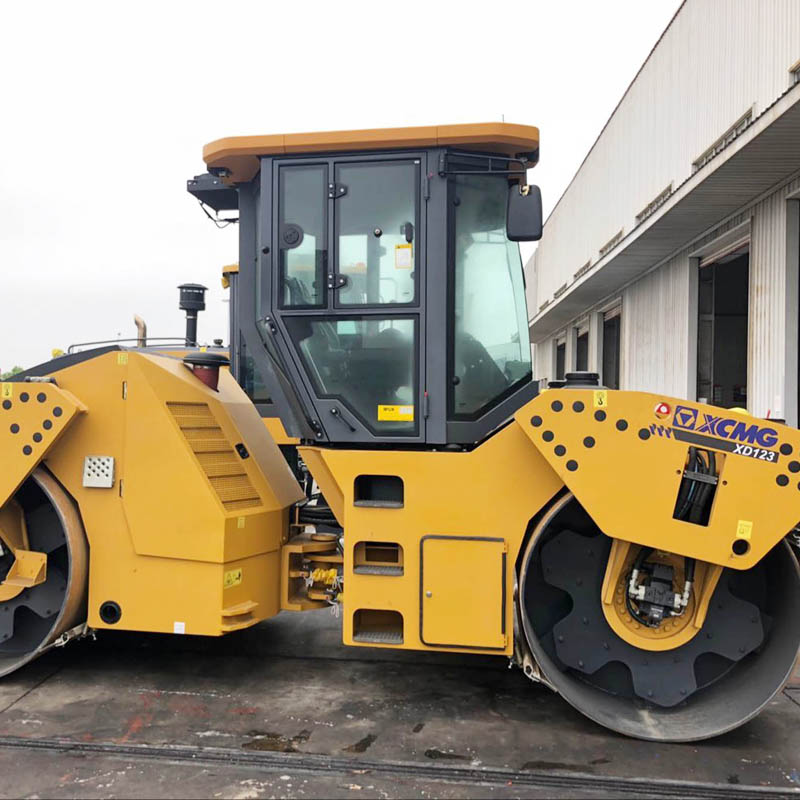

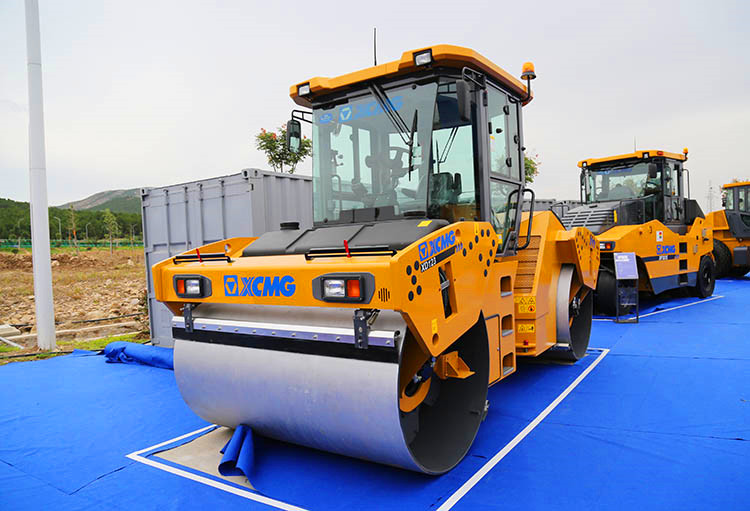

XCMG 12 ton double drum road roller machine XD123

  • XCMG 12 ton double drum road roller machine XD123
  • XCMG 12 ton double drum road roller machine XD123
  • XCMG 12 ton double drum road roller machine XD123
  • XCMG 12 ton double drum road roller machine XD123
  • XCMG 12 ton double drum road roller machine XD123
  • XCMG 12 ton double drum road roller machine XD123

Share:
XCMG 12 ton double drum road roller machine XD123
FOB for Road Mach Reference Price:Get Latest Price
$50000.00-$80000.00 1 / EA (Min. Order)
Model: XD123
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 12 ton double drum road roller machine XD123
XCMG 12 ton double drum road roller machine XD123
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Weight:12300kg
  • Dimension(L*W*H):5146*2336*3076mm
  • Power(W):98kW
  • Model Number:XD123
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Grade Ability:35%
  • Travel Speed:0~12km/h
  • Static Linear Pressure:283N/cm
  • Type:Vibratory Roller
  • Certification:CE/ISO9001
Details
  • Product Name:G603CA395253A5
  • Display online time:2021-03-01
  • weight:12300.000kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Warranty:12 Months
  • Condition:NEW
  • Moving Type:other
  • Exciting Force:85KN

XCMG 12 ton double drum road roller machine XD123

XCMG 12 ton double drum road roller machine XD123.



XD123 roller machine is asphalt compaction machinery product which is independent researched and developed by XCMG road machinery business division based on years of experience in compaction machinery research and development.


It is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.

Performance Characteristics:

* The console can rotate about 35 degrees, improving the driving comfort.
* The steering wheel can adjust angle according to the need of the driver.
* Control handle, display, etc. are arranged on the right side to broaden the front view.
* Speed frequency management system guides the user to compaction operation.
* Guiding the user to improve operation efficiency.
* The vibration drum realizes the center of four-in-one combination.
* Preventing the over-compaction and less-compaction.

XCMG 12 ton double drum road roller machine XD123

Description

Unit

Parameter value



Working weight

kg

12300





Front wheel distribution weight

kg

6150



Rear wheel distribution weight

kg

6150



Speed range

I

0-6



II

0-12



Theoretical gradeability

%

35



Minimum turning radius

mm

4800/6930



Largest amount of crab

mm

±160



Swing angle



±8°



Steering angle



±35°



Static linear load

N/cm

283/283



Nominal amplitude

mm

0.30/0.75



Vibration frequency

Hz

55/45



Exciting force (high frequency/low frequency)

kN

85/140



Engine

Model



DEUTZ



Type



In-line four-cylinder pressurized water cooling type



Rated speed

r/min

2300



Rated power

kW

98





XCMG 12 ton double drum road roller machine XD123XCMG 12 ton double drum road roller machine XD123XCMG 12 ton double drum road roller machine XD123XCMG 12 ton double drum road roller machine XD123XCMG 12 ton double drum road roller machine XD123XCMG 12 ton double drum road roller machine XD123



uMore roller machine



XCMG 12 ton double drum road roller machine XD123

XCMG 12 ton double drum road roller machine XD123XCMG 12 ton double drum road roller machine XD123

Send your message to this supplier
Email:
to:
XCMG E-commerce Inc.
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
