XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines

  • XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
  • XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
  • XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
  • XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
  • XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
  • XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
  • XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines

Share:
XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
FOB for OEM Reference Price:Get Latest Price
$10000.00-$1000000.00 1 / EA (Min. Order)
Model: XG0807DC
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Weight:1550kg
  • Overall Dimension:1900*760*2160mm
  • Table Size:1670*740*1235mm
  • Max Lifting Height:7.8m
  • Rated Loading Capacity:230kg
  • Power:3.3/0.75kw
  • Lift Drive / Actuation:Electric
  • Lift Mechanism:Scissor Lift
  • Model Number:XG0807DC
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Certification:CE/ISO9001
Specifications
  • weight:1550.000kg
  • Condition:New
  • Moving Type:Other
  • Max. gradeability:25%
  • Tilt warning angle:1.5/3。
  • Drive speed(lowered):4.5km/h
  • Drive speed(elevated):0.8km/h

XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines

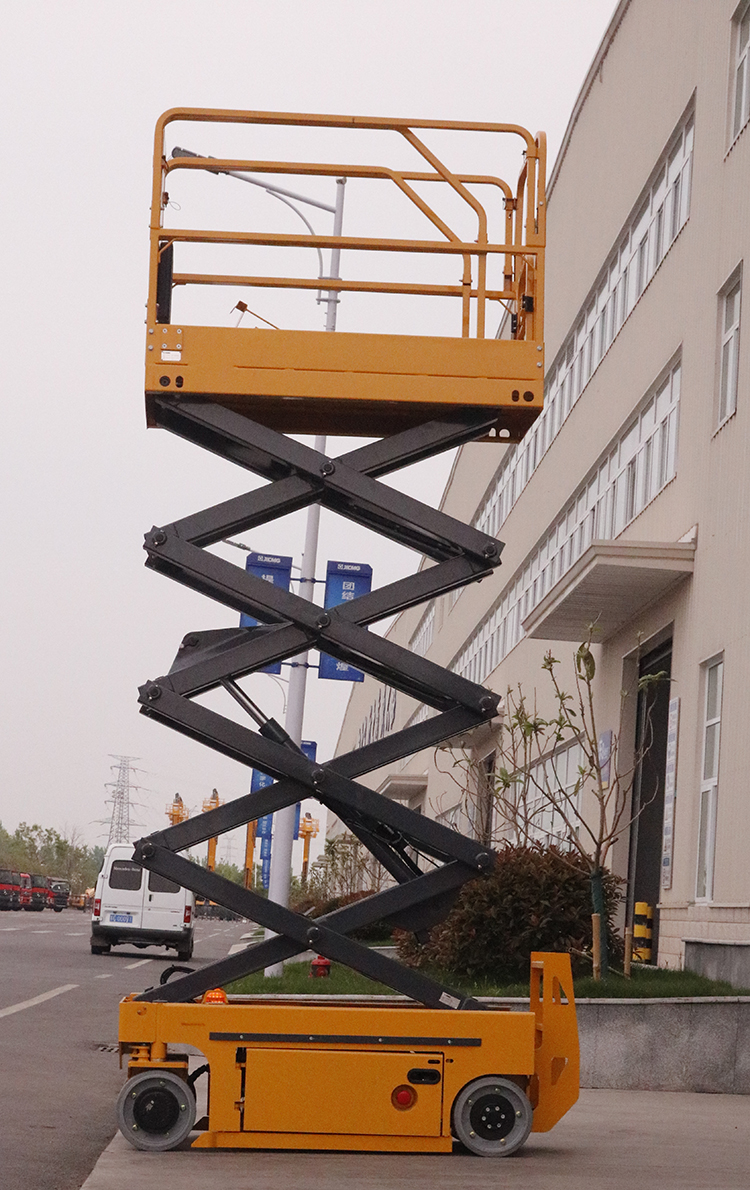

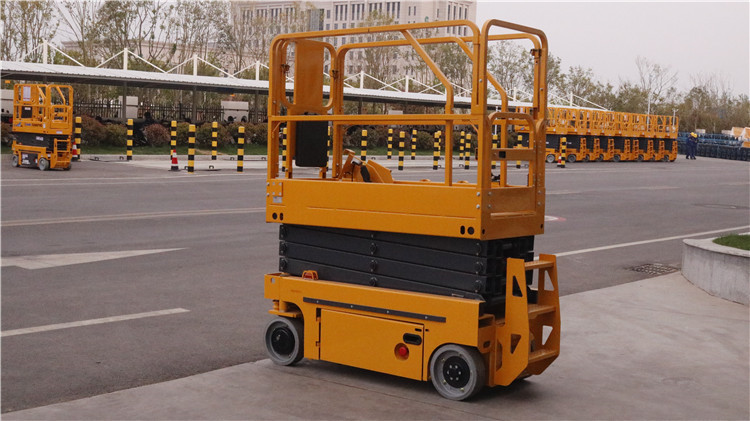

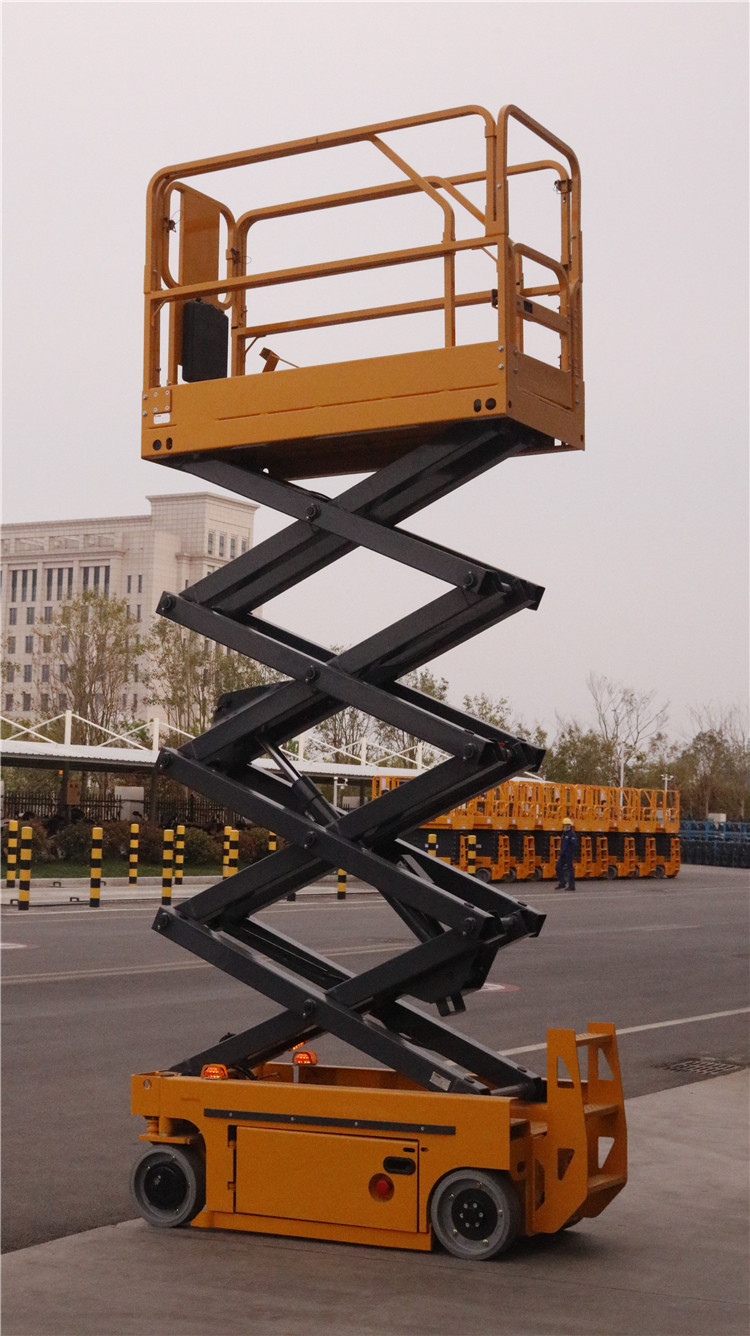

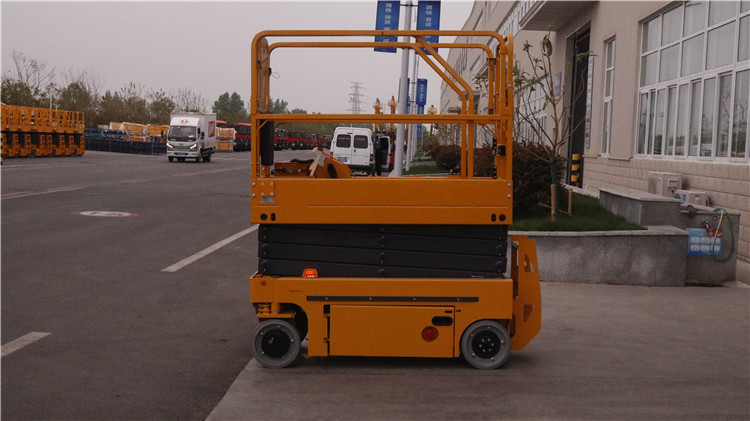

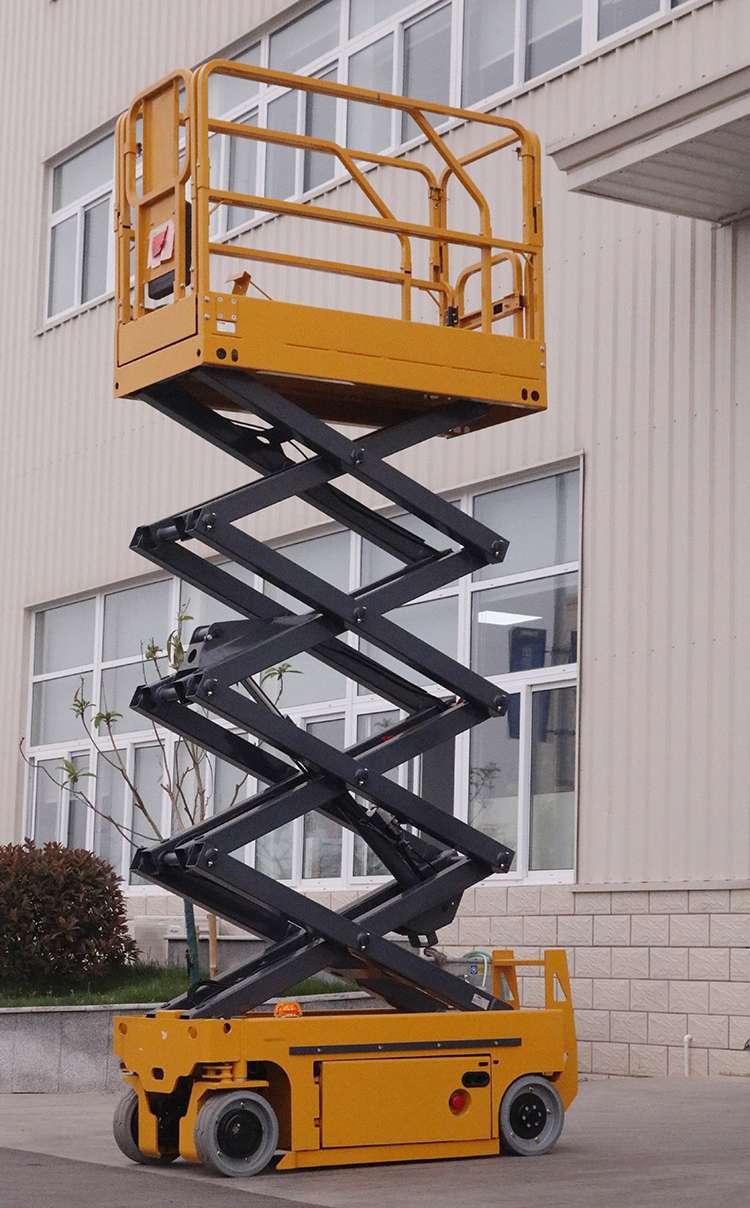

XCMG official XG0807DC 8m mini hydraulic scissor lift.



XCMG scissor lift  XG0807DC developed by XCMG has the work height at 7.8m, the vehicle width at 0.78m,the platform extension length at 0.9m, the rated load at 230kg, max. grade ability at 25%.



XCMG scissor lift  XG0807DC features compact structure, advanced performance, completed safety devices, especially suitable for construction.



In addition. XCMG scissor lift  XG0807DC is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, XCMG scissor lift  XG0807DC are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.



Advantages and features:



1.Effective and energy-saving electric-drive system features zero emission and low noise.



2.Meeting the customer needing for safety, reliability and intelligence.



3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway.



4.Foldable fence could make the transportation easier.



5.“Zero Turning Radius” is unique and enable machine to corner in narrow room.



6.Max. payload at 230kg, leading the industry. Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier.

XCMG official XG0807DC 8m mini hydraulic scissor lift price philippines

Item
Unit
XG0807DC
Dimensions (LxWxH)
mm
1900x760x2160
Wheel base
mm
1360
Wheel track
mm
660
Working platform dimensions (LxWxH)
mm
1670x740x1235
Platform extension Working platform dimensions length
mm
900
Vehicle center of mass position Horizonal distance from front axis
mm
750
Vehicle center of mass position Height of center of mass
mm
570
Total weight
kg
1550
Max. Platform height
m
5.8
Min. Platform height
m
1.05
Max. Working height
m
7.8
Min. Turning radius (inner wheel / outer wheel)
m
0/1.75
Working platform rated load
kg
230
Extension platform load
kg
115
Platform lifting time
s
13-30
Platform decline time
s
25-35
Drive speed(lowered)
km/h
4.5
Drive speed(elevated)
km/h
0.8
Max. Gradeability
%
25
Tilt warning angle(side/forward and backward)
°
1.5/3
Lifting / walking motor Model
Lifting / walking motor Rated power
kW
3.3/0.75
Battery Voltage
v
24
Battery Capacity
Ah
225
Battery manufacturer
Trojan/Leoch


XCMG official XG0807DC 8m mini hydraulic scissor lift price philippinesXCMG official XG0807DC 8m mini hydraulic scissor lift price philippinesXCMG official XG0807DC 8m mini hydraulic scissor lift price philippinesXCMG official XG0807DC 8m mini hydraulic scissor lift price philippinesXCMG official XG0807DC 8m mini hydraulic scissor lift price philippinesXCMG official XG0807DC 8m mini hydraulic scissor lift price philippinesXCMG official XG0807DC 8m mini hydraulic scissor lift price philippines
