XCMG Official 6 ton small crawler excavator XE60DA price

  • XCMG Official 6 ton small crawler excavator XE60DA price
  • XCMG Official 6 ton small crawler excavator XE60DA price
  • XCMG Official 6 ton small crawler excavator XE60DA price
  • XCMG Official 6 ton small crawler excavator XE60DA price
  • XCMG Official 6 ton small crawler excavator XE60DA price
  • XCMG Official 6 ton small crawler excavator XE60DA price

Share:
XCMG Official 6 ton small crawler excavator XE60DA price
FOB for Excavator Reference Price:Get Latest Price
$10000.00-$1000000.00 1 / EA (Min. Order)
Model: XE60DA
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG Official 6 ton small crawler excavator XE60DA price
XCMG Official 6 ton small crawler excavator XE60DA price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
  • 360-Degree VR Videos

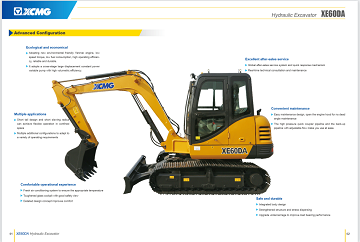

  • Product Brochure
Summary
  • Rated Speed:4.2km/h
  • Max Digging Radius:6130mm
  • Machine Weight:6010kg
  • Maximum Digging Depth:3830mm
  • Maximum Digging Height:5630mm
  • Bucket capacity:0.23m³
  • Operating Weight:6010kg
  • Model Number:XE60DA
  • Brand Name:XCMG
  • Place of Origin:Jiangsu, China
Details
  • weight:6010.000kg
  • Condition:New
  • Moving Type:Crawler

XCMG Official 6 ton small crawler excavator XE60DA price

XCMG Official 6 ton small crawler excavator XE60DA.



XCMG small crawler excavator XE60DA adopts a good engine excellent in environmental protection and energy saving. Moreover, XCMG small crawler excavator XE60DA uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver.



The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members.

The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.



1. Ecological and economical

Adopting new environmentally friendly Yanmar engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable.



2. Multiple applications

Short tail design and short slewing radius can achieve flexible operation in confined space; multiple additional configurations to adapt to a variety of operating requirements.



3.Comfortable operational experience

Toughened glass cockpit with good safety view; detailed design concept improves comfort.



4. Excellent after-sales service

Global after-sales service system and quick response mechanism; real-time technical consultation and maintenance.

XCMG Official 6 ton small crawler excavator XE60DA price

Operation Weight

6010 kg

Bucket Capacity

0.23 m ³

Main performance

Travel speed(H/L)

4.2/2.2 km/h

Rotating speed

10 r/min

Gradeability

35°

Ground pressure

32.5 kPa

Bucket digging force

48.3 kN

Arm digging force

32.5 kN

Maximum traction

50.5 kN

Hydraulic system

Rated flow of main pump

151.2 L/min

Pressure of prime valve

24.5 Mpa

Pressure of travel system

22 Mpa

Pressure of swing system

21 Mpa

Pressure of pilot system

3.5 Mpa

Oil capacity

Fuel tank capacity

110 L

Hydraulic tank capacity

85 L

Engine oil capacity

12 L

Appearance size

Overall dimensions(L*W*H)

5860×1920×2585 mm

Width of platform

1780mm

Width of crawler

400 mm

Clearance under counterweight

700 mm

Min. ground clearance

385 mm

Min. tail swing radius

2890 mm

Working scope

Max. digging height

5630 mm

Max. dumping height

3945 mm

Max. digging depth

3830 mm

Max. vertical wall digging depth

2680 mm

Max. digging reach

6130 mm

Min. swing radius

2460 mm

Standard

Boom length

3000 mm

Arm length

1600 mm

Bucket Capacity

0.23 m ³



XCMG Official 6 ton small crawler excavator XE60DA price
