XCMG 75 ton QY75K telescopic boom crane price

  • XCMG 75 ton QY75K telescopic boom crane price
  • XCMG 75 ton QY75K telescopic boom crane price
  • XCMG 75 ton QY75K telescopic boom crane price
  • XCMG 75 ton QY75K telescopic boom crane price
  • XCMG 75 ton QY75K telescopic boom crane price

Share:
XCMG 75 ton QY75K telescopic boom crane price
FOB for Cranes Reference Price:Get Latest Price
$250000.00-$300000.00 1 / EA (Min. Order)
Model: QY75K
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 75 ton QY75K telescopic boom crane price
XCMG 75 ton QY75K telescopic boom crane price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Model Number:QY75K
  • Brand Name:XCMG
  • Place of Origin:Xuzhou,Jiangsu,China
  • Span:5.6m
  • Max. Lifting Height:64.5m
  • Max. Lifting Load:75 ton
  • Rated Lifting Moment:2969kNm
  • Rated Loading Capacity:75 ton
  • Application:Construction
  • Certification:CE/ISO9001
Specifications
  • weight:38350.000kg
  • Condition:New
  • Moving Type:Wheel
  • Engine rated power:149/2100kW/(r/min)
  • Overall dimension:12100*2980*3530mm
  • Engine rated torque:740/1500N.m/(r/min)
  • Min. turning diameter:5.5m
  • Min. ground clearance:460mm

XCMG 75 ton QY75K telescopic boom crane price

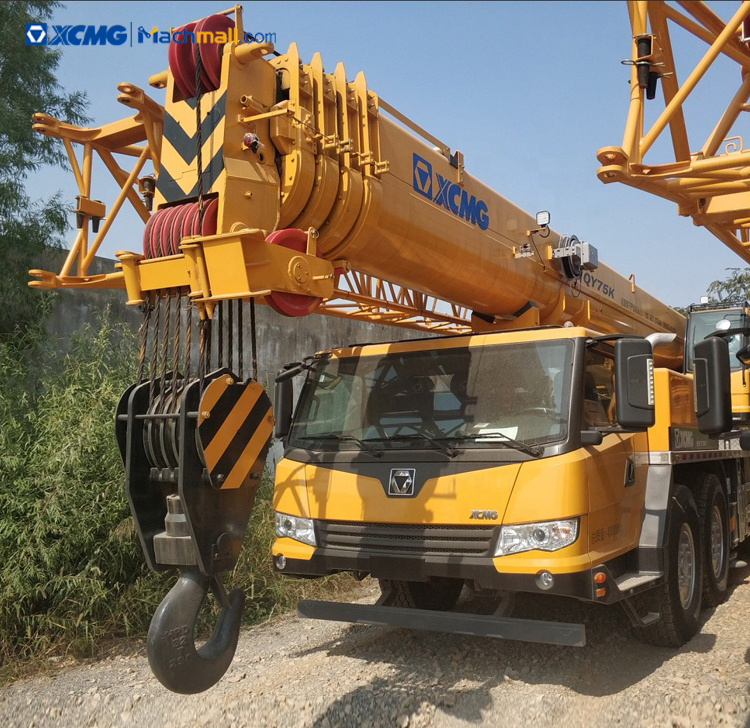

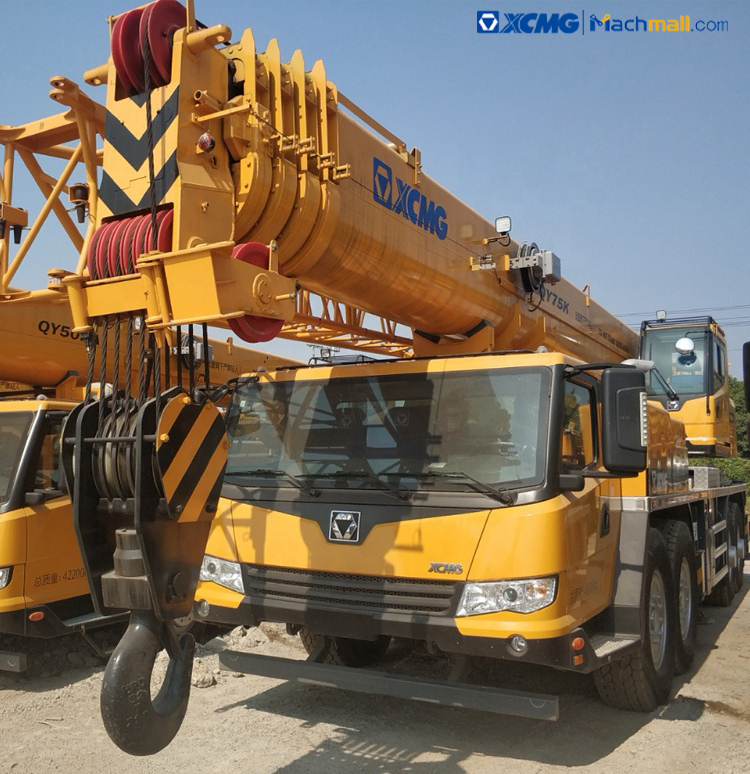

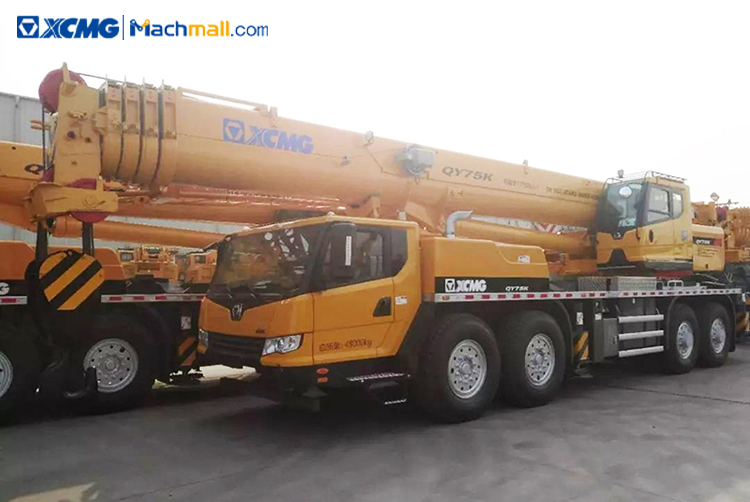

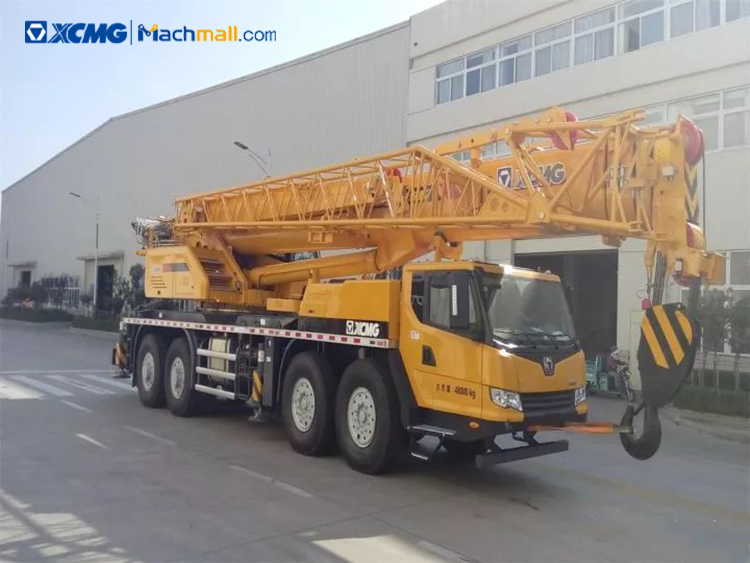

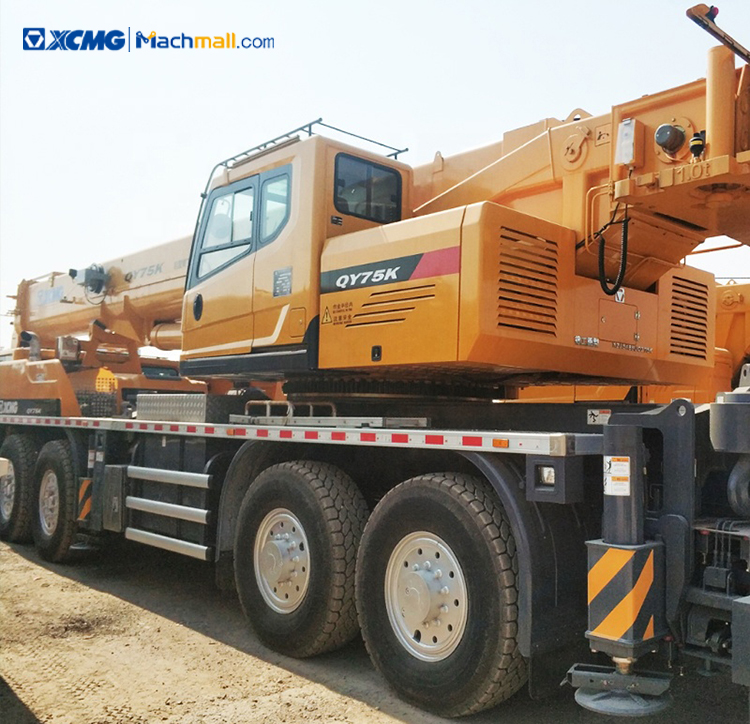

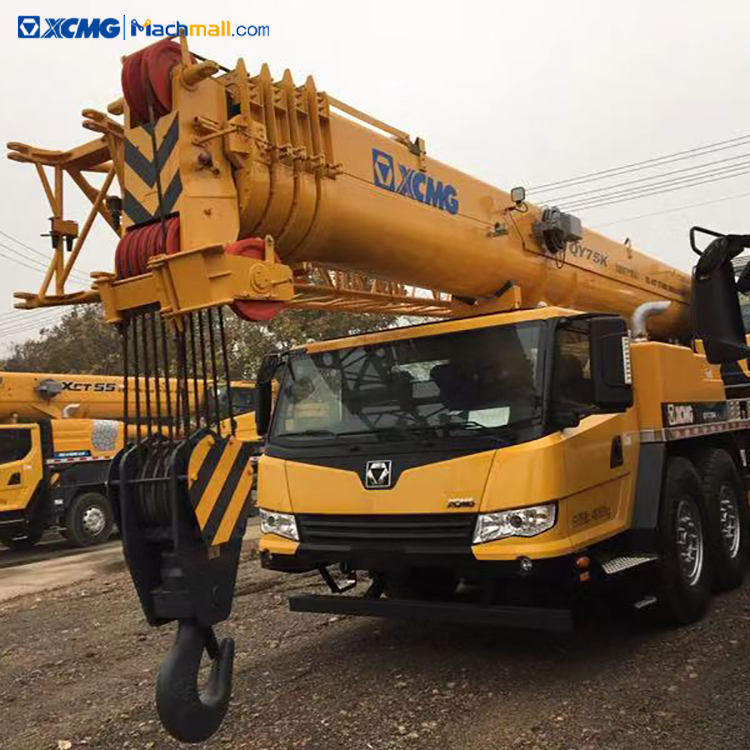

XCMG 75 ton QY75K telescopic boom crane.



The XCMG telescopic crane QY75K four-axle steering 75-ton truck crane has a compact structure, coordinated layout, and highest industry performance.



Advantages and highlights:



1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.



2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.



3. XCMG telescopic crane QY75K telescoping mechanism is designed reliably.



4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.



5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

XCMG 75 ton QY75K telescopic boom crane price

Parameter Item
Scale
Unit
Dimensions
Overall length
12100
mm
Overall width
2980
mm
Overall height
3530
mm
Weight
Dead weight in travel state
38350
kg
1st axle
17750
kg
2nd axle
20750
kg
Power
engine model
QSB6.7

engine rated output
149/2100
KW/(r/min)
engine rated torque
740/1500
N.m/(r/min)
Travel
Max.travel speed
≥35
km/h
Min.turning diameter
≤5.5
m
Min.ground clearance
460
mm
Approch angle
25.8
°
Departure angle
21.8
°
Max.gradeability
≥55
%
Lifting Performance
Max.total rated lifting load
50
t
Min.rated working radius
3
m
Turning radius at swing table tail
4090
mm
Base boom amx.load moment
1690
kn.m
Base boom
10.3
m
Full-extended boom
38.2
m
Full-extended boom+Jib
55
m
Outrigger longitudinal distance span
7
m
Outrigger lateral distance span
7.0/5.8
m
Working speed
Boom elevating time
≤80
s
Boom telescoping time
≤120
s
Max.swing speed
≥2.0
r/min
Main winch max. speed(on load)
≥125
m/min
Auxiliary winch max. speed(on load)
≥125
m/min

XCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane price



uMore xcmg telescopic crane



XCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane priceXCMG 75 ton QY75K telescopic boom crane price

Send your message to this supplier
Email:
to:
XCMG E-commerce Inc.
Content:
/6000

Your inquiry content must be between 20 to 6000 characters.

Quantity:
/ Set
back to top
Response Time : Within 24 hours
XCMG was founded in 1943. XCMG products include: excavators, loaders, cranes including earth-moving machinery, road machinery, concrete machinery, mining machinery and other 12 construction machinery.
