Summary
- Model Number:QY40KC
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Span:7.1m
- Max. Lifting Height:60.3m
- Rated Lifting Moment:1574KN.m
- Rated Loading Capacity:40ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- weight:39400.000kg
- Condition:New
- Moving Type:Wheel
- Engine rated power:251/1900kW/(r/min)
- Engine rated torque:1450/1100-1400N.m/(r/min)
- Dimensions:13745*2800*3560mm
- Max. travel speed:90km/h
- Max. grade ability:45%
- Min. turning diameter:24m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

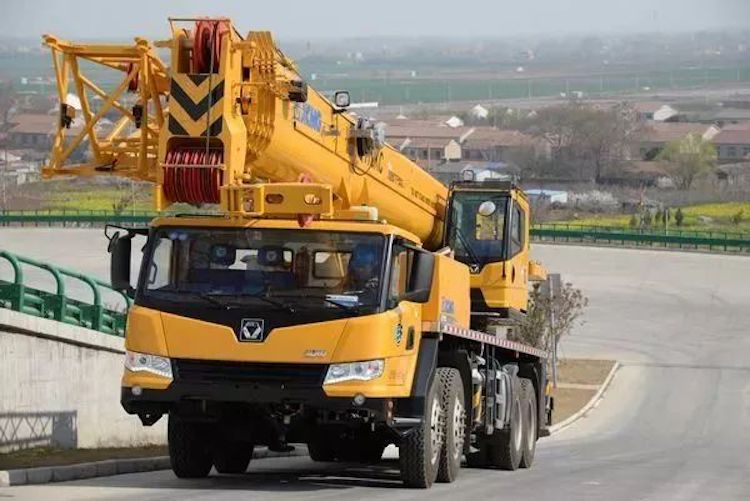

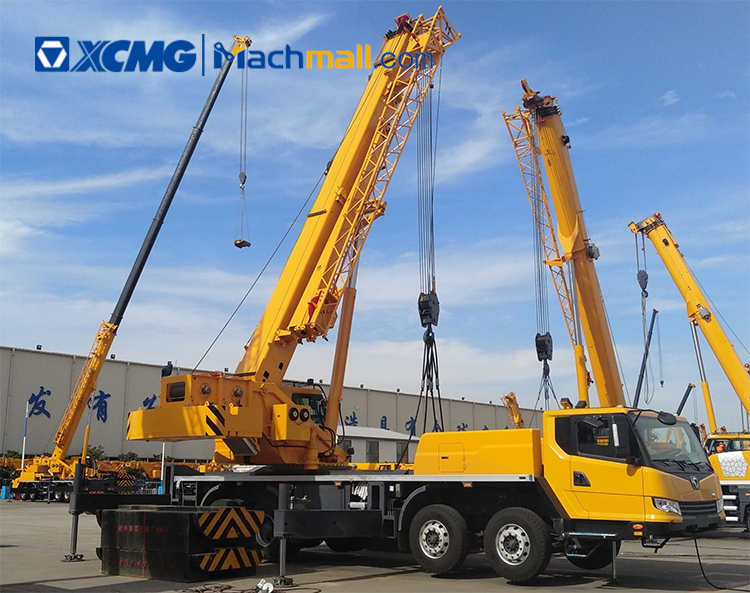

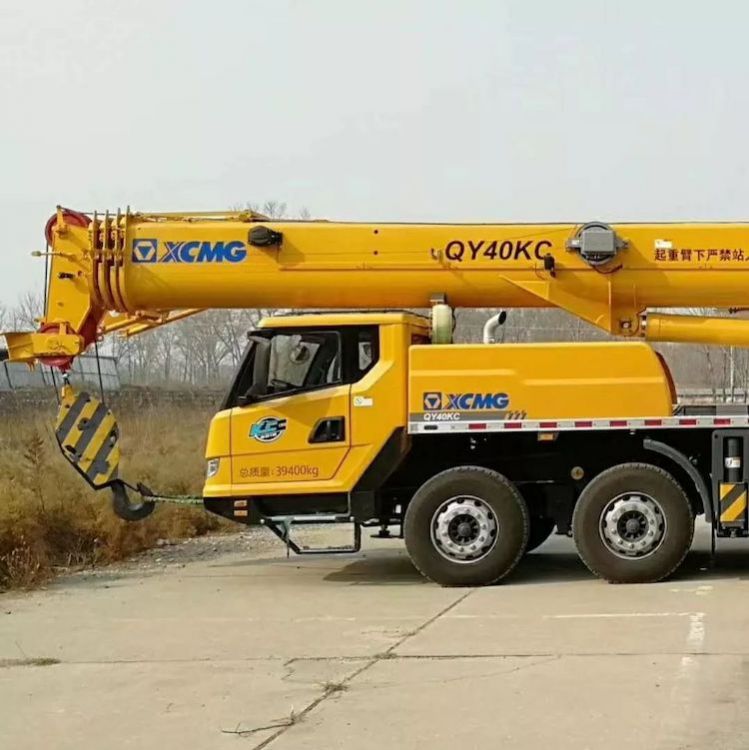

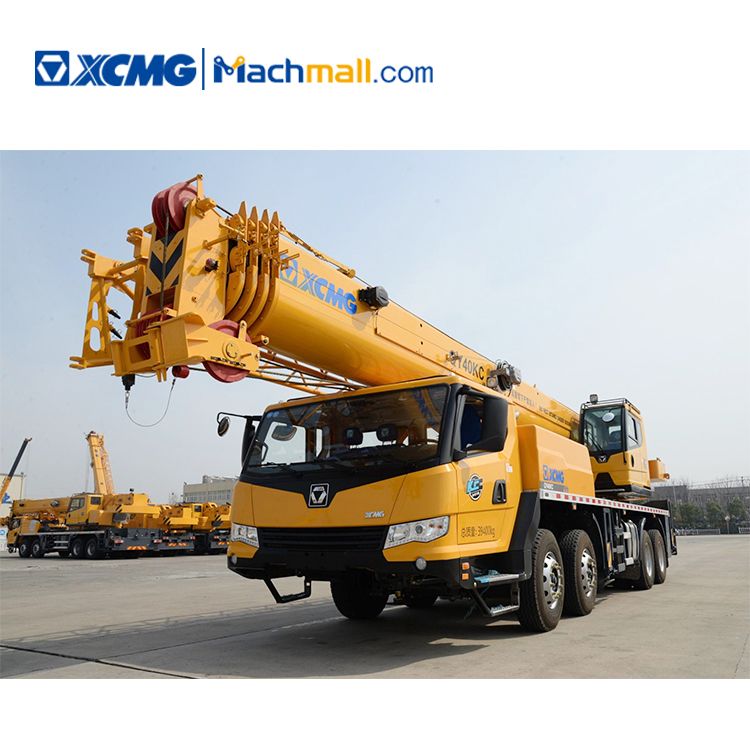

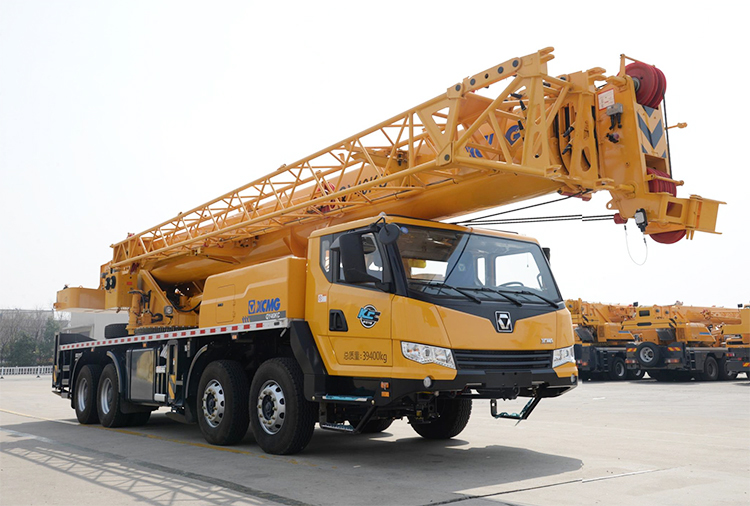

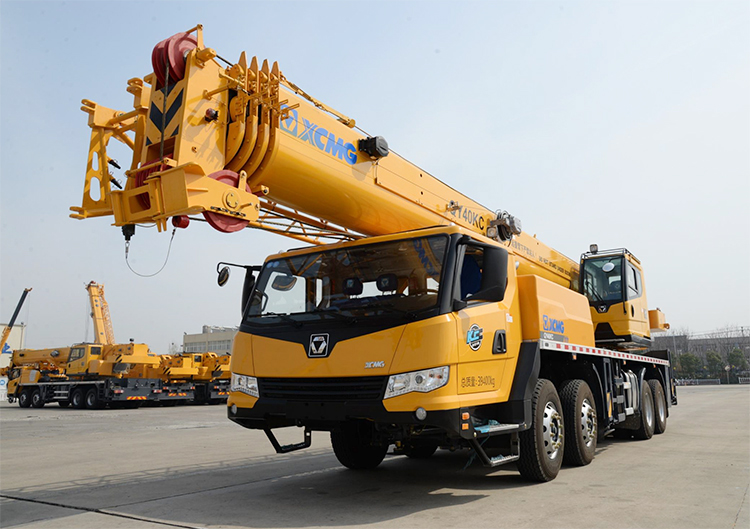

40 ton XCMG mobile truck crane QY40KC.
XCMG truck crane QY40KC adopts full luxury cab with large view and new orthodrome streamline operating cab, which is good looking. Adopt five-segment oval rope retractable boom with double-cylinder and two-segment jib, greatly improving the working scope of the machine.
XCMG QY40KC truck crane design of the streamline boom head is in keeping with the style of the machine. The boom and jib adopt new connection method, which is convenient to dismantle and install. It is equipped with the high-power environment protection engine, improving the chassis power and the trafficability.
Performance Characteristics:
1. Four outriggers, H-type arrangement, single-stage outrigger beam. Hydraulic control is used to extend and retract the outrigger beams and jacks. There are manual control levers fitted at each side of the chassis, as well as a level gauge, an illuminator and a speed regulating button. Each outrigger jack is equipped with a double-way hydraulic valve.
2. SC9DF340Q5, in-line, 6-cylinder, water cooled, electric control diesel engine, compliant to China V emission standard.
3.Mechanical steering mechanism with a hydraulic booster for 1st and 2nd axles.
