Summary
- Model Number:QY25K5-II
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Span:5.14m
- Max. Lifting Height:47m
- Max. Lifting Load:25000kg
- Rated Lifting Moment:428kN.M
- Rated Loading Capacity:25000kg
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:32865.000kg
- Condition:New
- Moving Type:Wheel
- Maximum speed:95km/h
- Max. grade ability:41%
- Rated power:213/2200kw/(r/min)
- Max. output torque:1200/1400N.m/(r/min)
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

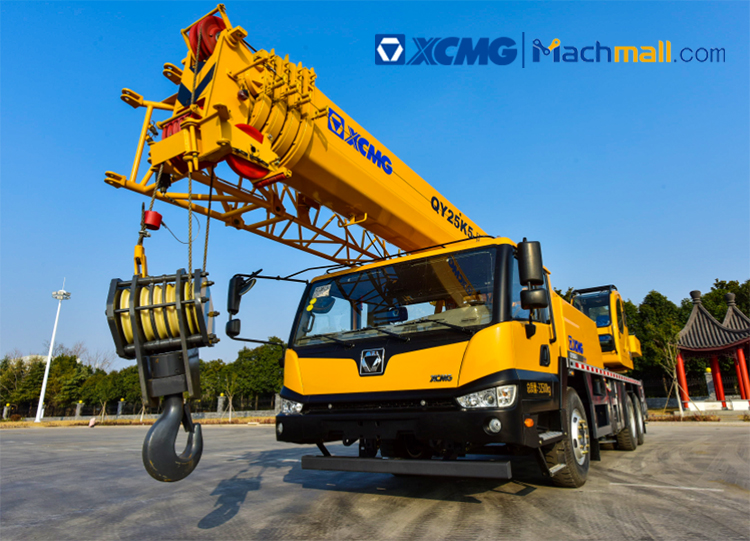

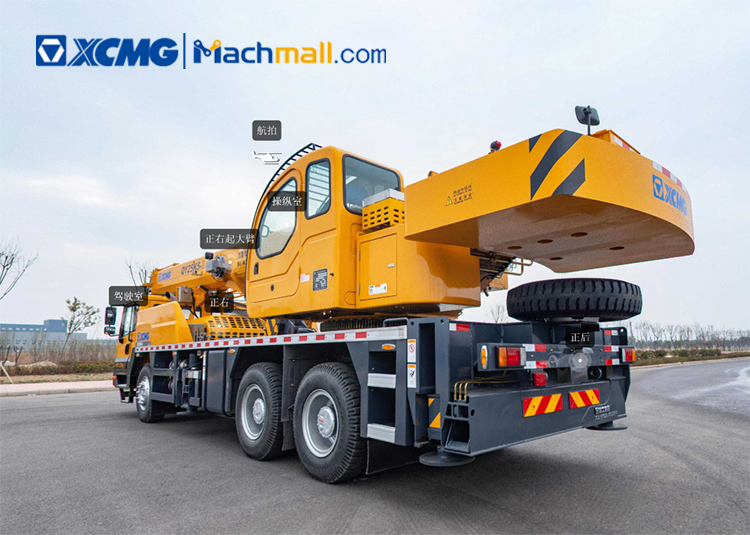

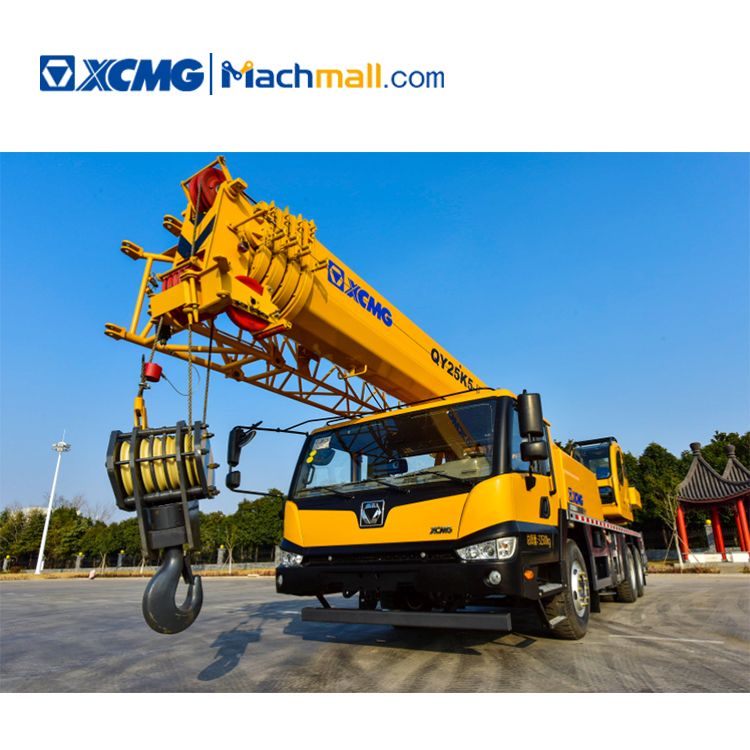

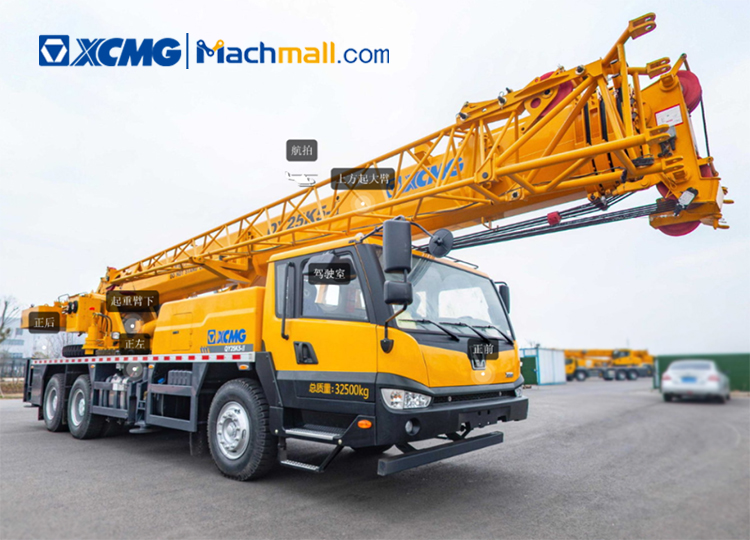

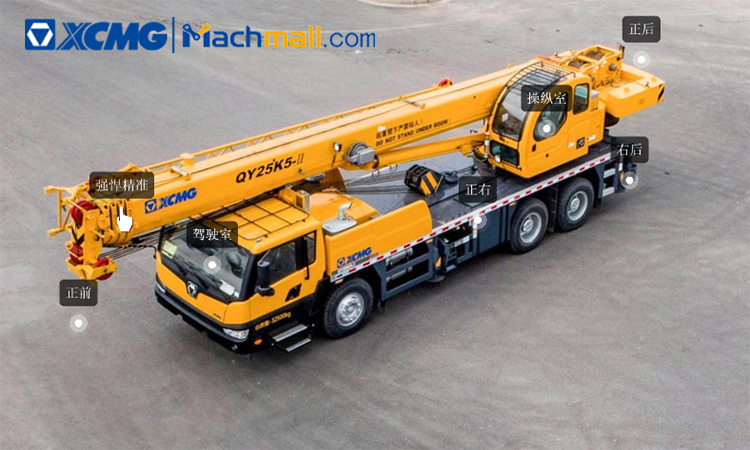

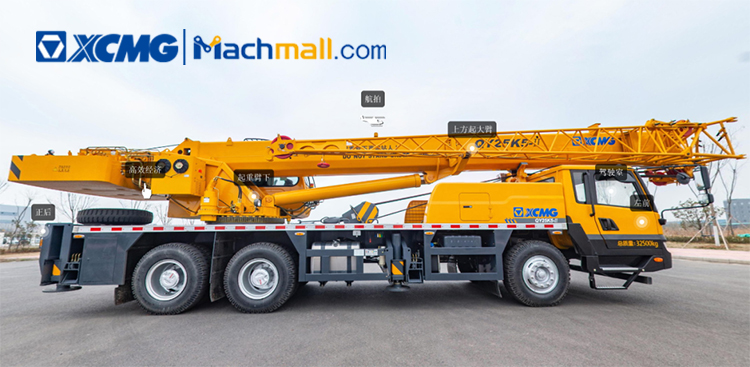

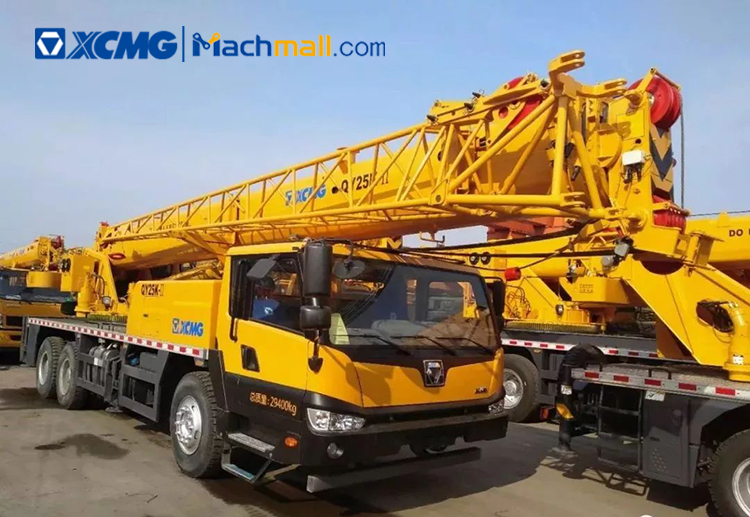

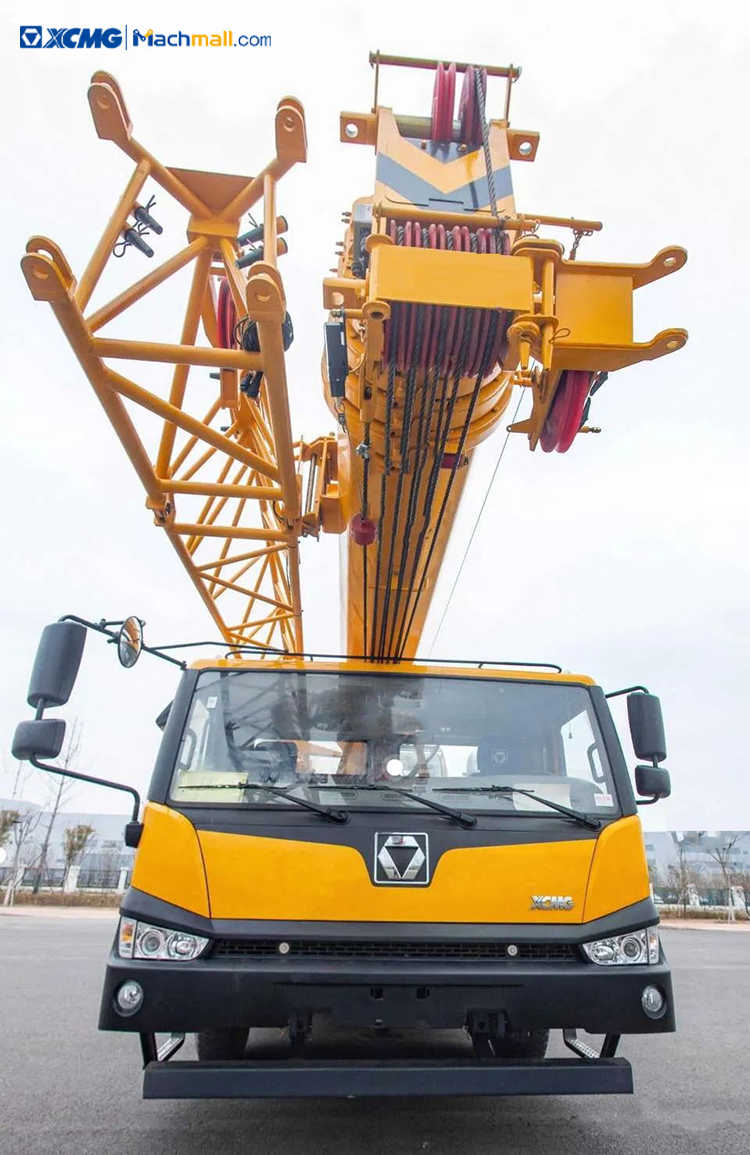

XCMG official 25 ton hydraulic mobile truck cranes QY25K5-II.
XCMG 25 ton truck crane QY25k5-II is the product with high reliability inheriting XCMG classical and advanced technology aboutdesign and manufacture truck crane of many years and based on mature technology.
XCMG truck crane QY25k5-II theoperations of craneare very simple,convenient and flexible. XCMG truck crane QY25k5-II is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oilfield, industrial and mining enterprises, etc.
Performance Characteristics:
1. XCMG truck crane QY25k5-II adopts U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation,strong anti-bending and powerful lifting capacity.The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully-extended are also superior.
2. Plug-in boom head effectively increases theboom connect length andreducesboom deformation.
3. Truck crane QY25k5-II embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
4. Truck crane QY25k5-II with 9-speed transmission equipped, it has superior travel and grade ability. The max. grade abilityis 40%, max. travel speed is 90km/h.
5.Meets the requirements of speed and reduces the energy consumption and system heat effectively.
|
Category
|
Item
|
Unit
|
Parameter
|
|
Outline Dimensions
|
Overall length
|
mm
|
12680
|
|
Overall width
|
mm
|
2500
|
|
|
Overall height
|
mm
|
3400
|
|
|
Axle base
|
mm
|
4425+1350
|
|
|
Wheel base
|
mm
|
2074/1834/1834
|
|
|
Weight
|
Total vehicle mass in travel configuration
|
kg
|
32865
|
|
Power
|
Model
|
|
SC9DF290Q3
|
|
Rated power
|
kw/(r/min)
|
213/2200
|
|
|
Rated torque
|
N.m/(r/min)
|
1200/1400
|
|
|
Travel Performance
|
Max. travel speed
|
km/h
|
90
|
|
Min. turning diameter
|
m
|
22
|
|
|
Min. ground clearance
|
mm
|
275
|
|
|
Approach angle
|
°
|
11
|
|
|
Departure angle
|
°
|
12
|
|
|
Braking distance(at 30 km/h)
|
m
|
≤10
|
|
|
Max. grade ability
|
%
|
41
|
|
|
Oil consumption per 100km
|
L
|
≤32
|
|
|
Noise
|
Exterior noise level in accelerating
|
dB(A)
|
88
|
|
Noise Level at seated position
|
dB(A)
|
90
|
