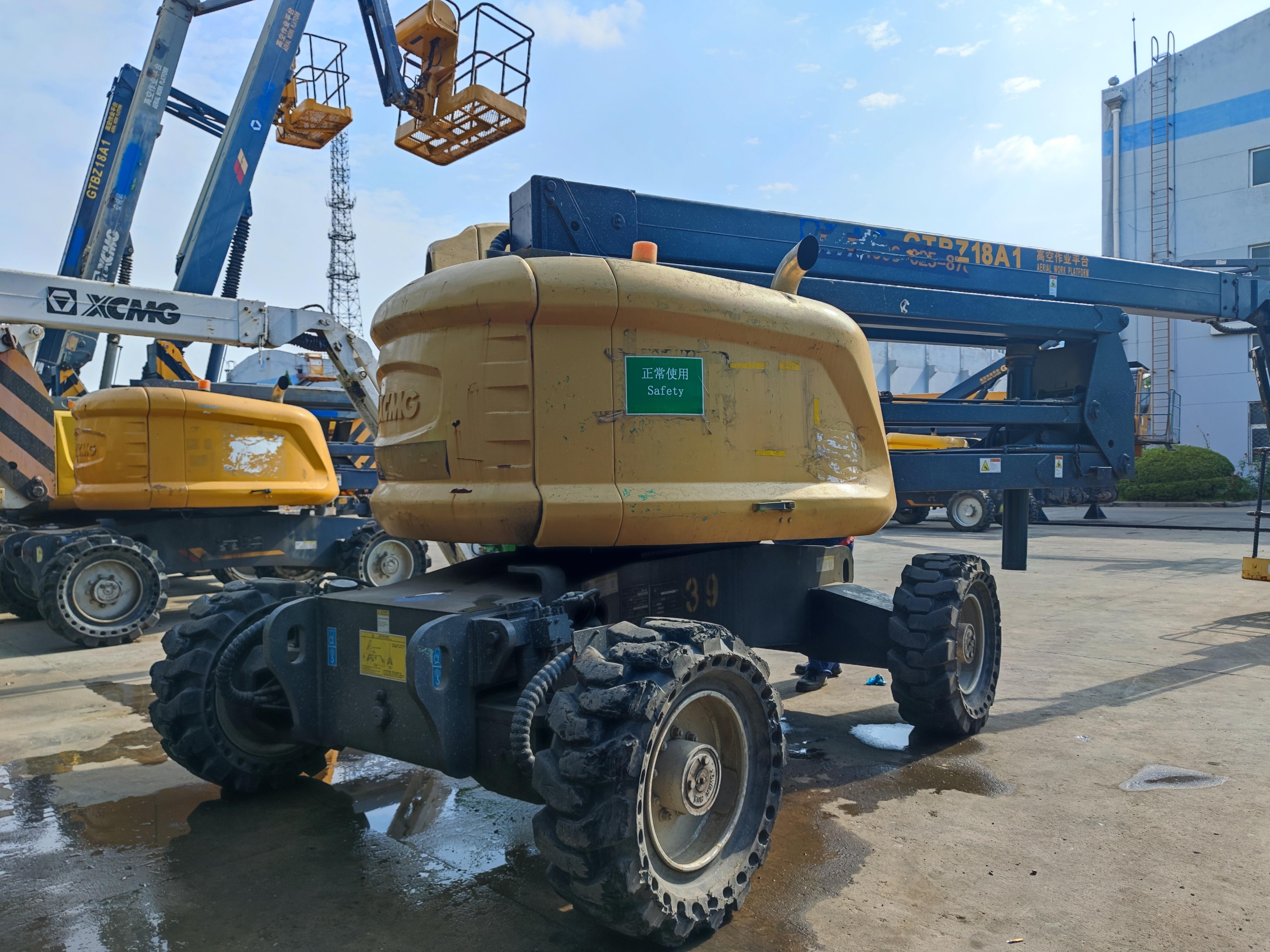

XCMG used wheel hydraulic aerial work platform GTBZ18A1
Specifications
- weight:10520.000kg
- Area:Jiangsu Province
- Brand:XCMG
- Model:GTBZ18A1
- Type:Curved arm type aerial work platform
- Working_condition:other
- YEAR:May 2018
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG used wheel hydraulic aerial work platform GTBZ18A1
For 18m level “Σ” type linkage folded hybrid boom aerial work platform, its readability, operating performance and humanization has reached to the advanced level in the industry. The linkage folded hybrid arm has compact structure and flexible stretching, which is easy to get to the unreachable areas; with four-wheel drive, off-road wide tires and axle balancing device, the equipment has excellent drive and terrain adaptability.
The model manipulation is simple, safe, reliable, accurate and efficient, which can meet the requirements of the construction, petrochemical, venues, leasing and other industry users.
Item | Unit | Parameter |
Overall length | mm | 9080 |
Overall width | mm | 2490 |
Overall height | mm | 2680 |
Wheelbase | mm | 2500 |
Maximum working height | m | 20.3 |
Maximum platform height | m | 18.6 |
Maximum working range | m | 11.9 |
Maximum load weight | kg | 230 |
No.1 arm luffing range | ° | 0 ~ +70 |
No.2 arm luffing range | ° | 0 ~ +75 |
Crank arm luffing range | ° | -65 ~ 70 |
The swing angle of the rotary table | ° | 360 |
Maximum tail wagging | mm | 0 |

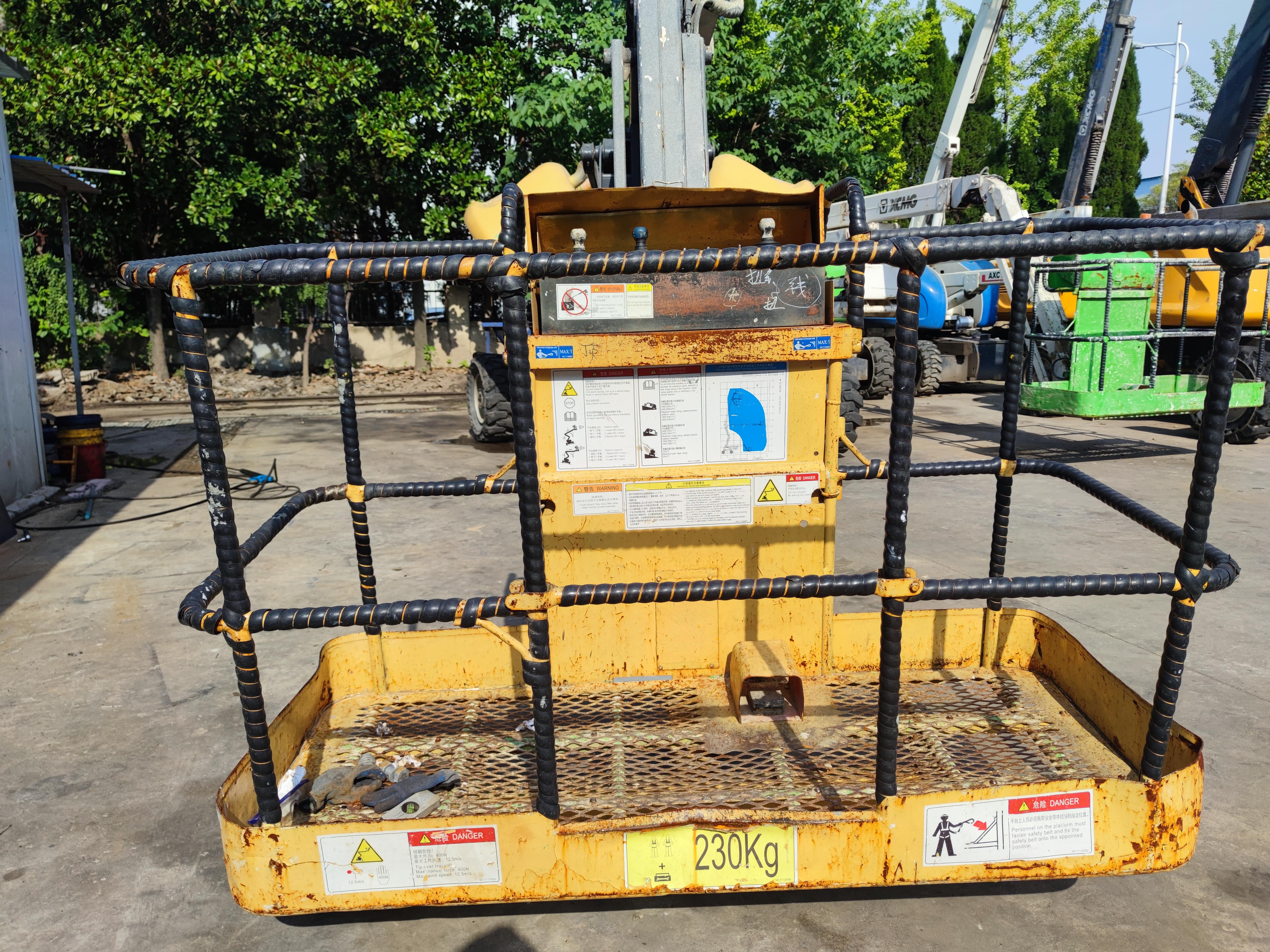

Platform size | mm | 1830×760×1150 |
The swing angle of the platform | ° | 180 |
Machine weight | kg | 10600 |
Maximum travelling speed | km/h | 6.0 |
Minimum turning radius | m | 6.0 |
Minimum ground clearance | mm | 230 |
Maximum gradeability | % | 45 |

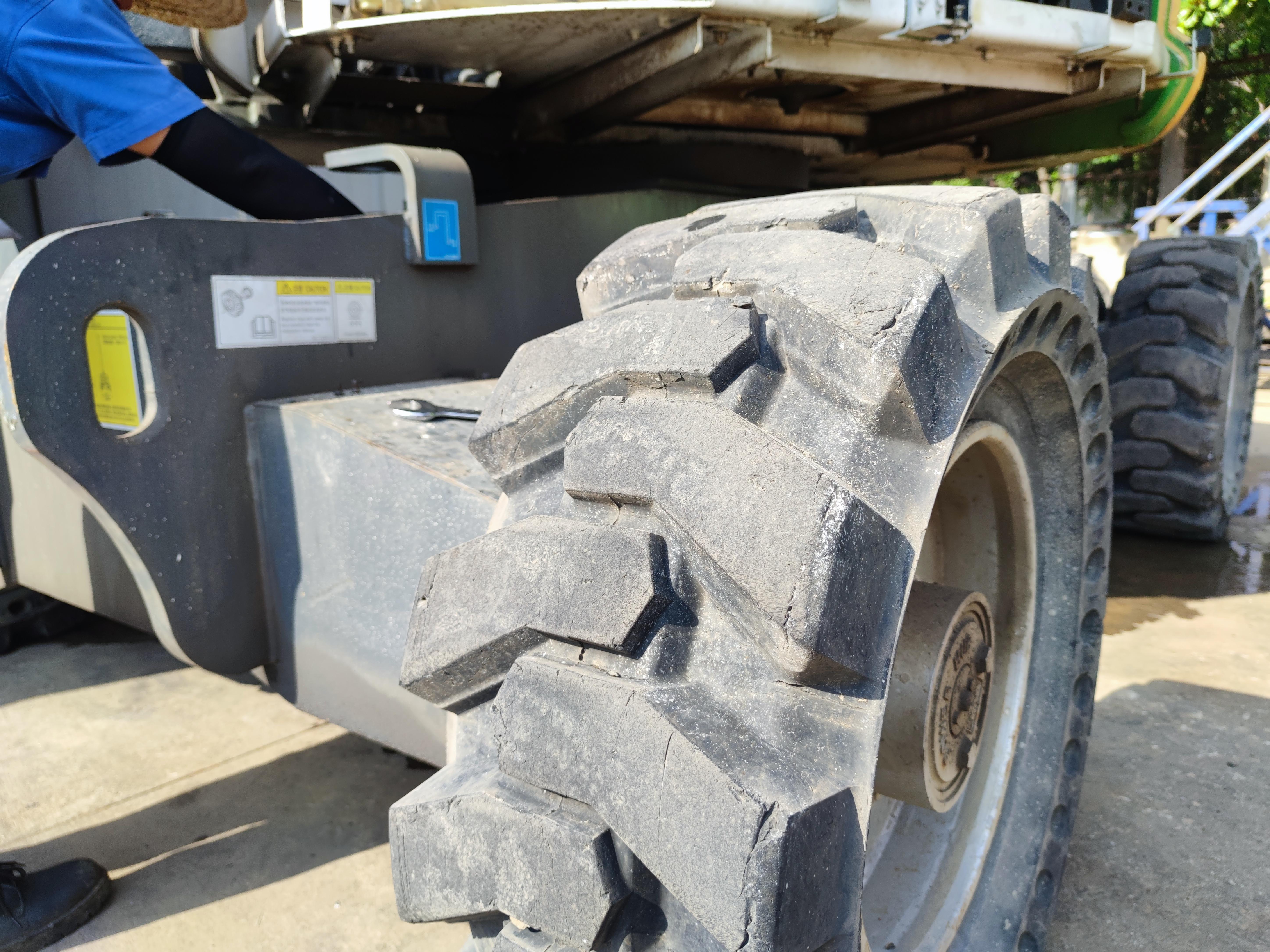

Tyre size | 355/55D625 | |

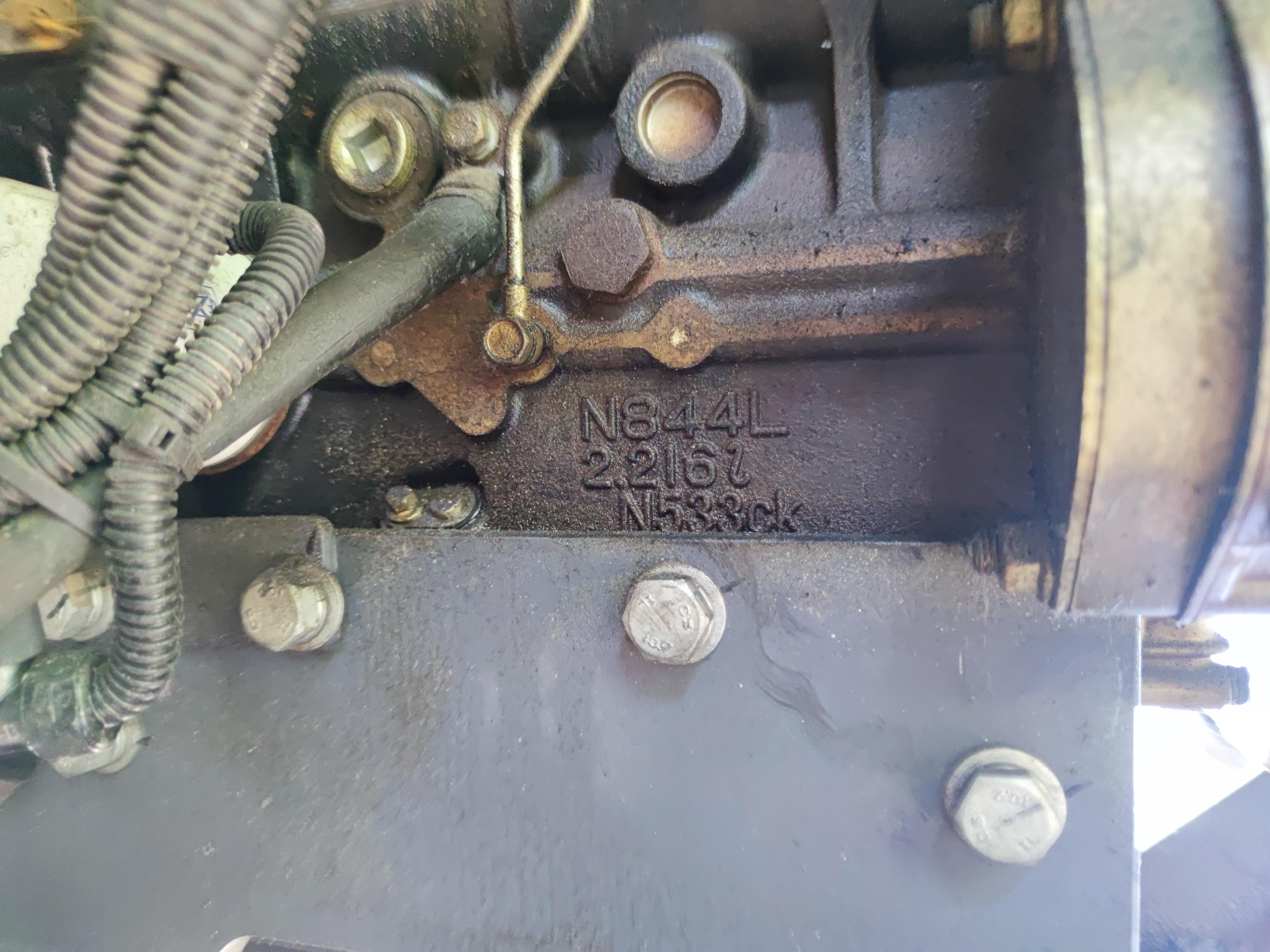

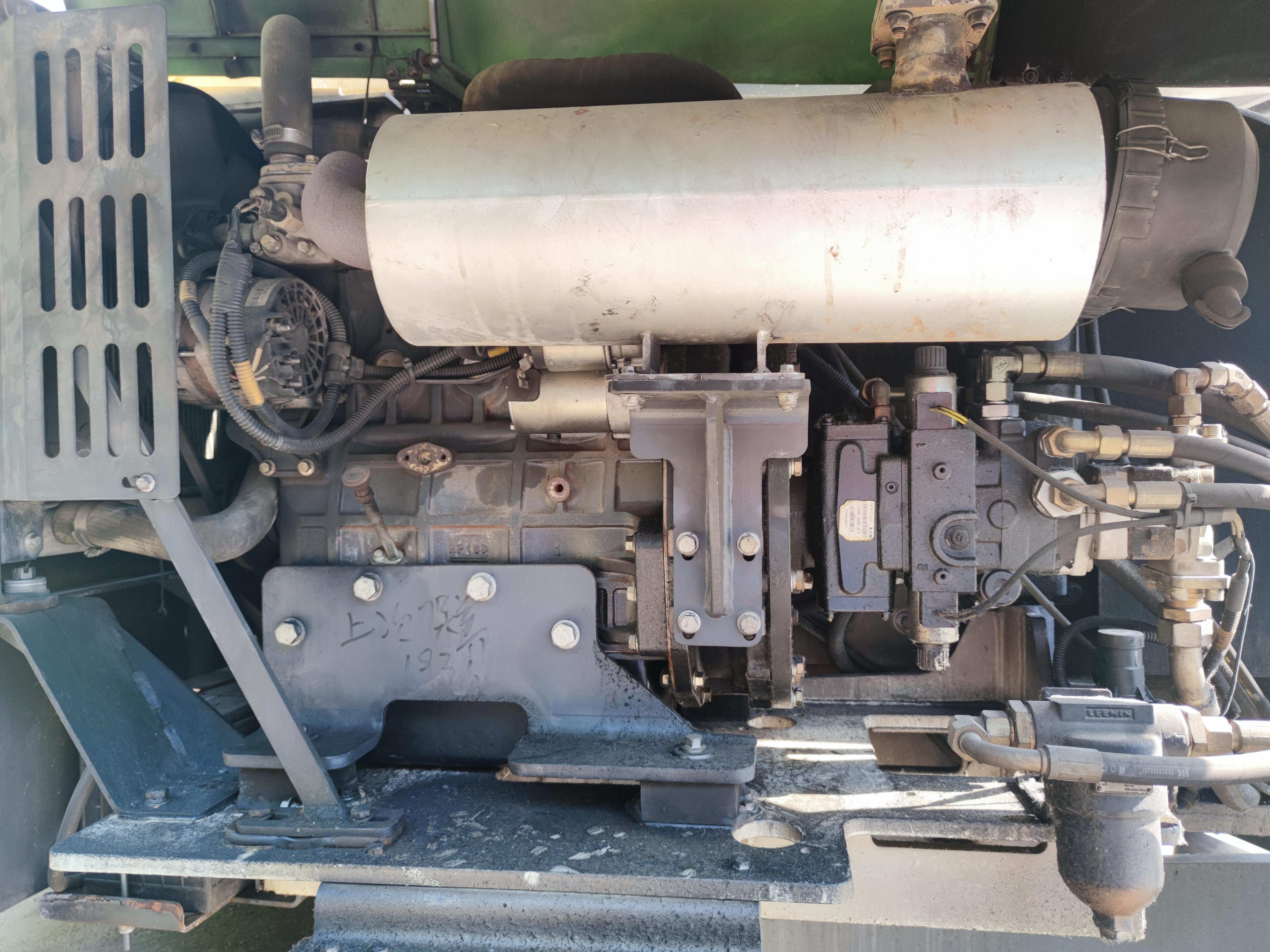

Motor model | Perkins 404D-22 Deutz D2011L03i | |
Rated power of motor | kW/(r/min) | 38KW/3000rpm, 36.3 KW/2800rpm |
If any other questions, please feel free to contact with us.
