- Summary
- Details
- Rated Speed:11/33km/h
- Max Digging Radius:7780mm
- Machine Weight:15ton
- Maximum Digging Depth:4630mm
- Maximum Digging Height:8190mm
- Operating Weight:14ton
- Model Number:XE150WB
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Bucket capacity:0.58cbm
- weight:15000.000kg
- Condition:New
- Moving Type:Wheel
- Engine Brand:SHANGCHAI
- Rated Load:1-2 ton
- Bucket Capacity:0.5 - 2m³

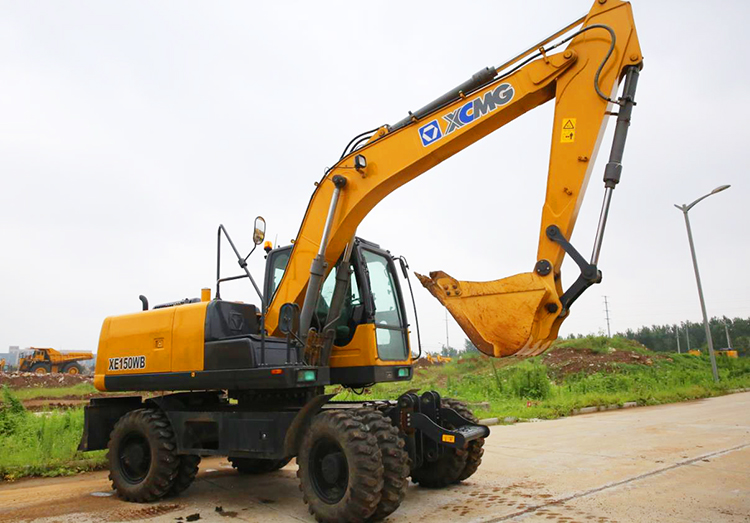

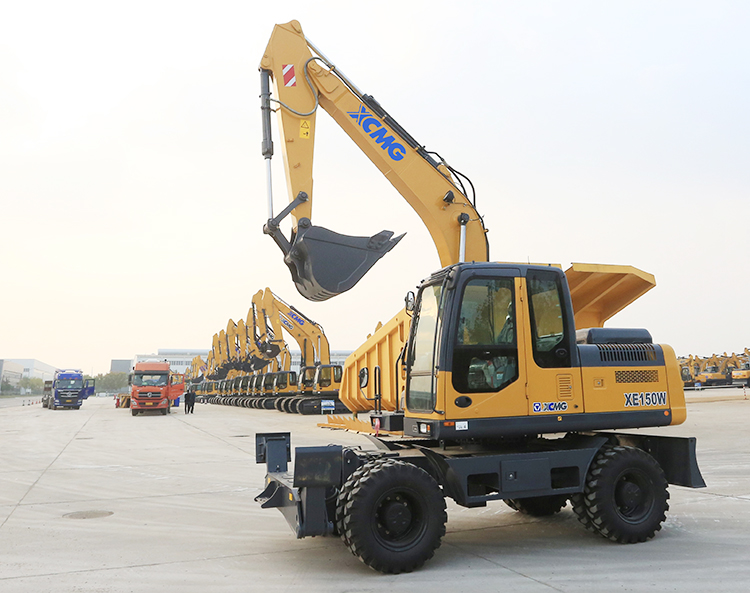

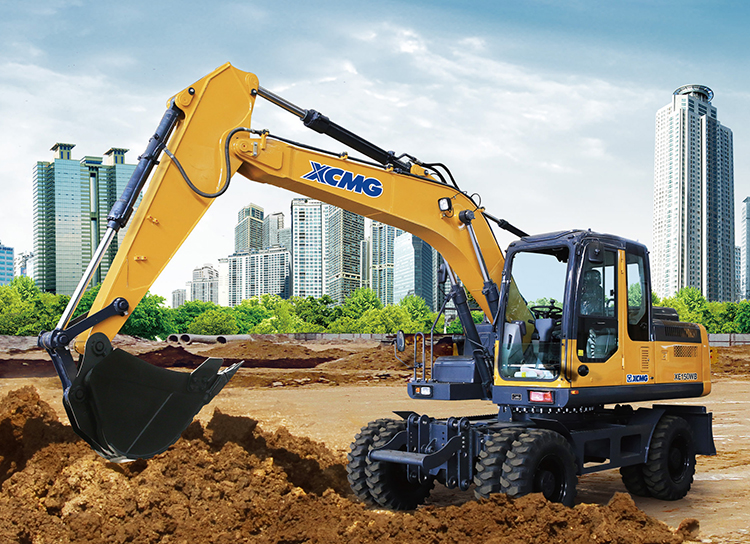

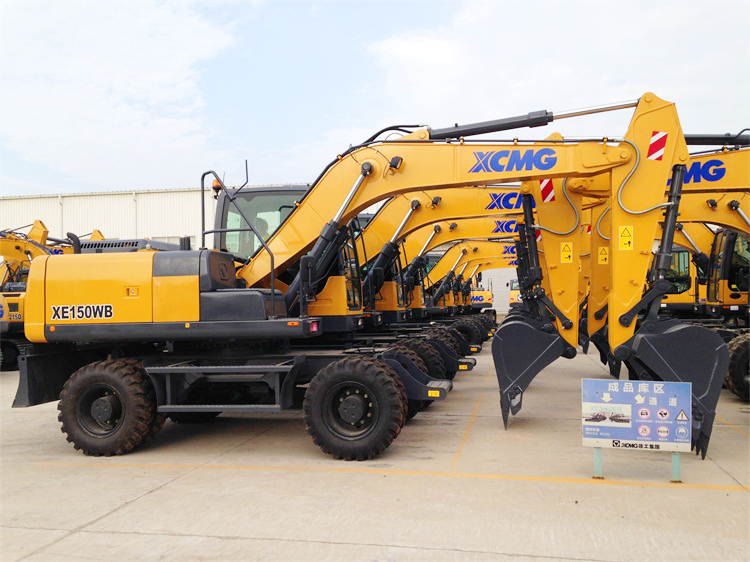

15 ton XCMG machine XE150WB wheel excavator.
XCMG XE150WB wheel excavator is powerful, flexible and exquisite enough to cope with a variety of working conditions. The appearance size of the machine complies with road regulations and transportation requirements. It plays an important role in the aspects of airport, port, oil field, urban construction, irrigation and water conservancy and rapid repair, and brings rich value returns for customers.
XCMG XE150WB wheel excavator has used a new generation of independent researched and developed controllers as well as a low-noise pump and especially considered the matching between the engine and the low-speed load to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption.
Advantages and Highlights:
1. Equipped with a new generation of high-efficiency direct injection engine.
2. Using highly professional design and analysis tools, combined with bench tests, to ensure that our machines are strong and durable.
3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

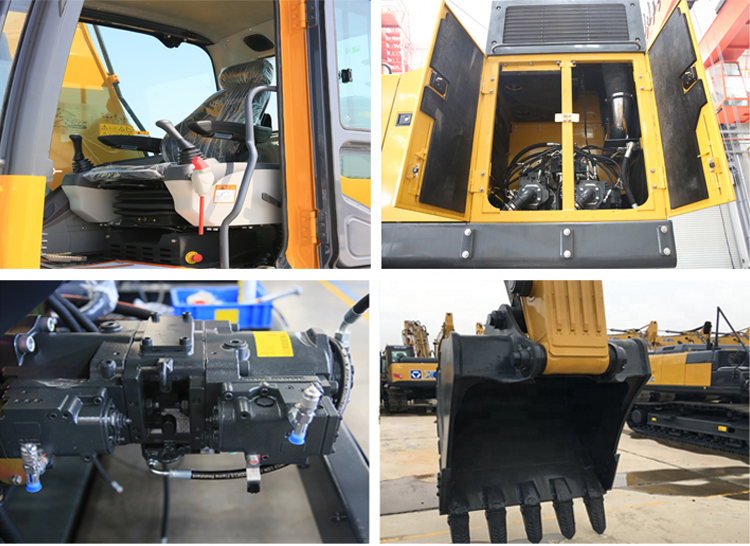

4. Fully functional, ergonomically designed man-machine driving and driving environment, equipped with high intensity cab certified with ROPS.
|
Engine model |
/ |
QSB4.5 |
|
Output power of engine |
Kw/r/min |
104/2000 |
|
Max.torque/engine |
N.m |
586 |
|
Displacement |
L |
4.5 |
|
Fuel tank capacity |
L |
250 |
|
Rated flow of main pump |
L/min |
2x160 |
|
Pressure of main safety valve |
Mpa |
31.4/34.3 |
|
Hydraulic tank capacity |
L |
135 |
|
Slewing speed |
r/min |
13.7 |
|
Digging capacity of tcuket |
KN |
60 |
|
Digging capacity of tcuket rod |
KN |
65 |
|
Min.turning radius |
mm |
6500 |
|
Travel speed |
Km/h |
|
|
Gradient capability |
% |
70 |
|
A Total length |
mm |
6482 |
|
B Total width |
mm |
2552 |
|
C Total heigth |
mm |
3158 |
|
Counterweight ground clearance |
mm |
1230 |
|
Min.ground clearance |
mm |
359 |
|
Min.tail swing radius |
mm |
2300 |
|
Wheelbase |
mm |
2800 |
|
Track gauge |
mm |
1920 |
|
Total width of chassis |
mm |
2495 |
|
Distance between front axle and turning center |
mm |
1700 |
|
Hood height |
mm |
2430 |
|
The maximum digging depth of dozer |
mm |
112 |
