Consumable Spare Parts List of XCMG XE215C Excavator
Specifications
- weight:1.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Consumable Spare Parts List of XCMG XE215C Excavator.
XCMG XE215C excavator spare parts: track shoe, oil filter, diesel filter, air filter element, hydraulic return filter, hydraulic oil filter, hydraulic oil pilot filter, tooth, tooth pin, left tooth, right tooth, nuts, washer, bolt...
|
List of Consumable Spare Parts of XCMG XE215C Excavator |
|||||
|
Serial No. |
Material Type |
Material Name |
Material No. |
unit |
installed quantity |
|
1 |
maintenance parts |
Oil filter |
800151027 |
EA |
1 |
|
2 |
Diesel filter |
800107893 |
EA |
1 |
|
|
3 |
Diesel filter |
800151162 |
EA |
1 |
|
|
4 |
Air filter element |
800151039 |
EA |
1 |
|
|
5 |
Air filter element |
800151038 |
EA |
1 |
|
|
6 |
Hydraulic return filter |
803306840 |
EA |
1 |
|
|
7 |
Hydraulic oil filter |
803306841 |
EA |
1 |
|
|
8 |
Hydraulic oil pilot filter |
860151969 |
EA |
1 |
|
|
9 |
consuming parts |
Tooth |
819950047 |
EA |
5 |
|
10 |
Tooth pin |
819948380 |
EA |
5 |
|
|
11 |
Left tooth |
819951081 |
EA |
1 |
|
|
12 |
Right tooth |
819951082 |
EA |
1 |
|
|
13 |
Nuts |
805203192 |
EA |
10 |
|
|
14 |
washer |
805338299 |
EA |
10 |
|
|
15 |
bolt |
805004832 |
EA |
10 |
|
|
16 |

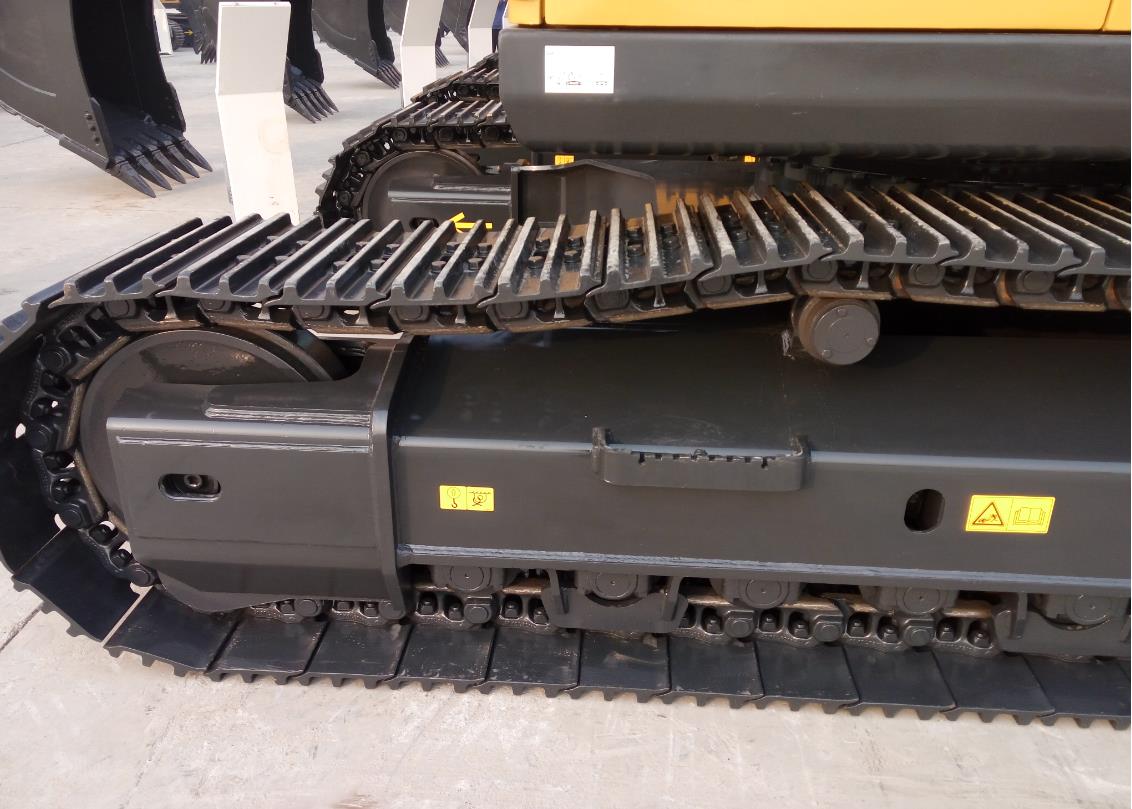

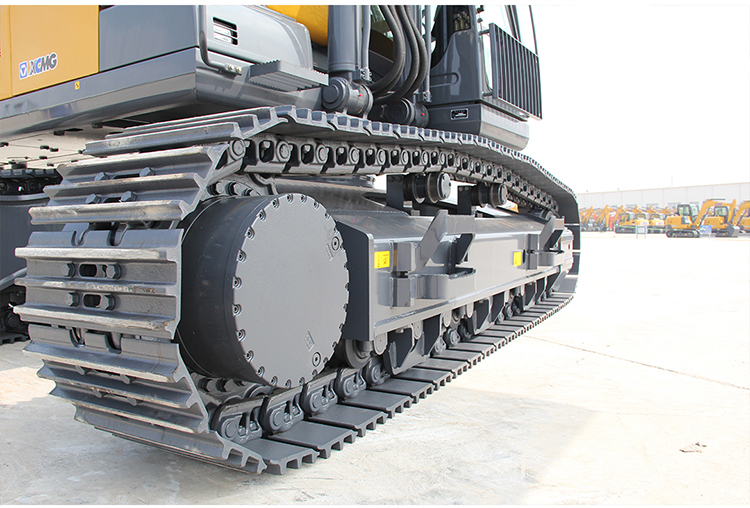

Track shoe |
414101838 |
EA |
94 |
|
|
17 |
Bolts (track shoes) |
414100050 |
EA |
188 |
|
|
18 |
Main chain rails |
414101830 |
EA |
2 |
|
|
19 |
Main pin |
414102189 |
EA |
2 |
|
|
20 |
Cotter pin |
800347166 |
EA |
2 |
|
|
21 |
Pin shaft |
414102176 |
EA |
92 |
|
|
22 |
Injection valve |
800305497 |
EA |
2 |
|
|
23 |
Rollers |
414100425 |
EA |
16 |
|
|
24 |
Bolt M18×90 |
805006281 |
EA |
64 |
|
|
25 |
Fan belt |
800104394 |
EA |
1 |
|
|
26 |
Car V-belt |
800140917 |
EA |
1 |
|
|
27 |
Power relay |
803608697 |
EA |
1 |
|
|
28 |
Flameout relay |
803608687 |
EA |
1 |
|
|
29 |
Start relay |
803608689 |
EA |
1 |
|
|
30 |
main power switch |
803608695 |
EA |
1 |
|
|
31 |
Pressure Switch |
803538020 |
EA |
2 |
|
|
32 |
Fuel sensor |
803504607 |
EA |
1 |
|
|
33 |
Water level sensor |
803504663 |
EA |
1 |
|
|
34 |
Potentiometer with |
803608815 |
EA |
1 |
|
|
35 |
Throttle motor |
800104270 |
EA |
1 |
|
|
36 |
Extinguishing motor |
800104326 |
EA |
1 |
|
|
37 |
Relay |
803608842 |
EA |
7 |
|
|
38 |
speaker |
803504609 |
EA |
2 |
|
|
39 |
Hydraulic oil temperature sensor |
803504717 |
EA |
1 |
|
|
40 |
Oil level sensor |
803504607 |
EA |
1 |
|
|
41 |
Electronic pressure difference alarm |
819908974 |
EA |
1 |
|
|
42 |
Sender |
803506008 |
EA |
1 |
|
|
43 |
Sender |
803544182 |
EA |
1 |
|
|
44 |
Rocker switch |
803608708 |
EA |
1 |
|
|
45 |
Rocker switch |
803608781 |
EA |
1 |
|
|
46 |
Rocker switch |
803608893 |
EA |
1 |
|
|
47 |
Key switch |
803608698 |
EA |
1 |
|
|
48 |
Water pipe |
800104931 |
EA |
1 |
|
|
49 |
Underwater pipe |
800104936 |
EA |
1 |
|
|
50 |
Diesel tube assembly |
310800780 |
EA |
1 |
|
|
51 |
Diesel tube assembly |
310800199 |
EA |
1 |
|
|
52 |
Diesel tube assembly |
310800174 |
EA |
1 |
|
|
53 |
Pressure test connector |
803302731 |
EA |
1 |
|
|
54 |
Pressure test connector |
803302730 |
EA |
1 |
|
|
55 |
Level gauge |
803173177 |
EA |
1 |
|
|
56 |
Bearings |
310702416 |
EA |
4 |
|
|
57 |
Dust ring |
803176145 |
EA |
4 |
|
|
58 |
O-ring |
310600273 |
EA |
4 |
|
|
59 |
Bearings |
310702417 |
EA |
2 |
|
|
60 |
Dust ring |
803172435 |
EA |
2 |
|
|
61 |
Adjustment mats |
819908709 |
EA |
2 |
|
|
62 |
Bearings |
310702418 |
EA |
2 |
|
|
63 |
Adjustment mats |
819908693 |
EA |
4 |
|
|
64 |
Adjustment mats |
819908694 |
EA |
1 |
|
|
65 |
Dust ring |
803172436 |
EA |
4 |
|
|
66 |
Dust ring |
803172437 |
EA |
2 |
|
|
67 |
Bearings |
310702419 |
EA |
2 |
|
|
68 |
Adjustment mats |
801102845 |
EA |
2 |
|
|
69 |
Adjustment mats |
819908695 |
EA |
2 |
|
|
70 |
Adjustment mats |
819908696 |
EA |
2 |
|
|
71 |
Hose assembly |
803172218 |
EA |
1 |
|
|
72 |
Hose assembly |
803172219 |
EA |
1 |
|
|
73 |
Butter mouth |
801140026 |
EA |
4 |
|
|
74 |
Fuses |
803608883 |
EA |
2 |
|
|
75 |
Fuses |
803608735 |
EA |
10 |
|
|
76 |
Fuses |
803608737 |
EA |
4 |
|
|
77 |
Fuses |
803608738 |
EA |
1 |
|
|
78 |
Fuses |
803608734 |
EA |
6 |
|
|
79 |
Repair parts |
Excavator repair kit |
860121342 |
EA |
0 |
|
80 |
Bucket Cylinder Repair Kit |
803202250 |
EA |
0 |
|
|
81 |
Stick cylinder repair kit |
803202249 |
EA |
0 |
|
|
82 |
Boom cylinder repair kit |
803202248 |
EA |
0 |
|
|
83 |
Central rotary body repair kit |
803202620 |
EA |
0 |
|
