  • Application:Overpressure Relief
  • Brand Name:BasCo
  • Model Number:YE Type
  • Place of Origin:China
  • Media:Gas
  • Material:SS


  • weight:0.500kg
  • Condition:New
  • Moving Type:Other

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China

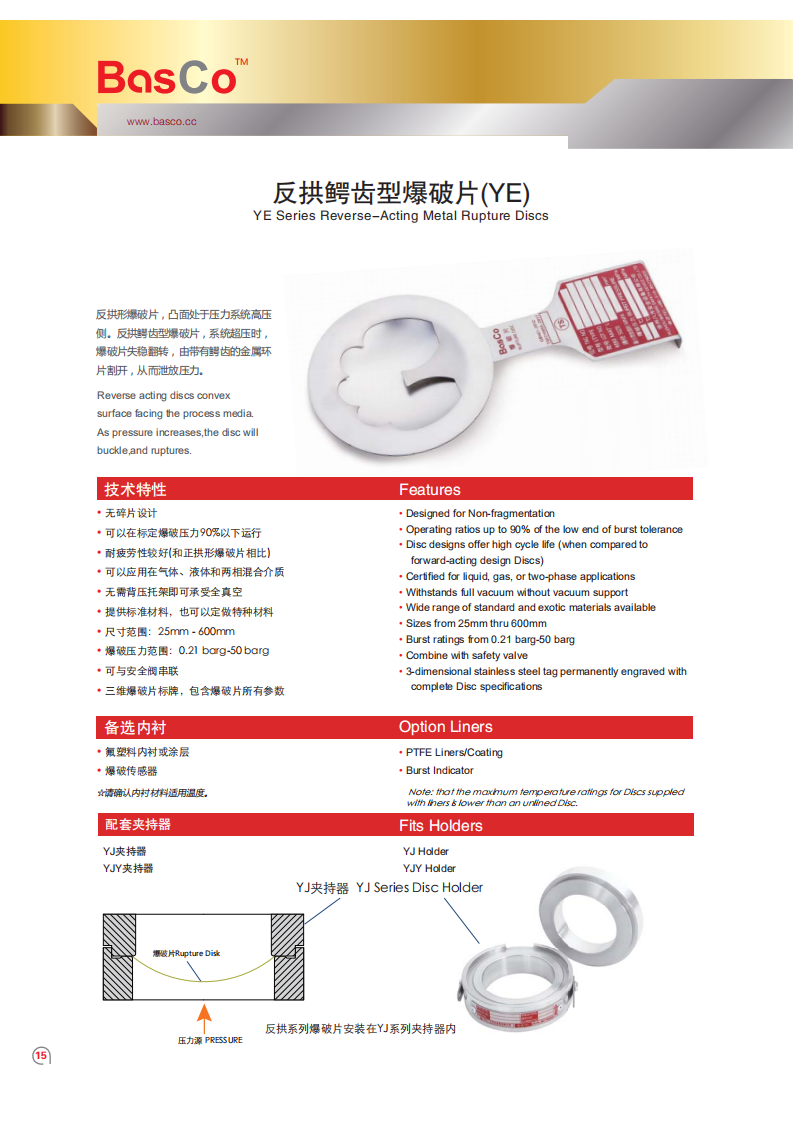

Reverse acting rupture disc, with the convex on the high pressure side. As the pressure increases, the reverse acting crocodile tooth rupture disc will be flipped and be cut open by a metal ring with crocodile-tooth to release pressure.


Non-fragmention designed

• Operating ratios to 90% of the marked bursting pressure on disc tag

• Disc design offers high cycle life(compared with forward acting rupture disc)

• Suitable for liquid, gas, or two-phase applications

The marked bursting pressure on disc tag does not exceed the MAWP of equipment

• Withstands full vacuum without additional support

Various standard and special materials are available

 Sizes from 25mm to 600mm

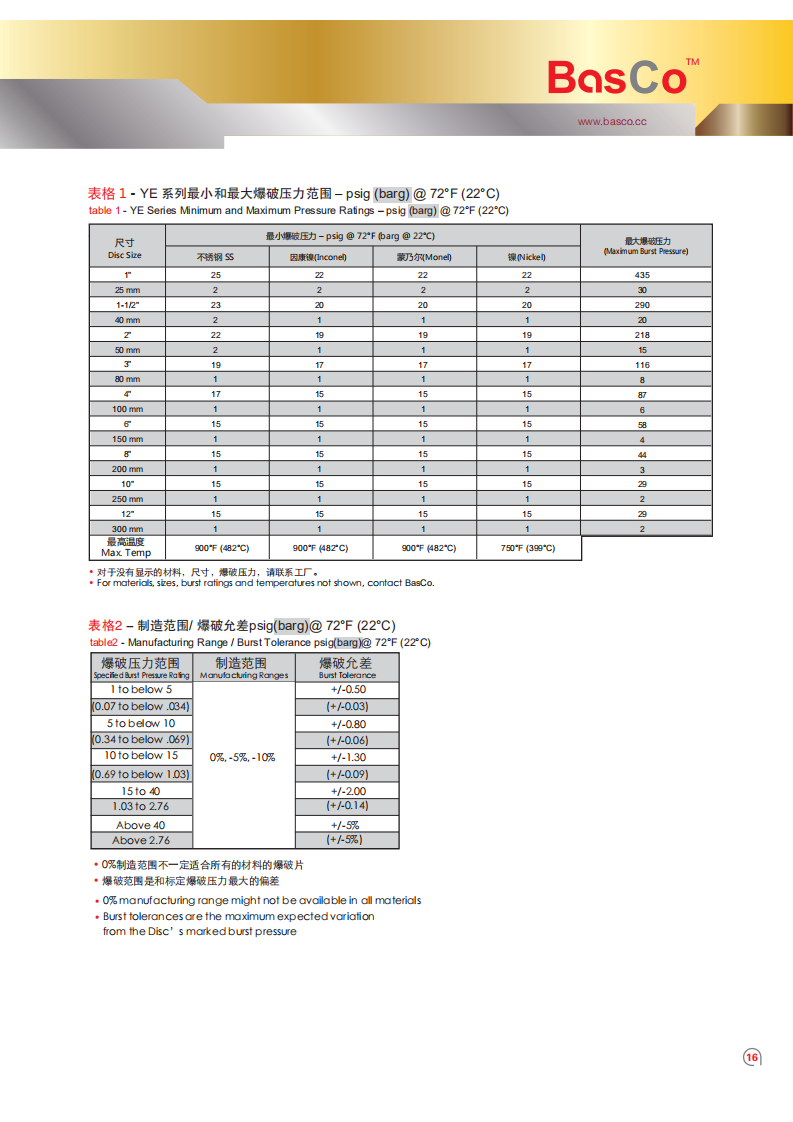

• Burst ratings from 0.21barg to 50 barg

Able to be combined with safety valve

Attached 3-dimensional stainless steel tag is engraved with complete disc specifications


• PTFE Liners/Coating

• Burst Indicator

Note: the maximum temperature rating of rupture discs supplied with liners and BI is lower than the base disc material.
