YF Type Rupture Disc

  • YF Type Rupture Disc
  • YF Type Rupture Disc
  • YF Type Rupture Disc

Share:
YF Type Rupture Disc
EXPRESS Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
YF Type Rupture Disc
YF Type Rupture Disc
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
Summary
  • Application:Overpressure Relief
  • Brand Name:BasCo
  • Model Number:YF Type
  • Place of Origin:China
  • Media:Liquid or Gas
  • Material:SS/SS
Details
  • weight:0.500kg
  • Condition:New
  • Moving Type:Other

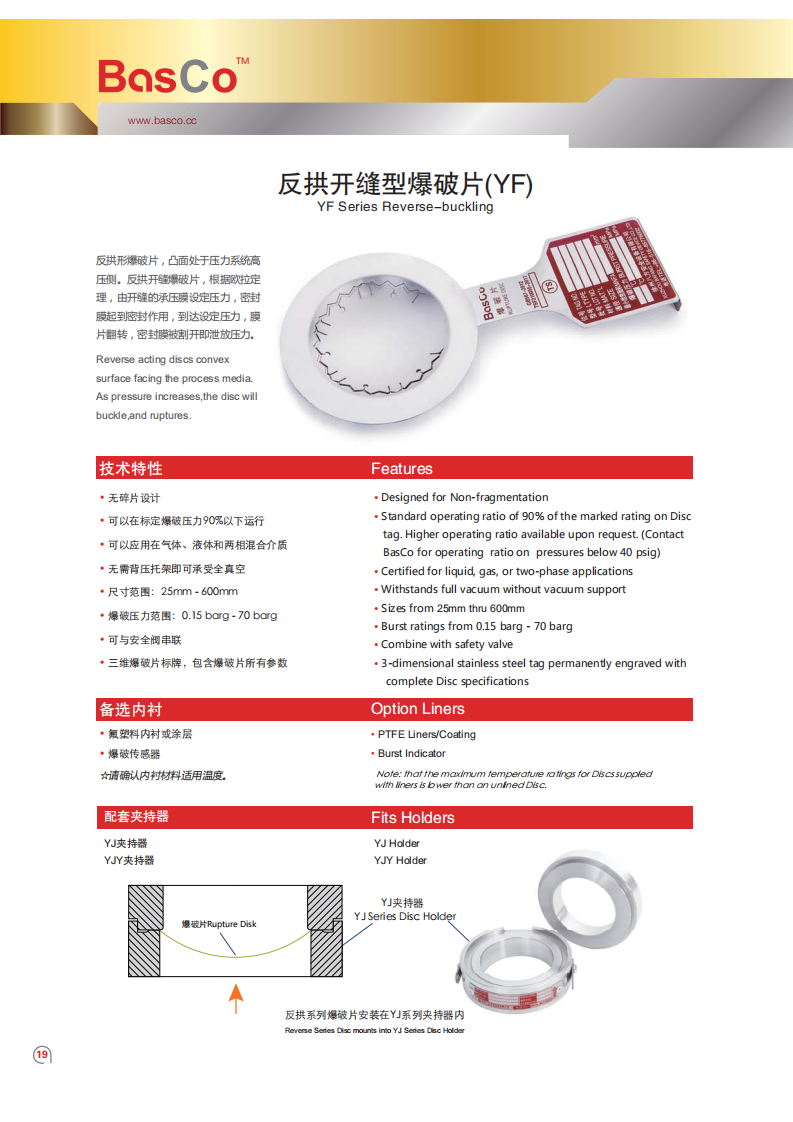

Reverse acting rupture disc, with the convex on the high pressure side. According to Euler theorem, the pressure of the reverse acting slotted rupture disc is set by the slotted burst cap, and the seal plays a sealing role. As the pressure increases, the rupture disc will be flipped and the seal will be cut open to release pressure.

Features

• Non-fragmention designed

• Operating ratios to 90% of the marked bursting pressure on disc tag

• Suitable for liquid, gas, or two-phase applications

• The marked bursting pressure on disc tag does not exceed the MAWP of equipment

• Withstands full vacuum without additional support

• Sizes from 25mm to 600mm

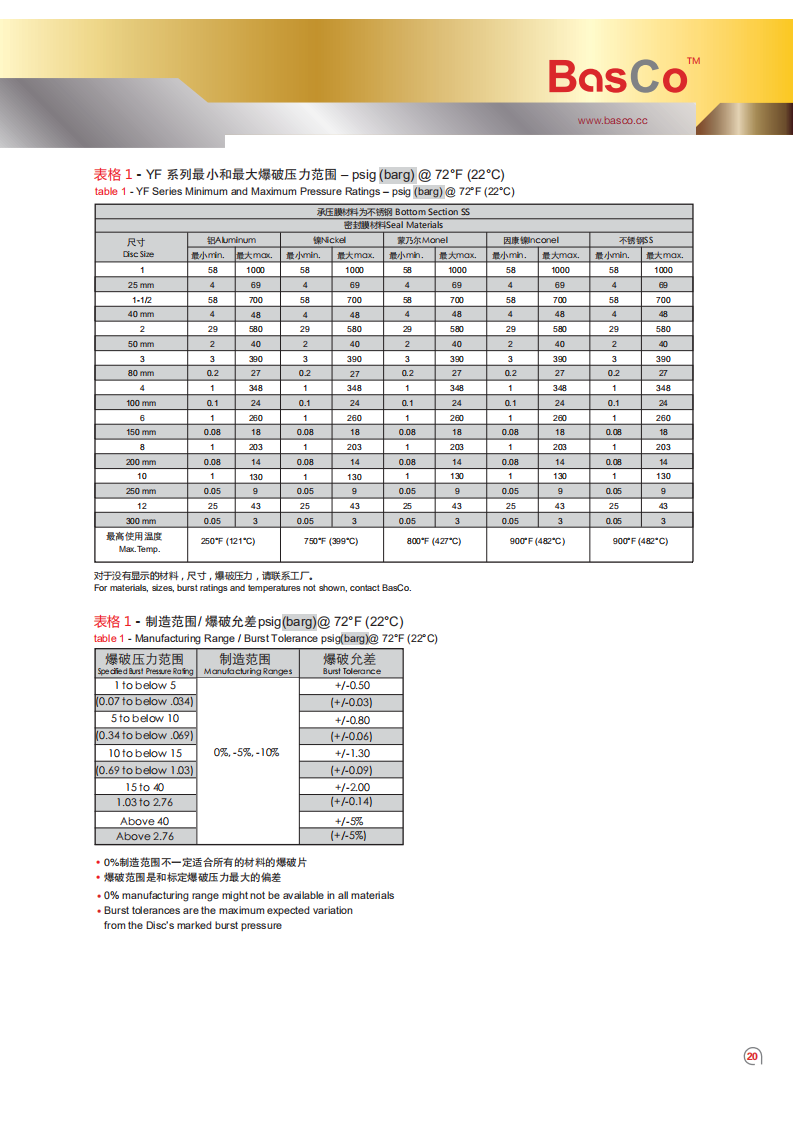

• Burst ratings from 0.15barg to 70barg

• Able to be combined with safety valve

• Attached 3-dimensional stainless steel tag is engraved with complete disc specifications


Option

• PTFE Liners/Coatin• Burst Indicator

Note: the maximum temperature rating of rupture discs supplied with liners and BI is lower than the base disc material.
