Summary
- Weight:7350kg
- Dimension(L*W*H):5000*2100*2690
- Model Number:XSK39S
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Mute:85±3
Specifications
- weight:7350.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

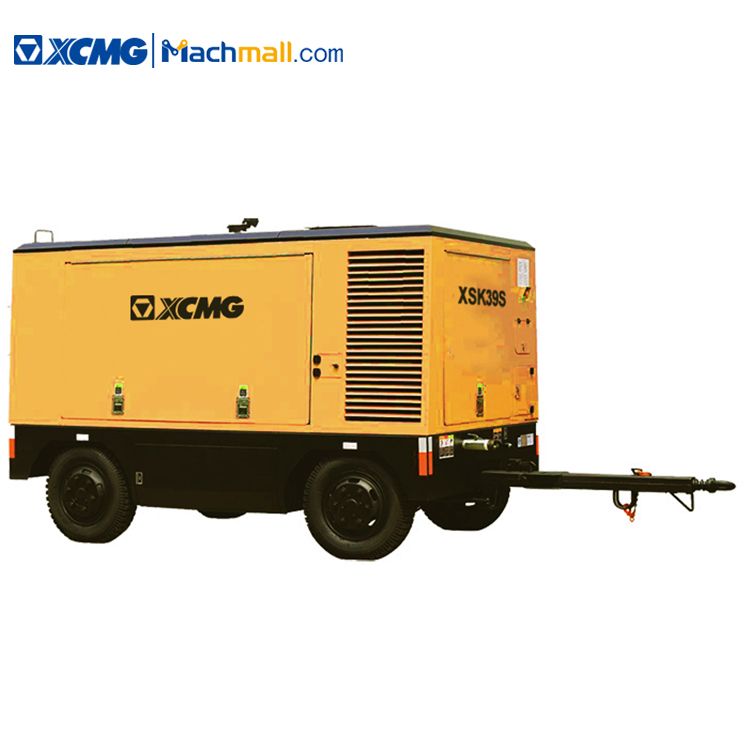

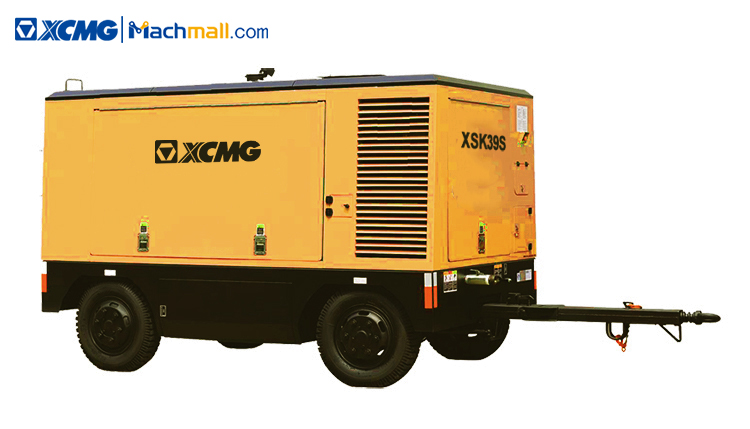

XCMG new air compressor XSK39S with CUMMINS engine for drilling rig.
The new XSK series of mobile air compressors are jointly developed by Xugong Group and Sullair, and are produced by Suzhou Sullair Gas Equipment Co., Ltd.
XCMG new air compressor XSK39S with CUMMINS engine is equipped with a brand-new intelligent control system, according to the requirements of working conditions, with more economical fuel consumption, provide strong and stable exhaust pressure, and meet the requirements of efficient operation of larger and deeper drilling.
Advantages:
1.Screw rotor
Sullair's original American imported rotor compressor has high efficiency and extremely low failure rate. It also has a 5-year warranty option to avoid all worries.
2.Engine
It adopts internationally renowned brand engines (American Cummins/Carter/Dongfeng Cummins), with strong power, high reliability, good fuel economy, convenient maintenance, and sufficient supply of spare parts.
3.Intelligent control system
The precise control system ensures that the output power of the engine is well matched with the power of the main engine, and the air capacity is used to adjust the engine speed and the response is fast. High and low pressure output pressure can be switched at any time, adapt to various working conditions, and bring good economy.
4.Heavy duty oil filter design
Multi-stage fuel filtration system and ultra-high filtration accuracy (3ppm), high-efficiency oil-water separator to ensure that it adapts to China's fuel quality conditions, and ensures that the fuel supply system works normally under severe working conditions.
5.Double air filter design
International brand imported air filters, two-stage filter elements ensure that all dust is filtered, and an air pre-filter can be optionally installed to ensure that the engine power will last forever.
6.Efficient flexible coupling
The high-efficiency elastic coupling imported from Germany can effectively alleviate the vibration of the engine and ensure the long-term and reliable operation of the moving parts.
7.All-weather performance design
Good plateau adaptability, excellent low-temperature starting performance, working around the clock in high-cold, high-altitude, windy and sandy areas.Hot air return system and suction fan option and water jacket heating system in winter ensure that the control pipeline does not freeze in cold weather, and the engine starts at low temperature and has less wear.
|
Project |
Unit |
Parameter |
|
Model |
|
XSK39S |
|
Rated work stress |
bar |
34.5/30.0/24.1 |
|
Displacement |
m³/min |
31.1~38.6 |
|
Compression stages |
|
level 2 |
|
Exhaust valve size |
|
Rc2(1) Rc3/4(1) |
|
Compressor lubricating oil system volume |
L |
60 |
|
Fuel tank volume |
L |
975 |
|
Noise level |
dB(A) |
85±3 |
|
Engine manufacturer |
|
CUMMINS |
|
Model |
|
QSX15 |
|
Output power at rated speed |
KW |
399 |
|
Maximum engine speed (full load) |
rpm |
1780/1850/1950 |
|
Oil pan volume |
L |
45.4 |
|
Cooling system volume |
L |
60 |
|
Length, width and height |
mm |
5000/2100/2690 |
|
Total Weight |
kg |
7350 |
