Summary
- Weight:31000kg
- Overall Dimension: 12000*2500*3980mm
- Max Lifting Height:18m
- Rated Loading Capacity:250kg
- Power:231.5kW
- Model Number:XZJ5317JQJD4
- Brand:XCMG
- Place of Origin:Xuzhou, China
Specifications
- Weight:31000.000kg
- Condition:New
- Moving Type:Other

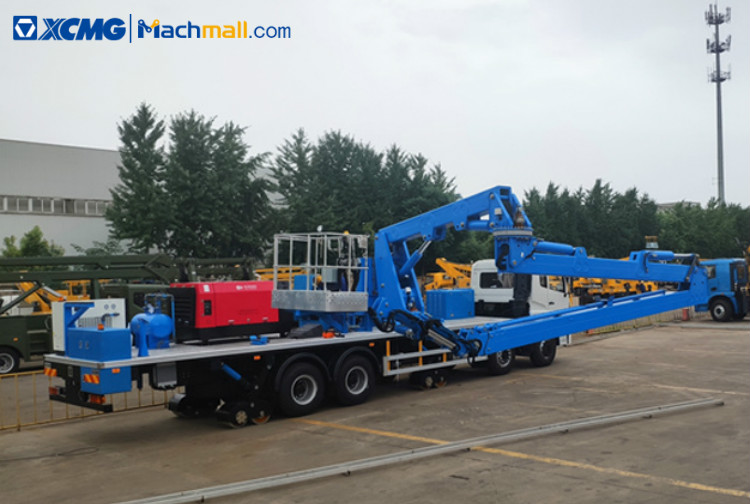

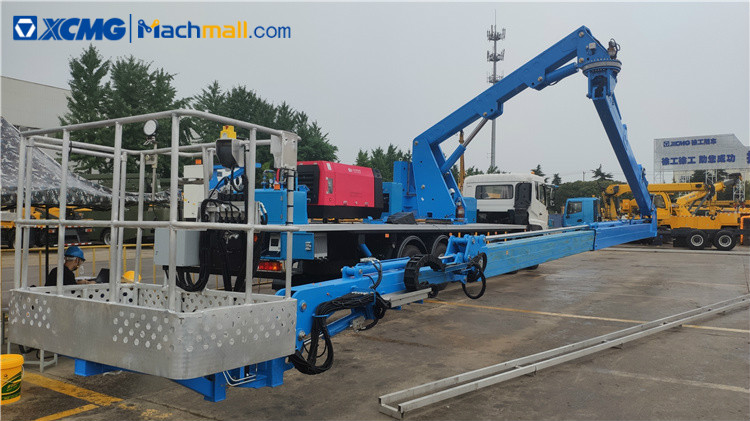

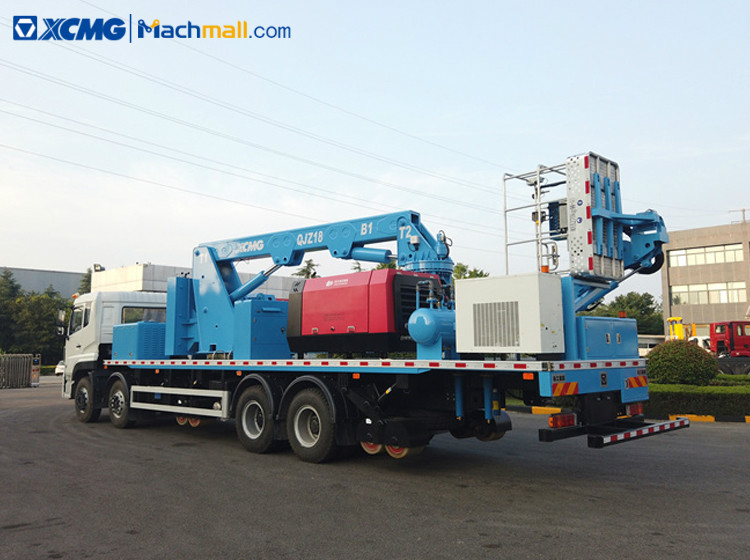

XCMG articulated boom truck 18m rated load 250kg boom lift truck.

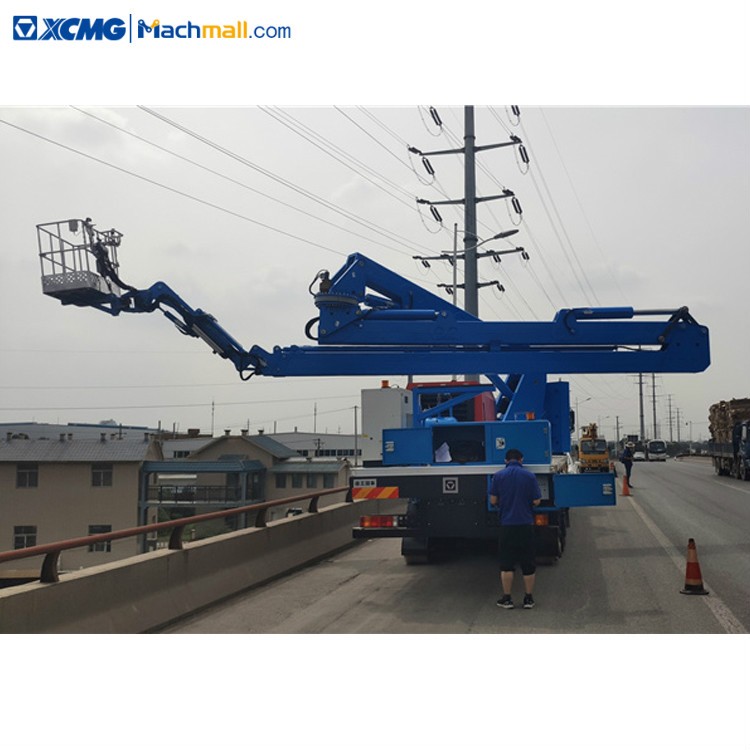

XCMG articulated boom truck is a special vehicle, which supply work platform for person while working, it can be equipped with bridge detector, used for mobile inspection and maintenance work. Bridge inspection truck can be divided into bucket type.

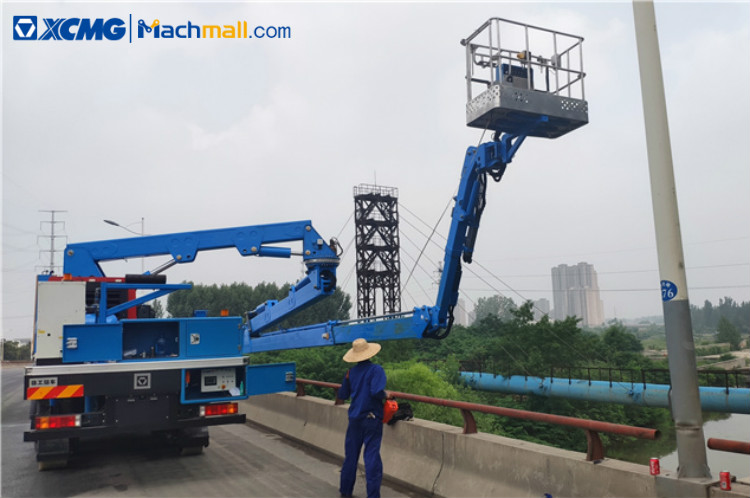

Bucket type articulated boom, with compact structure, work is flexible, almost is not subject to the limit of bridge structure, it not only an inspect under bridge but also can inspect the upper structure outside the bridge, sometimes it can be used as an Aerial work platform.
XCMG basket lift trucks is equipped with hoisting system, it can meet the needs of small tonnage lifting operations with multiple functions.V type front leg structure and anti-overturning system improved the stability and safety of the full range operation.
A wide range of optional mataching chassis is offered, such as JMC, QINGLING, IVECO, CAPTAIN.
|
Description |
Unit |
Parameter value |
|
Overall length of unit |
mm |
12000 |
|
Overall width of unit |
mm |
2500 |
|
Overall height of unit |
mm |
3980 |
|
Total weight of unit |
kg |
31000 |
|
Max. horizontal working range |
m |
18 |
|
Max. overcoming barrier |
m |
6.5 |
|
Max. overbridging of sidewalk |
m |
5.4 |
|
Max. overcoming barrier of show car |
m |
5.2 |
|
Max. overbridging of sidewalk of show car |
m |
5.4 |
|
Max. crossing box girder |
m |
6.9 |
|
Max. lowering depth |
m |
21.5 |
|
Max. reach overhead |
m |
19 |
|
Rated load of platform |
kg |
250 |
|
Overall dimensions of platform |
m |
1.2×0.8×1.1 |
|
Rotation range of 1st slewing organization |
° |
0~90 |
|
Rotation range of 2nd slewing organization |
° |
0~135 |
|
Walking speed |
m/min |
≥13 |
|
Chassis model |
Dong Feng DFL1311A10 (State IV)/DFH1310A1 (State V) |
|
|
Max.net power of engine |
315Ps (231.5kW) |
|
