Summary
- Weight:25000kg

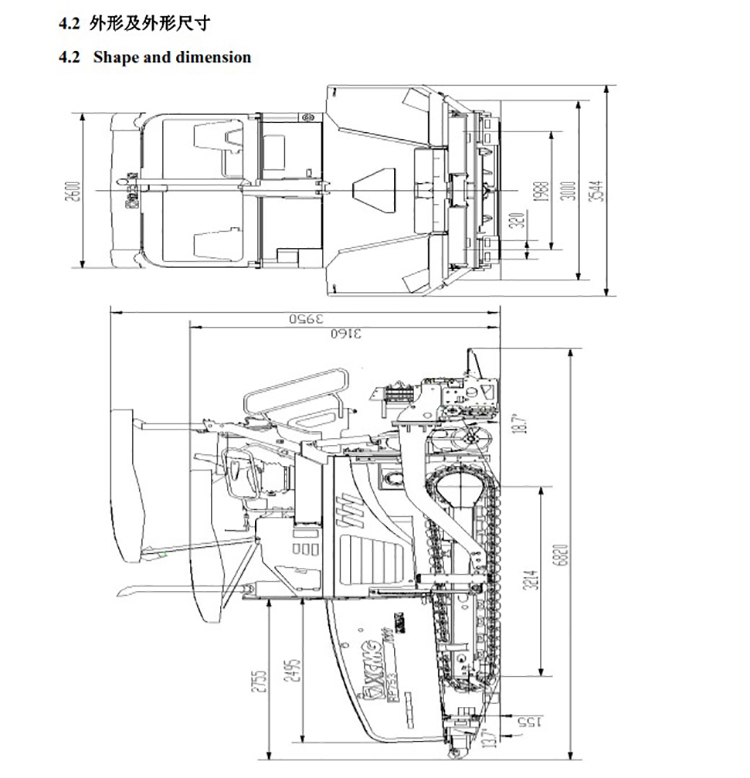

- Dimension(L*W*H):6820×2720×3950
- Model Number:RP753
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Paving Width:7-10m
- Max. Paving Thickness:400mm
- Power(W):140kw
- Production Capacity:700t/h
Specifications
- Weight:25000.000kg
- Condition:New
- Moving Type:Crawler
- Basic paving width:2.5m
- Hopper capacity:15t

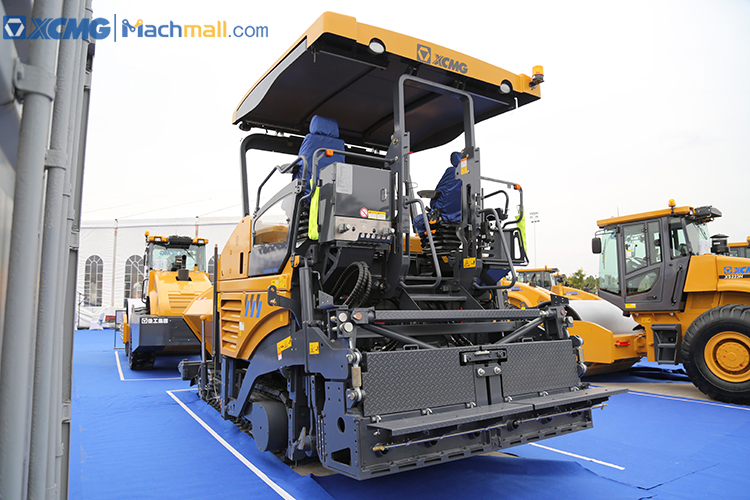

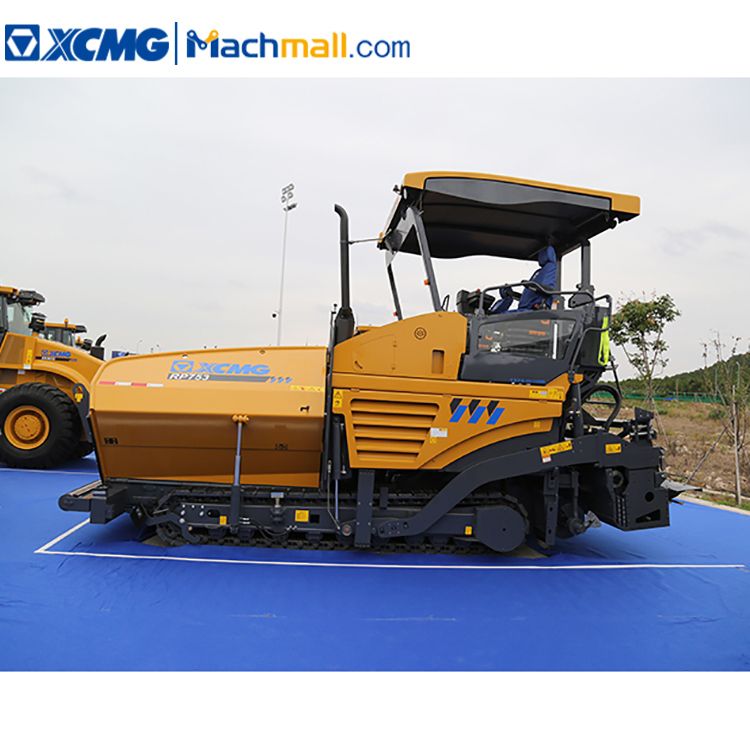

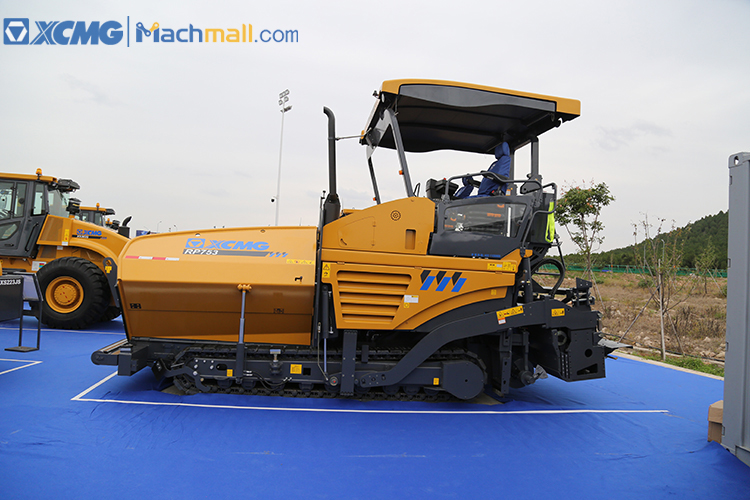

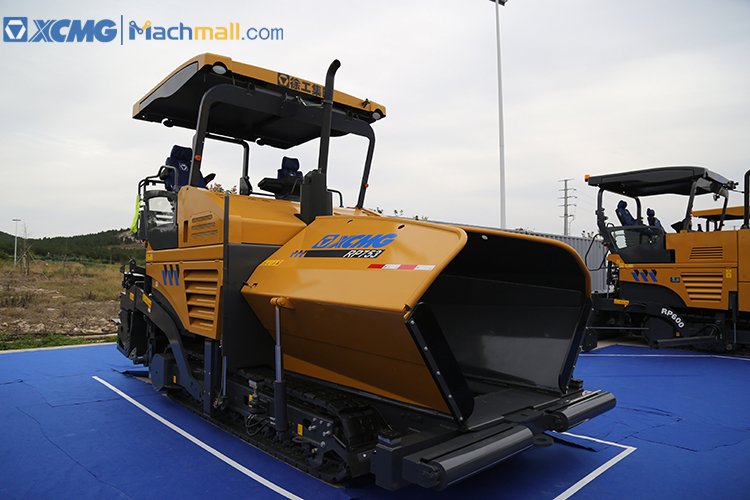

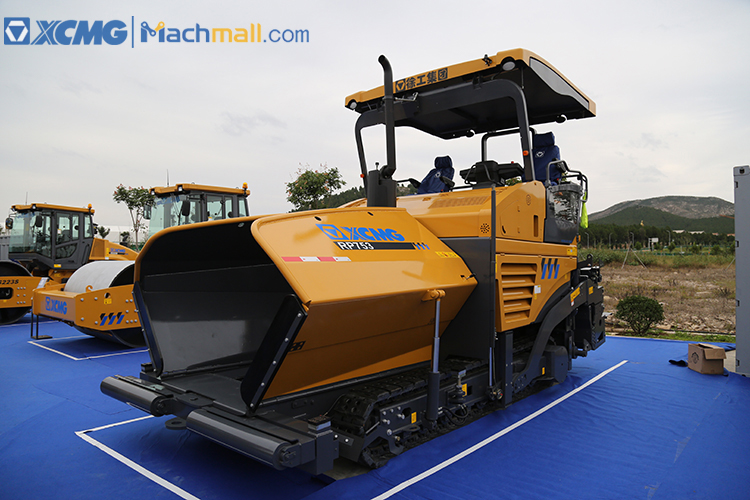

XCMG cheap 7 - 10m paving width crawler road asphalt paver RP753.
XCMG cheap 7 - 10m paving width crawler road asphalt paver RP753 is driven by left and right independently, controlled by microcomputer, and the paving speed adopts constant speed automatic control technology.
Selling points:
1.Shangchai SC7H190 water-cooled supercharged engine (optional Dalian Deutz engine BF6M2012) is mature, reliable, and powerful.
2.Adopting a three-in-one powerful composite radiator, and through forced centralized heat removal, it can ensure continuous operation for a long time at a high temperature of 50 ℃ in the environment.
3.The left and right conveying and distributing materials are driven by four independent full hydraulic systems, and the material level adopts ultrasonic sensor control technology to ensure a constant material level.
4.The left and right splitting device can be easily moved up and down to adapt to different paving thicknesses and reduce material segregation.
5.The distributing blade adopts high wear-resistant alloy material, and the conveying soleplate and screed soleplate adopt imported wear-resistant steel plate, which effectively prolongs the service life of the machine.
|
Item |
Unit |
Paratemer |
|
Basic paving width |
m |
2.5 |
|
Maximum paving width |
m |
8 |
|
Maximum paving thickness |
mm |
400 |
|
Working speed |
m/min |
20 |
|
Maximum travel speed |
km/h |
3 |
|
Theoretical productivity |
t/h |
700 |
|
Hopper capacity |
t |
15 |
|
Gradeability |
％ |
20 |
|
Flatness (standard deviation) |
mm |
1.2 |
|
Diesel engine power |
kW |
140 |
|
Diesel engine speed |
r/min |
2000 |
|
Splitting speed |
r/min |
0～90 |
|
Conveying speed |
m/min |
0～27 |
|
Dimensions |
mm |
6820×2720×3950 |
|
Total Weight |
t |
20.5～25 |
