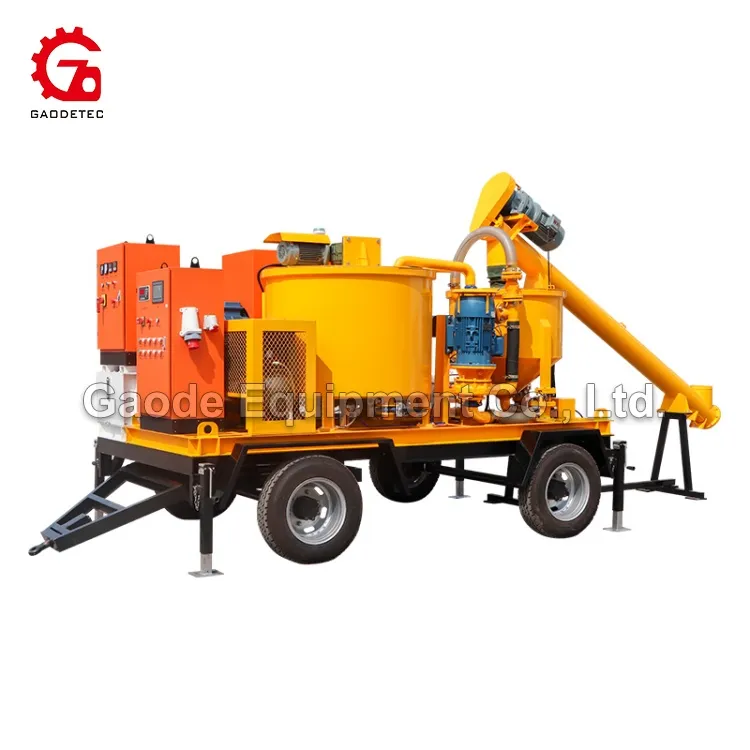

Gaodetec GGP400/1000/95/165DPL-E/A Automatic Cement Grouting Mixing Plant for Civil Engineering
GGP400/1000/95/165DPL-E/A
Specs & Compare
Details
Specifications
- Weight:3750.000kg
- Model:GGP400/1000/95/165DPL-E/A
- Mixer Volume:400 L
- Agitator Volume:1000 L
- Adjustable Pressure:0-16.5MPa
- Adjustable Flow Rate:0-95L/min
- Weight:3750Kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description
Gaodetec GGP400/1000/95/165DPL-E/A Automatic Cement Grouting Mixing Plant for Civil Engineering are integrated with a screw feeder, mixing, agitator and horizontal hydraulic pump. It is mainly used to be made such as cement slurry or bentonite slurry, etc., for injecting in the sub-soil for soil consolidation, piling or even for long transport of material.
Compared with the traditional grout mixer and pump machine, GGP400/1000/95/165DPL-E/A Media has several advantages: high-speed, high-shear colloidal mixer causes a vortex flow to ensure mix quickly and evenly; Two pieces of high pressure plungers to stabilize the consistency of the grouting flow; Grouting pressure and displacement is step-less adjustable; Added the automatic operation mode, which greatly improves the working efficiency. Besides, compact size and easy to operate. And it also takes up a small space. Therefore, this machine is widely used in mines, tunnels, culverts, subways, hydropower projects, underground projects, etc.
The features and advantages of this machine are as follows：
1. Mixer Station
1.1 Pneumatic Pinch Valve: the slurry flows more smoothly;
1.2 Ultrasound Fluid Level Meter: height of agitator can be accurately measured;
1.3 PLC+Touch Screen: manual mode and fully automatic mode.
2. Grout Pump Station
2.1 Grouting pressure, displacement is step-less adjustable;
2.2 Double grouting plungers, continuous output flow with less pulse;
2.3 With the function of record and display grouting pump reciprocating times by a counter;
2.4 The motor has an overload protection function;
2.5 Hydraulic system with oil temperature overheating protection;
2.6 Electric motor and hydraulic driven. Anytime, overpressure occurred, hydraulic safety protection will be worked.
3. Trailer
3.1 With steering function;
3.2 Tripod height is adjustable.
Parameters
Details Images
Application
1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts.
2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting.
3. Construction - pavement under sealing, slab jacking and slab raising.
4. Marine - underwater foundations, piers, breakers, shoreline foundations.
5. Mining - tunnel lining, contact grouting, shaft waterproofing.
6. Utilities - encasements, waterproofing, slope line grouting.
7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment.
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery
Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
