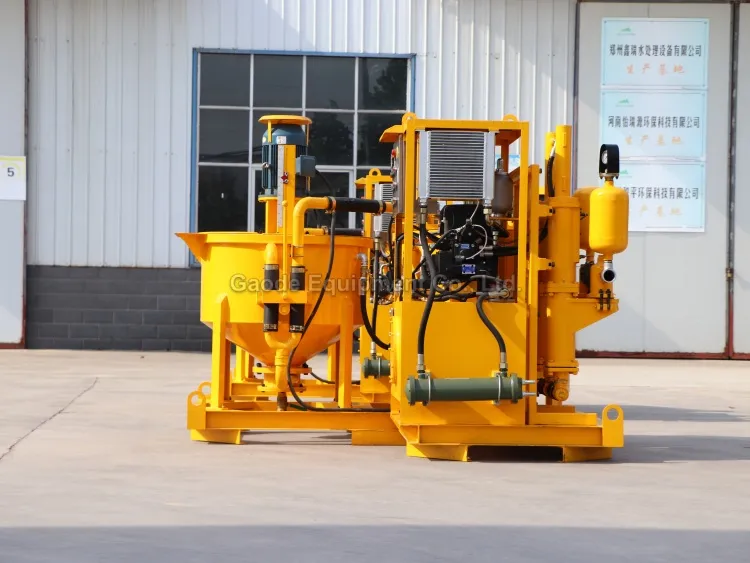

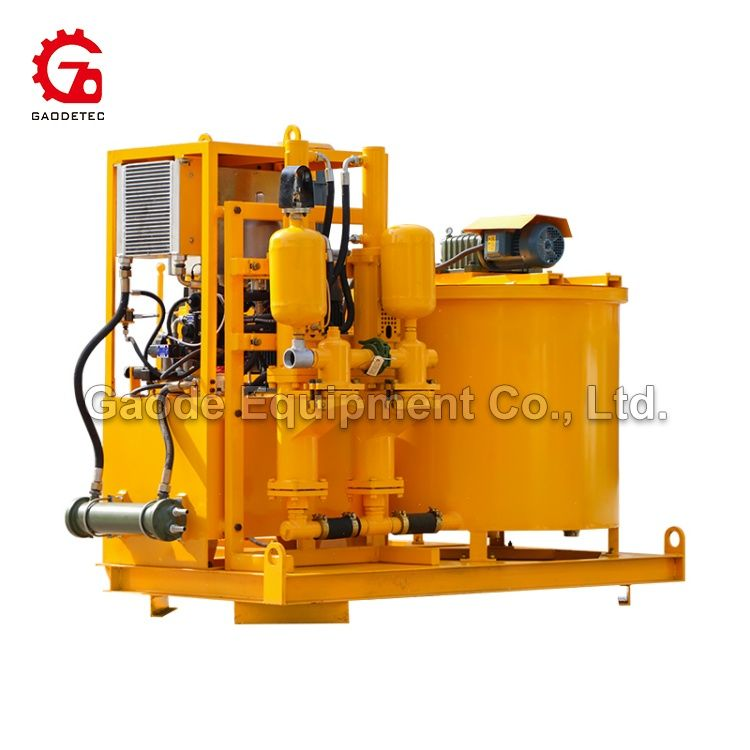

GGP400/700/80DPL-E Bentonite Cement Grout Plant for Consolidation Grouting
GGP400/700/80DPL-E
Specs & Compare
Details
Specifications
- Weight:1530.000kg
- Model:GGP400/700/80DPL-E
- Mixer Capacity:400L
- Agitator Capacity:700L
- Pump Output/Pressure:Low pressure: 0-80L/min, 0-25bar; High pressure: 0-58L/min, 0-40bar
- Dimensions:2350*2100*1830mm
- Weight:1530kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description
GGP400/700/80DPL-E Bentonite Cement Grout Plant for Consolidation Grouting, mixer capacity is 400L, agitator capacity is 700L, pump output is 80L/min. If the output of this product is not satisfactory, we can also customize it according to your needs. The Grouting Mixer Pump Station is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.
The features and advantages of this machine are as follows：
1. High-speed colloidal grout mixer
2. With the liquid level of the mixer tank

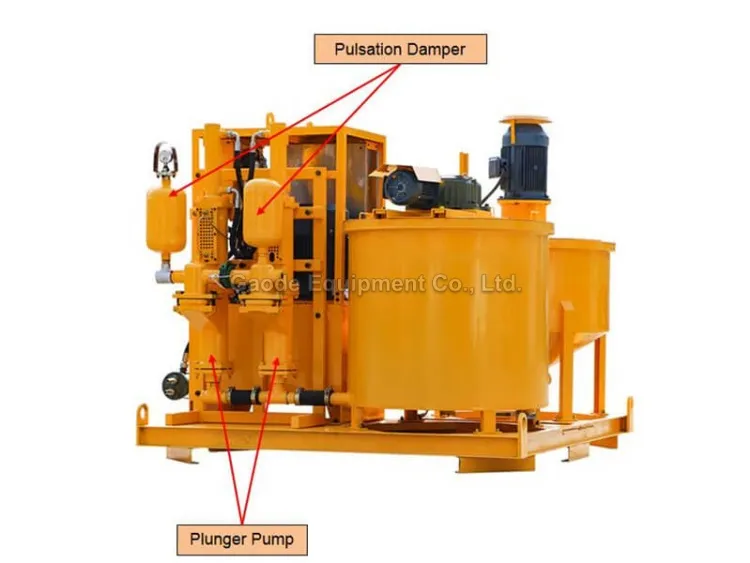

3. Double plunger pump
4. Vertical type pump with compact size
5. Hydraulic drive (safely releasing pressure when pumping block)

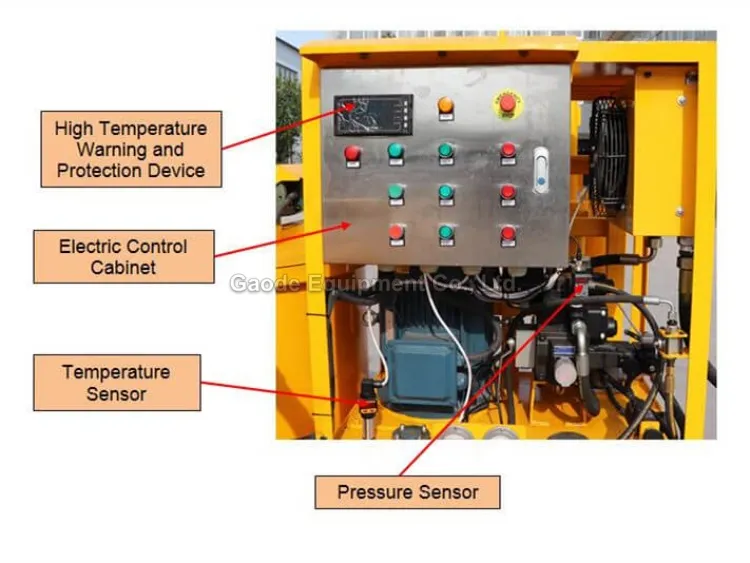

6. Hydraulic system with high temperature warning and protection system
7. Pressure holding system
8. Low flow pressure surge system

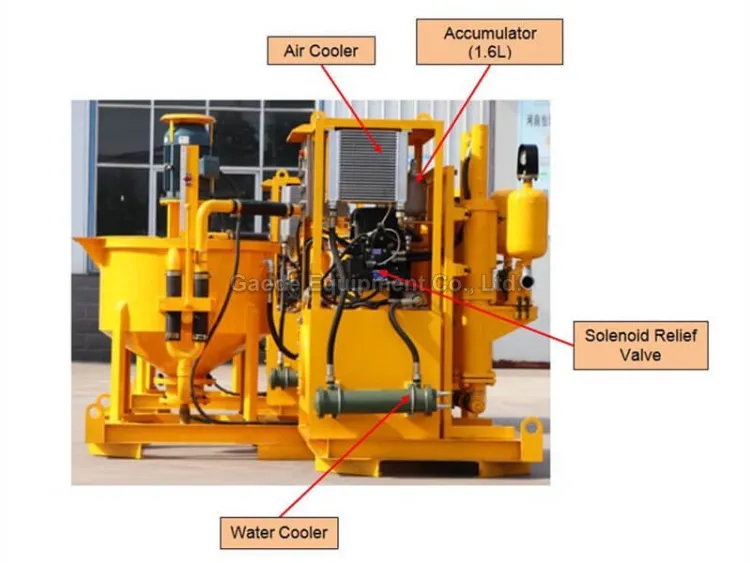

9. Air cooler and water cooler (suitable for working in tropical and sub-hot areas)
10. Up to 5mm particle size

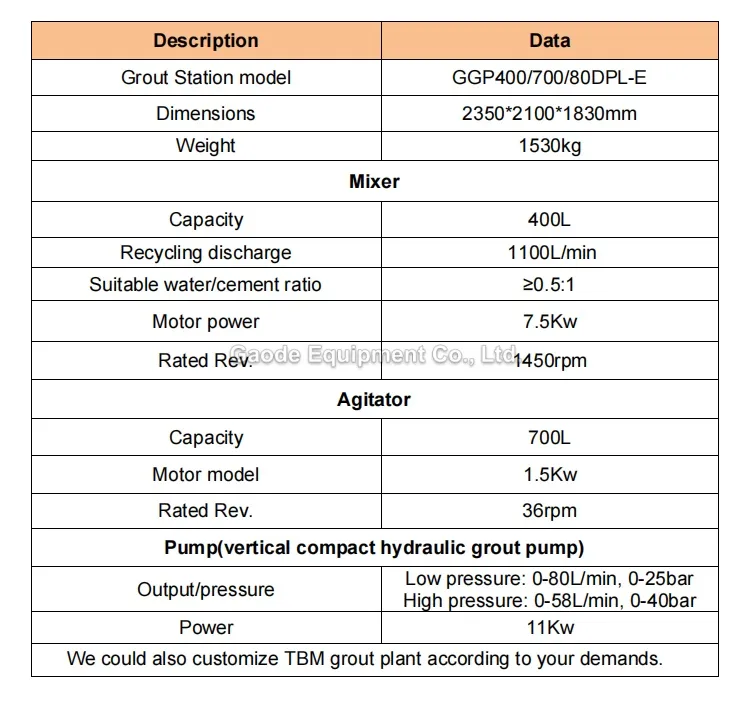

Parameters

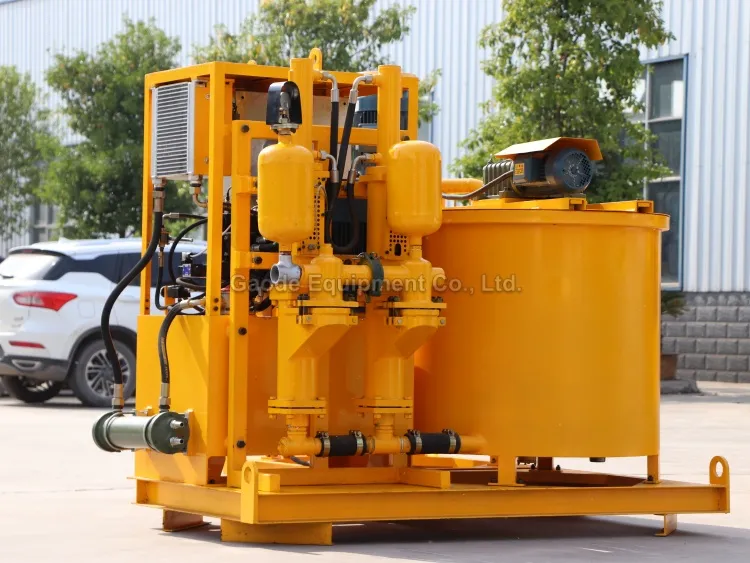

Details Images
Application
GGP400/700/80DPL-E Bentonite Cement Grout Plant is mainly used to make and grout the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery
Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
