Summary
- Weight:8700kg
- Overall Dimension:7575*2320*2380mm
- Table Size:1830×760×1150mm
- Max Lifting Height:18m
- Rated Loading Capacity:265kg (Unrestricted) /350kg (Restricted)
- Model Number:XGA18K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:8700.000kg
- Condition:New
- Moving Type:Wheel
- Wheel base:2360mm
- Maximum working radius:10270
- Engine rated power:36.8 /36.5kw

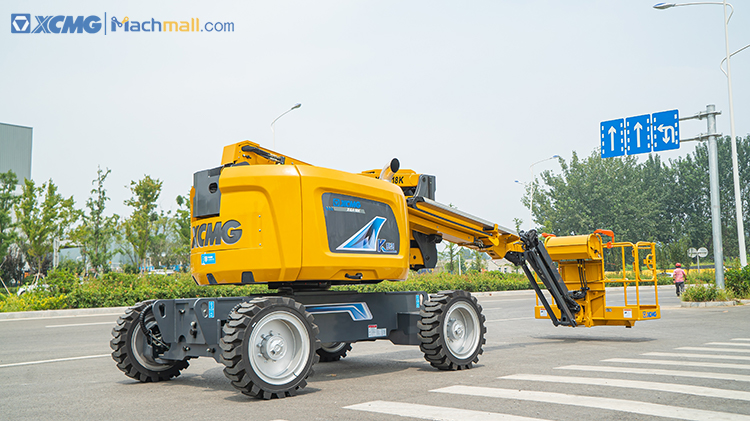

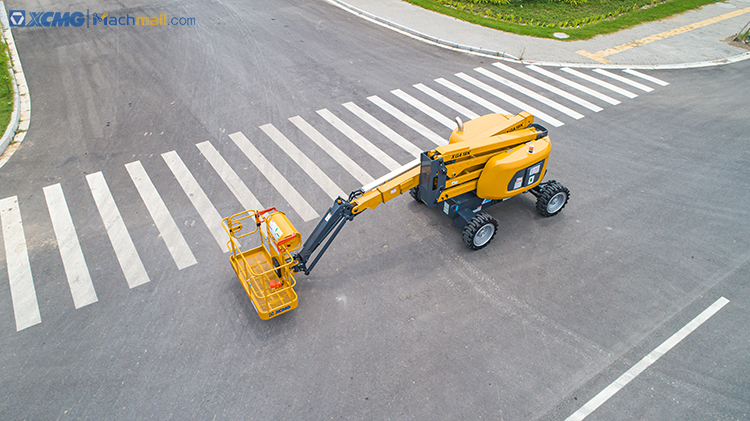

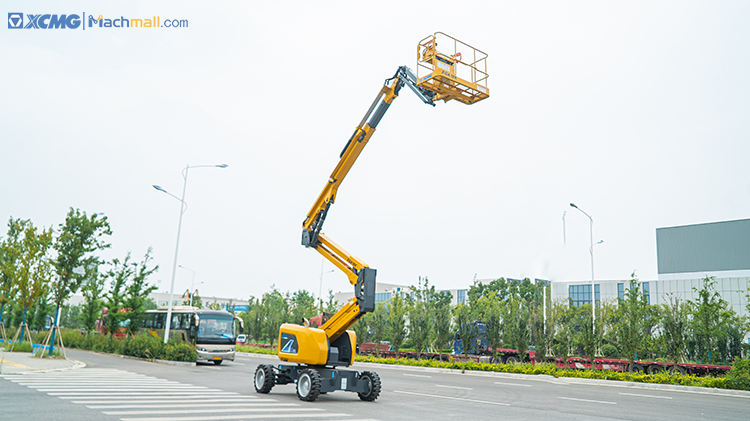

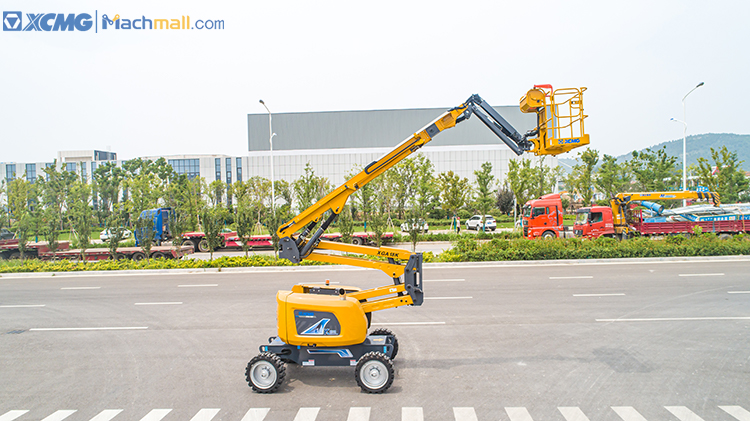

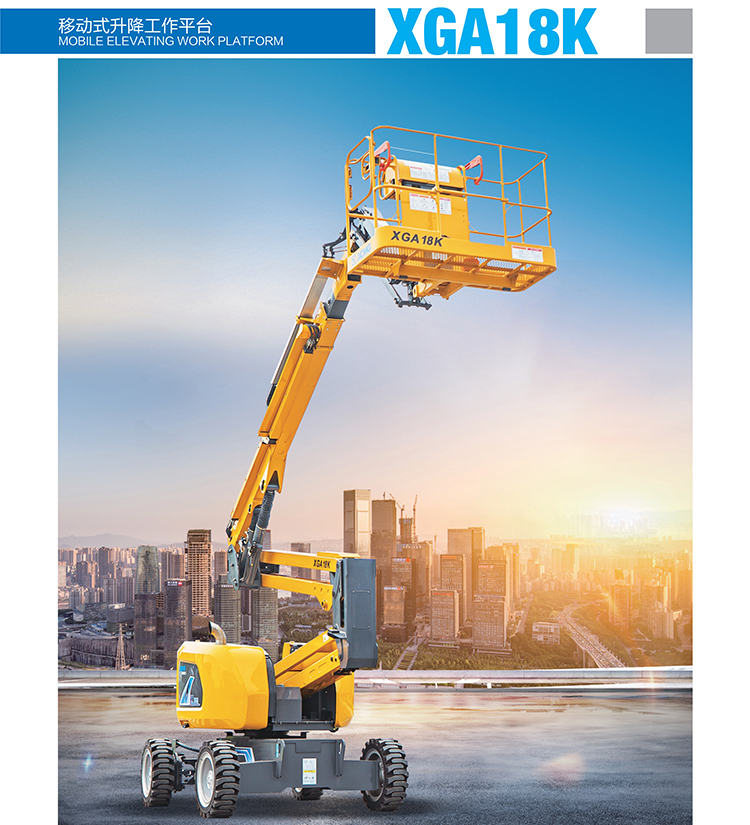

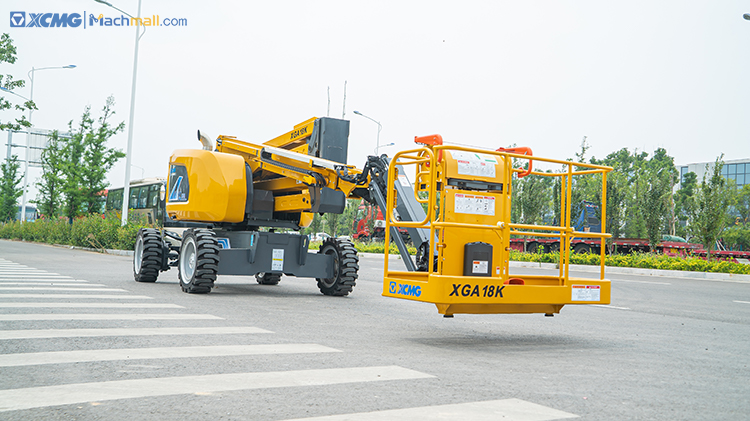

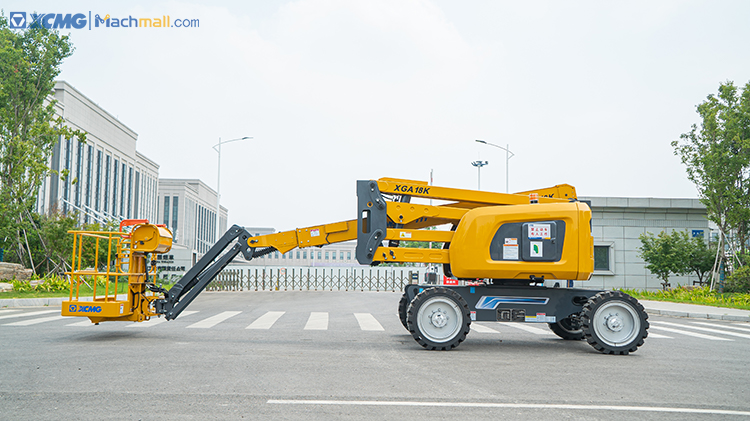

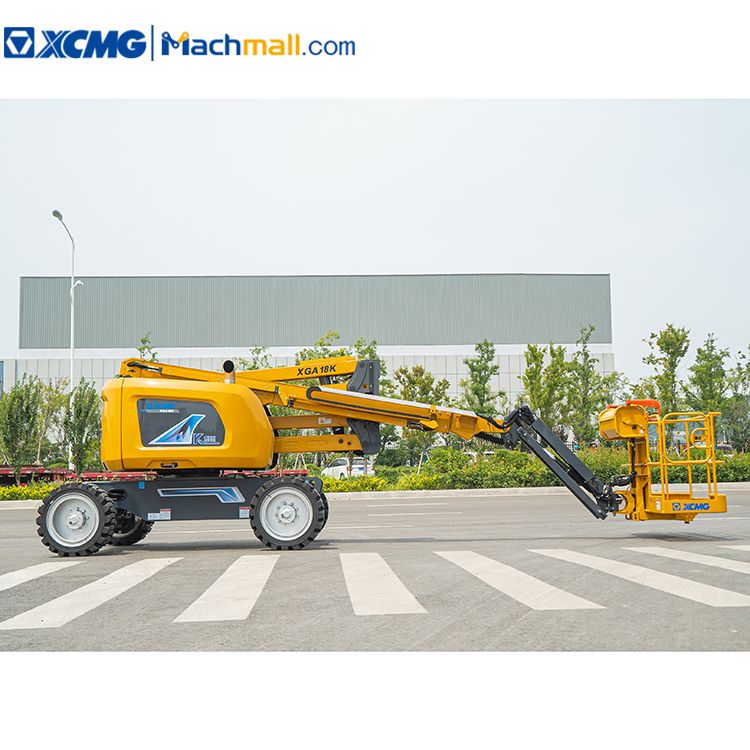

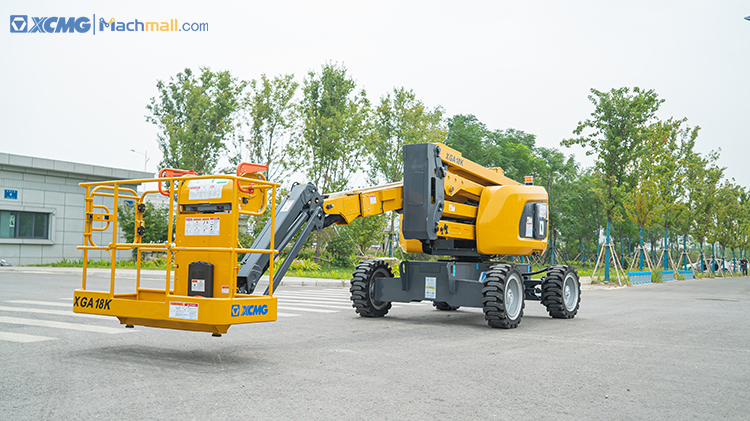

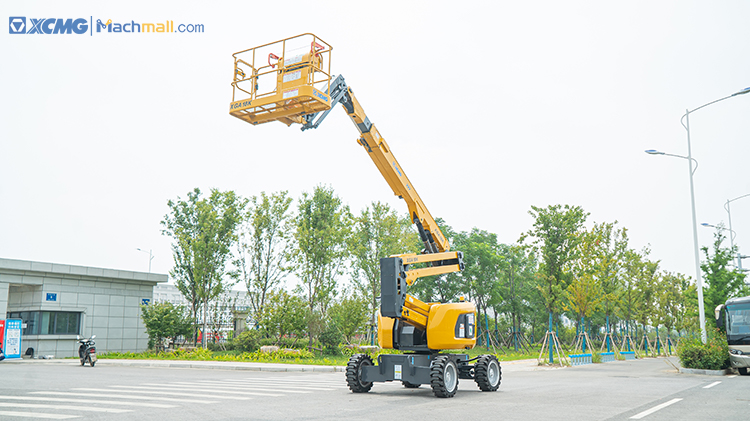

XCMG new 4x4 drive 18m articulated boom lifting platform XGA18K.
XCMG new 4x4 drive 18m articulated boom lifting platform XGA18K is a mobile articulated boom elevating work platform with compact layout, high obstacle-crossing efficiency, accurate design, powerful drive, and easy operations.
XCMG Articulated Boom Lift has models in the whole series, and the operation height covers 18m-26m and the maximum loading is 350kg.
The whole series meets the requirements of 4x4 drive, which has the advantages of zero emission and no noise, strong off-road performance, and can adapt to various complex and large-span working conditions.
Highlights:
1. Long endurance design.
2. Longer driving range capacity.
3. AC electric drive traveling technology steering differential control technology.
4. Independent emergency power source.
|
Item |
Unit |
XGA18K |
|
Overall length (stowed size) |
mm |
7575 |
|
Overall length (Transportation size) |
mm |
5700 |
|
Overall width |
mm |
2320 |
|
Overall height |
mm |
2380 |
|
Platform dimension |
mm |
1830×760×1150 |
|
Wheel base |
mm |
2360 |
|
Maximum working height |
mm |
18015 |
|
Platform maximum height |
mm |
16015 |
|
Maximum working radius |
mm |
10270 |
|
Maximum carrying mass |
kg |
265 (Unrestricted) /350 (Restricted) |
|
Travel speed (stowed) |
km/h |
5.5 |
|
Travel speed (elevated/extended) |
km/h |
1 |
|
No. 1 boom luffing range |
° |
0~65 |
|
No. 2 boom luffing range |
° |
-11~75 |
|
Jib luffing range |
° |
-60~70 |
|
Turntable rotation angle |
° |
360 continuous |
|
Tailswing |
mm |
0 |
|
Platform rotation angle |
° |
160 |
|
Minimum turning radius (outside) |
mm |
≤4700 |
|
Minimum turning radius (inside) |
mm |
≤1900 |
|
Total mass |
kg |
8700 |
|
Maximum slope rating (counterweight uphill) |
％ |
45 |
|
Maximum slope rating (counterweight downhill) |
％ |
30 |
|
Maximum side slope rating |
％ |
25 |
|
Engine model |
|
Yuchai YCF3050-T302/Kubota V2403-M-DI-ET04e |
|
Engine rated power |
kw |
36.8 /36.5 |
|
Hydraulic tank capacity |
L |
85 |
|
Hydraulic system capacity |
L |
170 |
|
Fuel tank capacity |
L |
65 |
