Summary
- Certification:CE/ISO9001
- Power(W):2×30 KW
- Model Number:HZS90V
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- weight:1.000kg
- Condition:New
- Moving Type:Other
- Theoretical production rate:90
- Discharge height:4
- Nominal volume of mixer:1500
- Volume of powder silo (optional):3×100
- Capability of batching plant:2400
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

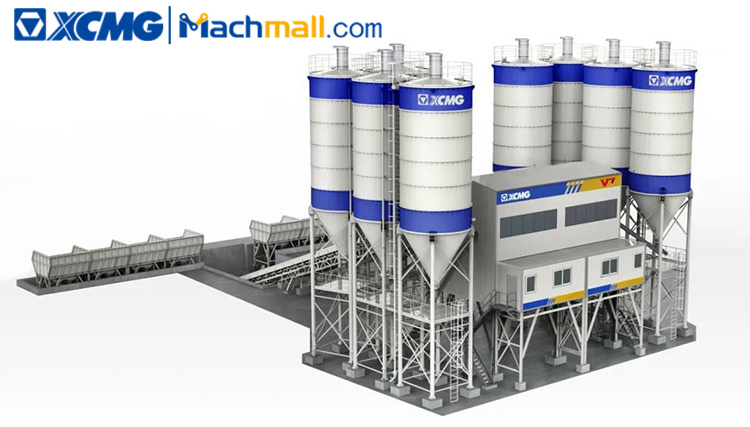

XCMG Official concrete batching plant 90 cubic meters HZS90V.
XCMG Official concrete batching plant 90 cubic meters HZS90V is provided with customer management, formula management, production data management, and such functions as cleaning by one key, digital calibration and monitoring of black box.
XCMG Official concrete batching plant 90 cubic meters HZS90V is based on the human-based interactive design of Microsoft, parameters are well-matched and fixed, with no need for alteration, and if there is problem, they can be restored with one key.
Advantages:
1.More efficient production.
2.More intelligent control.
3.More efficient delivery.
|
Model |
Unit |
HZS90V |
|
Theoretical production rate |
m³/h |
90 |
|
Discharge height |
m |
4 |
|
Mixer type |
/ |
JS1500 |
|
Mixer power |
kW |
2×30 |
|
Nominal volume of mixer |
L |
1500 |
|
Production period |
S |
60 |
|
diameter of aggregate |
mm |
≤60 |
|
Volume of aggregate silo |
m³ |
3×15 |
|
Volume of powder silo (optional) |
t |
3×100 |
|
Capability of batching plant |
L/Silo |
2400 |
|
Capability of inclined belt coveryer |
t/h |
456 |
|
Productivity of cement spiral conveyer |
t/h |
90 |
|
Standard installed capacity |
kW |
153 |
|
Weighing range and accuracy of sand and stone |
kg |
(500～3200)±2% |
|
Weighing range and accuracy of cement |
kg |
(240～800)±1% |
|
Weighing range and accuracy of flyash |
kg |
/ |
|
Weighing range and accuracy of water |
kg |
(100～400）±1% |
|
Weighing range and accuracy of additive |
kg |
(10～30）±1% |
