Summary
- Dimension(L*W*H):11160×2500×3990MM
- Weight:31000KG
- Power(W):287000W
- Model Number:HB43V
- Brand Name:XCMG
- Place of Origin:JiangSu,China
- Power Type: Diesel
- Certification:CE/ISO9001
Specifications
- Weight:31000.000kg
- Condition:New
- Moving Type:Wheel
- Color:Color
- Concrete Pumping Pressure:8MPa
- Max. Horizontal Conveying Distance:29m
- Max. Vertical Conveying Distance:43m
- Theoretical pumping times:23~26

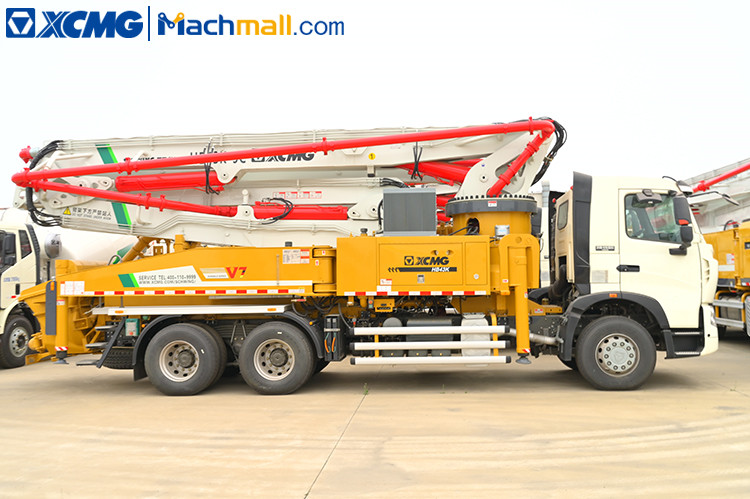

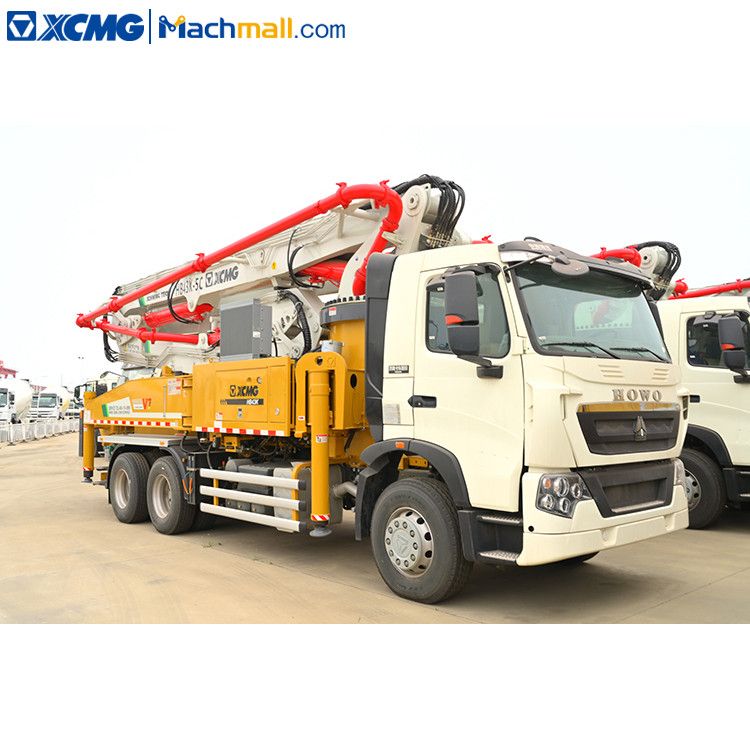

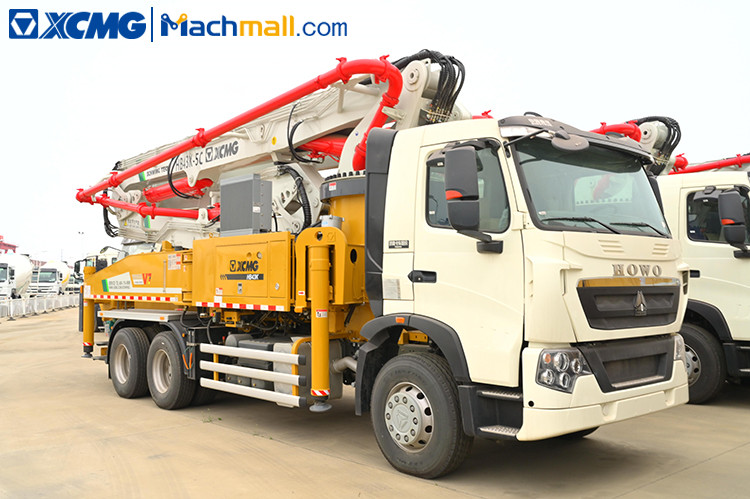

XCMG concrete pump machine diesel with Sinotruk HOWO chassis HB43V sale in Vietnam.
1.Ultimately Safe Boom
All-around technical methods are used to make XCMG diesel concrete pump machine HB43V safer and more reliable.
A new generation of micro-control technology is used to make boom operation steadier and more accurate.
2. Lower Structurre of High Rigidity
On the basis of the design concept of high rigiditystructure, simulative calculation and testing offull-work-condition loading make Sinotruk HOWO chassis structuredeformation smaller and overall work stability.
3.Hydraulic System of Outstanding Performance
MPS (micro shock) reversing buffering technology;The buffering process is steadier and more reliable, with smaller impact;The reversing time is shortened to be less than 0.1s and the efficiency is improved by more than 6%.SCHWING Germany’s hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.
4.Advantages of HOWO chassis
No matter from the economic benefit, loading quality, or overload capacity, HOWO chassis in the industry has a leading technology and brand advantage.
|
CATEGORY |
ITEM |
UNIT |
HB43V |
|
Overall |
Outline dimension |
mm |
11160×2500×3990 |
|
|
Oerall weight |
kg |
31000 |
|
|
Brand |
-- |
Sinotruk |
|
Chassis |
Model |
-- |
ZZ5347V524HC1 |
|
|
Wheelbase |
mm |
4800+1400 |
|
|
Max.power |
kW |
287 |
|
Engine |
Emission |
-- |
ChinaⅢ |
|
|
Theoretical |
m³/h |
170 |
|
Pumping system |
Concrete pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
num/min |
23～26 |
|
|
Delivery cylinder diameter ×stroke |
mm |
φ260×2000 |
|
Placing boom |
Reach height |
m |
43 |
|
|
Reach depth |
m |
29 |
|
|
Slewing radius |
m |
37.3 |
|
|
Slewing angle |
° |
±270 |
|
Others |
ransfer tuble |
-- |
Rock valve |
