- Summary
- Specifications
Summary
- Dimension(L*W*H):4600×1860×1720mm
- Weight:3000kg
- Power(W):45kw
- Model Number:HBTS45-10-45
- Brand Name:Shuo Li
- Place of Origin:Jiangsu,China
Specifications
- Weight:3000.000kg
- Condition:New
- Moving Type:Wheel
- Cylinder bore:100mm
- Conveying cylinder bore:180mm

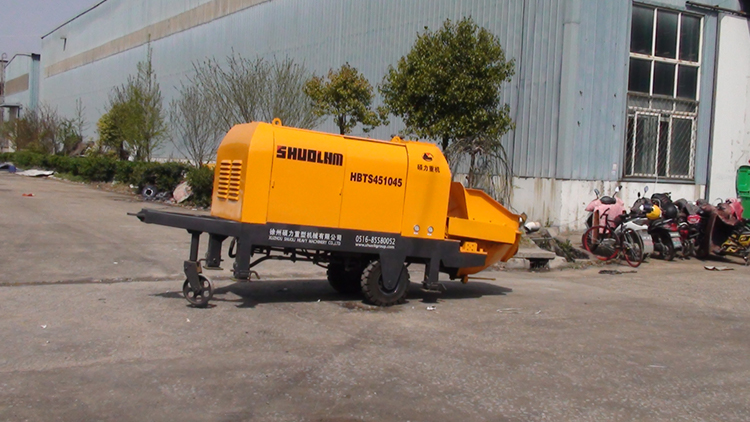

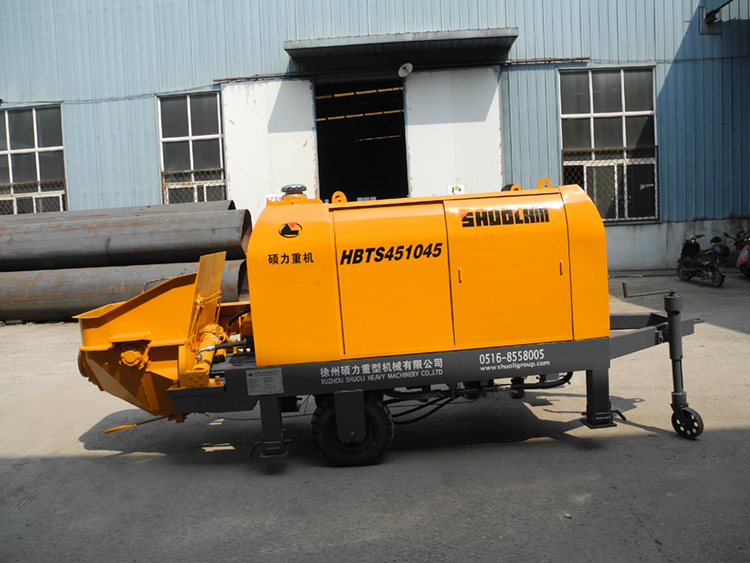

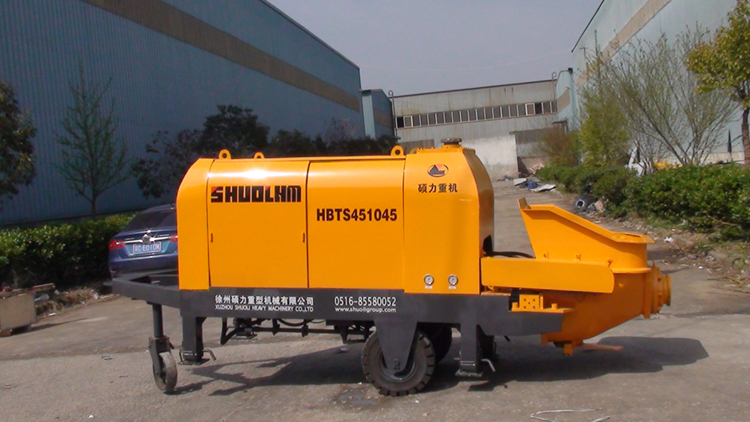

China Shuoli 45m3/h hydrauic portable narrow concrete trailer pump for tunnel.
China Shuoli 45m3/h hydrauic portable narrow concrete trailer pump for tunnel is driven by an electric motor. The explosion-proof category is Exdl, which is widely used in the working environment of coal mines.
The main purpose:
*It can fill the goaf underground.
*Can recover the reserved security coal pillars to realize "pillarless mining".
*Can backfill solid waste underground to solve coal gangue discharge.
*Can be filled behind the wall, suitable for short-wall mining.
*It can replace wet spraying machine for roadway spraying, and complete temporary support can quickly complete the isolation wall and close the abandoned roadway.
The main feature:
*High safety performance: It adopts full hydraulic drive, no live control, suitable for working environment in coal mine.
*High conveying pressure and long conveying distance: The outlet pressure of the pumping system is as high as 12MPa, and the conveying distance can reach more than 500m.
*Reliable quality and stable performance: The core components of the system are imported from Germany, and the main wear parts are treated with special wear-resistant enhanced treatment technology to ensure the service life of the system and stable and reliable operation.
*Compact structure: The main machine and hydraulic station of the system can be sent into the underground through the mine cage; the equipment is fixed on the rack equipped with walking rail wheels, which is easy to transfer.
|
Parameter |
Unit |
HBTS45-10-45 |
|
Theoretical concrete pump |
m3/h |
45 |
|
Maximum pumping concrete pressure |
Mpa |
10 |
|
Hydraulic system form |
|
Open |
|
Power form |
|
Motor |
|
Rotating speed |
r/m |
1480 |
|
Power |
kW |
45 |
|
Distribution valve form |
|
S valve |
|
Cylinder bore |
mm |
100 |
|
Conveying cylinder bore |
mm |
180 |
|
High and low voltage switch |
|
√ |
|
Hydraulic oil tank volume |
L |
280 |
|
Hopper volume |
m3 |
0.4 |
|
Loading height |
mm |
1280 |
|
Dimensions |
mm |
4600×1860×1720 |
|
Total Weight |
kg |
3000 |
