XCMG 60 ton Construction Dump Truck 6 Wheels price

Chat Now 1 / EA (Min. Order)
Model: XGA3250D3WC
Engine: WEICHAI
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG 60 ton Construction Dump Truck 6 Wheels price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • Product PDF

Summary

Specifications

  • Weight:16400.000kg
  • Condition:New
  • Moving Type:Wheel
  • Drive type:6*4
  • Wheelbase:4000+1400mm
  • Cargo size:5800*2300*1500mm
  • Left/Right driving:Left/Right

XCMG 60 ton Construction Dump Truck 6 Wheels price

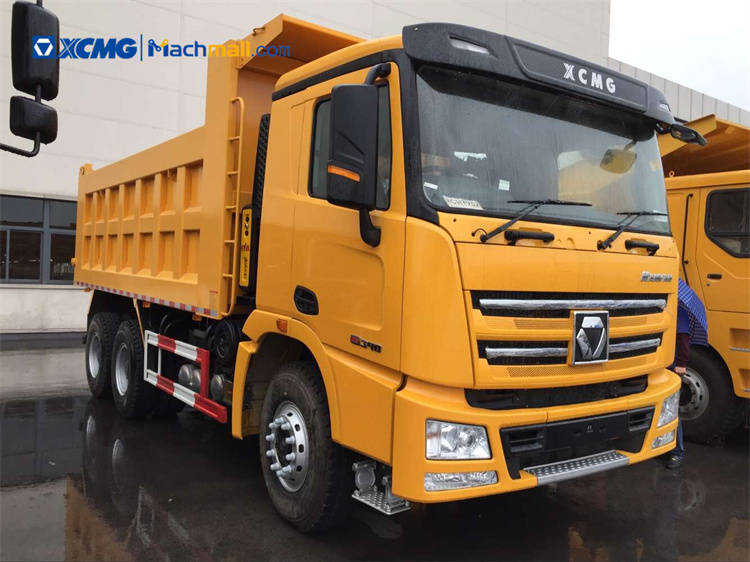

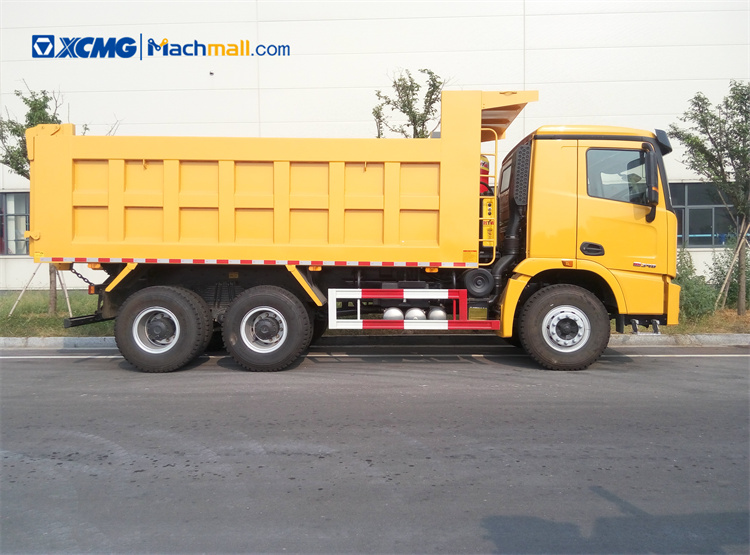

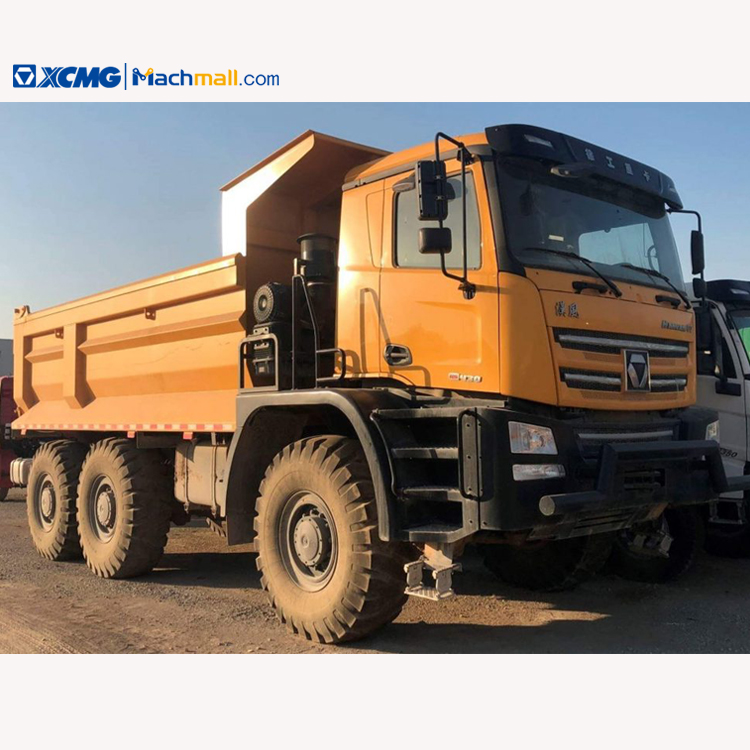

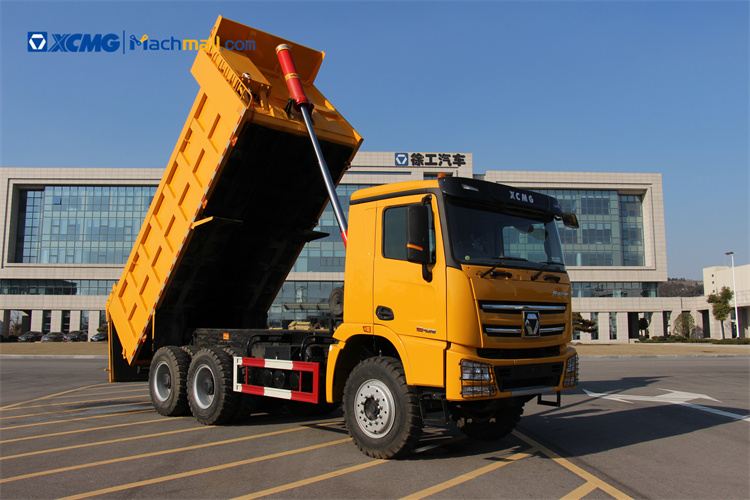

XCMG 60 ton Construction Dump Truck 6 Wheels.

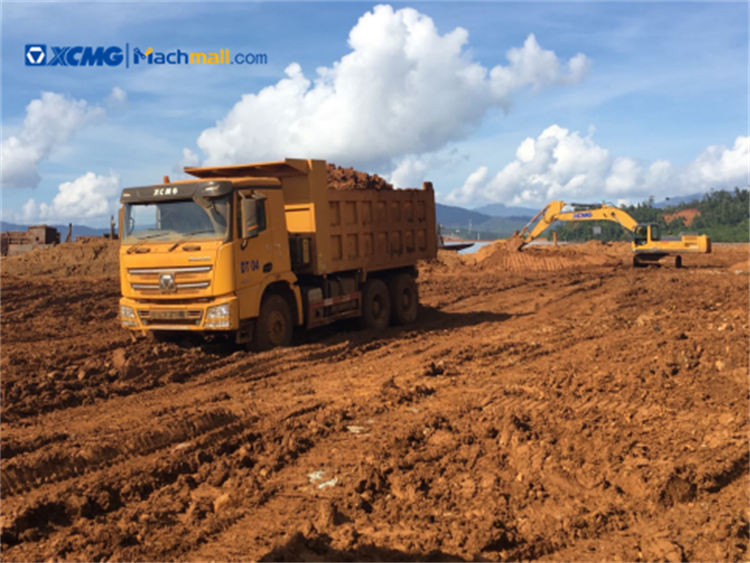

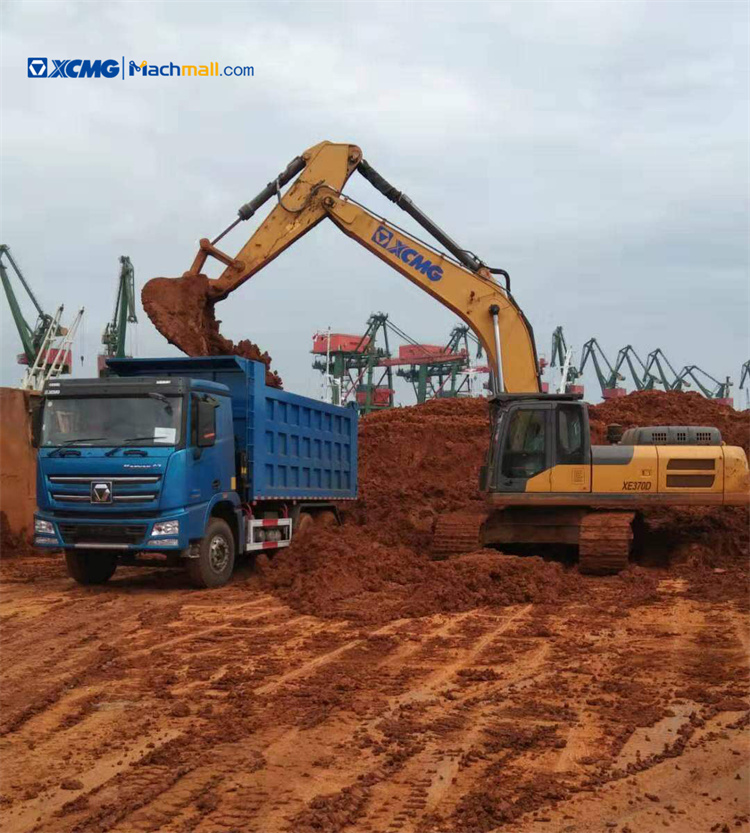

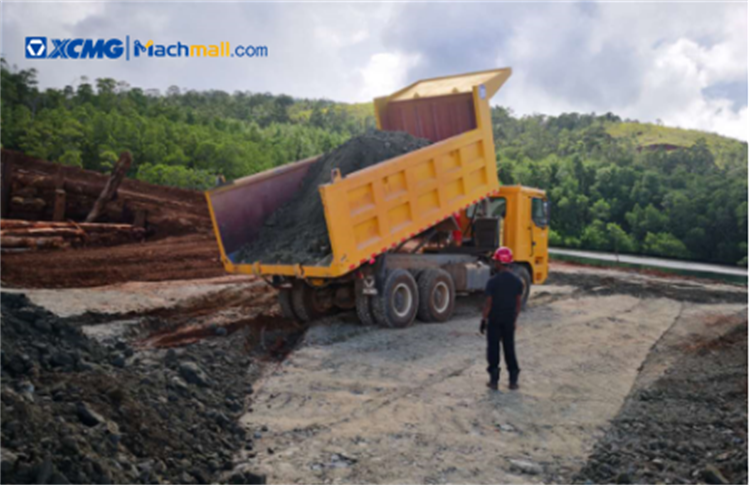

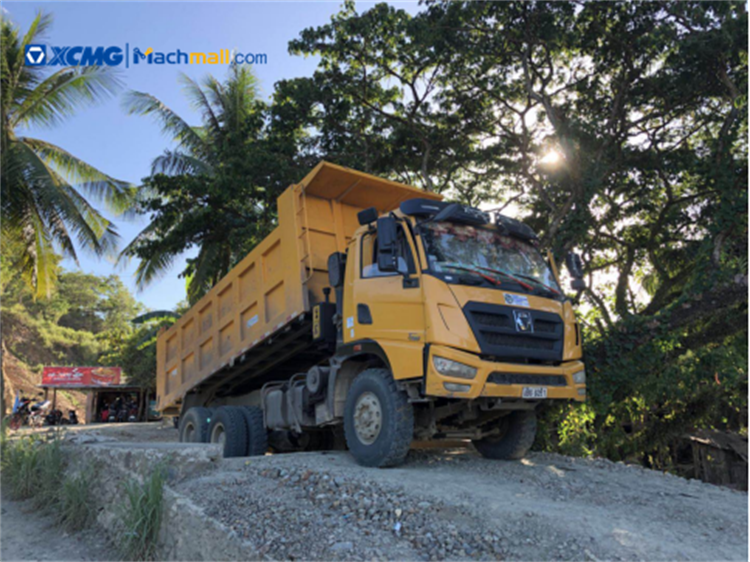

XCMG 60 ton 6 wheels construction dump truck XGA3250D3WC are widelyused for surface mining, hydro—electric construction, port transportation, reclamation works or other construction projects.



Highlights:

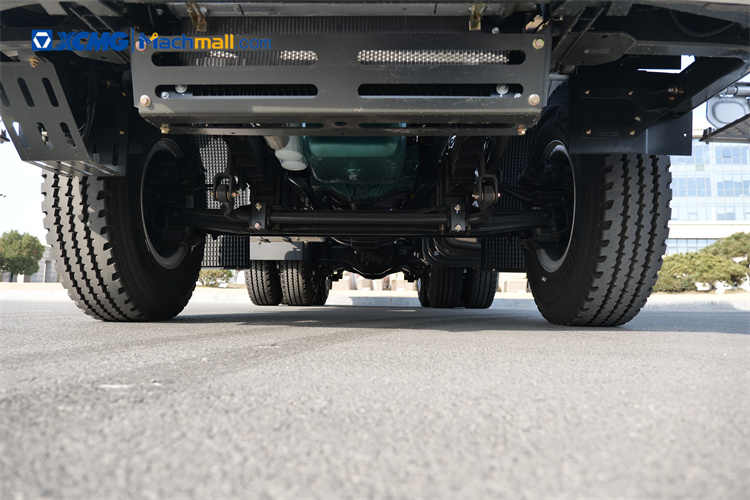

1. The chassis of XCMG 6 wheels construction dump truck adopts high-strength double-layer frame structure and local three-layer reinforcement, which makes the truck more reliable and a stronger bearing capacity. Large flow steering machine makes steering is still easy under heavy load conditions.



2. The drive shaft of XCMG dump truck is upgraded to mine specific use, with a larger diameter, higher strength and more durable. High-strength spring steel is selected for the front and rear suspensions and the topology is optimized to significantly improve reliability while reducing weight, making it more robust in harsh road conditions.



3. The water-proof performance of the chassis has been improved by optimizing the location of parts and upgrading the water-proof measures. Standard desert air filter, optional oil filter air filter.



4·Excellent driving configuration synchronized with the latest generation of luxury quiet cabs in Europe. The overall cage structure is adopted, and the thickest part of the steel plate is up to 4mm, which significantly improves the impact resistance and deformation resistance, and the safety reaches the international level.



5. High-grade sound insulation, heat insulation materials, and many vibration and noise reduction techniques are used in all-face applications to effectively block noise and vibration. Adopting excellent man-machine design concepts, the internal space is spacious and comfortable, the layout of various operating parts is reasonable, and the materials used are high-quality, making driving a pleasure.



6·Superior power. The special mobile version of the mobile assembly composed of Weichai, Fast, and Hande is adopted, with strong performance, quick start and super easy. The engine is equipped with a four-wheeled engine as standard, which has more complete combustion, strong explosion, and torque up to 2200N.m.



7. The gearbox adopts a cast iron box body, which is durable and suitable for severe road conditions. The rear axle is preferably a 16-ton MAN rear axle or a 16-ton Mercedes-Benz rear axle, which has strong load-bearing capacity and has no pressure when climbing a pit.



Service:



1. Maximum warranty period is 60 months for the whole machine.

2. Three parts are only replaced but not repaired: engine, gearbox, and drive axle.

3. Unconditional free out-of-office maintenance: Hanvan P series dump truck adopts unconditional free out-of-office maintenance no matter what failure modes.

4. Free warranty: the first maintenance materials and all working hours are free after the customer purchases the engine, gearbox, and drive axle.

5. Fast channel for emergency accessories: exclusive procurement channel.



 XCMG 60 ton Construction Dump Truck 6 Wheels price

PERFORMANCE PARAMETERS

Drive type

6×4

Kerb mass

16400kg

GVW

60000kg

Max. speed

78km/h

Min. turning diameter

20m

Grade ability

≥30%

Fuel tank

400L

DIMENSIONS

Dimension (mm)

8065×2550×3192Chassis

8825×2550×3530Total

Wheelbase (mm)

4000+1400

Min. clearance

249mm

Approach angle

24°

Departure angle

23°

Front overhang

1500mm

Rear overhang

1165mmChassis

1925mmTotal

Cargo size (mm)

5800×2300×1500

CABIN

Model

HANVAN G7 SM

Left/Right driving

LHD

AC

Optional

Person allowed in

2

ENGINE

Model

WP10.375

Emission standard

EUR III

Displacement

9.726L

Output power

276kW
