XCMG electric container handler XCH907E 9 ton 18m for port price

$10000.00-$1000000.00 1 / EA (Min. Order)
Model: XCH907E
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG electric container handler XCH907E 9 ton 18m for port price

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • Product PDF

Summary

Specifications

  • Weight:42000.000kg
  • Maximum Lifting Height:18780mm
  • Maximum travel speed(no load, full load):26/22km/h

XCMG electric container handler XCH907E 9 ton 18m for port price



XCMG electric container handler XCH907E 9 ton 18m for port.

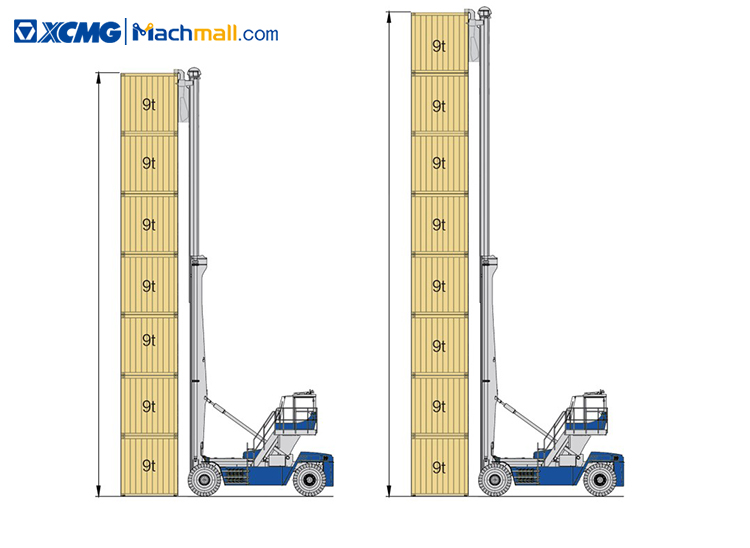

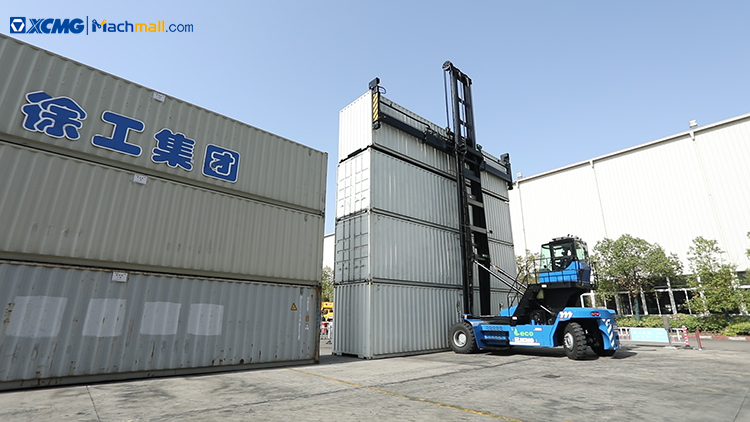

XCMG electric container handler XCH907E 9 ton 18m for port has a carrying capacity of 9 tons and can stack 7 layers of standard containers. It is environmentally friendly, intelligent and efficient, safe and reliable, and comfortable to operate.



With the features of long battery life, fast charging speed, good performance, low operating cost, zero emission and low noise, XCMG's pure electric empty container handler XCH907E is the first choice for green ports.

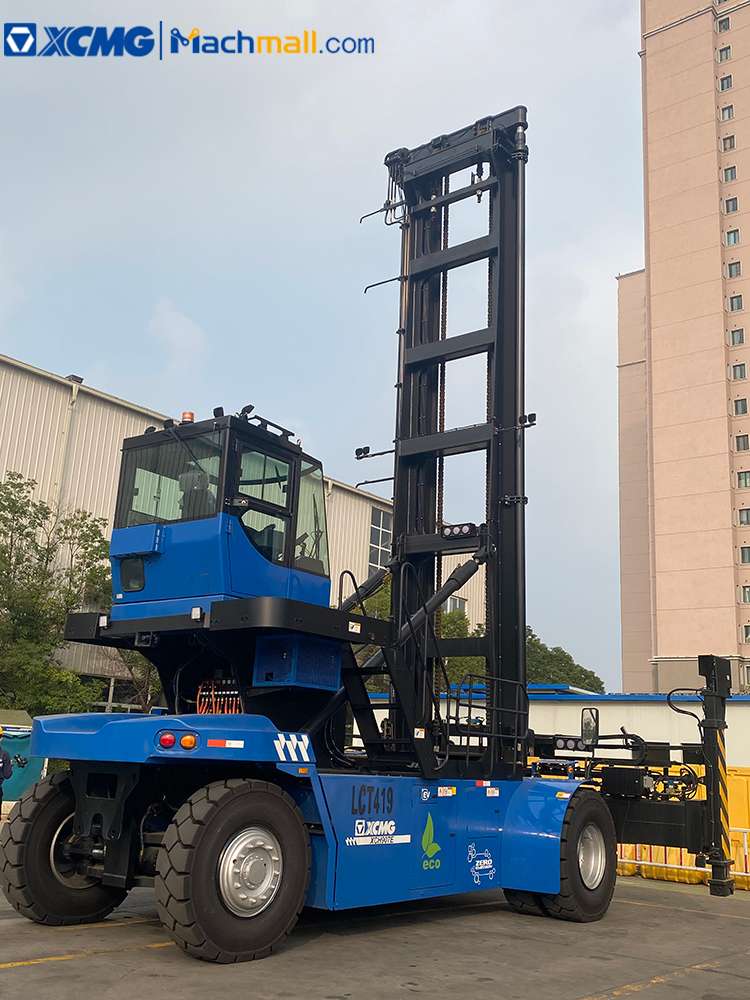

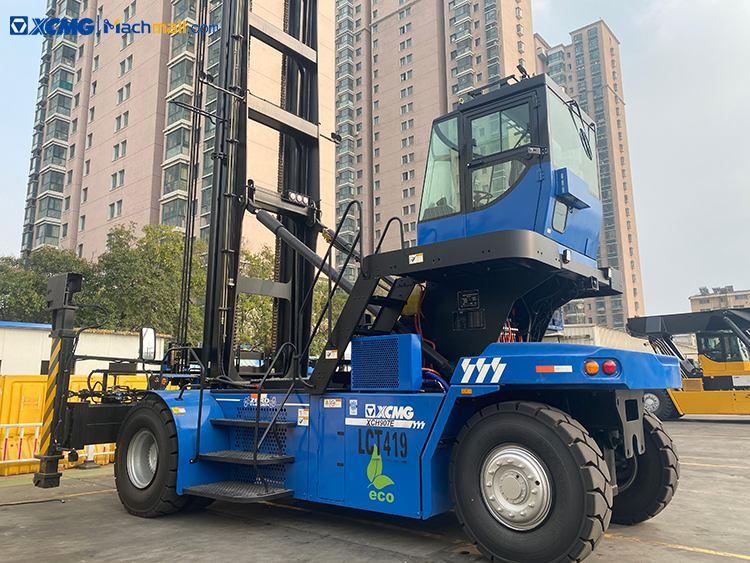

Equipped with 350kWh lithium iron phosphate battery for long running time, three-motor drive to reduce operating costs, and panoramic cab.



Advantages and highlights:



1. Zhongda's digging valve serialization, mastering independent and controllable core technology, and completing localized substitution;



2. High-pressure and large-flow Big Mac MEV series, applied to the world's largest tonnage horizontal directional drilling rig;



3. Complete supply of crane valves, including rotary buffer valve, telescopic switching valve, multi-way valve, hoisting balance valve, with precise control characteristics.

XCMG electric container handler XCH907E 9 ton 18m for port price

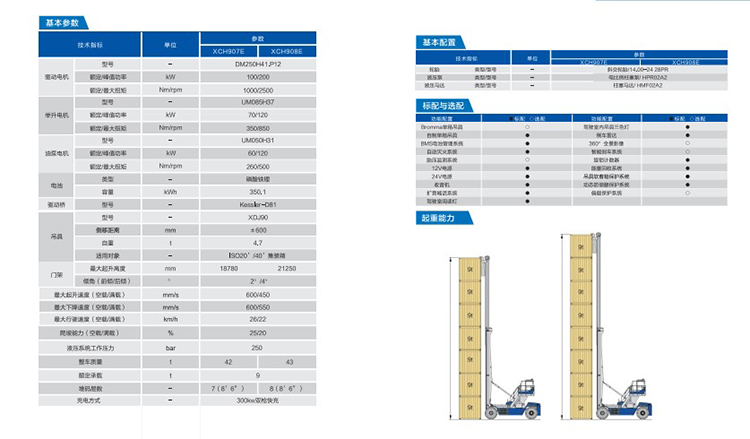

Item



Unit

Parameter

Drive motor

Model



DM250H41.P12

Rated/peak power

Kw

100/200

Rated/maximum torque

Nm/rpm

1000/2500

Lifting motor

Model



UM085H37

Rated/peak power

kW

70/120

Rated/maximum torque

Nm/rpm

350/850

Oil pump motor

Model



UM050H31

Rated/peak power

Kw

60/120

Rated/maximum torque

Nm/rpm

260/500

Battery

type



Lithium Iron Phosphate

capacity

kWh

350.1

Drive axle

Model



Kessler-D81

Spreader

Model



XDJ90

Side shift distance

mm

±600

Self weight

t

4.7

Applicable object



ISO20'/40'container

Mast

Maximum Lifting Height

mm

18780

Maximum lifting height (no load, full load)

mm/s

600/450

Maximum descending speed(no load, full load)

mm/s

600/550

Maximum travel speed(no load, full load)

km/h

26/22

Gradeability(no load, full load)

%

25/20

Hydraulic system working pressure

bar

250

Vehicle quality

t

42

Rated load

t

9
