Summary

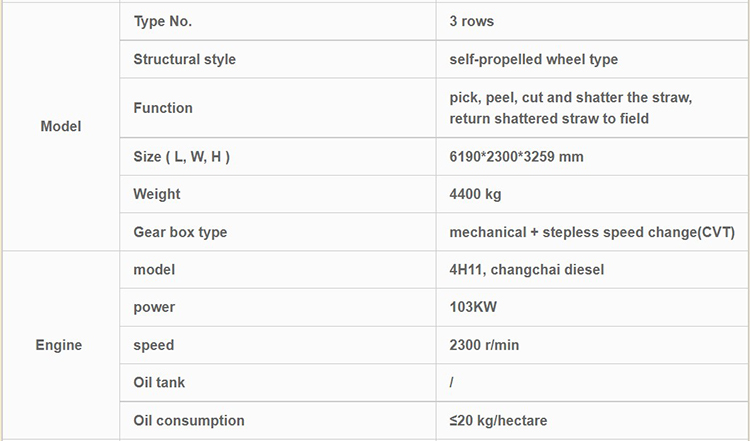

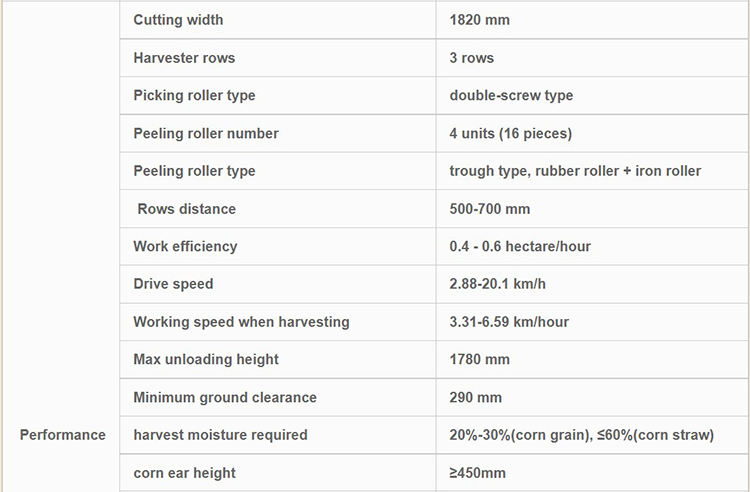

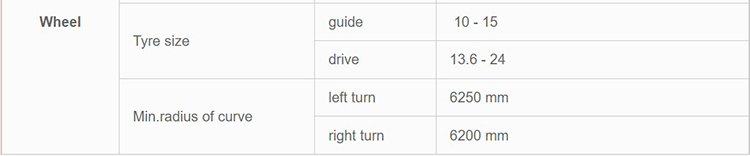

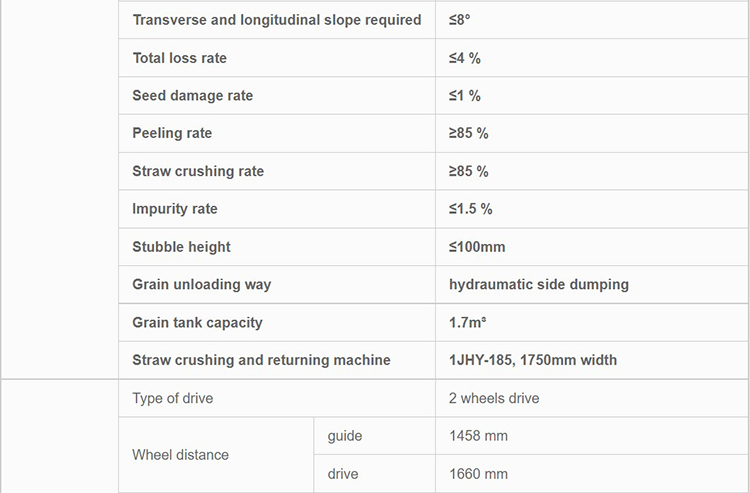

Specifications
- weight:4990.000kg
- Engine Power:140Kw/HP
- Cutting width :1825 mm
- Harvester rows:3
- Dimension :6190×2300×3259 mm

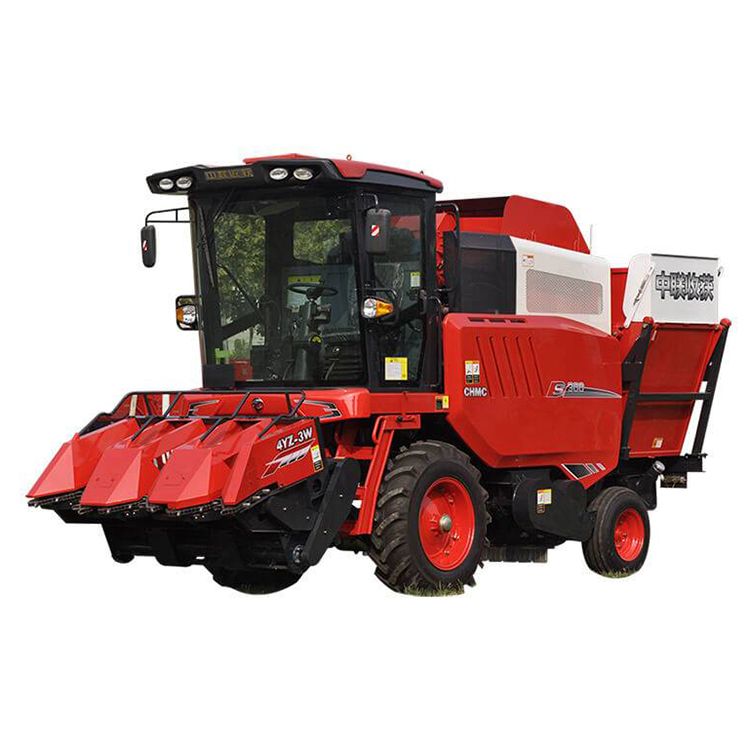

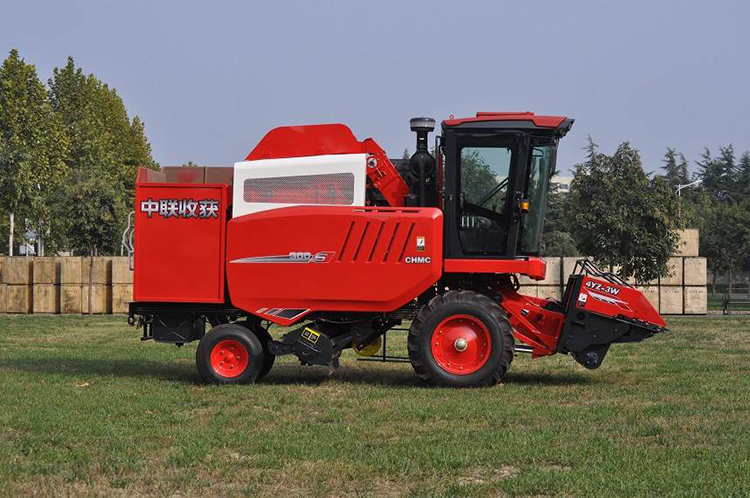

China ZHONGLIAN corn harvester 4YZ-3W 3 rows machinery 140HP.
China ZHONGLIAN corn harvester 4YZ-3W 3 rows machinery 140HP is a self-propelled corn harvester, compact design, short body, flexible maneuverability, small turning radius, easy to turn around in field, high harvesting efficiency; new dynamic appearance, novel and beautiful; easy to maintain; suitable for ifferent row space and different row space and different planting structure, can harvest even not in rows.
Main Features:
1. Short machine body, short front and back wheels distance, small turning radius, easy and fast to turn around in field, high harvesting efficiency;

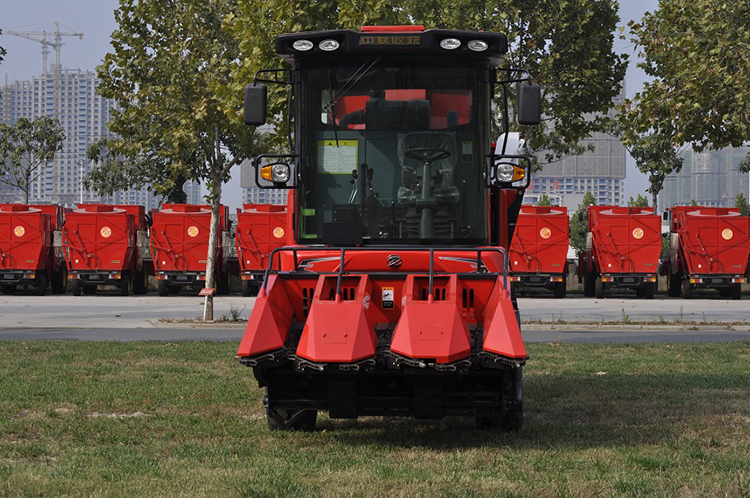

2. The header's reel chain adopts forced feeding way, can harvest the corn not in rows, also can horizontally harvest;
3. The cutter table uses big auger-type picking roller, forcelly and quickly to pull the corn stick into cutter table, not intertwine, not blocking;
4. Peeling device with special design, adopt soft peeling technology, 4 sets peeling device, 16 pcs rollers, metal and rubber rollers blended, this design makes peeling more clean, reduces the rate of seed damage&loss;
5. Using straw crushing and returming device, can completely crush the com straw and reduce the subbl'sheight.

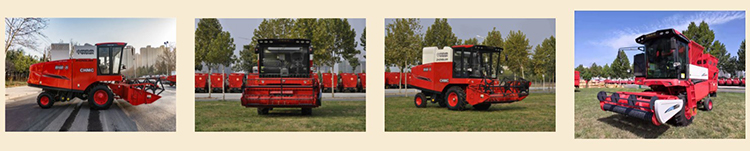

More Zhonglian Harvesters
