CPD20L2
Specs & Compare
Details
Select 3 models for comparison
Fork Width
Fork Length
Min Lifting Height
Max Lifting Height
Rated Loading Capacity
Power Source
Type
Model Number
Brand Name
Place of Origin
Storage & Logistics Equipment
CPD20L2
40 mm
1070 mm
--
6000 mm
2000 kg
--
--
CPD20L2
EP
Zhejiang, China
+ Add a Product
+ Add a Product
Summary
- Fork Width:40 mm
- Fork Length:1070 mm
- Max Lifting Height:6000 mm
- Rated Loading Capacity:2000 kg
- Model Number:CPD20L2
- Brand Name:EP
- Place of Origin:Zhejiang, China

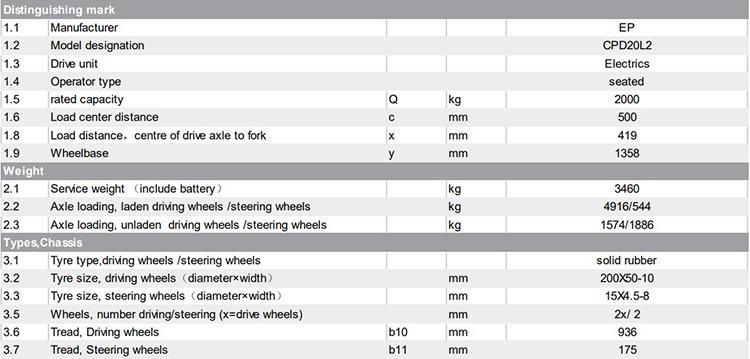

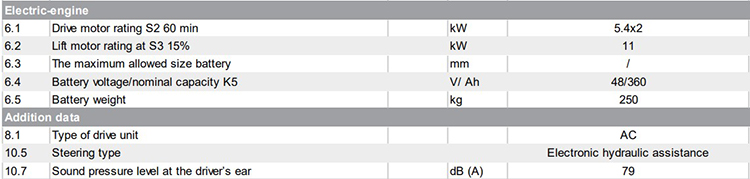

Specifications
- Weight:3460.000kg
- Condition:New
- Moving Type:Other
- Operator type:seated
- Rated capacity:2000 kg
- Load center distance:500 mm
- Wheelbase:1358 mm
- Service weight (include battery):3460 kg

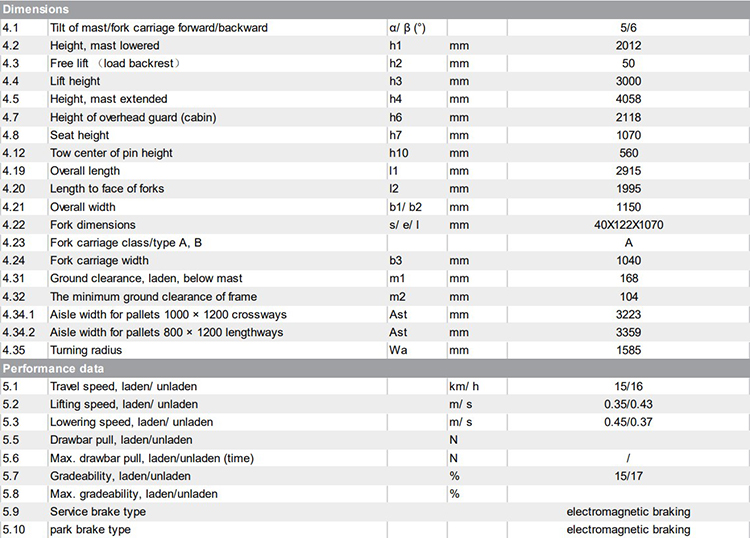

- Height, mast lowered:2012 mm
- Lift height:3000 mm
- Height, mast extended:4058 mm
- Turning radius:1585 mm
- Overall length:2915 mm
- Overall width:1150 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China



Certified for 3 years
Rating
Response Time
24h
Year of establishment
EP equipment is a fast growing enterprise relying on product innovation, specializing in the development, manufacture and service of electric storage equipment and forklift.
