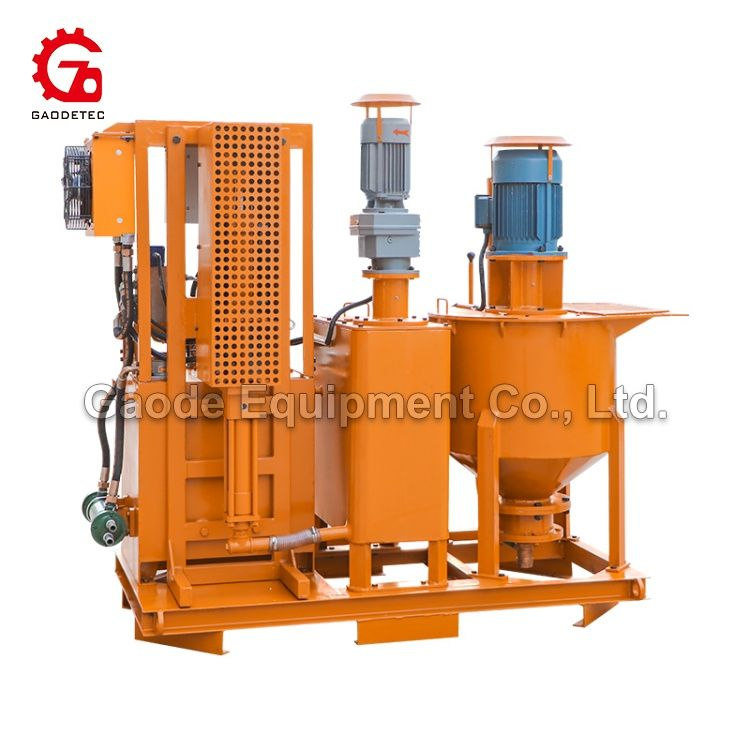

Gaodetec GGP100/150/20PI-E Electric Grout Injection Pump Station for Underwater Foundation
GGP100/150/20PI-E
Specs & Compare
Details
Specifications
- Weight:900.000kg
- Type:GGP100/150/20PI-E
- Mixer Volume:100L
- Mixer Speed:1500rpm
- Agitator Volume:150L
- Agitator Speed:36rpm
- Dimension:2200×1000×1850mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description

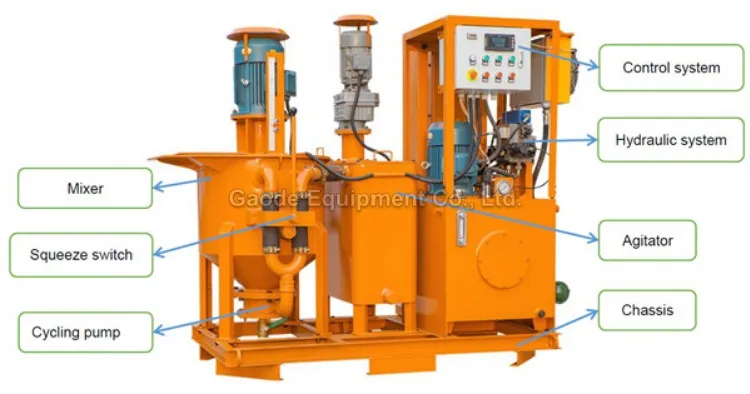

Gaodetec GGP100/150/20PI-E Electric Grout Injection Pump Station for Underwater Foundation is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made and grouted the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.
The features and advantages of this machine are as follows：
One and two-oil gear pump to get large output and high pressure in the same grout pump.
Single piston and two-acting, by our special design to get the same volume in both rod and no rod chamber.
Vertical pump with compact size.
Hydraulic drive, safely releasing pressure when pumping block.
Ball valve.
Up to 5mm particle size.
Low flow pressure surge system.
Lower charging material height for mixer.
High-speed colloidal grout mixer.

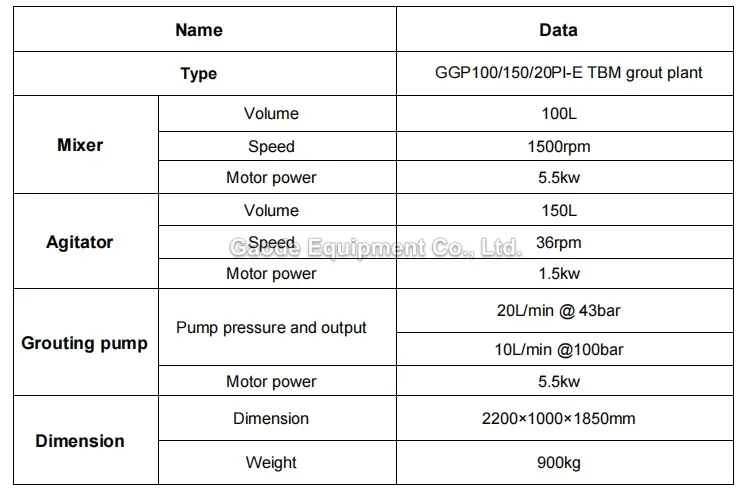

Parameters

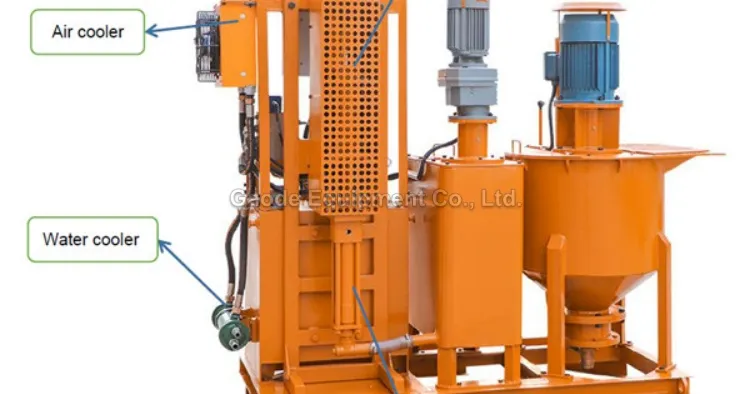

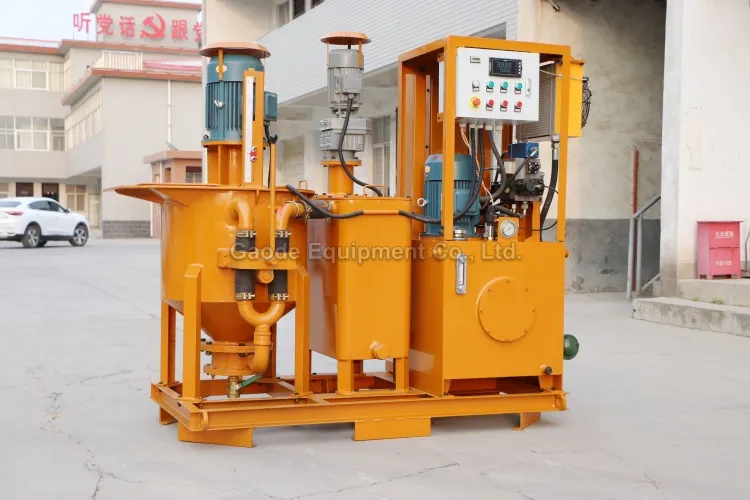

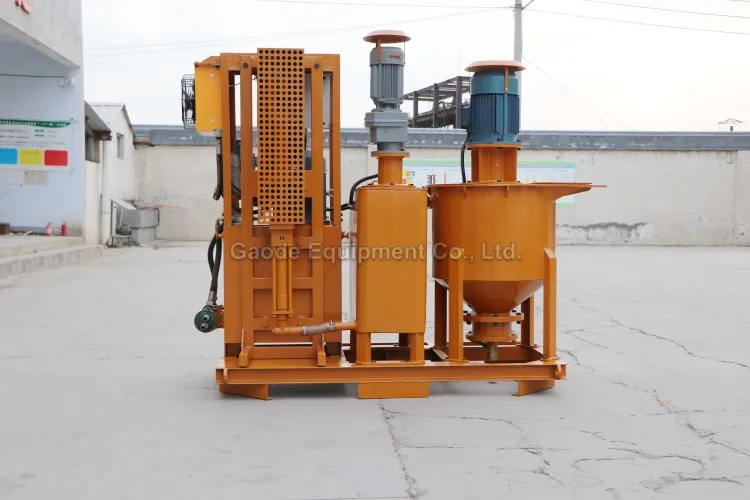

Details Images
Application
GGP100/150/20PI-E Electric Grout Injection Pump Station for Underwater Foundation is mainly used to make and grout the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery
Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
