Summary
- Rated Loading Capacity:6 ton
- Model Number:XCT-PS60
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:1640.000kg
- Condition:New
- Moving Type:Wheel
- Rated load capacity:6 ton
- Rated traction force:1500 FN
- Wheelbase:1230 mm
- Weight (including battery):1640 kg
- Overall length:2020 mm
- Body width:1140 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

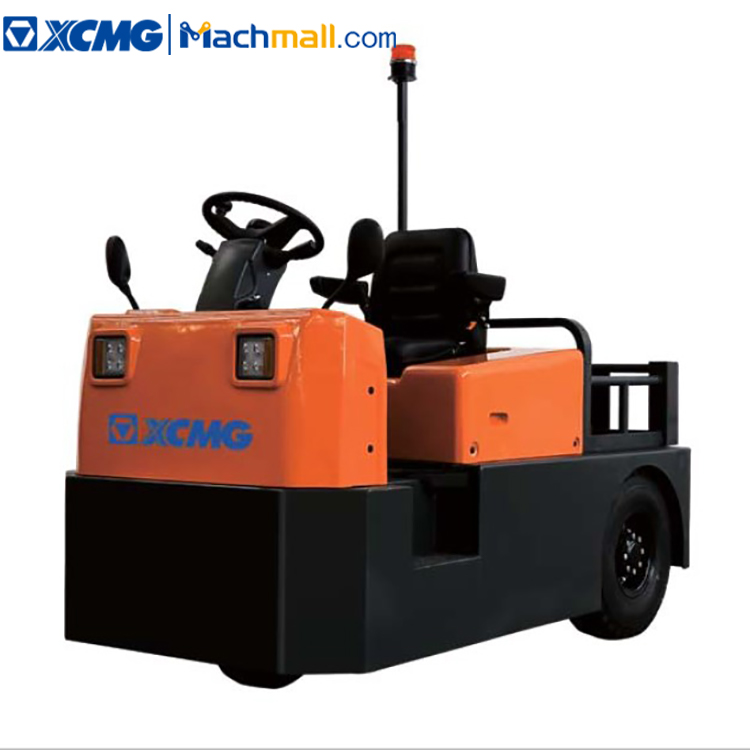

XCMG 6 ton electric tow tractor XCT-PS60 with three wheels sit type.
XCT-PS60 battery tow tractor features novel modeling and conforms to ergonomic principles, with rated load capacity at 6,000kg. This machine is supported by three wheels and is driven by rear wheels. Featuring low noise, high traction force, simple operations, compact structure design, and good mobility, it's suitable for the relatively narrow working conditions. The clean energy features zero pollution and the side-pull battery structure is attached with battery swapping bracket to ensure high convenience and reliability.
The multifunctional LCD instruments provide extensive display information. The capacious operating space and the low-level boarding footplates really ease the operator's get- on and get-off. The installed brand traction motor features high efficiency and reliable performances. All-new AC power system provides strong power. The maintenance-free AC fan reduces the maintenance cost, improves the reliability, realizes higher efficiency, and prolongs the life. Low gravity center of the machine guarantees good stability during steering and traveling.
XCMG 6 ton electric tow tractor XCT-PS60 with three wheels sit type is installed with an emergency cutoff switch on the left side of the operator. In event of any emergency, direty push downthis button to power off the machine and guarantee the driving safety. The intalled reduction box and drive axle feature compact structure and smooth drive. The low speed (inching) forward/reverse swiches are italledl on two sides of the machine tail to ease the hitching and unhitching of towed vehicle behind and improve the working eficiency.
The suspended fot-operated parking brake and the suspended acelerater pedal are pplie to achie convenient and comfortable operations, The til of the machine is italled with a square cargo container to expand the storage space. The mutiple hitching heights are provided at your choice. The machine tail is italled with an aiation cnnectortopower on the headlamp and warning lamp of the towed vehicle.
|
Characteristics |
Model |
Unit |
XCT -PS60 |
|
|
Power system (Motor, diesel, gasoline, LPG, or |
|
Electric |
|
|
Driving mode (Manual, walkie, stand -on, |
|
Sit-on type |
|
|
Rated load capacity |
Q(t) |
6.0 |
|
|
Rated traction force |
F(N) |
1500 |
|
|
Wheelbase |
y(mm) |
1230 |
|
|
Maximum traction force |
F(N) |
4500 |
|
Weights |
Weight (including battery) |
kg |
1640 |
|
Wheels |
Tires (Rubber tires, hyperelastic tires, air |
|
Rubber |
|
|
Wheel size, drive end |
Øxw(mm) |
6.50 -10 |
|
|
Wheel size, load-carrying end |
Øxw(mm) |
4.00 -8 |
|
|
Number of wheels (X = drive wheel), |
|
2x/1 |
|
|
Wheel tread (Front) |
b10 (mm) |
/ |
|
|
Wheel tread ( Rear ), drive end |
b11(mm) |
893 |
|
Dimensions |
Overall height |
h14(mm) |
1390 |
|
|
Overall length |
l1(mm) |
2020 |
|
|
Body width |
b1(mm) |
1140 |
|
|
Minimum ground clearance |
m2(mm) |
135 |
|
|
Turning radius |
Wa(mm) |
1745 |
|
Performances |
Trave ling speed, full -load/no -load |
Km/h |
9.0/13 |
|
|
Service brake |
N |
Hydraulic |
|
Motor |
Drive motor power |
kw |
6.8 |
|
|
Battery, BS standard, none |
|
DIN |
|
|
Battery voltage/capacity |
V/Ah |
48/300 |
|
|
Battery weight (+/ -5%) |
kg |
490 |
|
Others |
Drive control mode |
|
Field effect tube control AC |
|
|
Driver’s parotic noise level |
dB(A) |
70 |
