Summary
- Machine Weight:15ton
- Maximum Digging Height:8640mm
- Bucket capacity:0.32～0.72m3
- Model Number:XE150E
- Brand Name:XCMG
- Place of Origin:XUZHU, CHINA
Specifications
- weight:15000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

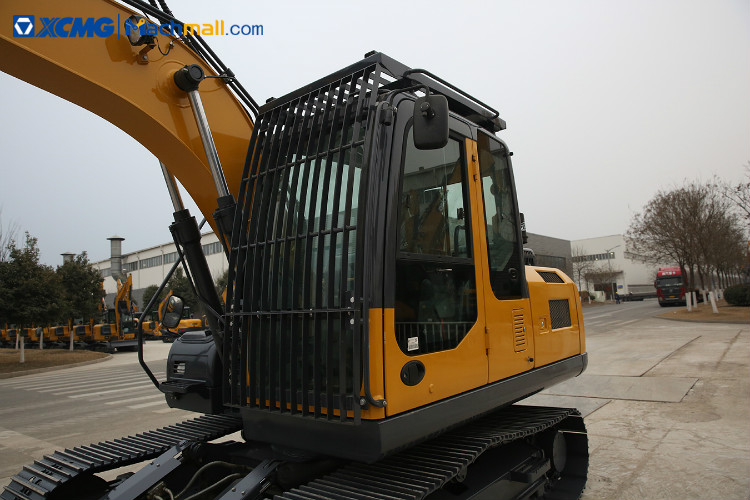

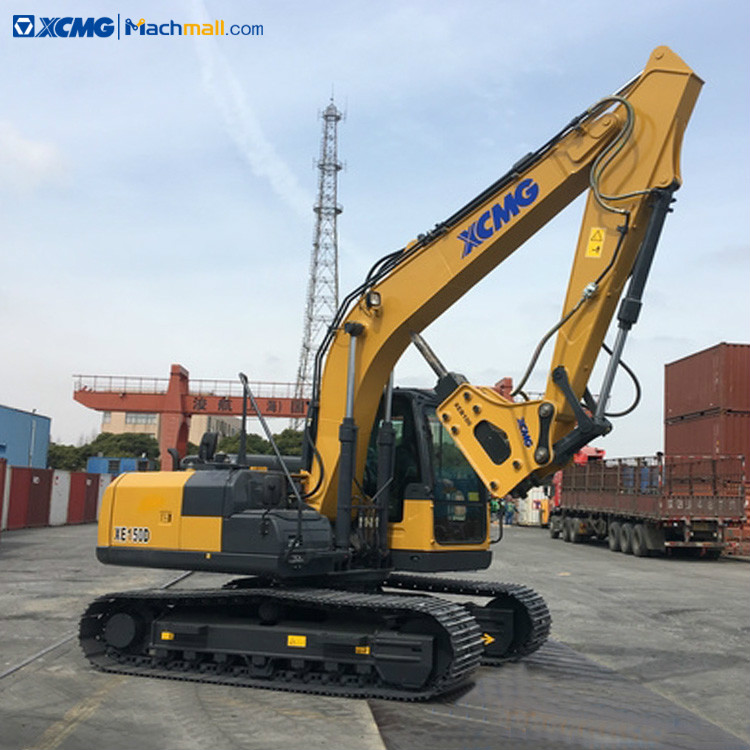

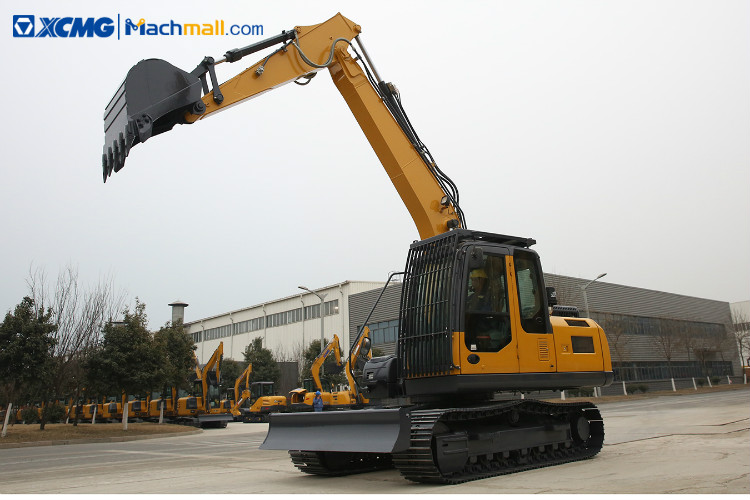

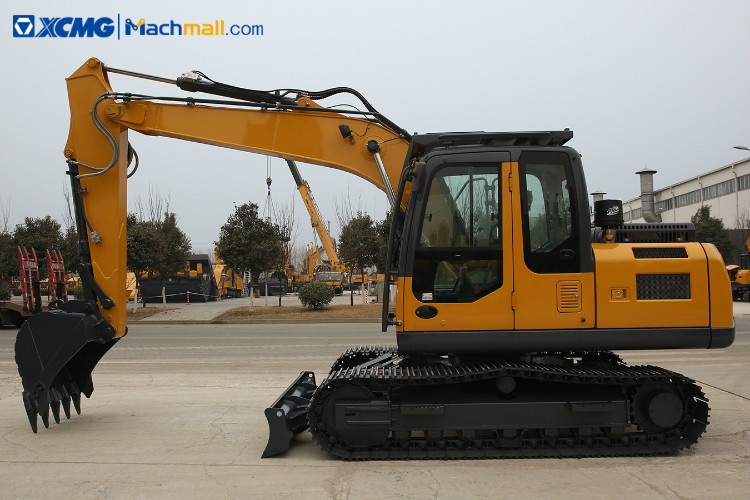

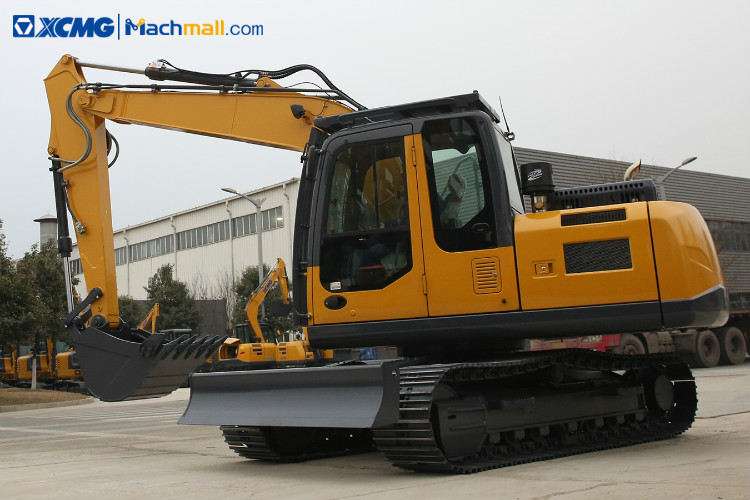

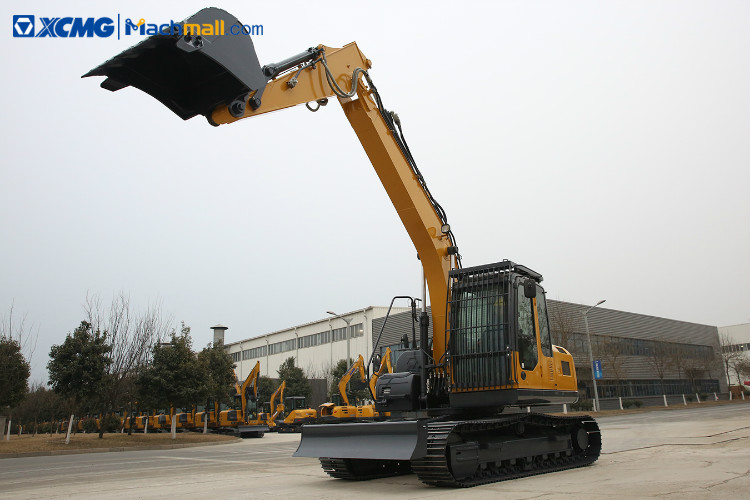

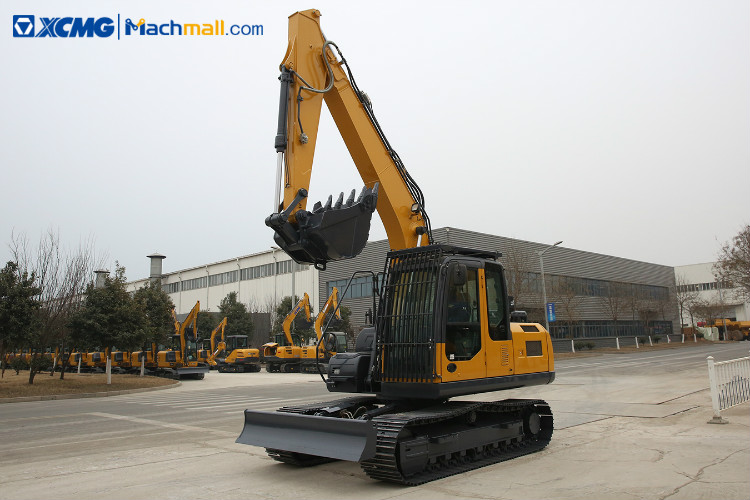

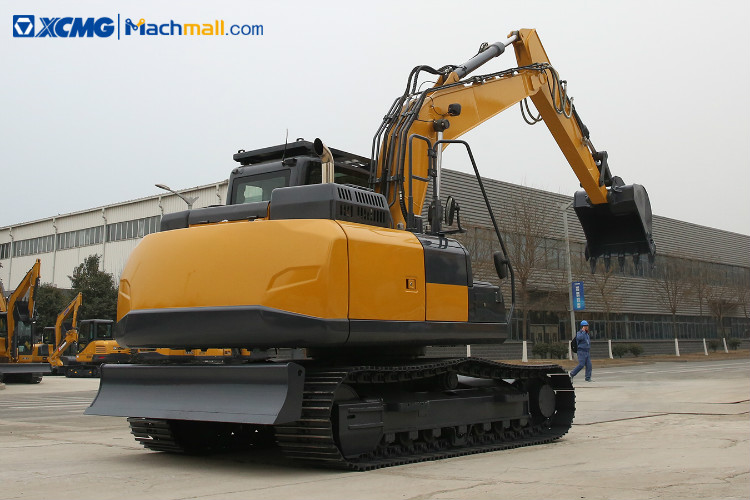

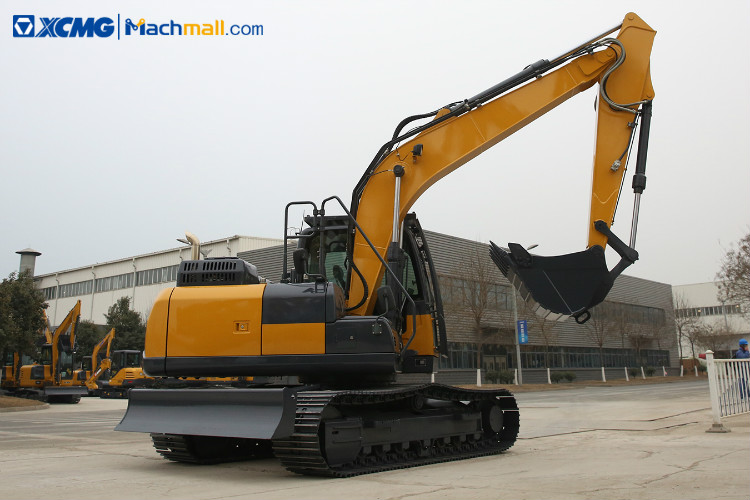

Chinese XCMG XE150E crawler excavator 15 ton with multi-functional working tools.
XCMG XE150E 15 ton crawler excavator hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.

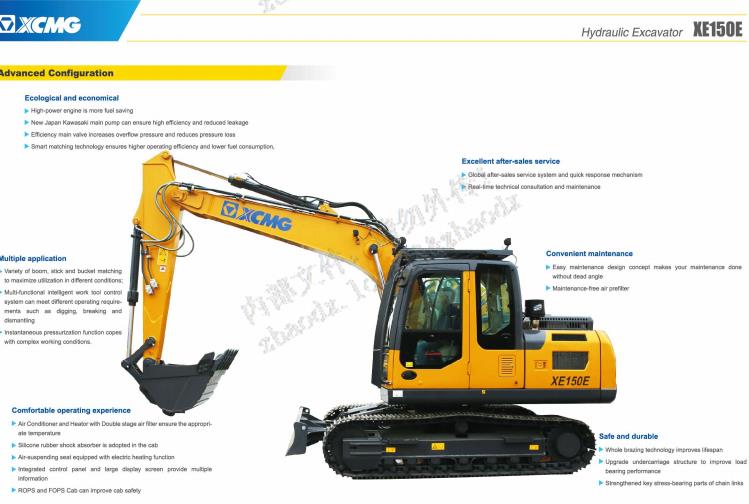

1. Ecological and economical ：
* Cummins engine can meet Euro stage IV Emission Standard.
* Well-known hydraulic components, higher efficiency.
* Minicomputer control technology makes operation more economical.
2. Multiple applications：
* Different boom, arm and bucket combinations can provide excellent all-around versatility.

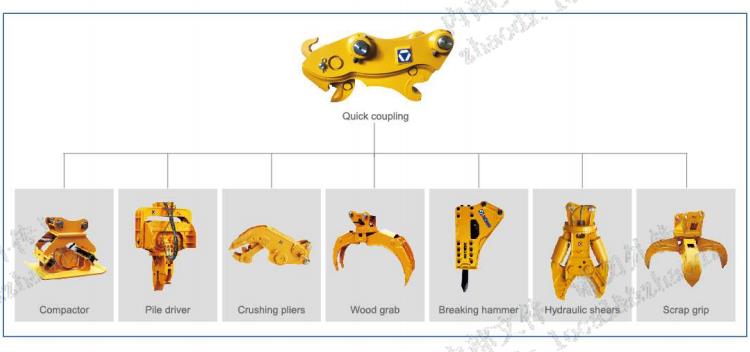

* Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
3. Comfortable operating experience：
* Air conditioner and heater ensure the appropriate temperature.
* Air-suspension seat equipped with electric heating function. * Integrated control panel and large display screen provide multiple information.
|
Sales model |
|
Unit |
XE150E |
|
Operating weight |
|
Kg |
14800 |
|
Bucket capacity |
|
m³ |
0.32～0.72 |
|
Engine |
Model |
/ |
QSB4.5 |
|
|
No. of cylinders |
/ |
4 |
|
|
Rated power |
kw/rpm |
90/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
470/1500 |
|
|
Displacement |
L |
4.5 |
|
Main performance |
Travel speed |
km/h |
5.3/3.2 |
|
|
Swing speed |
r/min |
11.7 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
38 |
|
|
Bucket digging force |
kN |
106.9 |
|
|
Arm digging force |
kN |
73.4 |
|
|
Maximum tractive force |
kN |
134 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
123.5×2 |
|
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.4 |
|
|
Swing system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank capacity |
L |
260 |
|
|
Hydraulic tank capacity |
L |
105 |
|
|
Engine oil capacity |
L |
11 |
|
Appearance size |
A Overall length |
mm |
7806 |
|
|
B Overall width |
mm |
2590 |
|
|
C Overall height |
mm |
2900 |
|
|
D Width of platform |
mm |
2490 |
|
|
E Track length |
mm |
3658 |
|
|
F Overall width of chassis |
mm |
2590 |
|
|
G Track width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
2910 |
|
|
I Track gauge |
mm |
1990 |
|
|
J Counterweight clearance |
mm |
942 |
|
|
K Min. ground clearance |
mm |
476 |
|
|
L Min. tail swing radius |
mm |
2355 |
|
|
M Track height |
mm |
836 |
|
Working scope |
A Max. digging height |
mm |
8640 |
|
|
B Max. dumping height |
mm |
6180 |
|
|
C Max. digging depth |
mm |
5520 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
5324 |
|
|
E Max. vertical wall digging depth |
mm |
4697 |
|
|
F Max. digging radius |
mm |
8304 |
|
|
G Min. swing radius |
mm |
2445 |
|
Standard |
Length of boom |
mm |
4600 |
|
|
Length of arm |
mm |
2520 |
|
|
Bucket capacity |
m³ |
0.61 |
|
Optional |
Length of boom |
m³ |
/ |
|
|
Length of arm |
m³ |
2100/3010 |
|
|
Bucket capacity |
m³ |
0.52 Rock bucket、Strengthened bucket |
|
|
|
|
0.32/0.4/0.72 Earthwork bucke |
