China 50 ton mining excavator machine used for sale

  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale
  • China 50 ton mining excavator machine used for sale

Share:

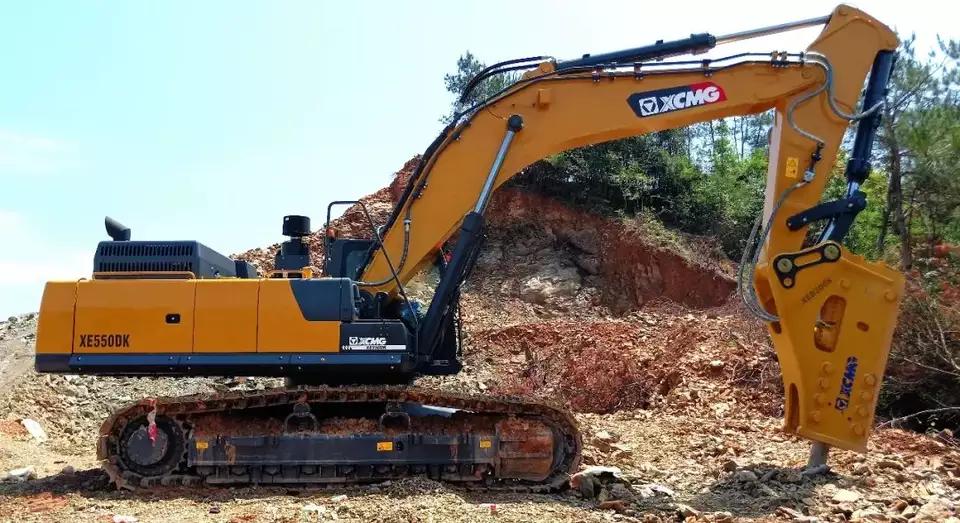

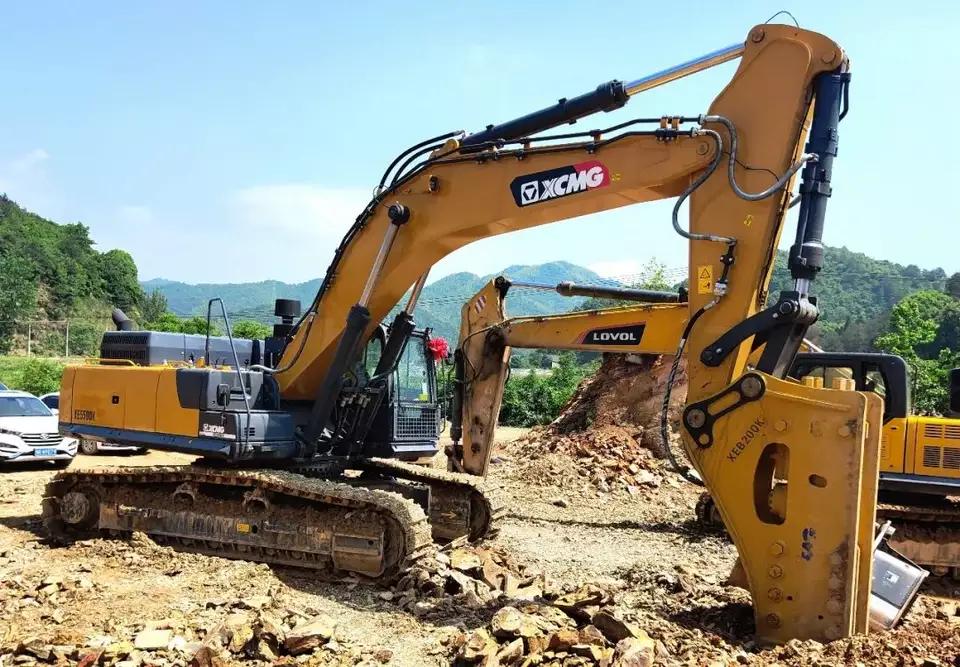

China 50 ton mining excavator machine used for sale
FOB for Excavator Reference Price:Get Latest Price
Chat Now 1 / EA (Min. Order)
Model: XE550DK
Engine: KUBOTA
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
China 50 ton mining excavator machine used for sale
China 50 ton mining excavator machine used for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
Summary
  • Model Number:XE550DK
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, China
  • Machine Weight:51500kg
  • Maximum Digging Depth:6780mm
  • Maximum Digging Height:9835mm
  • Bucket capacity:3.6m3
  • Max Digging Radius:10430mm
Specifications
  • weight:51500.000kg
  • Condition:Used
  • Moving Type:Crawler
  • Used hours:1220
  • Date:2021-4
  • Rated power:309.5/2100kw/rpm

China 50 ton mining excavator machine used for sale

China 50 ton mining excavator machine used.



Model = XE550DK

Used_hours = 1220h

Brand = XCMG

Date = 2021-4

Working Weight:52500KG

Rated Power:309.5KW

Year of manufacturing:2021



Technology Highlights



China XCMG 50 ton excavator XE550DK crawler excavators are energy-saving, efficient, comfortable and durable.



The new hydraulic system is characterized by high efficiency, slightloss of pressure and reasonable flow distribution;the lengthened & widened chassis and heavy-load double-rib track shoeensure high stability of the vehicle during mine operations.



The strengthened working deviceoptimizes hinged points and makes the vehicle to be with the most powerful digging force, meeting digging, truck loading, crushing and other requirements in heavy-load working conditions.



China 50 ton mining excavator machine used for sale





Unit

XE550DK

Operating weight



Kg

51500

Bucket capacity



3.6

Engine

Model

/

2206N



No. of cylinders

/

6



Output power

kw/rpm

309.5/2100



Maximum torque/speed

N.m/rpm

1896/1400



Displacement

L

13

Main performance

Travel speed

km/h

5.4/3.2



Swing speed

r/min

9.2



Gradeability

°

35



Ground pressure

kPa

88



Bucket digging force

kN

330



Arm digging force

kN

255



Maximum traction

kN

338

Hydraulic system

Rated flow of main pump

L/min

2×360



Main safety valve pressure

MPa

34.3/37



Travel system pressure

MPa

34.3



Rotary system pressure

MPa

31



Pilot system pressure

MPa

3.9

Oil Capacity

Fuel tank capacity

L

725



Hydraulic tank capacity

L

430



Engine oil capacity

L

42

Appearance size

A Overall length

mm

11870



B Overall width

mm

3572



C Overall height

mm

4100



D Width of platform

mm

3095



E Track length

mm

5470



F Overall width of chassis

mm

3572



G Track width

mm

600



H Length to center of rollers

mm

4407



I Track gauge

mm

2740



J Counterweight clearance

mm

1353



K Min. ground clearance

mm

518



L Min. tail swing radius

mm

3800



M Track height

mm

1221

Working scope

A Max. digging height

mm

9835



B Max. dumping height

mm

6735



C Max. digging depth

mm

6780



D Maximum depth cut for 2240mm(8 ft) level bottom

mm

6450



E Max. vertical wall digging depth

mm

4550



F Max. digging radius

mm

10430



G Min. swing radius

mm

4785

Standard configuration

Length of boom

mm

6550



Length of arm

mm

2550



Bucket capacity

3.6
