Summary
- Fork Width:40mm
- Fork Length: 1070mm
- Min Lifting Height: 2160mm
- Max Lifting Height:4050mm
- Rated Loading Capacity:2500kg
- Power Source: AC Motor
- Model Number:EFL252
- Brand Name: EP
- Place of Origin:Zhejiang, China
Specifications
- weight:3830.000kg
- Condition:New
- Moving Type:Other
- Tyre type:Solid rubber
- Steering type:Hydraulic steering
- Lift motor:12kW
- Turning radius:2290mm
- Service weight (include battery):3830kg
- Drive motor:10kW
- Height, mast extended:4050mm
- Travel speed, laden/unladen:11/12km/ h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

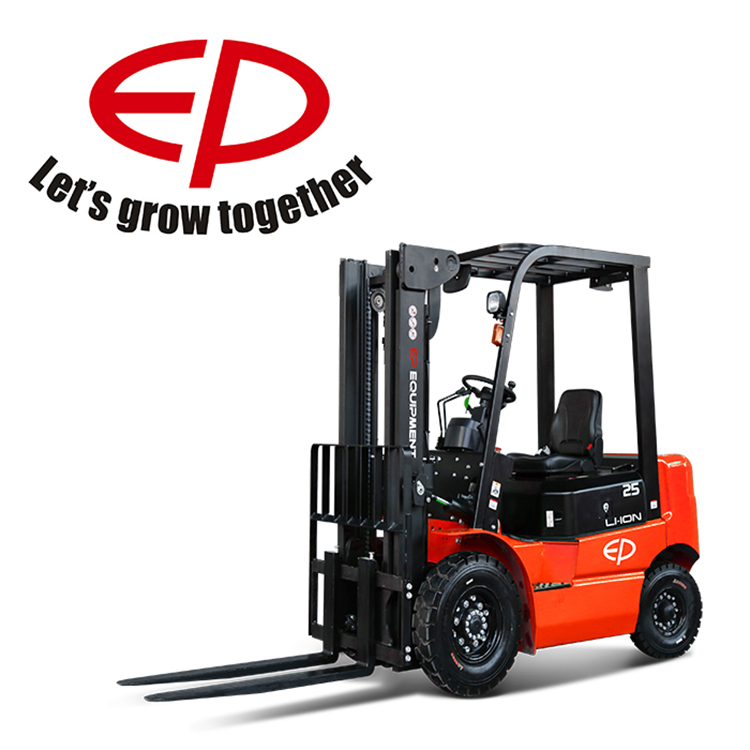

2.5 ton EP forklift electric EFL252 4050mm mast height for logistics.
2.5 ton EP forklift electric EFL252 4050mm mast height for logistics use lithium-ion technology which supports opportunity charging so it can be charged at preferable time during the day without disrupting working schedules.
EFL252 features its high strength mast and tapered roller steering axle for better stability and endurance.The truck is able to be operated outdoors, even on uneven road.
2.5 ton EP forklift electric EFL252 4050mm mast height for logistics is suitable for narrow aisle usage and multiple working conditions, the upgraded steering axle and mast extend its durability, making it a real workhorse to realize heavy duty applications.
|
Distinguishing mark |
|
Unit |
Value |
|
Manufacturer |
|
|
EP |
|
Model designation |
|
|
EFL252 |
|
rated capacity |
Q |
kg |
2500 |
|
Load center distance |
c |
mm |
500 |
|
Wheelbase |
y |
mm |
1595 |
|
Self weight (include battery) |
|
kg |
3830 |
|
Dimensions |
|
|
|
|
Height, mast lowered |
h1 |
mm |
2060 |
|
Free lift (load backrest) |
h2 |
mm |
140 |
|
Lift height |
h3 |
mm |
3000 |
|
Height, mast extended |
h4 |
mm |
4050 |
|
Height of overhead guard (cabin) |
h6 |
mm |
2160 |
|
Fork dimensions |
|
mm |
40X122X1070 |
|
Overall length |
l1 |
mm |
3573 |
|
Overall width |
b1/ b2 |
mm |
1154 |
|
Turning radius |
Wa |
mm |
2290 |
|
performance data |
|
|
|
|
Travel speed, laden/ unladen |
|
km/h |
44512 |
|
Lifting speed |
|
m/s |
0.28/ 0.37 |
|
Lowering speed |
|
m/s |
0.45/ 0.5 |
|
Electric-engine |
|
|
|
|
Drive motor rating S2 60 min |
|
kw |
10 |
|
Lift motor rating at S3 15% |
|
kw |
12 |
|
Battery voltage/nominal capacity K5 |
|
V/Ah |
80V/205AH |
|
The maximum allowed size battery |
|
|
731X 608X 326mm |
