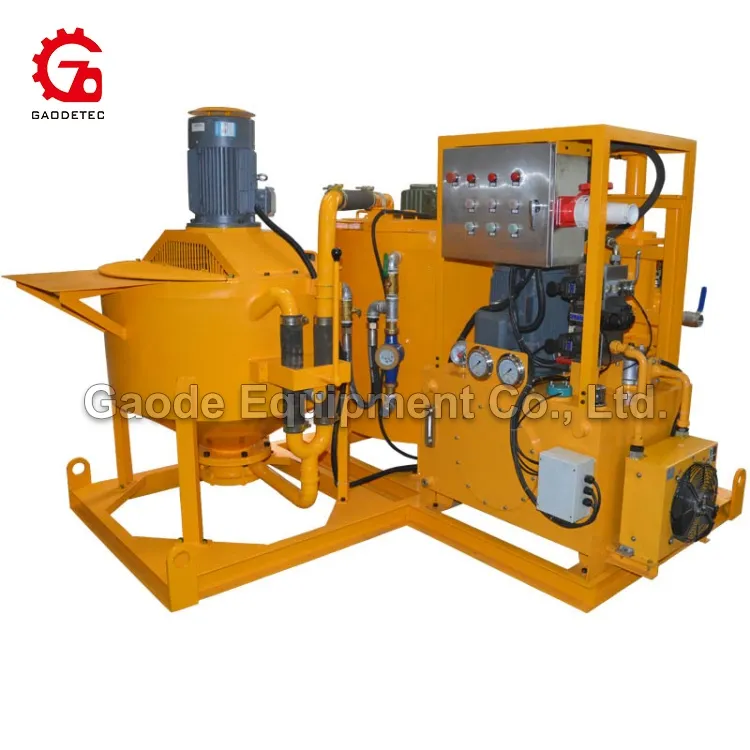

Gaodetec GGP400/700/80PL-E Cement Grout Injection Plant for Soil Nailing Wall



GGP400/700/80PL-E
Specs & Compare
Details
Specifications
- Weight:1350.000kg
- Model:GGP400/700/80PL-E
- Dimensions:2500x2200x1730mm
- Weight:1350kg
- Mixer Capacity:500L
- Agitator Capacity:700L
- Pump Pressure/Output:High speed: 0-2.5MPa 0-80L/min; Low speed: 0-4.5MPa 0-58L/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description
Gaodetec GGP400/700/80PL-E Cement Grout Injection Plant is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator.
Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive.
The features and advantages of this machine are as follows:
Grouting pressure, displacement is stepless adjustable
Simple structure, light weight, easy maintenance
Continuous output with small pulse
Less spare parts ensure low maintenance costs
High speed vortex mixer ensures mix quickly and evenly.
Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate
The motor has an overload protection function. Hydraulic system with oil temperature overheating protection
With high-speed, low-speed mode, by using ball valve to achieve two-function switch
With CE, ISO certification


Parameters

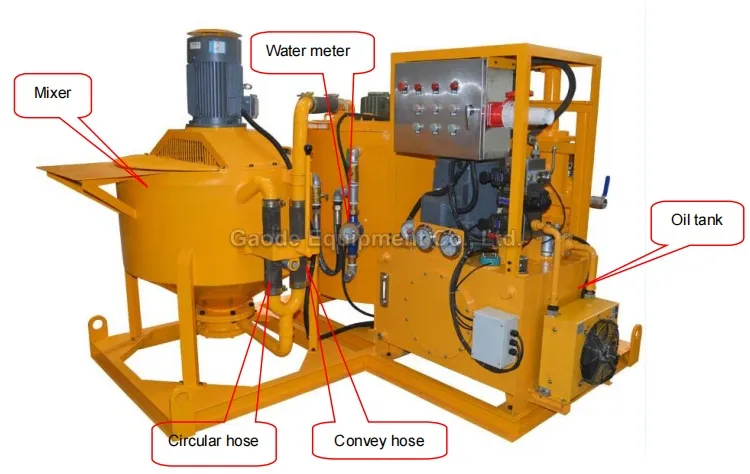

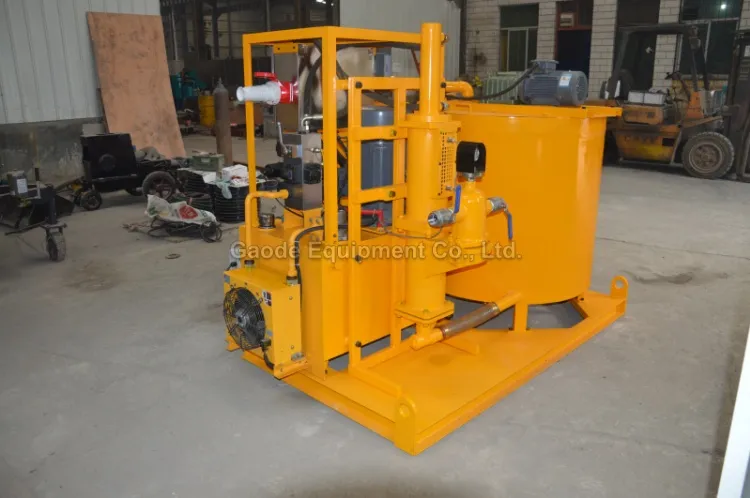

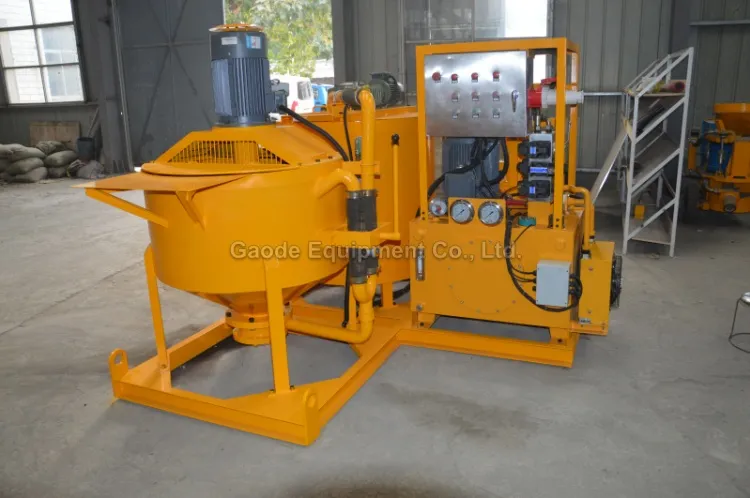

Details Images

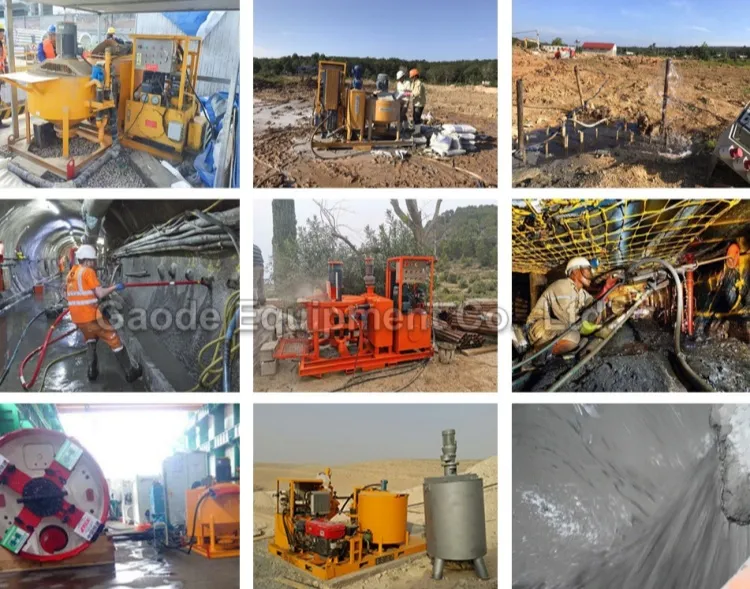

Application
Gaodetec GGP400/700/80PL-E Cement Grout Injection Plant is mainly used to make and grout the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.

FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages
Packaging and Delivery





Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
