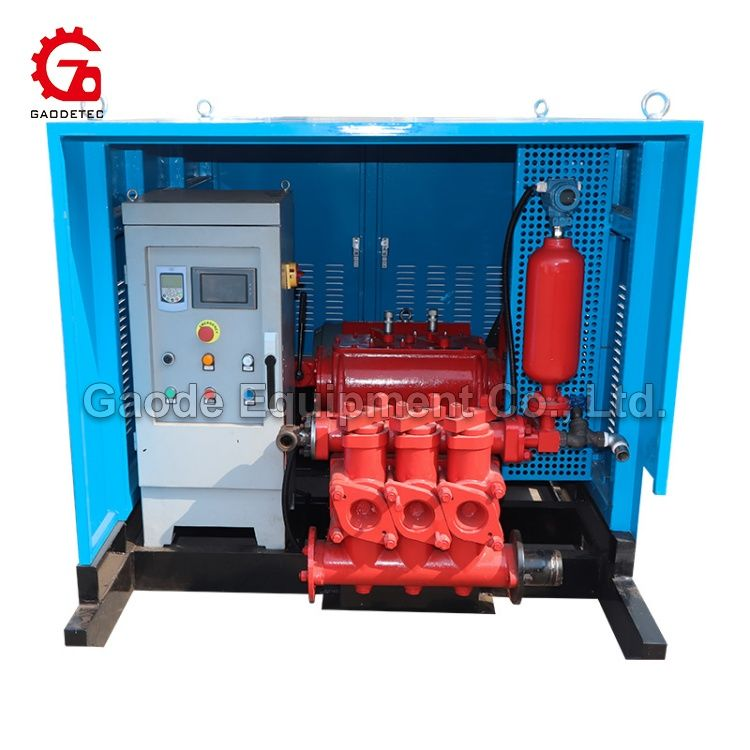

Gaodetec GGP440/50PI-22E grout injection pump
_1752218156553.jpg.webp)
GGP440/50PI-22E
Specs & Compare
Details
Specifications
- Weight:1365.000kg
- Type:GGP440/50PI-22E
- Output Capacity:440L/min
- Power:22Kw
- Pump speed:214r/min
- Max. Pressure:5MPa
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description
GGP440/50PI-22E grout injection pump has a mature and reliable frequency converter, with the characteristics of safety, energy saving, convenient operation and maintenance. At the same time, the advanced artificial intelligence control is adopted, which is used to realize the display and control of pressure, with the function of instantaneous flow display and accumulation. In addition, the use of crankcase and gearbox integrated design, so the pump is not only reliable performance, long service life, but also small volume and light quality, good decomposition, easy to move.
Parameters
.png.webp)
Details
_1752218158180.jpg.webp)

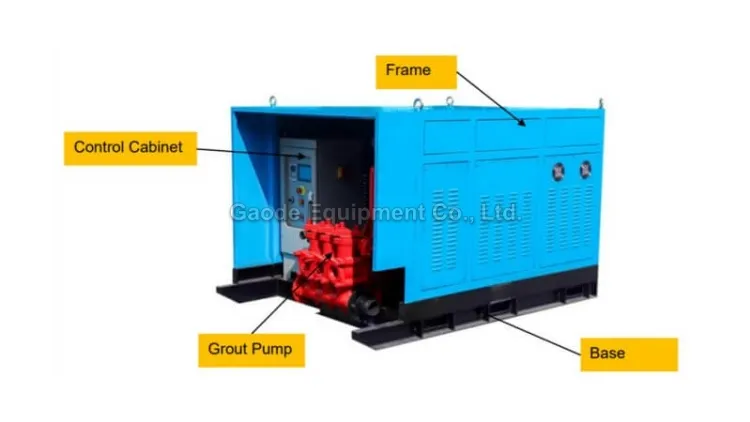

Frame
Can be removed from the base for maintenance
Open door in the important part to facilitate gearbox maintenance
Design with blinds, convenient heat dissipation
_1752218155821.jpg.webp)

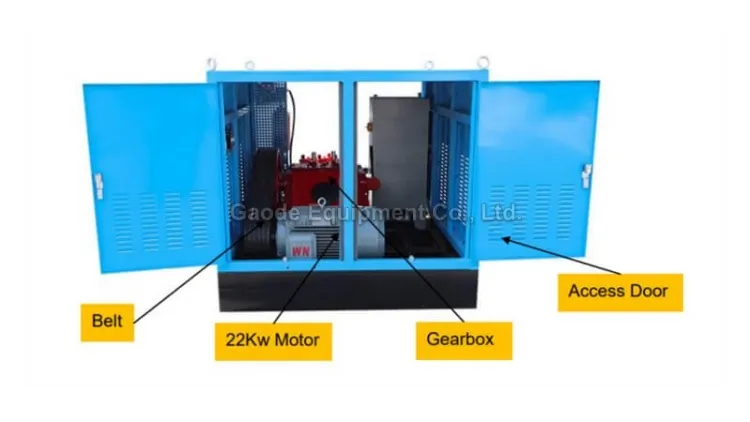

Power unit
Power 22Kw motor to the gearbox by a belt drive
Mature and reliable frequency converter speed regulating drive
Gearbox
Using inclined gear transmission, stable, safe and reliable operation
Crankcase and gearbox integrated design, so reliable operation, long service life, and small volume and lightweight
_1752218155060.jpg.webp)

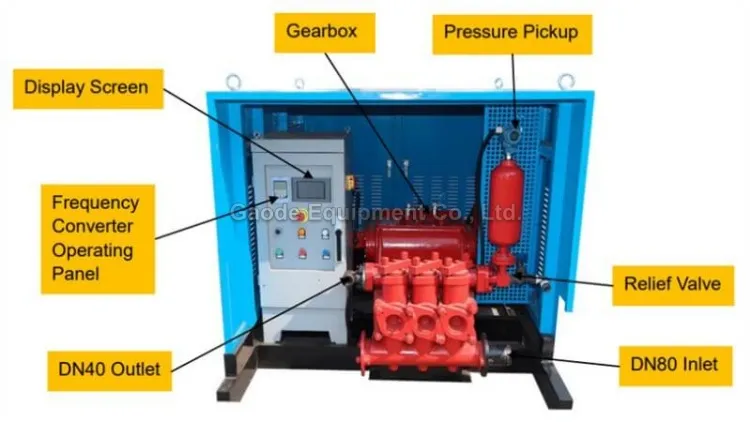

Grout Pump
Has 3 water tanks separated from each other, and the three cylinders have a common suction chamber and a drainage chamber
The piston is a bowl-shaped nylon self-sealed S polyurethane rubber piston to improve the service life
It is provided with five dust seals on the pull rod to prevent the hydraulic mud from coming into the power end and the lubricating oil filter. Relief Valve: When the pressure exceeds the allowable pressure, the overflow valve will automatically open and the working cylinder will stop working
Control system (safe and easy to operate)
The infinite change of pressure and flow
Advanced artificial intelligence control is adopted, which is used to realize the display and control of pressure numbers, with the function of instantaneous flow display and accumulation.
Application
GGP440/50PI-22E grout injection pump is a horizontal three-cylinder reciprocating single action piston pump. It is widely used in mining, geological drilling, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement and other projects.
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1) We can supply good service with professional international trade experience.
2) The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
