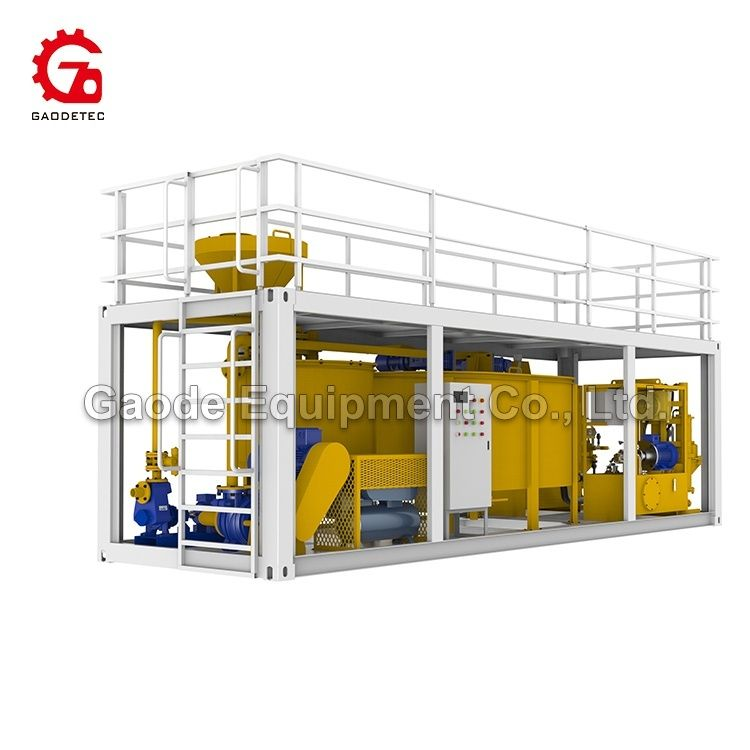

Gaodetec GGP1000/4000/2x165/30PL-E Automatic Grouting Station for Foundation Raising
GGP1000/4000/2x165/30PL-E
Specs & Compare
Details
Specifications
- Weight:8500.000kg
- Model:GGP1000/4000/2x165/30PL-E
- Mixer Volume:1000L
- Agitator Volume:4000L
- Grout Pump Pressure:0-3MPa
- Grout Pump Flow:2×(0-10m³/h)
- Weight:8.5t
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description
Gaodetec GGP1000/4000/2x165/30PL-E Automatic Grouting Station for Foundation Raising was mainly conceived in order to obtain, through a high turbulence mixing of water and cement powder, a cement mixture (cement grout), or, by using water and bentonite powder, a bentonite sully for plastic muds. Also, the preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component. The cement mixture or the bentonite sully is then transferred to the other units by a plunger pump(2 sets to choose), according to the type of foreseen geotechnical machinings.
This setup is suitable for a wide range of applications such as anchoring, sleeve pipe, contact, and backfill grouting or Preparation and pumping of bentonite suspensions for pipe jacking and micro tunneling.
The features and advantages of this machine are as follows：
High-speed colloidal grout mixer
Main pipeline valves are all pneumatic valves
Mixer, slurry pump and agitator have automatic cleaning function
Cement can be added by screw feeder automatically
The preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components
Two modes of operation: fully automatic mode and manual mode
Output and pressure can be step-less adjusting
High productivity due to ergonomically positioned operating elements
Independent of pressure ratios, the suction stroke is always carried out at high velocity in order to flush the valves and to avoid clogging
High reliability and low-maintenance operation with good accessibility to the wear parts
Up to 5mm particle size
Equipped with some ceiling lamps, for illuminating the different working areas
Can be placed directly in the 40ft cabinet
Parameters
Details Images
Application
1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts.
2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting.
3. Construction - pavement under sealing, slab jacking and slab raising.
4. Marine - underwater foundations, piers, breakers, shoreline foundations.
5. Mining - tunnel lining, contact grouting, shaft waterproofing.
6. Utilities - encasements, waterproofing, slope line grouting.
7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment.
FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
