XCMG XE265C 25ton hydraulic excavator for sale
Summary
- Machine Weight:25500kg
- Maximum Digging Depth:6895mm
- Maximum Digging Height:9662mm
- Bucket capacity:1.05~1.25m3
- Model Number:XE265C
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- weight:25500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

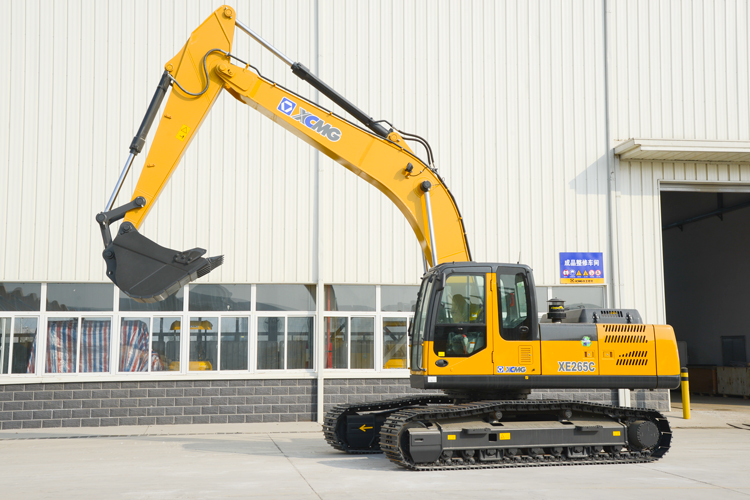

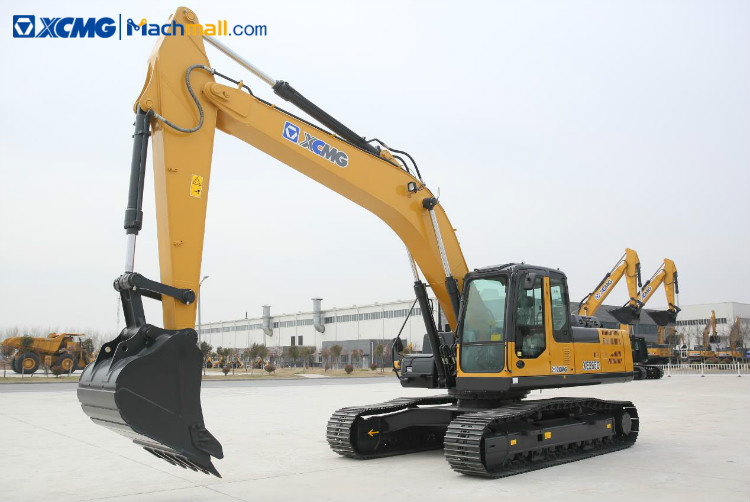

XCMG XE265C 25ton hydraulic excavator.

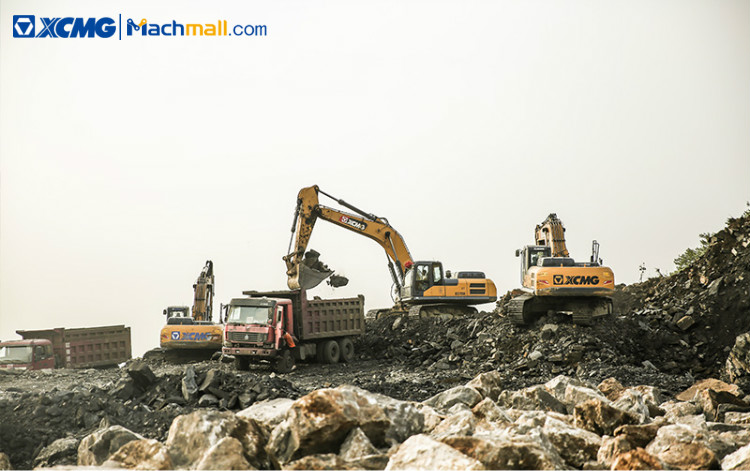

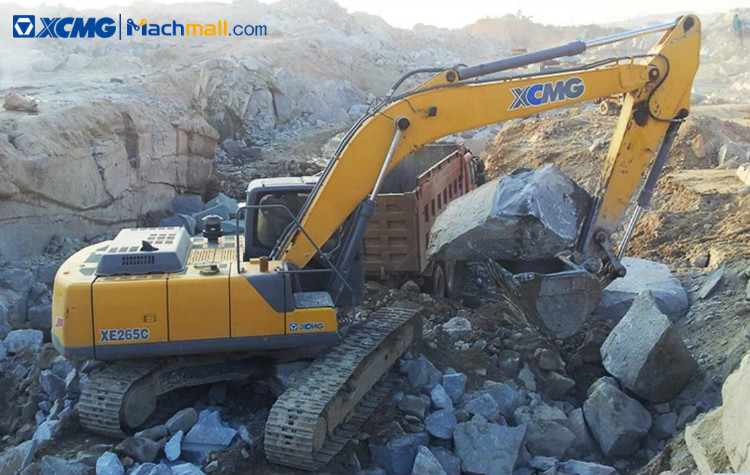

XCMG XE265C hydraulic excavator equipped with strong power, sufficient sturdiness, reliable durability, low fuel consumption, can be used in road engineering, construction of farmland water conservancy, port construction and other earthwork and mining engineering.
* ISUZU 128 5kW high-power engine is more fuel saving.
* New Japan Kawasaki main pump can ensure high efficiency and reduced leakage.
* Different boom, stick and bucket combinations maximize utilization in different conditions.

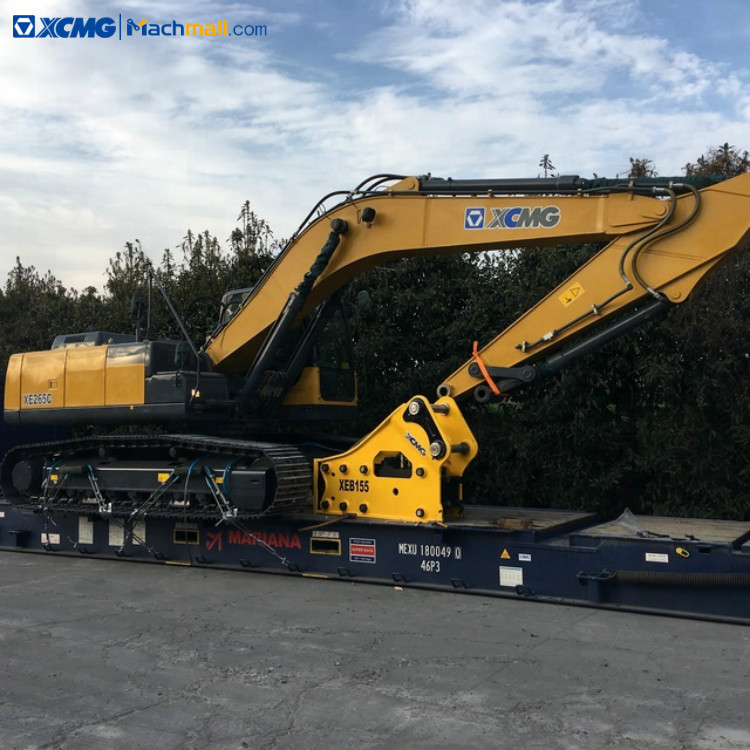

* Multi-functional ielligent work tool control system can meet diferent operating requirements such as digging, breaking and dismantling.
* Instantaneous boost function copes with complex working conditions.
* Air Conditioner and Heater with Double stage air filter ensure the appropriate temperature.
* Integrated control panel and large display screen provide multiple information.
* ROPS and FOPS Cab can improve cab safety.
|
Operating weight |
|
kg |
25500 |
|
Bucket capacity |
|
m³ |
1.05~1.25 |
|
Engine |
Output power |
kW/ r/min |
135.5/2150 |
|
|
torque/speed |
N.m |
637/1800 |
|
|
Displacement |
L |
6.494 |
|
Main performance |
Travel speed(H/L) |
km/h |
5.9/4.0 |
|
|
Rotating speed |
r/min |
11.3 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
50.1 |
|
|
Bucket digging force |
kN |
179 |
|
|
Arm digging force |
kN |
125 |
|
|
Maximum traction |
kN |
194 |
|
Hydraulic system |
Main pump |
-- |
2 |
|
|
Rated flow of main pump |
L/min |
2×256 |
|
|
Pressure of prime valve |
MPa |
34.3/37 |
|
|
Pressure of travel system |
MPa |
34.3 |
|
|
Pressure of swing system |
MPa |
28 |
|
|
Pressure of pilot system |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank capacity |
L |
400 |
|
|
Hydraulic tank capacity |
L |
240 |
|
|
Engine oil capacity |
L |
25 |
|
Appearance size |
Overall length |
mm |
10160 |
|
|
Overall width |
mm |
3190 |
|
|
Overall height |
mm |
3100 |
|
|
Width of platform |
mm |
2830 |
|
|
Length of crawler |
mm |
4640 |
|
|
Overall width of chassis |
mm |
3190 |
|
|
Width of crawler |
mm |
600 |
|
|
Wheel base of crawler |
mm |
3842 |
|
|
Crawler gauge |
mm |
2590 |
|
Working scope |
Min. ground clearance |
mm |
485 |
|
|
Min. tail swing radius |
mm |
2985 |
|
|
Max. digging height |
mm |
9662 |
|
|
Max. dumping height |
mm |
6810 |
|
|
Max. digging depth |
mm |
6895 |
|
|
Max. digging depth at the range of level 8 feet |
mm |
6750 |
|
|
Max. vertical wall digging depth |
mm |
5480 |
|
|
Max. digging reach |
mm |
10240 |
|
|
Min. swing radius |
mm |
3850 |
