XCMG 135HP GR135 small mini road graders machine for sale

  • XCMG 135HP GR135 small mini road graders machine for sale
  • XCMG 135HP GR135 small mini road graders machine for sale
  • XCMG 135HP GR135 small mini road graders machine for sale
  • XCMG 135HP GR135 small mini road graders machine for sale
  • XCMG 135HP GR135 small mini road graders machine for sale
  • XCMG 135HP GR135 small mini road graders machine for sale

Share:
XCMG 135HP GR135 small mini road graders machine for sale
FOB for Road Mach Reference Price:Get Latest Price
$55000.00-$60000.00 1 / EA (Min. Order)
Model: GR135
Engine: Cummins
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 135HP GR135 small mini road graders machine for sale
XCMG 135HP GR135 small mini road graders machine for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • Product PDF
Summary
Specifications
  • weight:11000.000kg
  • Condition:New
  • Moving Type:Other
  • Weight:11000kg
  • Forward Speed:42km/h
  • Reverse Speed:30km/h
  • Dimension:8015*2380*3050mm
  • Working system pressure:16MPa
  • Space of front and rear axles:5780mm

XCMG 135HP GR135 small mini road graders machine for sale

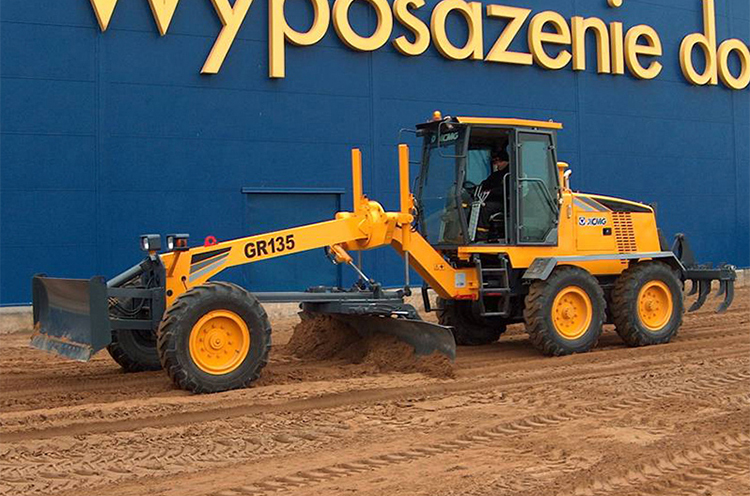

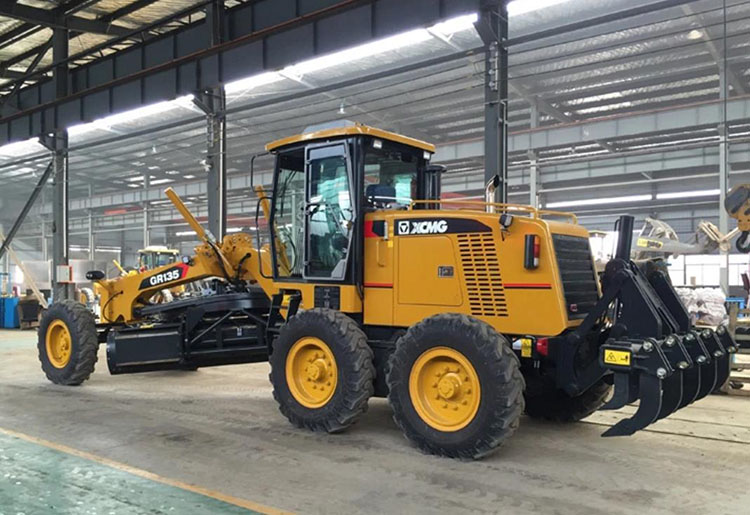

XCMG 135HP GR135 small mini road graders machine.



The GR135 road graders is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farm- lands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.



Advantages and Highlights:



1. GR135 adopt Dongfeng cummins 6BT5.9-C130- II turbocharged diesel engine, Large output torque and power reserve coeficient and low oil consumption.

2. Torque converter has big torque coefficient, wide high efficiency area. It has good combination working characteristics with engine. The transmission box has six forward gears, three backward gears, with neutral start protection function, gear shift controlled by electro-hydraulic, flexible operation, shift without impact, reasonable speed ratio distribution, meet the requirements of various working conditions.

3. The rear axle adopts balanced suspension to ensure the uniform load of four wheels, which is conducive to the full use of its adhesion ability. The main drive of the rear axle is equipped with“NO - SPIN" self-locking differential.

4. The front axle is steering axle. The axle can swing from side to side. In addition to the front steering, it also uses the articulated frame, which can further reduce the turning radius.

5. The hood is structural part, well shaped with turn over function, the two sides double door is reversible, enhances the maintainability.
XCMG 135HP GR135 small mini road graders machine for sale

Description
Unit
Parameter value
Engine model

6BT5.9-C130-Ⅱ
Rated power/speed
kw(r/min)
97(2200)
Overall dimension (standard)

8015X2380X3050
Total weight (standard)
kg
11000
Tire specification

13.00-24
Ground clearance (front axle)
mm
515
Tread
mm
2020
Space of front and rear axles
mm
5780
Forward velocity
km/h
5/8/13/20/30/42
Reverse speed
km/h
5/13/30
Tractive effort f=0.75
kN
61.3
Maximum gradeability
%
20
Working system pressure
MPa
16
Transmission pressure
MPa
1.3—1.8
