XCMG 6m concrete paver laying machine RP600 for sale

  • XCMG 6m concrete paver laying machine RP600 for sale
  • XCMG 6m concrete paver laying machine RP600 for sale
  • XCMG 6m concrete paver laying machine RP600 for sale
  • XCMG 6m concrete paver laying machine RP600 for sale
  • XCMG 6m concrete paver laying machine RP600 for sale
  • XCMG 6m concrete paver laying machine RP600 for sale

Share:
XCMG 6m concrete paver laying machine RP600 for sale
FOB for Road Mach Reference Price:Get Latest Price
$100000.00-$140000.00 1 / EA (Min. Order)
Model: RP600
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG 6m concrete paver laying machine RP600 for sale
XCMG 6m concrete paver laying machine RP600 for sale
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Specifications
  • Product PDF
Summary
  • Weight:19000kg
  • Dimension(L*W*H):7780*3000*3985mm
  • Model Number:RP600
  • Brand Name:XCMG
  • Place of Origin:Xuzhou, Jiangsu, China
  • Paving Width:5.85m
  • Max. Paving Thickness:200mm
  • Power(W):159kw
  • Production Capacity:500T/H
  • Certification:CE/ISO9001
Specifications
  • weight:19000.000kg
  • Condition:New
  • Moving Type:Other
  • Maximum paving speed:20m/min
  • Hopper capacity:13t
  • Driving speed:0-3.3km/h

XCMG 6m concrete paver laying machine RP600 for sale

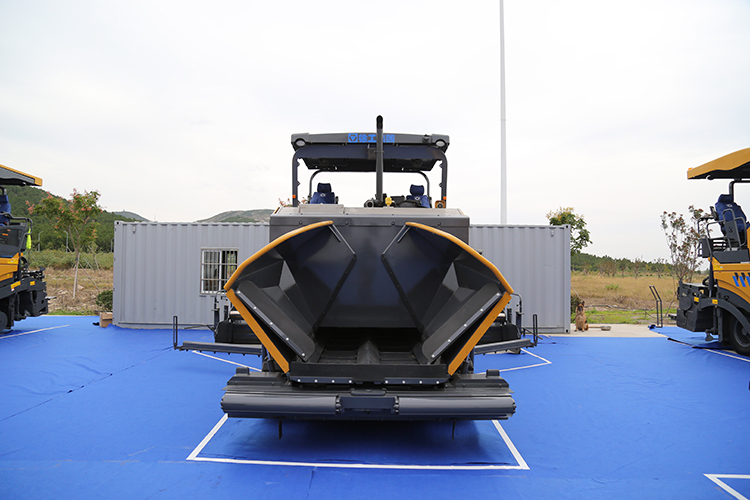

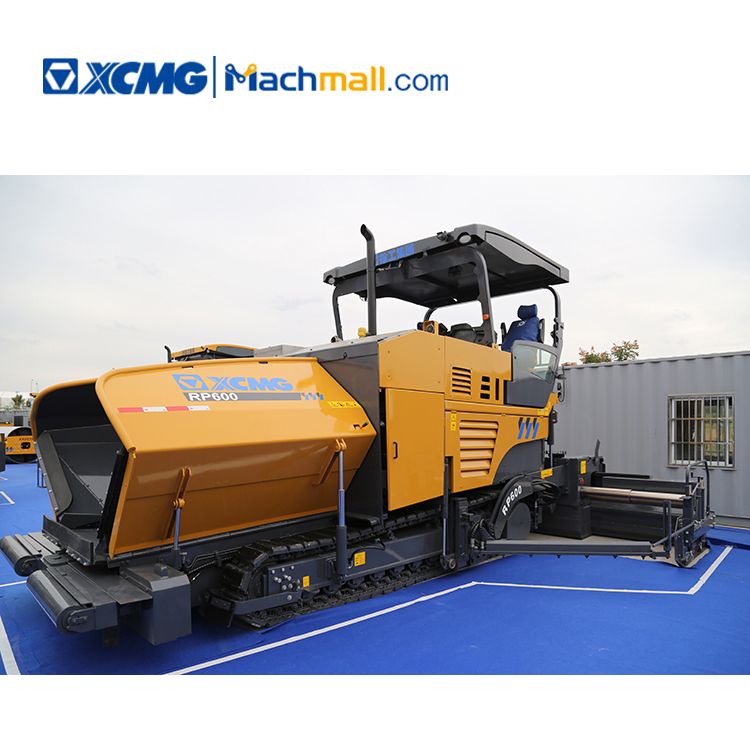

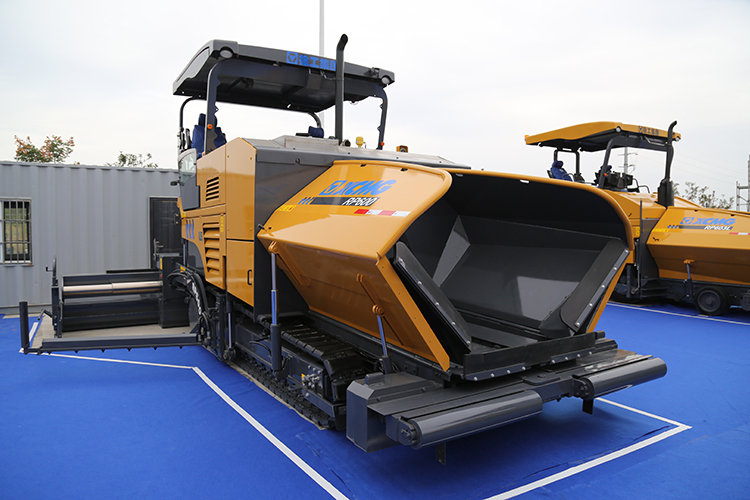

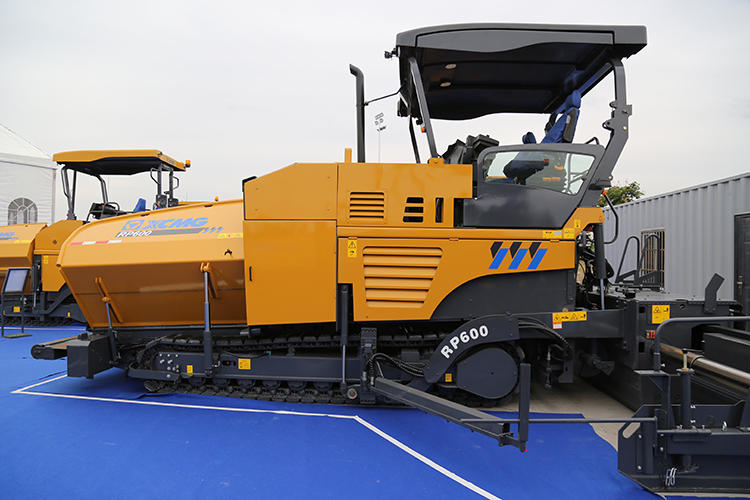

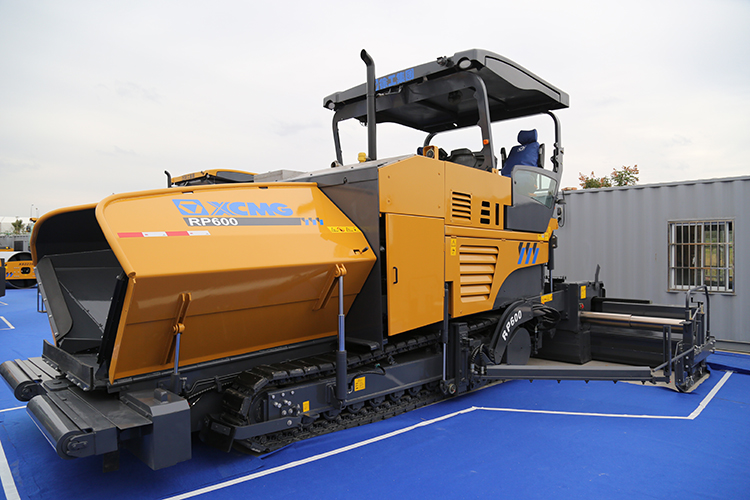

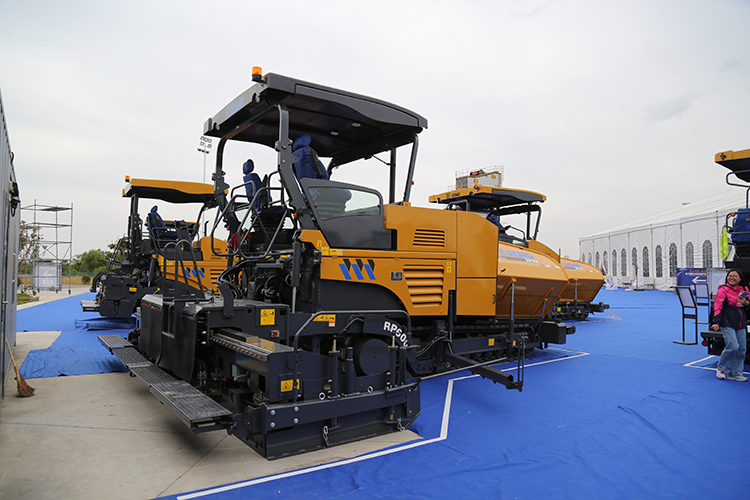

XCMG 6m concrete paver laying machine RP600.



XCMG paver laying machine RP600 use five-section sprayer has compact structure, reasonable arrangement, high spraying precision, good uniformity of horizontal and vertical spraying, and fully meets the requirements of high-grade highway construction.



XCMG RP600 paver laying machine reinforced caterpillar device with large grounding area, feed material level is controlled by contact-type material shot, the material level is controlled by non-contact ultrasonic sensor, and spray control adopts touch screen operation.



XCMG paver laying machine RP600 standard centralized lubrication system with pulsed spray system allows emulsified asphalt spray and mix paving to be synchronized.



RP600 paver laying machine has 2200L large-capacity asphalt tank with integrated asphalt pump, spray control handle, emergency heating channel and constant temperature heating device, and has an overhaul access, which can provide a longer continuous construction distance and convenient operation and maintenance. Equipped with electronically controlled diesel sprayer, easy to use.



XCMG paver laying machine RP600 has a high degree ofautomation, simple and convenient operation, high operating efficiency.

XCMG 6m concrete paver laying machine RP600 for sale

Description
Unit
Parameter value
Dimension

7780*3000*3985
Weight
kg
27500-28300
Driving speed
km/h
0-3.3
Basic pave width
m
3.0-5.85
Maximum pave width
m
5.85
Maximum layer thickness
mm
200
Maximum paving speed
m/min
20
Hopper capacity
kg
13000
Maximum laydown rate
t/h
500
Rate power
kw/rpm
159/2000
