Summary
- Weight:11000kg
- Model Number:RP453L
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Paving Width:4.5 m
- Max. Paving Thickness:260mm
- Power(W):73.5kw
- Production Capacity:240t/h
Specifications
- Weight:11000.000kg
- Condition:New
- Moving Type:Wheel
- Basic paving width:1.8-3.4 m
- Maximum paving width:4.5 m

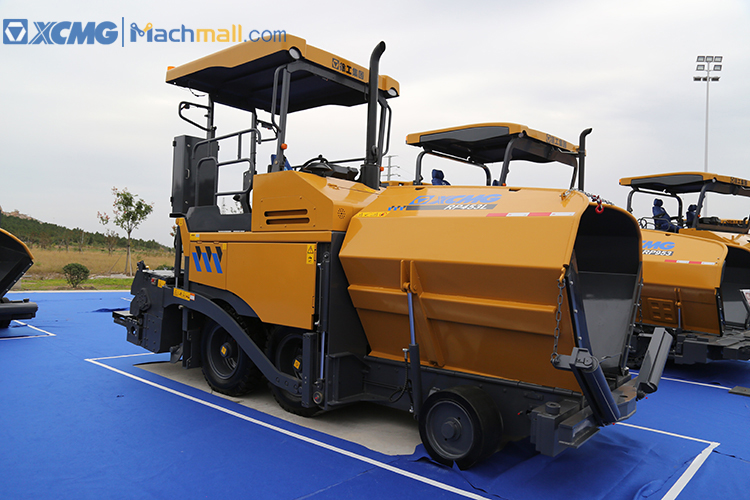

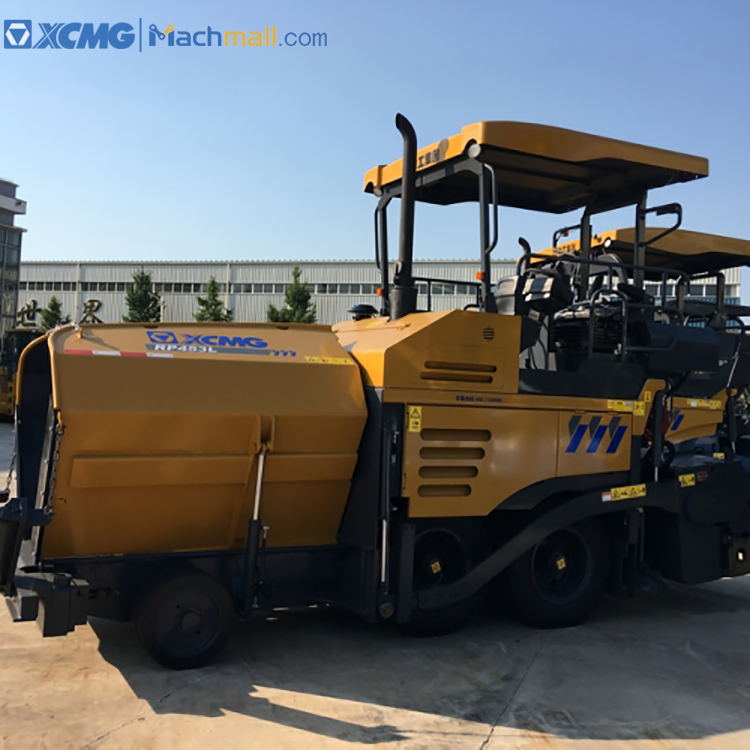

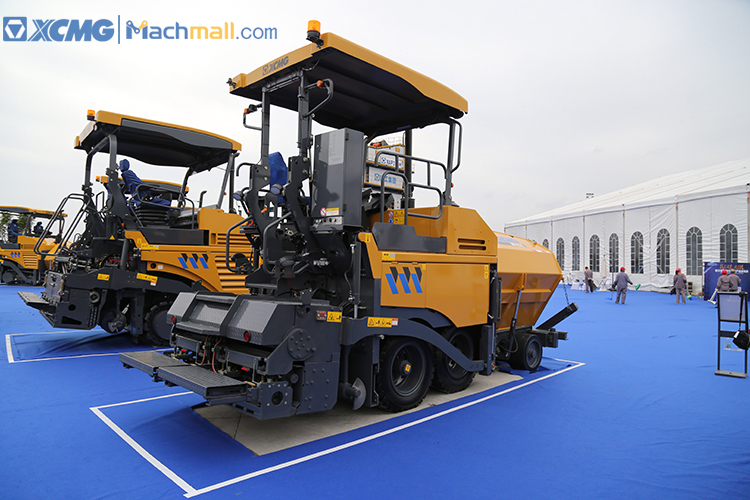

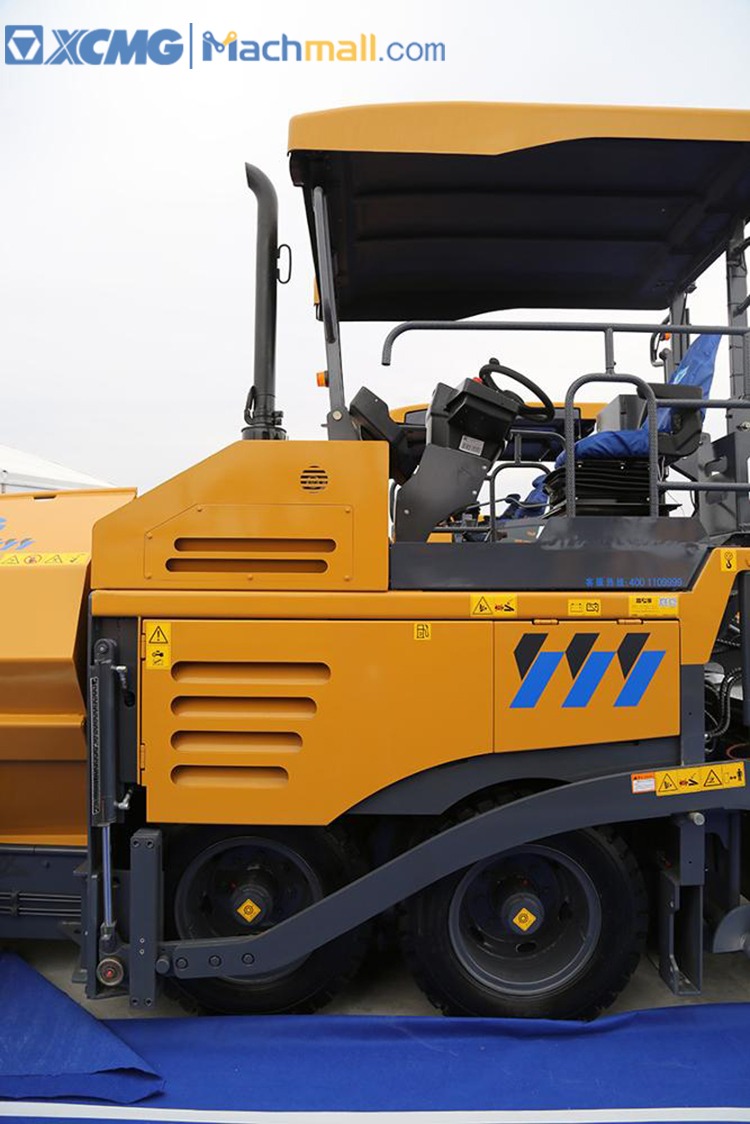

XCMG official special offer 4.5m paving width wheel concrete paver machine.
XCMG official special offer 4.5m paving width wheel concrete paver machine is miniaturized, with an ultra-small width of 1.8m, which satisfies the construction work of urban communities and roadways.
Performance characteristics:
1.It adopts hydraulic drive, stepless speed change, high degree of automation, maneuverability, and simple and convenient operation.
2.Equipped with Shangchai water-cooled turbocharged diesel engine (73.5kW/2000rpm), with sufficient power reserve, good diesel atomization, good economy, low noise, long life, and wide application range.
3.The hydraulic system adopts load-sensitive control technology to make the power output efficient and energy-saving. The driving components are imported from Germany Rexroth to ensure the reliability of the system.

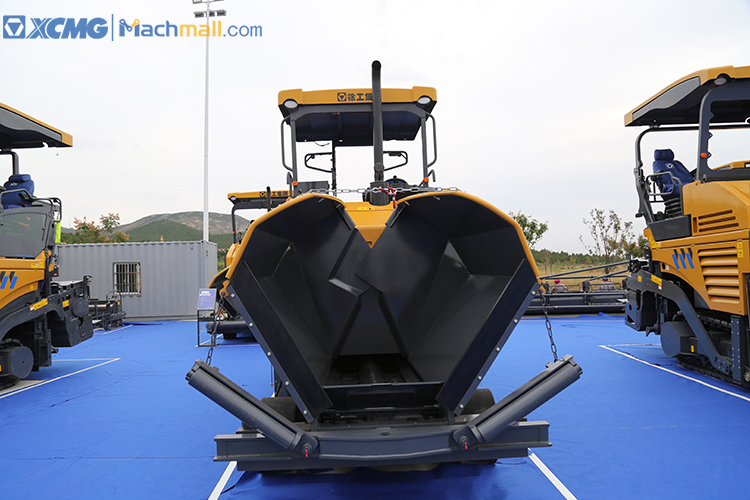

4.The 12t hopper is designed to be wide and can always store enough materials. The material receiving interface can adapt to different tonnage carts.
5.The hoppers on both sides can be folded separately, and the oscillating follow-up push wheel ensures stable discharge during asymmetric paving. Ensure the normal paving along the wall and other obstacles.
6.The traveling system adopts hydraulic bridge drive transmission, stepless speed change, high degree of automation, flexible maneuverability, and simple and convenient operation. The drive axle adopts XCMG proprietary technology with automatic differential speed.
|
Item |
Unit |
Paratemer |
|
Basic paving width |
m |
1.8-3.4 |
|
Maximum paving width |
m |
4.5 |
|
Maximum paving thickness |
mm |
260 |
|
Working speed |
m/min |
0～18 |
|
Travel speed |
km/h |
0～20 |
|
Theoretical productivity |
t/h |
240 |
|
Hopper capacity |
t |
12 |
|
Gradeability |
％ |
≥20 |
|
Flatness (standard deviation) |
mm |
≤3 |
|
Diesel engine power |
kW |
73.5 |
|
Diesel engine speed |
r/min |
2000 |
|
Total Weight |
t |
11 |
