GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels

$GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels$

GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels

FOB Price: $9000.00-$11000.00

View All >

Model： GZ-5AR

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

$GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels$

Favorite Products

$GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels$

Product:

GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels

Quantity:

- + /Set

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

GZ-5AR

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Voltage

Model Number

Brand Name

Place of Origin

Air Consumption

Hose Inner Diameter

Max Aggregate Size

Max. Conveying Distance

Engineering & Construction Machinery

GZ-5AR

1.35×0.75×1.3m

500kg

GZ-5AR

Gaodetec

China

8~9m3/min(285-325CFM)

51mm

Φ15 mm

100m

+ Add a Product

Summary

Certification:CE
Dimension(L*W*H):1.35×0.75×1.3m
Weight:500kg
Model Number:GZ-5AR
Brand Name:Gaodetec
Place of Origin:China
Air Consumption:8~9m3/min(285-325CFM)
Hose Inner Diameter:51mm
Max Aggregate Size:Φ15 mm
Max. Conveying Distance: 100m

Specifications

Weight:500.000kg
Condition:New
Moving Type:Wheel
Rated Output:1-5m3/h(2-10Ton/h)
Operating air Pressure:0.2-0.4MPa(29-58PSI)

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

Description

Gaodetec is a refractory dry shotcrete machine manufacturer which supplies many refractory gunning machines to steel industry, construction industry, etc. Our refractory shotcrete machine has been exported to many countries such as Indonesia, Thailand, Bolivia, India, and Vietnam, etc.

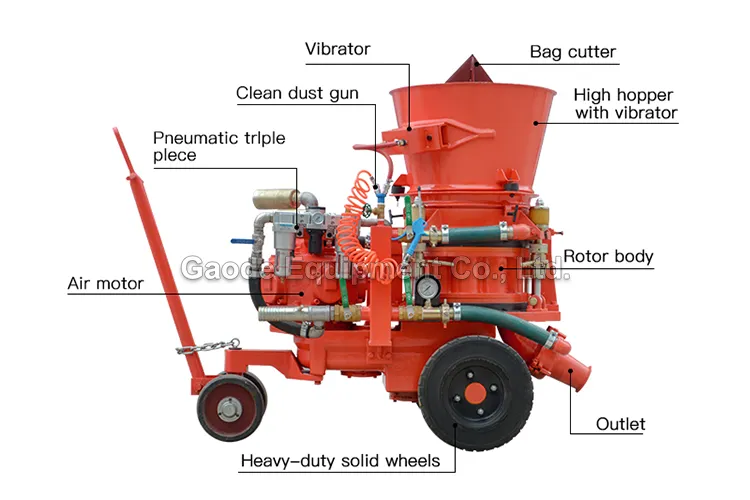

GZ-5AR dry refractory shotcrete machine is use of compressed air to a certain ratio of refractory material is ejected at high speed, sprayed fire-resistant layer is formed on the spray surface. It is specifically designed for refractory dry-mix shotcrete applications, as well as for concrete shotcrete application. With our GZ-5AR dry shotcrete machine for refractory works, you can get low dust and high performance spraying flow in nozzleIts ejection construction speed, high efficiency, good quality of the project and other significant advantages are widely used, mainly for: industrial furnaces heat resistant layer of gunning operations.

GZ-5AR refractory shotcrete machine with water pump was recommended by all major refractory material manufacturers. According to customers demands, we designed GZ-5ER refractory shotcrete machine with electric motor for option.

$GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels$ $GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels$

$GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels$

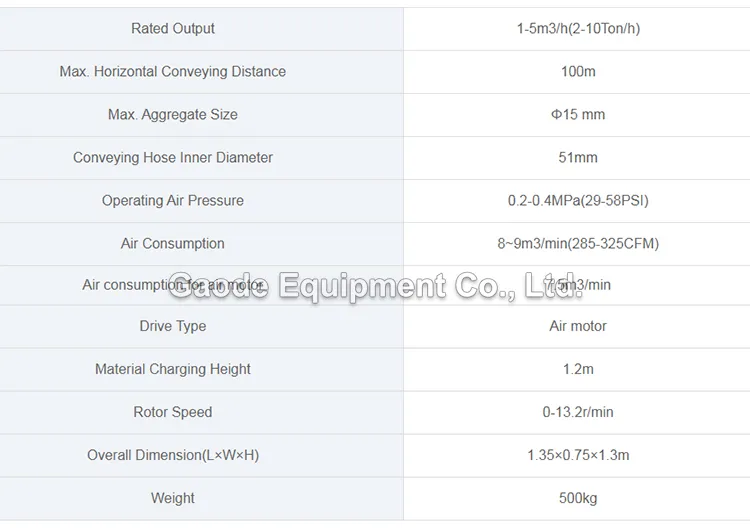

Parameters

$GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels$

Application

1. Gunite Swimming Pool Construction;

2. Soil Retention and Retaining Walls;

3. Rocks aping;

4. Refractory Spraying;

5. Mine Support;

6. Tunnel Linings;

7. Concrete Repair;

8. Artificial Rocks and Caves;

9. Low-volume Refractory Spraying;

$GAODETEC GZ-5AR 15mm Max Aggregate Refractory Gunning Machine With Heavy-Duty Wheels$

FAQ

1. Are you the manufacturer or a trade company?

We are the manufacturer for producing grout equipment.

And we have owned a trading company to do International Business,

So that:

1)-We can supply good service with professional international trade experience.

2)-The price is much more competitive.

2. Can you do the ODM or OEM? What is MOQ?

Yes, it is possible as discussed, MOQ: 1unit.

3. What about delivery time? How long can I get the machine after the order?

The production time is as fast as 30-60 working days if you customize the machine.

The standard machine in stock can be delivered as soon as possible after ordering.

4. How to pay for yourself?

50% down payment, then production starts, and the balance 50% paid before shipping.

If the machines are in stock, pay 100% then delivery.
