XCMG factory 170HP road graders GR165 with pdf for philippines

$50000.00-$80000.00 1 / EA (Min. Order)
Model: GR165
Engine: Cummins
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG factory 170HP road graders GR165 with pdf for philippines

Content:

*Email:

Full Name:

Mobile phone:

  • Summary
  • Specifications
  • 360-Degree VR Videos
  • Product PDF

Summary

Specifications

  • Weight:15000.000kg
  • Condition:New
  • Moving Type:Other
  • Weight:15000kg
  • Working diameter:6219mm
  • Forward Speed:38km/h
  • Reverse Speed:23km/h
  • Dimension:8900*2625*3470mm

XCMG factory 170HP road graders GR165 with pdf for philippines

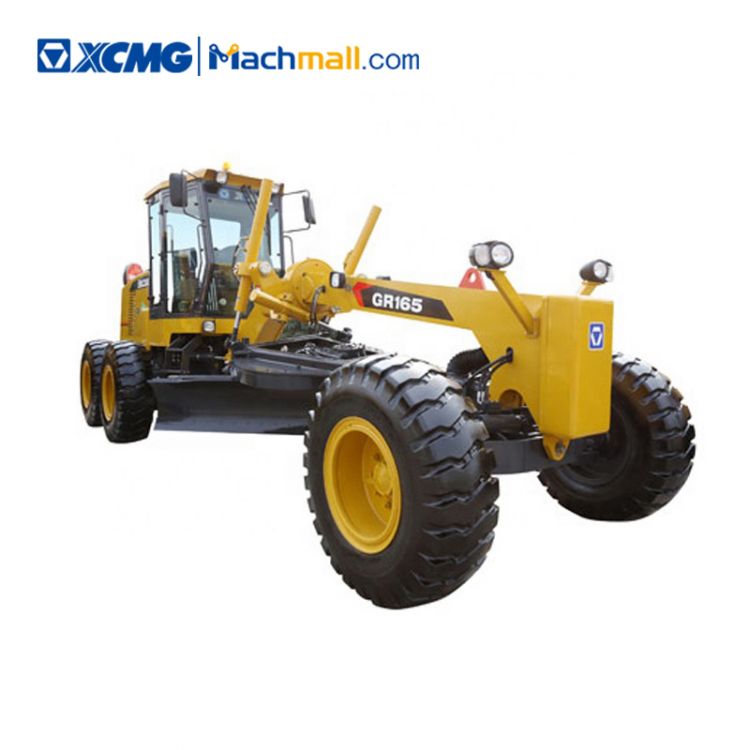

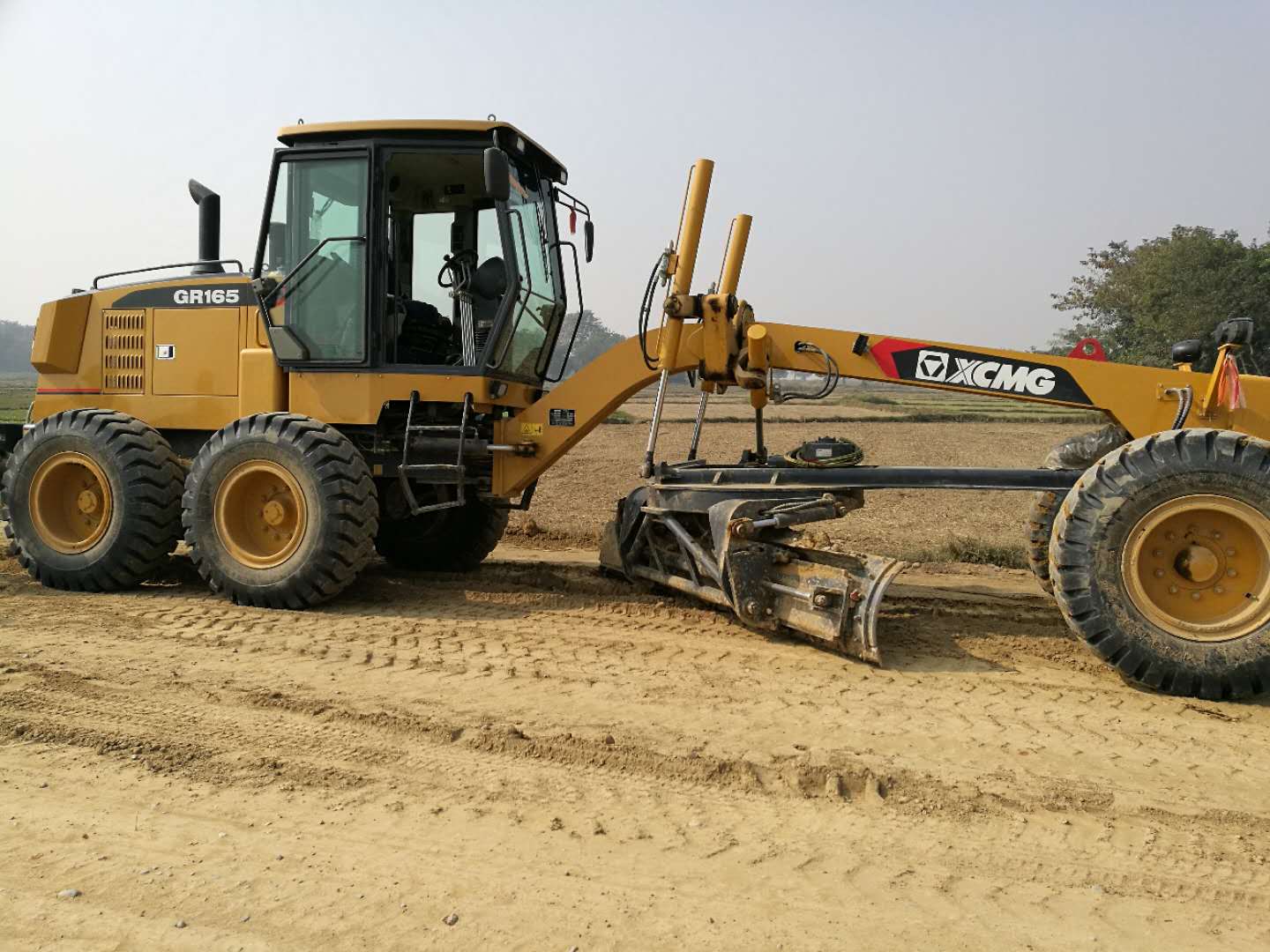

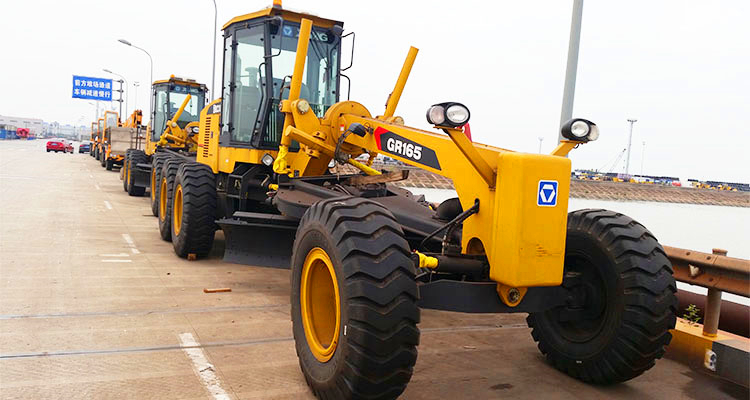

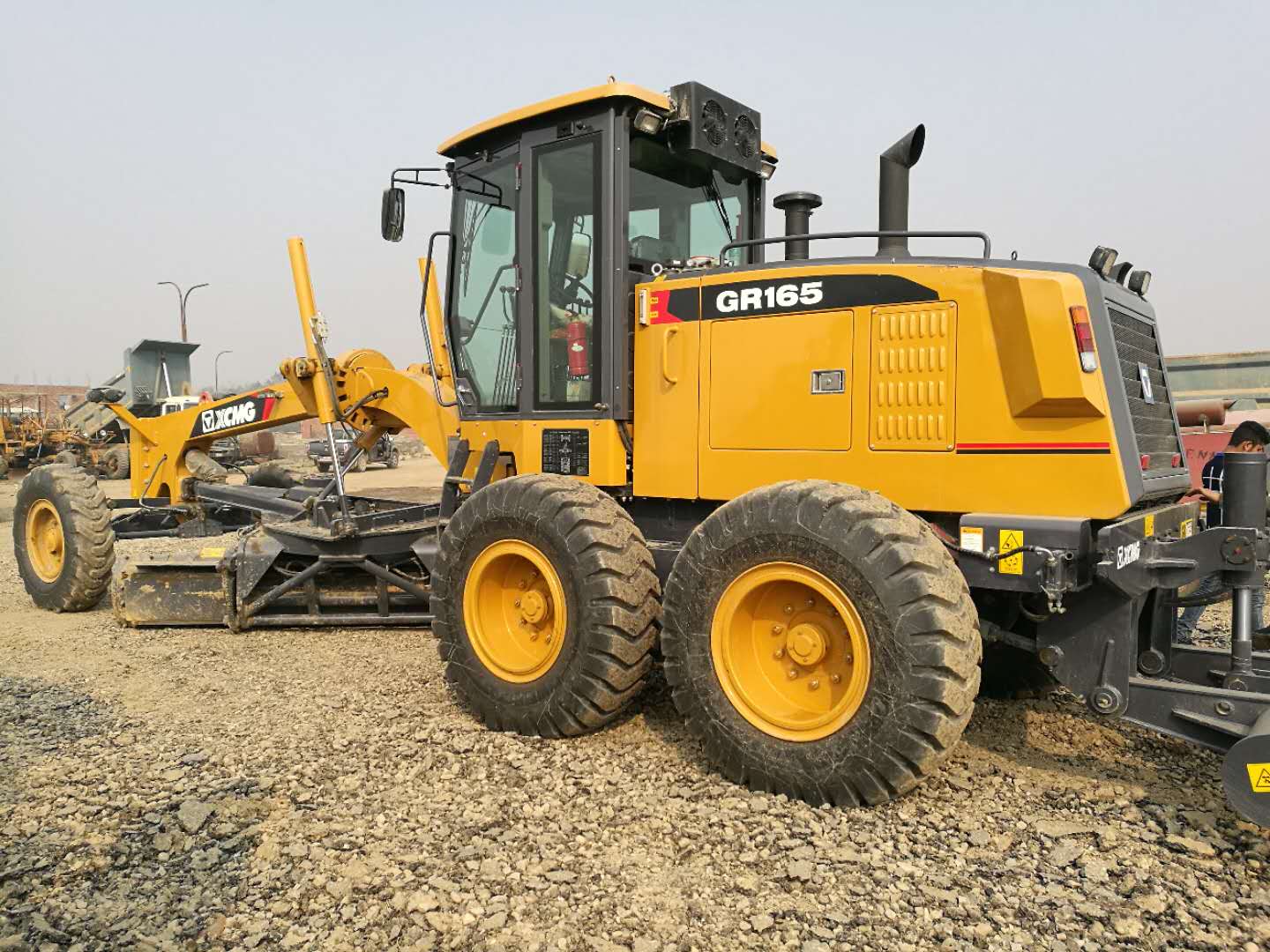

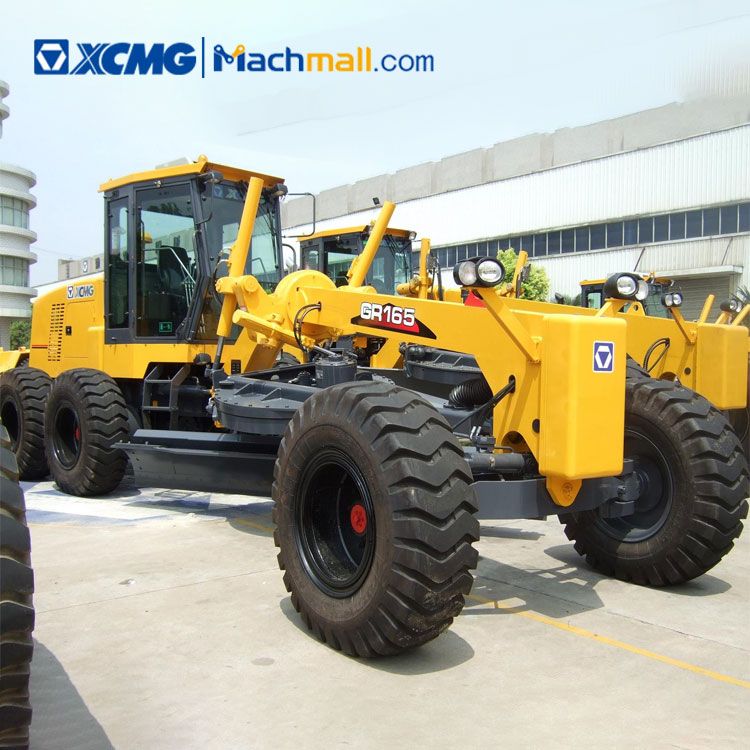

XCMG factory 170HP road graders GR165.



XCMG road graders GR165 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc.



XCMG road graders GR165 is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.



Advantages and Highlights:



1. XCMG road graders GR165 adopts Dongfeng Cummins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.



2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.



3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential.



4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.



5. The sealed cab is used to configure the air conditioning system.

XCMG factory 170HP road graders GR165 with pdf for philippines

Item

GR165

Basic parameters

Engine model

6BTA5.9-C180-

Rated power/speed

130kW/2200rpm

Overall dimension (standard)

8900x2625x3470

Total weight (standard)

15000kg

Tire specification

17.5-25

Ground clearance (front axle)

430mm

Tread

2156mm

Space of front and rear axles

6219 mm

Performance parameters

Forward velocity

5811192338km/h

Reverse speed

51123km/h

Tractive effort f=0.75

77kN

Maximum gradeability

25%

Tire inflation pressure

260kPa

Working system pressure

16MPa

Transmission pressure

1.3—1.8Mpa

Working parameters

Maximum steering angle of front wheel

±50°

Maximum slant angle of front wheel

±17°

Maximum oscillating angle of front axle

±15°

Maximum oscillating angle of equilibrium box

±15°

Maximum steering angle of frame

±27°

Minimum turning radius

7.3m

Scrape knife

Maximum lift height

450mm

Maximum cutting depth

500mm

Maximum tilt angle

90°

Cutting angle

28°—70°

Angle of revolution

360°

Length & chord height

3660x610mm

Oil filling amount

Coolant

50L

Fuel tank

280L

Engine

24L

Transmission

38L

Hydraulic oil

110L

Drive axle

28L

Balancing box

46 L
