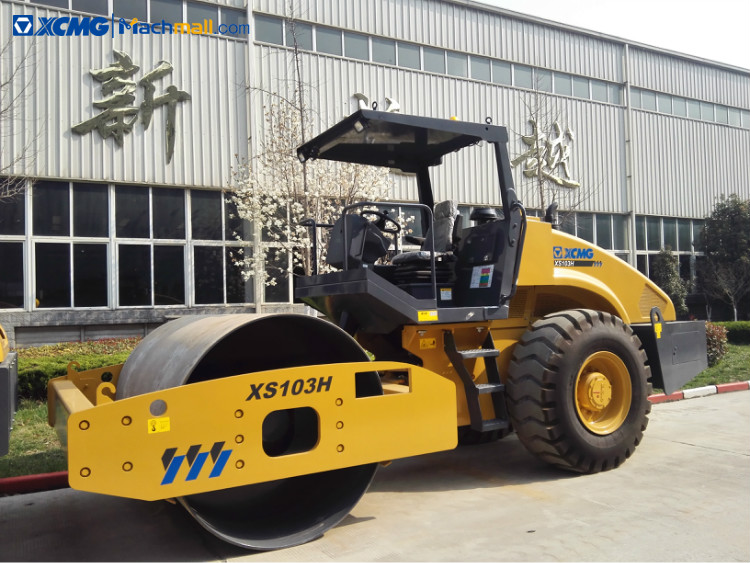

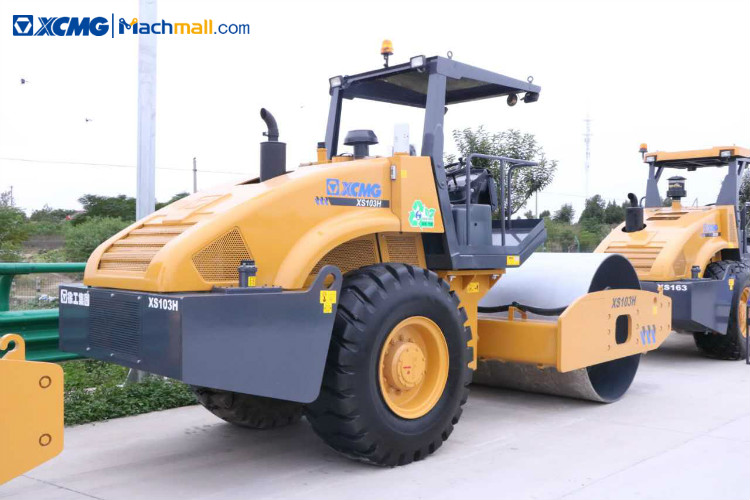

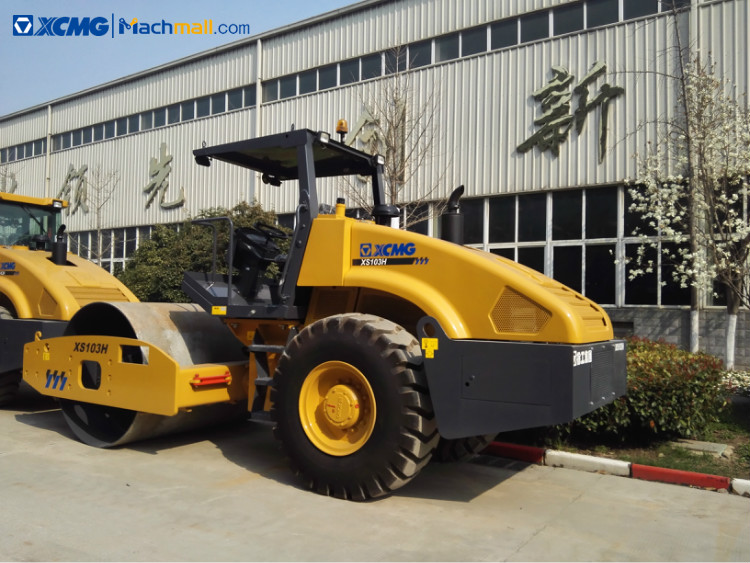

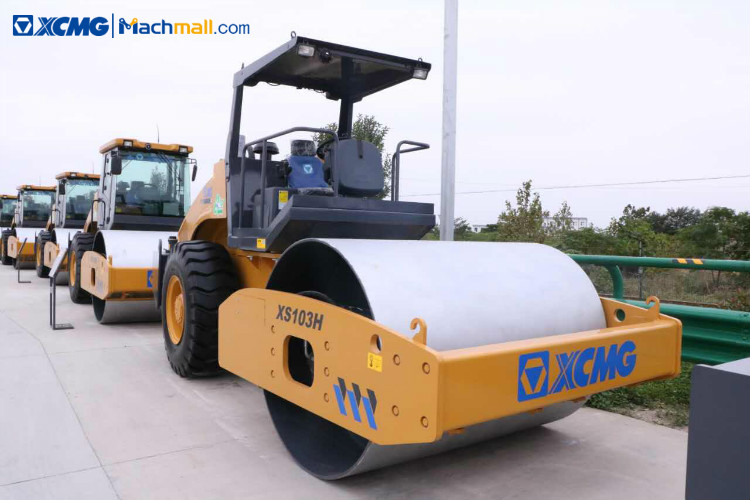

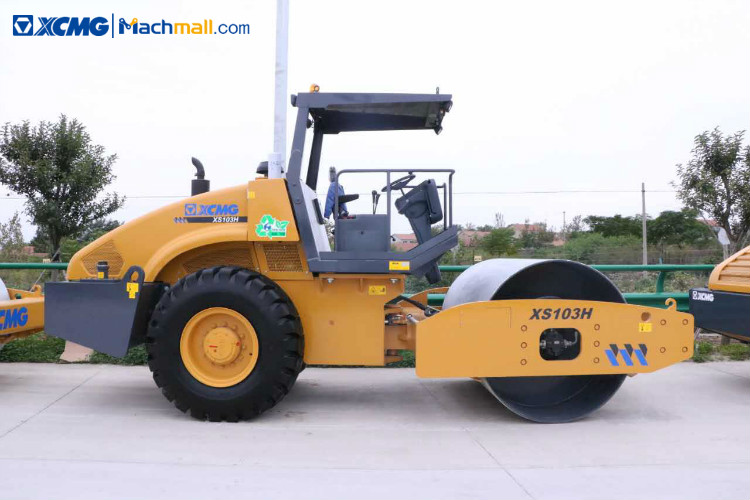

XCMG XS103H 10 ton hydraulic drive road roller with high quality price

  • XCMG XS103H 10 ton hydraulic drive road roller with high quality price
  • XCMG XS103H 10 ton hydraulic drive road roller with high quality price
  • XCMG XS103H 10 ton hydraulic drive road roller with high quality price
  • XCMG XS103H 10 ton hydraulic drive road roller with high quality price
  • XCMG XS103H 10 ton hydraulic drive road roller with high quality price

Share:
XCMG XS103H 10 ton hydraulic drive road roller with high quality price
FOB for Road Mach Reference Price:Get Latest Price
$20000.00-$30000.00 1 / EA (Min. Order)
Model: XS103H
Warranty: One Year
After-sales Service: Engineers available to service machinery overseas
Shipping:
Support Sea freight · Land freight · Air freight
Payment Method:
XCMG XS103H 10 ton hydraulic drive road roller with high quality price
XCMG XS103H 10 ton hydraulic drive road roller with high quality price
Quantity:
- + /EA
Please leave your contact information and the products you want to visit. Our engineers will take you to visit 12 subsidiaries of XCMG Group and their related products online.

Name:

Country:

Please fill in the country correctly, we will present in different languages.

*Email:

Mobile phone:

Other:

  • Summary
  • Details
  • 360-Degree VR Videos
Summary
  • Weight:10600kg
  • Dimension(L*W*H):6150×2300×3200mm
  • Power(W):100kw
  • Model Number:XS103H
  • Brand Name:XCMG
  • Place of Origin:XUZHO, CHINA
  • Grade Ability:40%
Details
  • weight:10600.000kg
  • Condition:New
  • Moving Type:Other

XCMG XS103H 10 ton hydraulic drive road roller with high quality price

XCMG XS103H 10 ton hydraulic drive road roller with high quality.



XCMG Road roller XS103H is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc..



XCMG 10 ton hydraulic drive road roller XS103H has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. Road roller XS103H is also suitable to the compaction of concrete and stabilized soil base materials in various large projects.



Hydraulic drive road roller XS103H performance characteristics:



* Rear drum hydraulic drive, adopt closed hydraulic drive system composed of variable displacement piston pump and piston motor to ensure better drive performance and gradeability.

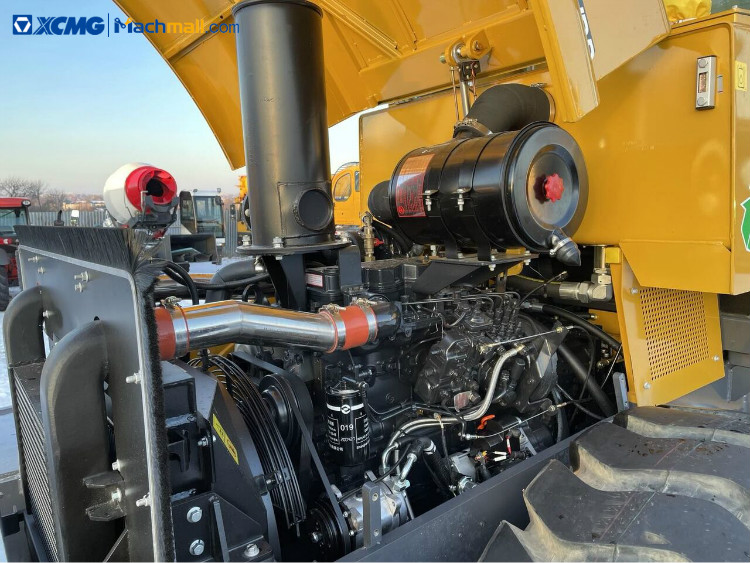

* Diesel engine has a large power reserve and has the function of energy saving and noise reduction.

* One gear infinitely variable speeds to ensure optimized working speed under different working conditions.

* Optimized vibration drum structure and vibration parameters to guarantee smoother compaction surface and higher compaction efficiency.



XCMG XS103H 10 ton hydraulic drive road roller with high quality price

Item



Unit

Parameter

Work weight



kg

10600

Drive wheel distribution weight



kg

5900

Vibratory drum distribution weight



kg

4700

Static line load



N/cm

216

Vibration frequency



Hz

30/35

Theoretical amplitude



mm

1.9/0.95

Exciting force



kN

220/150

Speed range



km/h

0~7.3

Wheelbase



mm

3040

Compaction width



mm

2130

Theoretical climbing ability



%

40

Minimum turning radius



mm

6400

Vibratory drum diameter



mm

1513

Minimum ground clearance



mm

431

Engine

Rated speed

r/min

2200



Rated power

kW

100

Dimensions



mm

6150*2300*3200

Vibration system pressure



MPa

18

Steering system pressure



MPa

16

Drive system pressure



MPa

40



XCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality price

XCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality price





More About XCMG road roller





XCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality priceXCMG XS103H 10 ton hydraulic drive road roller with high quality price
