Summary
- Weight:7235 kg
- Overall Dimension:2.3*2.96*2.28m
- Table Size:3.98m×1.83m
- Max Lifting Height:15m
- Min Lifting Height:680kg
- Power:36.0kW/2600rpm
- Lift Drive / Actuation:Hydraulic
- Model Number:XG1523RT
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
Specifications
- Weight:7235.000kg
- Condition:New
- Moving Type:Other
- Drive model:4×4
- Min. Turning raduis(inner/outer):2.5m/5.6m

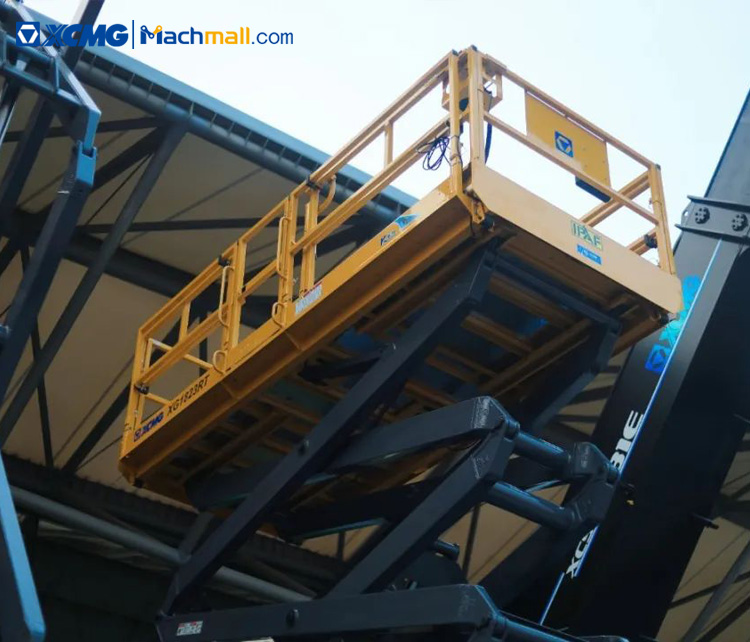

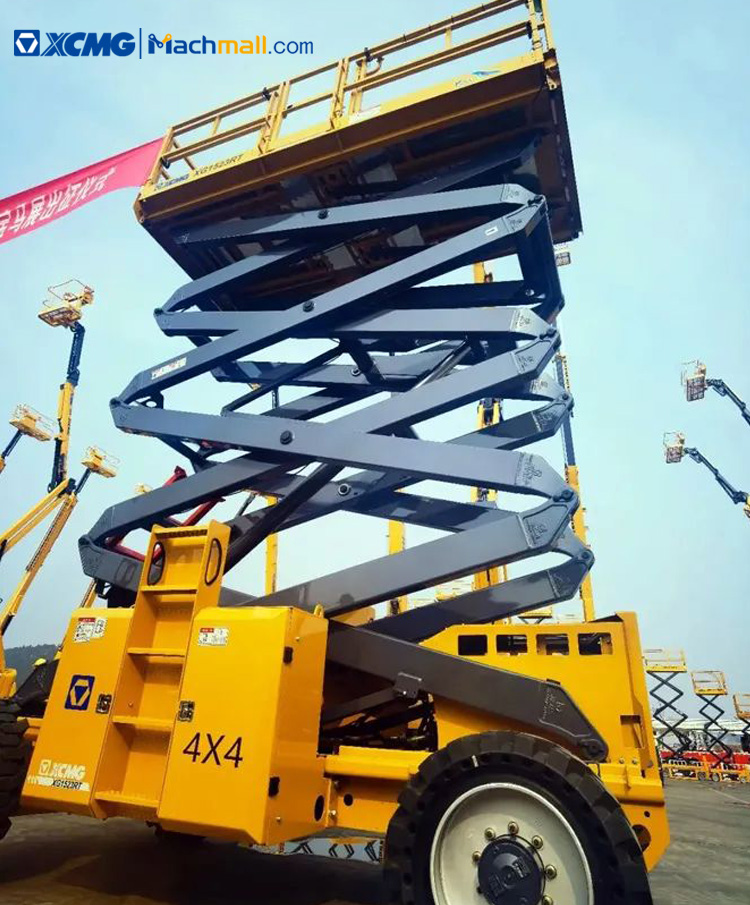

XCMG 15m 680kg diesel rough terrain scissor lift platform XG1523RT.
XCMG 15m 680kg diesel rough terrain scissor lift platform XG1523RT has a working height of 15m, a width of 2.3m, a rated load of 680kg and a maximum gradeability of 50%.
XCMG diesel rough terrain scissor lift XG1523RT has a large load and a wide platform, and is more suitable for installation of large loads and large objects and multi-person collaborative working occasions, such as fire ventilation pipeline, lighting, glass, curtain wall installation, paint spraying, and wall dressing.
XCMG rough terrain scissor lift advantage and features：
1，The working platform is scalable and extensible, with a larger working space, and it is more convenient to transport and shift with folding fence.
2，The maximum load capacity is 680kg, reaching the leading level in the industry.
3，The maximum speed is 6.1km/h, with 50% gradeability, making driving easier.
Main configuration:

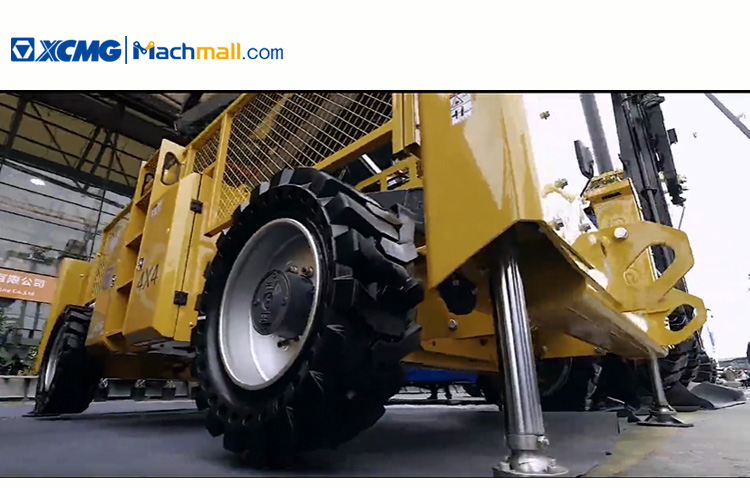

1、two-wheel steering,4×4 drive, auto-brake system,off-road solid rubber tires.
(1)The maximum speed is 6.1km/h;
(2)50% gradeability;
(3)the bottom of the chassis is provided of the standard transport forklift hole;
(4)off-road solid rubber tyre- large load capacity,smooth driving.
(5)Allow the platform to walk at full height with the loads.
(6)ABS(Automatic braking system). Automatic braking when stopping or parking on ramps.
2、boom
(1) Single luffing oil cylinder with 4 sets of scissor arm frame;
(2) High-strength steel -- the boom is light weight and high safety;
(3) Strength and stiffness matching -- to ensure superior reliability of the boom;
(4) Maintenance holder-- ensure maintenance safety.
3. Working platform
(1) The load capacity of the main platform is up to 680kg, and that of the secondary platform is up to 230kg;
(2) Length × width of working platform: 3.98 m ×1.83 m;
(3) Two-way extension sub-platform, the extension length is 1.45m and 1.15m respectively;
(4) Platform door self-locking;
(5) Platform guardrail is allowed to fold.
|
Item |
Parameters |
|
15m |
|
|
Max. platform height |
13m |
|
Overall length(with/without outriggers) |
4.9m/3.98m |
|
Overall width |
2.3m |
|
2.96m |
|
|
Overall height(platform with folded) |
2.28m |
|
Platform dimensions(L×W ) |
3.98m×1.83m |
|
1.45m/1.14m |
|
|
Platform extended dimensions |
6.6m×1.83m |
|
Min. Groud clearance |
0.23m |
|
Wheel base |
2.85 m |
|
680kg |
|
|
Extended Platform load capacity |
230 kg |
|
Max. Occupant capacity |
7 |
|
Min. Turning raduis(inner/outer) |
2.5m/5.6m |
|
6.1km/h |
|
|
Walking speed(lifting) |
1.1km/h |
|
lifting/declining speed |
45/45 sec |
|
Drive model |
4×4 |
|
Max. gradeability |
50% |
|
Maximum allowable working Angle |
2°/3° |
|
Tyre |
33×12-20 |
|
Engine |
Kubota V2403-M-DI |
|
Power /rpm |
36.0kW/2600rpm |
|
Hydraulic oil tank |
115L |
|
Diesel fuel tank |
115L |
|
total weigth |
7235 kg |
