Gaodetec GGP400/700/80/100DPI-D Cement Grout Mixer Equipment for Slurry Preparation Grouting



GGP400/700/80/100DPI-D
Specs & Compare
Details
Specifications
- Weight:1965.000kg
- Type:GGP400/700/80/100DPI-D
- Grouting Pump Pressure and Output:40bar@80L/min; 100bar@40L/min
- Mixer Volume:400L
- Agitator Volume:700L
- Dimension:2480×1960×1995mm
- Weight:1965kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Description

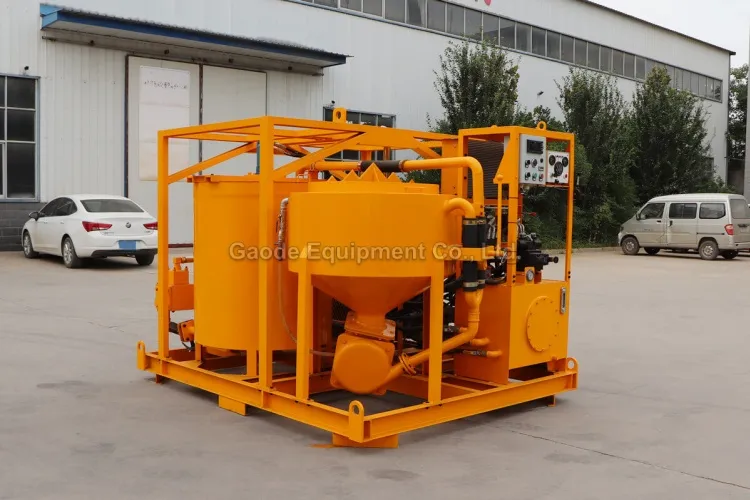

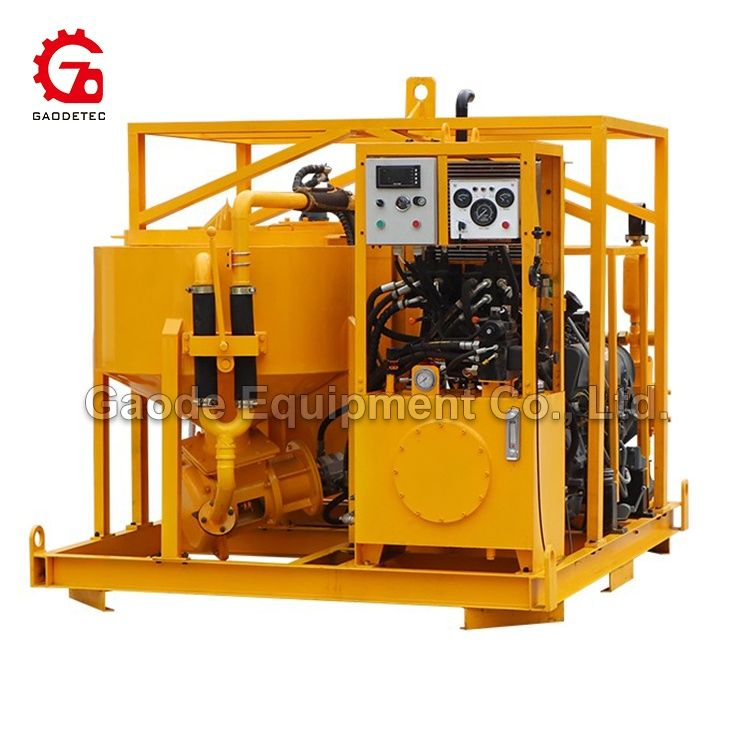

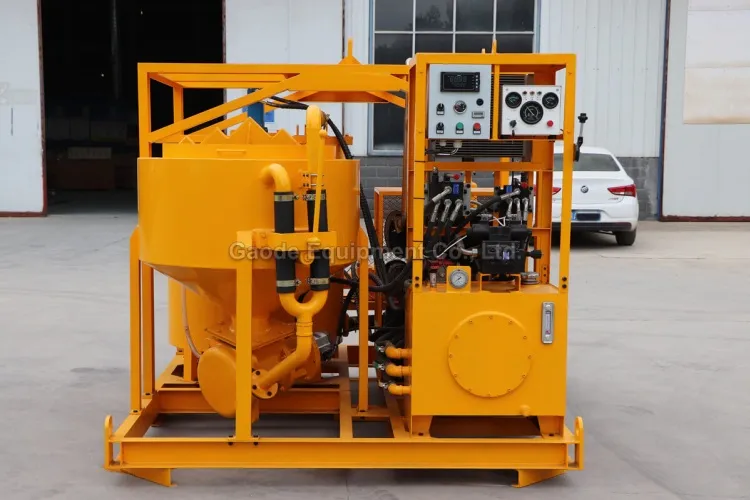

Gaodetec GGP400/700/80/100DPI-D Cement Grout Mixer Equipment for Slurry Preparation Grouting is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.



High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.
The features and advantages of this machine are as follows:
Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
Grouting pressure and displacement is adjustable.
The function switch between mixer and pulping machine is realized by using squeeze switch.
The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.
Full hydraulic drive, three cylinders air cooling diesel engine acted as universal grouting applications.
Easy to operate and maintain.
Up to 5mm particle size.
Air cooling and water cooling for the hydraulic.

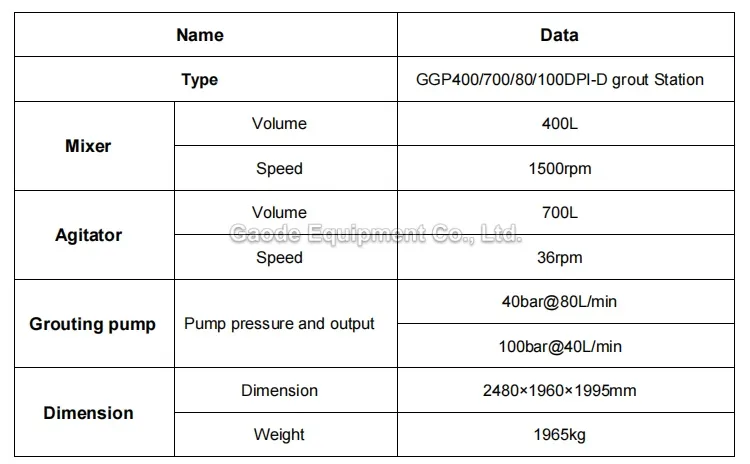

Parameters

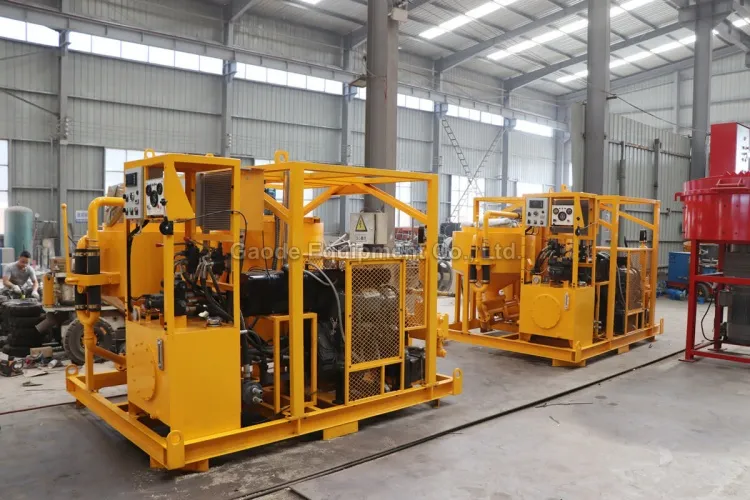

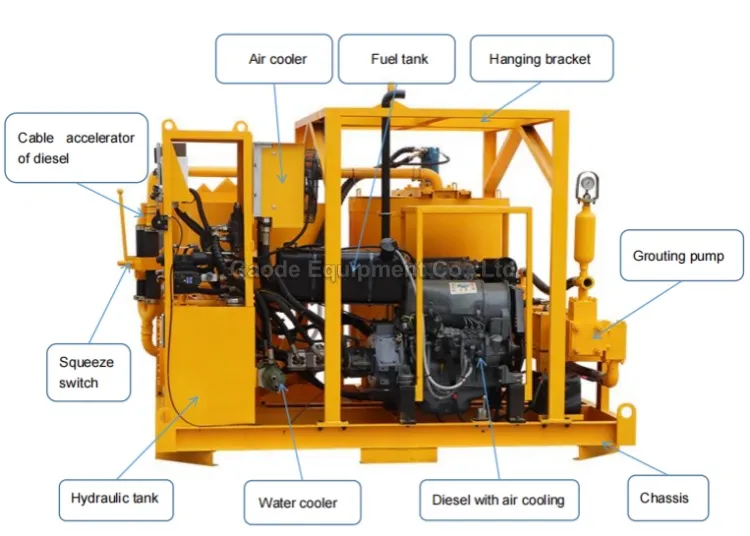

Details Images

Application
GGP400/700/80/100DPI-D Cement Grout Mixer Equipment for Slurry Preparation Grouting is mainly used to make and grout the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.

FAQ
1. Are you the manufacturer or a trade company?
We are the manufacturer for producing grout equipment.
And we have owned a trading company to do International Business,
So that:
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
2. Can you do the ODM or OEM? What is MOQ?
Yes, it is possible as discussed, MOQ: 1unit.
3. What about delivery time? How long can I get the machine after the order?
The production time is as fast as 30-60 working days if you customize the machine.
The standard machine in stock can be delivered as soon as possible after ordering.
4. How to pay for yourself?
50% down payment, then production starts, and the balance 50% paid before shipping.
If the machines are in stock, pay 100% then delivery.
Our Advantages

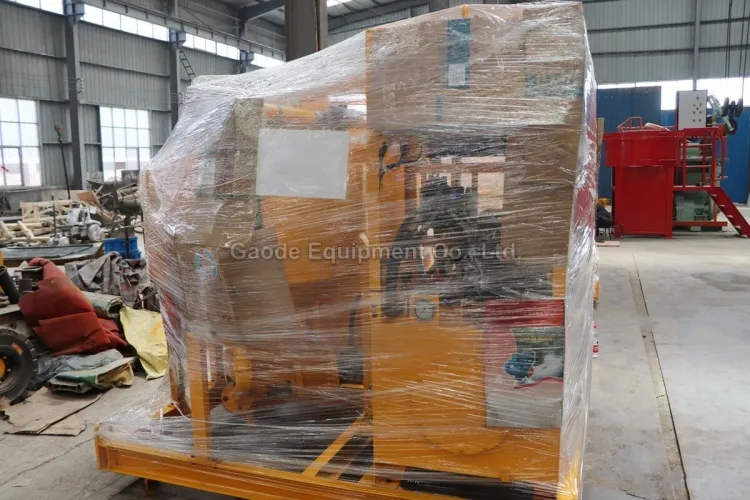

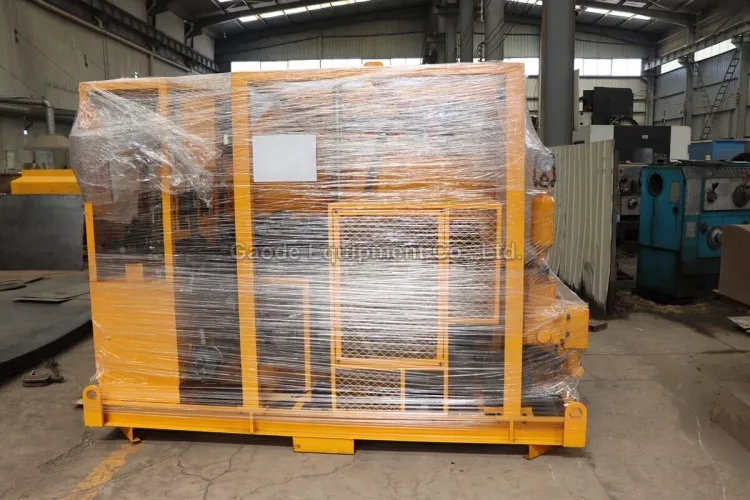

Packaging and Delivery





Contact Supplier
1. What is the project you are going to do?
2. What flow and pressure do you demand?
3. What's the water-cement ratio of the material you will mix and grout?
4. Regarding the engine, would you like an electric motor or a diesel engine? if electric motor, 3 phase, 380v, 50HZ is ok for you?
